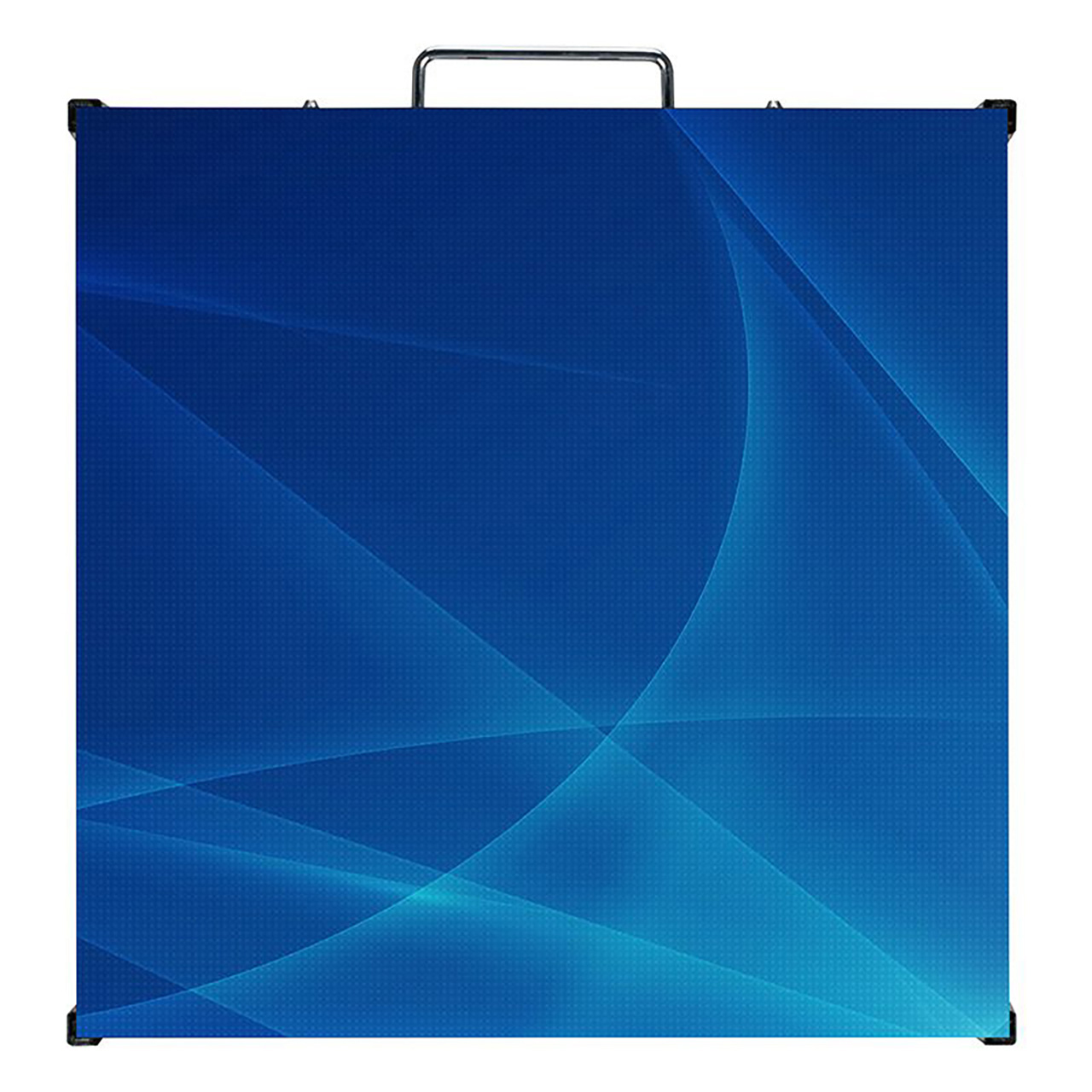

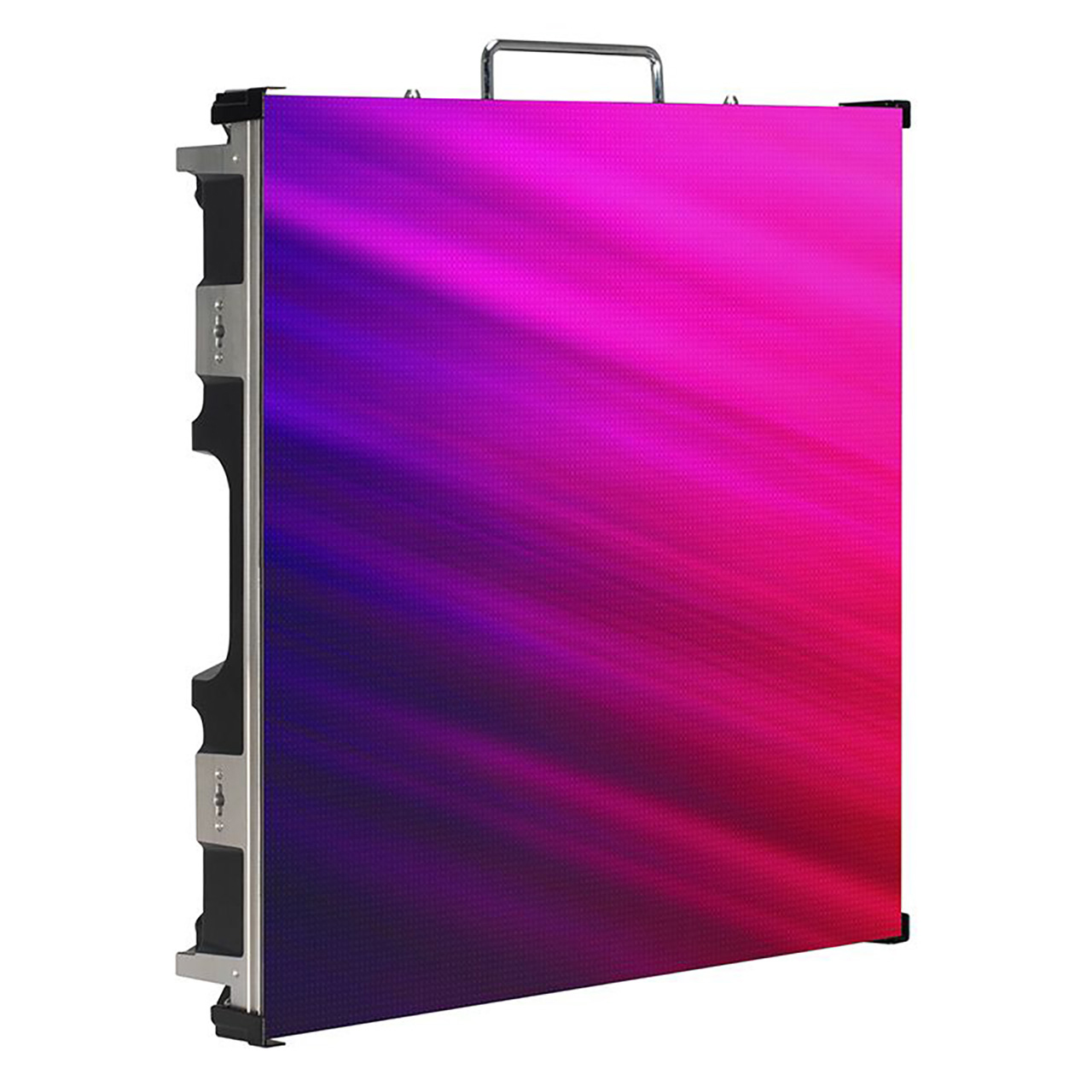

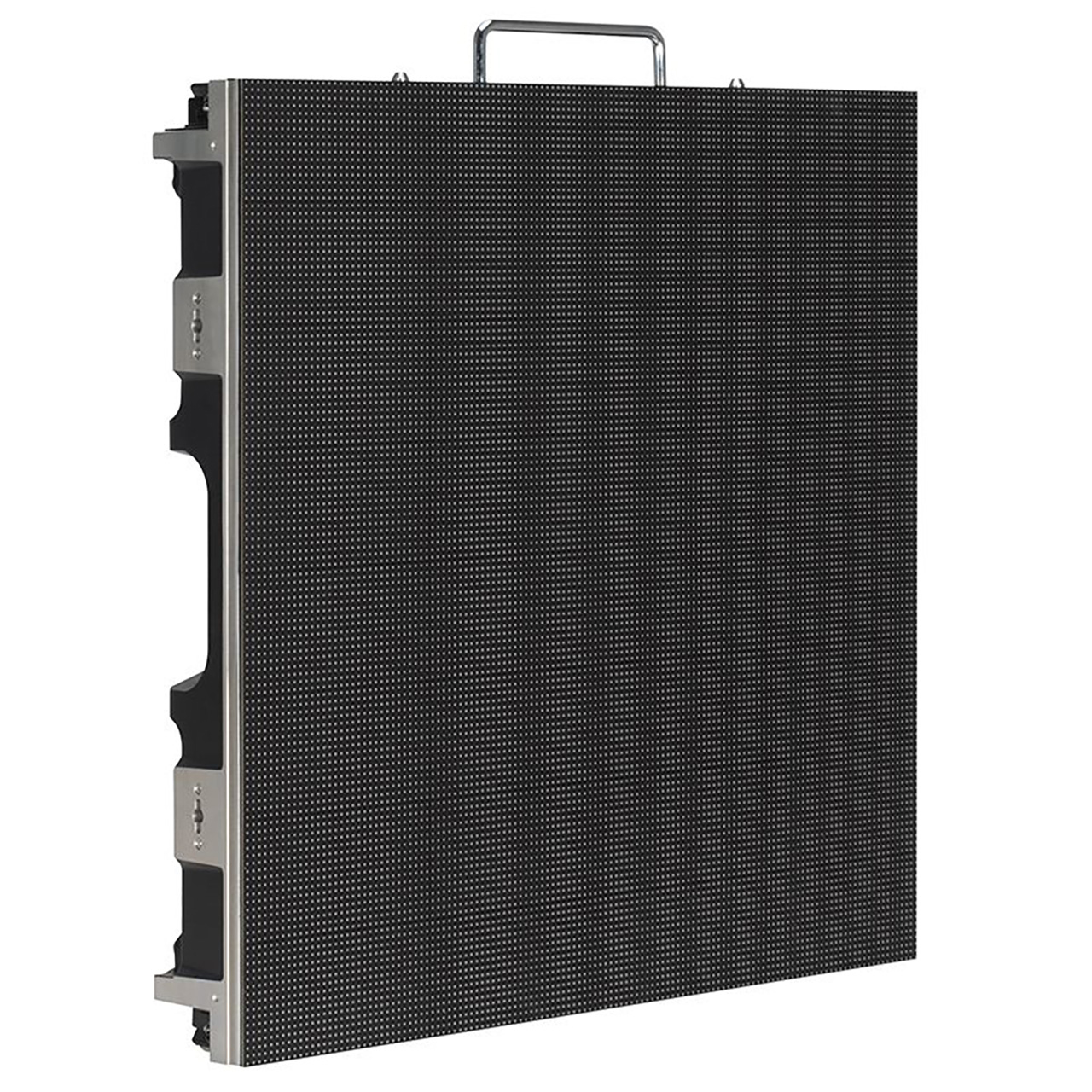

The ADJ Lighting EVS300 EVS3 is a rugged LED video panel solution designed for temporary installations that demand stunning visual displays. With a pixel pitch of 3.91mm and a configuration of a 3-in-1 RGB SMD2121 LED, the EVS3 delivers crisp and vibrant images with a pixel density of 128x128, totaling an impressive 65,536 pixels per square meter.

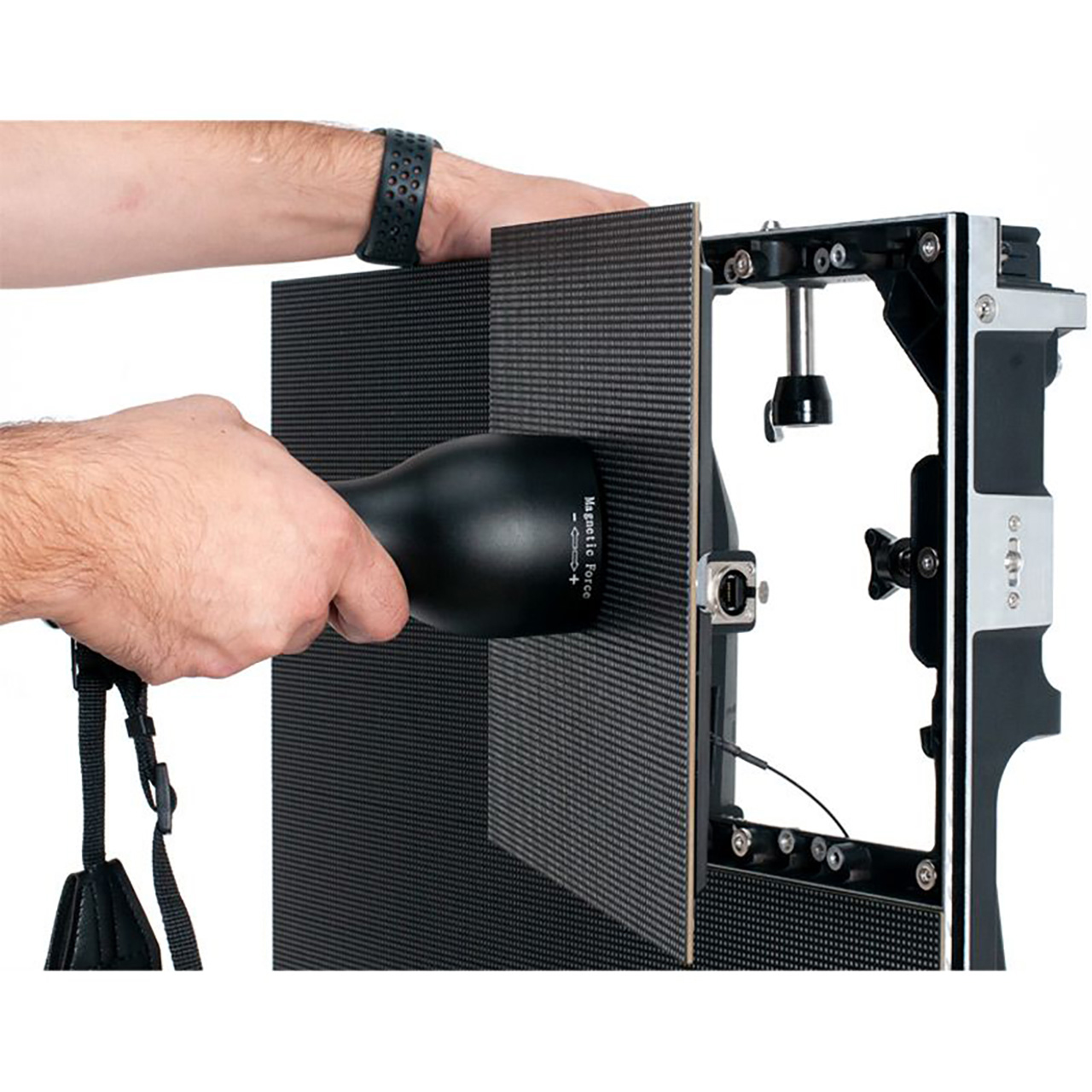

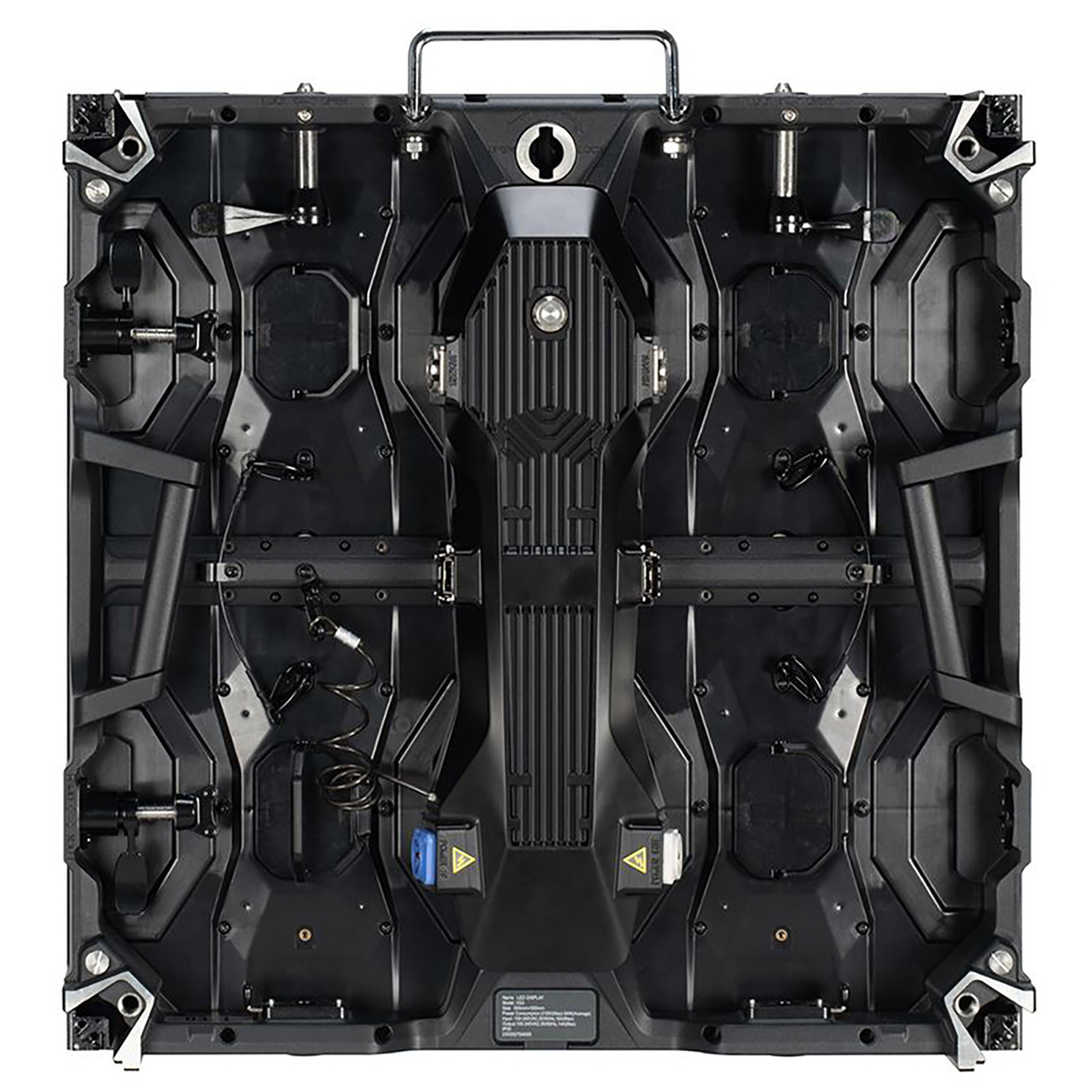

The EVS3 is built for convenience and durability, featuring front and rear serviceability with four easily replaceable video modules on each panel. Its compact size of 19.68" x 19.68" x 2.96" and lightweight construction weighing just 16.5 lbs make it highly portable and easy to handle.
Equipped with corner protectors for added durability during transport and setup, the EVS3 ensures that your investment remains protected. Its exceptional optical ratings include a brightness of 800 NITS and a wide viewing angle of 160° horizontal and 140° vertical at 9.75 ft. The EVS3 also offers versatile control options, supporting various input modes such as Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI.
Memory on Module (MOM) is a technology in select LED video panels, such as the ADJ EVS3, that stores critical calibration and configuration data directly within each module. This allows the panel to retain its unique settings-like brightness, color calibration, and uniformity-even when repositioned or replaced. Ideal for rental and touring applications, MOM ensures a fast setup and consistent visuals by eliminating the need for manual recalibration after assembly or maintenance.
Hang up to 20 EVS3 Video Panels vertically with the VSRB1 (VS1100) Rigging Bar. For added convenience, a range of optional accessories are available, including flight cases, rigging bars, support brackets, and video processors, allowing you to customize and enhance your installation according to your specific needs.
