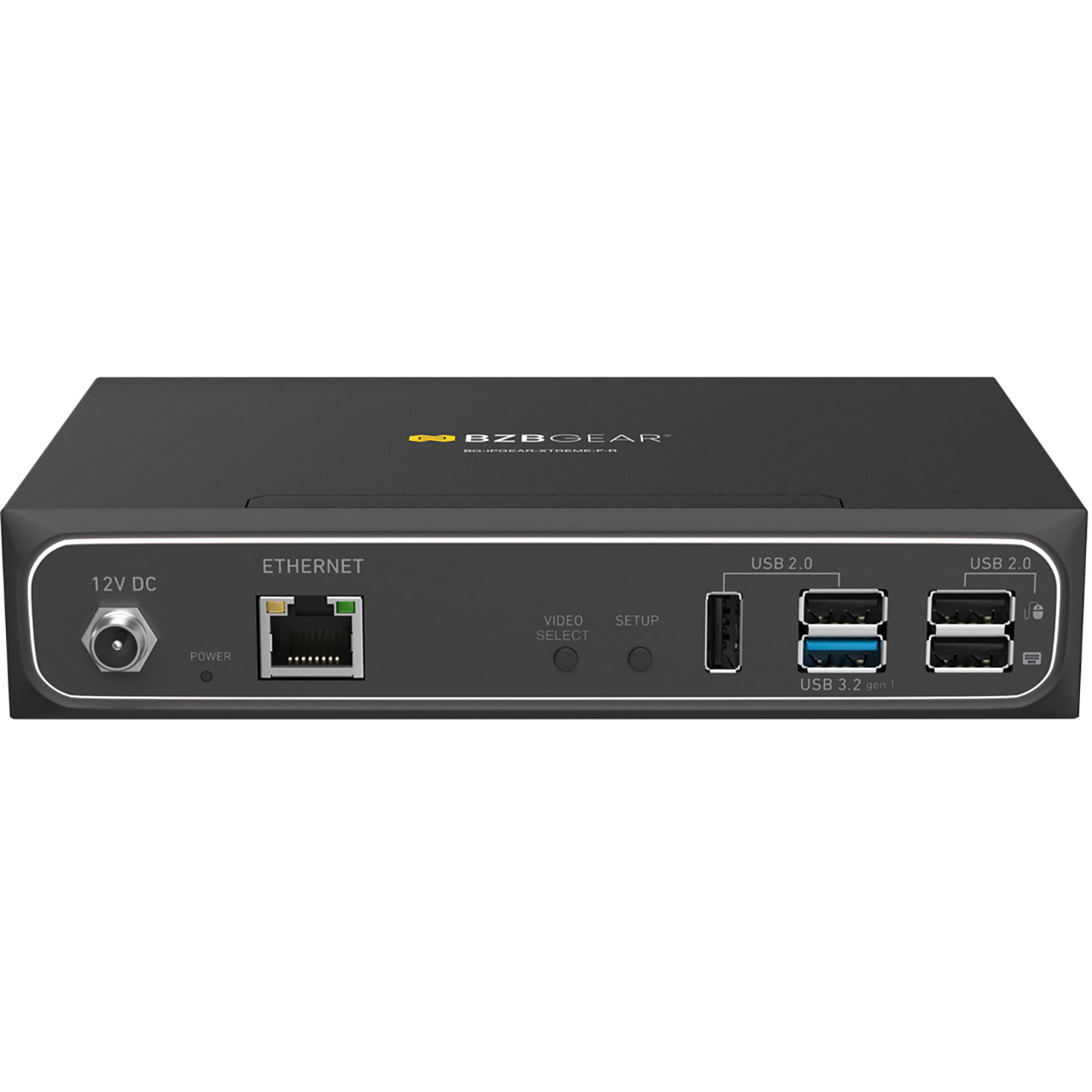

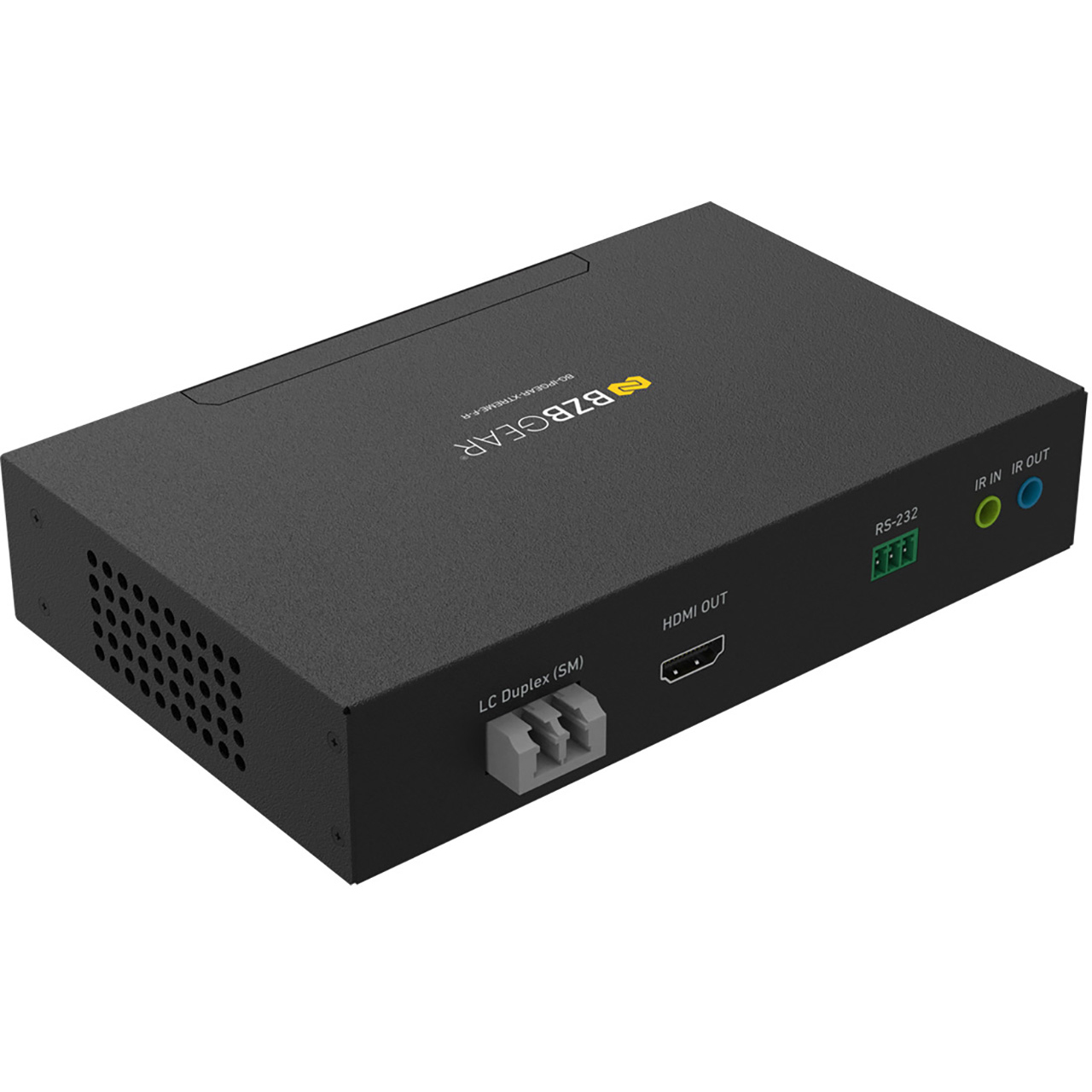

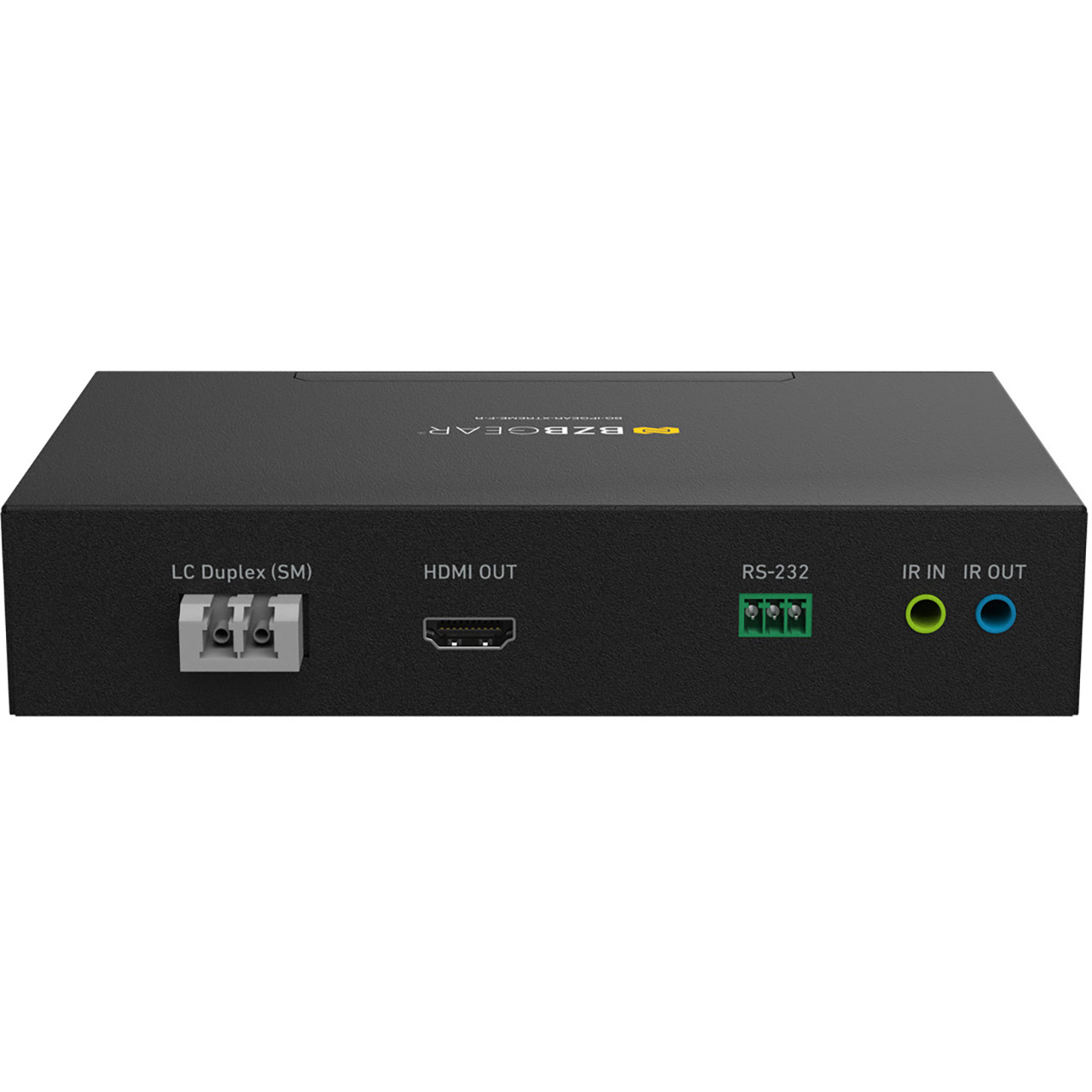

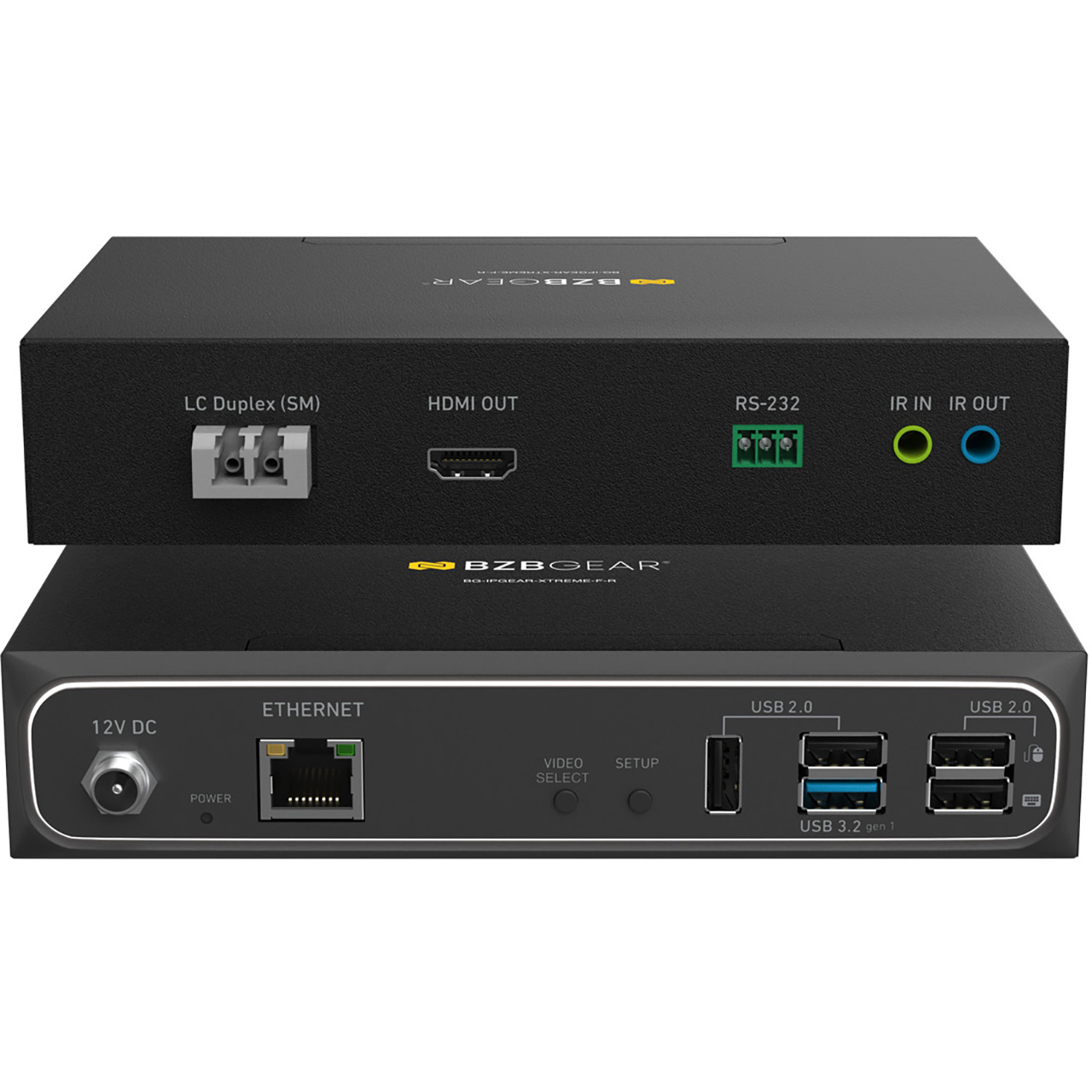

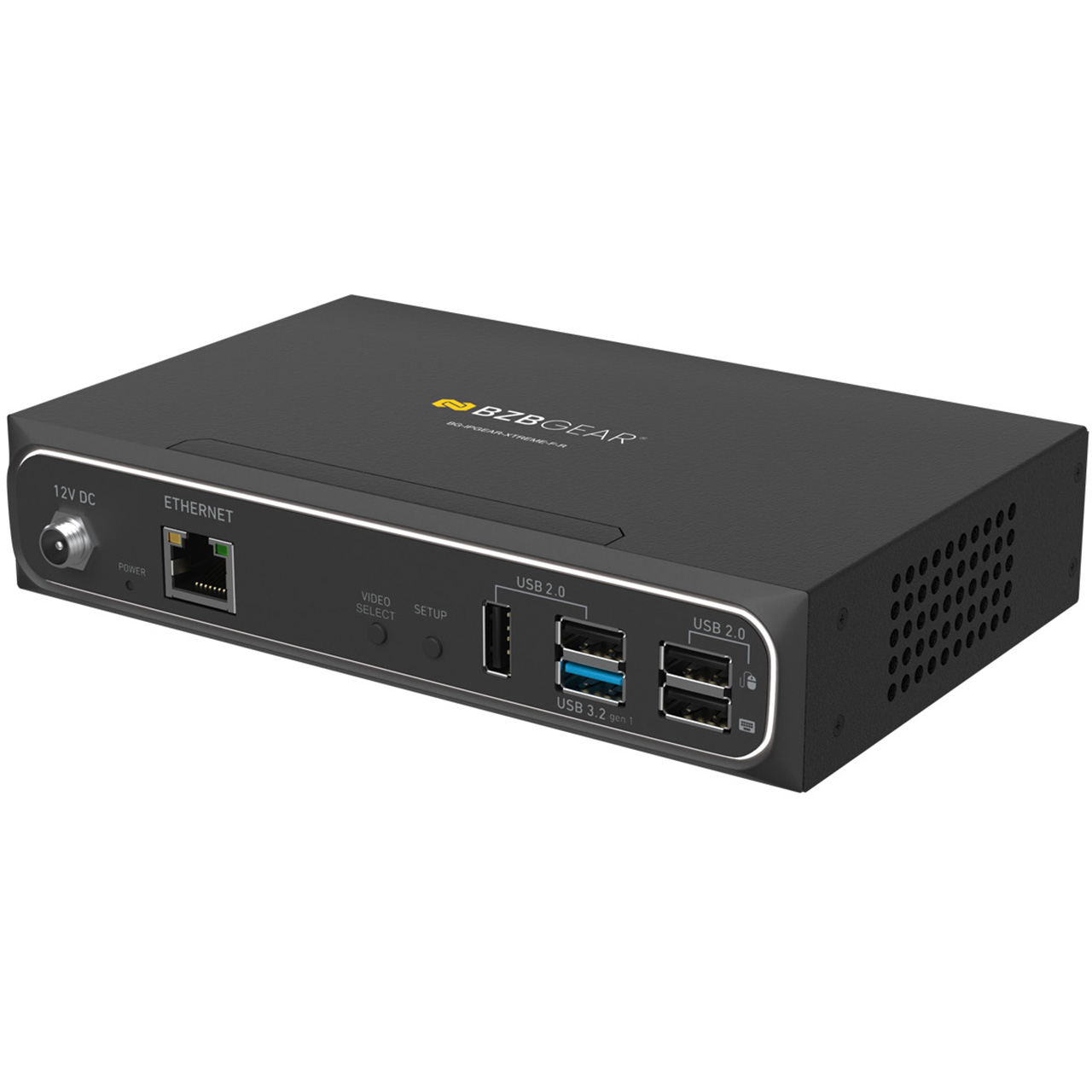

BZBGEAR BG-IPGEAR-XTREME-F-R HDMI 2.1 Over Fiber Extender Rx - Bi-Directional IR/RS-232/1G Ethernet/USB 3.1 & KVM

ITEM #: BG-IPGEARXTRM-FR MFG #: BG-IPGEAR-XTREME-F-R

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
BZBGEAR
Free Shipping with $49 Minimum Order

Our Price:

$1,999.00

Add to Wish ListLeasing Options
Availability: Preorder
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BG-IPGEAR-XTREME-F-R - Overview

The BZBGEAR BG-IPGEAR-XTREME-F-R is a cutting-edge HDMI 2.1 over fiber extender receiver designed for mission-critical AV transmission in broadcast, medical imaging, eSports, control rooms, and high-end home theater applications. With support for uncompressed 4K60 4:4:4 and visually lossless DSC-compressed 4K144 4:4:4, it also enables 8K@30Hz 4:4:4 transmission, ensuring next-generation video performance with zero-frame latency over distances up to 10km (6.25 miles) via single-mode fiber optic cable.

Beyond video, this extender provides full-featured connectivity with bi-directional IR, full-duplex RS-232, USB 3.1 KVM, eARC/ARC, and 1Gb Ethernet pass-through. With its interference-free fiber optic transmission, the BG-IPGEAR-XTREME-F is engineered to deliver the ultimate in high-resolution video, data, and control extension over long distances.

  • Features:

    • 8K & 4K HDR Support: Transmits up to 8K@30Hz 4:4:4, 4K@144Hz 4:4:4 DSC, and 4K@60Hz 4:4:4 uncompressed for pristine image quality
    • HDMI 2.1 & HDCP 2.3 Compliance: Ensures compatibility with gaming consoles, media servers, professional video switchers, and AV processors
    • 48Gbps Video Bandwidth (FRL 6): Provides high-speed, zero-latency transmission for next-generation AV applications
    • DisplayPort 1.4 (USB-C Alt Mode) Input Support: Connects directly to USB-C-enabled laptops, tablets, and workstations
    • Uncompressed 7.1ch HDMI Audio: Supports Dolby TrueHD, DTS-HD Master Audio, and LPCM formats
    • eARC/ARC Pass-Through: Enables lossless Dolby Atmos and DTS:X audio transmission from displays to AV receivers
    • 10km (6.25 miles) Transmission Over Single-Mode Fiber: Ideal for large-scale AV applications requiring interference-free signal extension
    • Fully Transparent EDID & HDCP Handling: Ensures seamless communication between sources and displays
    • CEC Pass-Through: Enables centralized device control for home automation and AV systems
    • Variable Refresh Rate (VRR) Support: Reduces screen tearing and stuttering for gaming and real-time rendering
    • Auto Low Latency Mode (ALLM): Automatically switches to low-latency mode for fast response times
    • Zero Latency, No Frame Drops: Fiber optic transmission eliminates traditional signal degradation issues
    • USB 3.1 Gen1/Gen2 KVM Support: Allows remote access to UVC cameras, storage devices, touchscreens, and input peripherals
    • Full-Duplex RS-232 Serial Control (115,200bps): Enables seamless integration with automation systems and AV matrix switchers
    • 1G Ethernet Pass-Through: Provides a dedicated network link for AV-over-IP solutions, reducing cabling complexity
    • Bi-Directional Wideband IR (20kHz-60kHz): Ensures remote control signal extension for IR-enabled devices
    • Advanced Compression Technology (DSC 1.2a): Delivers visually lossless video at ultra-high refresh rates without compromising detail


  • Item Includes:

    • 1x BZBGEAR BG-IPGEAR-XTREME-F-R HDMI 2.1 Over Fiber Extender Rx
