ADJ NVX111 Novastar VX1000 Video Processor/Video Control Box - 2x HDMI/2x DVI/1x 3G-SDI/1x 10G Fiber Input

Name: ADJ NVX111 Novastar VX1000 Video Processor/Video Control Box - 2x HDMI/2x DVI/1x 3G-SDI/1x 10G Fiber Input
Brand: ADJ
SKU: AMDJ-NVX111
Price: 2799.99 USD
Availability: InStock

ITEM #: AMDJ-NVX111 MFG #: NVX111

ADJ

List Price:

$3,999.95

Our Price:

$2,799.99

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NVX111 - Overview

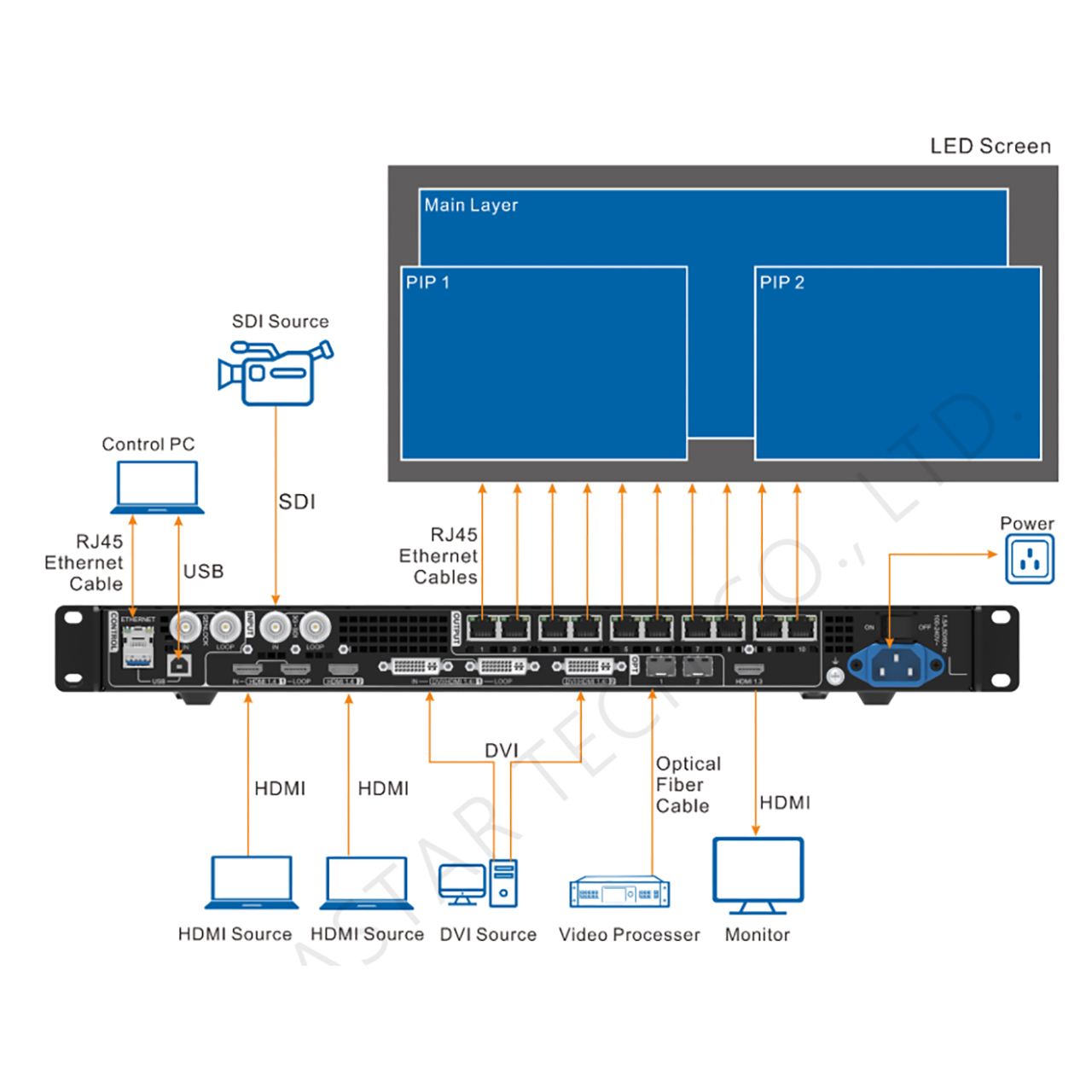

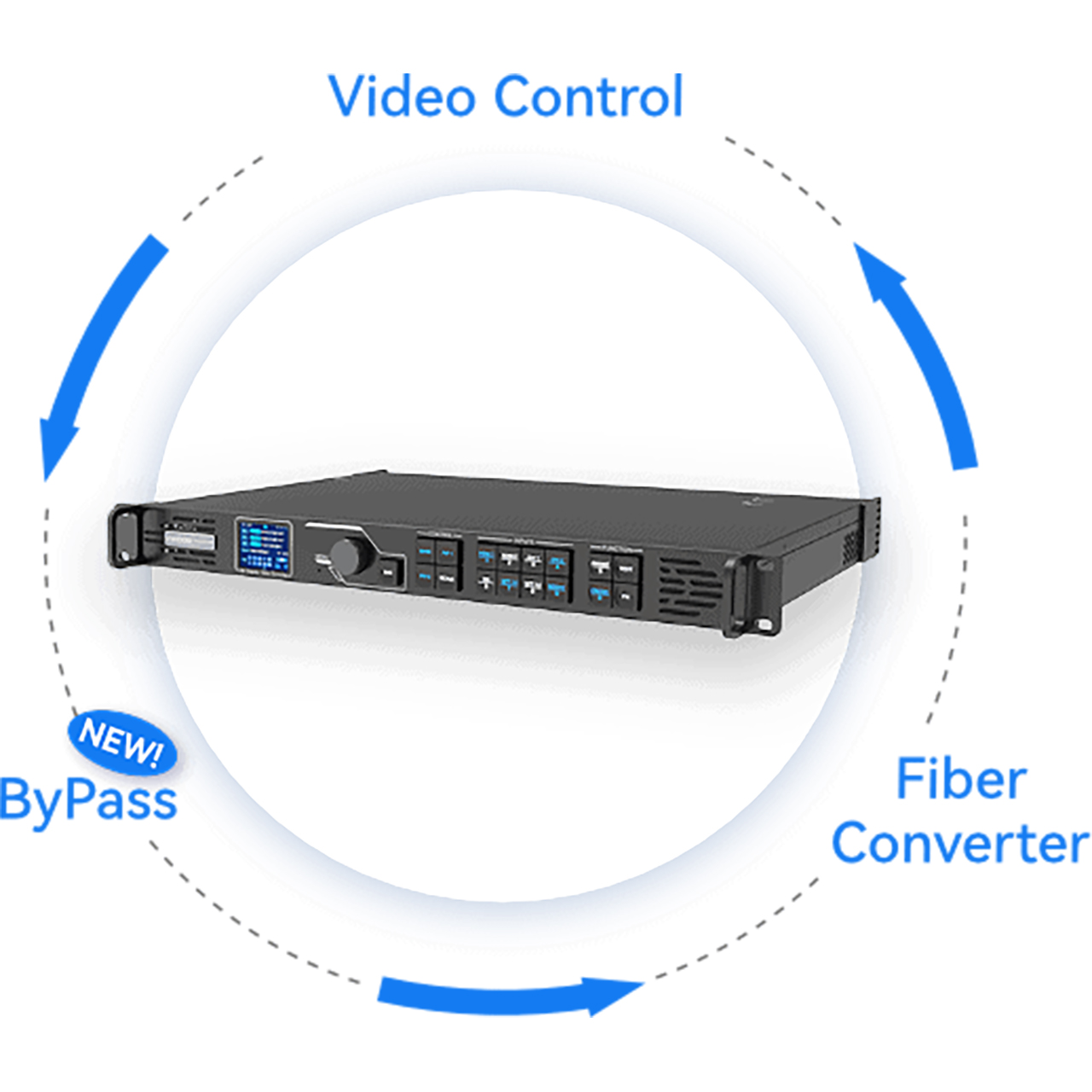

The ADJ VX1000 features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX1000 unit can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels, respectively, which is ideal for ultra-wide and ultra-high LED screen applications.

The VX1000 is capable of receiving a variety of video signals and processing high-resolution 4K×1K@60Hz images. In addition, the device features stepless output scaling, low latency, 3D, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

What's more, the VX1000 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your in-field operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.

Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

Features:
- Low Latency: Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
- Output Synchronization: An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
- Mosaic Input Source Supported: The mosaic source is composed of several input connectors of the same type.
- All-Round Color Adjustment: Input source and LED screen color adjustment supported, including brightness, contrast, saturation, hue and Gamma
- Pixel Level Brightness And Chroma Calibration: Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
- Multiple Operation Modes: Control the device as you wish via V-Can, NovaLCT or device front panel knob and buttons.
- 3D Function: Work with the EMT200 3D emitter and matched 3D glasses to present a 3D visual experience.
Specifications:
- 1x HDMI 1.4 (IN & LOOP)
- 1x HDMI 1.4
- 1x DVI (IN & LOOP)
- 1x DVI
- 1x 3G-SDI (IN & LOOP)
- 1x 10G optical fiber port (OPT1)

  Output Connectors
- 10x Gigabit Ethernet ports (A single device unit drives up to 6.5 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.)
- 2x Fiber outputs
  - OPT 1 copies the output on 10 Ethernet ports.
  - OPT 2 copies or backs up the output on 10 Ethernet ports.
- 1x HDMI 1.3 For Monitoring or Video Output

  Audio Input And Output
- Audio input accompanied with HDMI input source
- Audio output via a multifunction card
- Output volume adjustment supported

  Electrical Parameters
- Power Connector: 100-240V~, 1.5A, 50/60Hz
- Rated Power Consumption: 28W

  General
- Dimensions(LxWxH): 19.04" x 13.83" x 1.98" (483.6 + 351.2 + 50.1 mm)
- Net Weight: 8.82lbs (4kg)
- Operating Temp: 32° to 113°F / 0° to 45°C
- Operating Humidity: 20% RH to 90% RH, non-condensing
- Storage Temp: -4° to 158°F / -20° to 70°C
- Storage Humidity: 10% RH to 95% RH, non-condensing
Warranty:
- 2 Year Warranty
GTIN:
0810087370893

NVX111 - Recommended Accessories

ADJ VS1C Vision Series 19.68 x 9.8 Inch Curved LED Accessory Panel - 1.95mm Pixel Pitch and 4-in-1 MiniLED Configuration
AMDJ-VS1C
Our Price: $2,149.99
ADJ VS1 Flex45 Vision Series 19.68 x 19.68 Inch 1500 NITS Flexible Video Panel - 1.95mm Pixel Pitch and 4-in-1 MiniLEDs
AMDJ-VS1-FLEX45
Our Price: $2,259.99
ADJ EVS300 EVS3 Video Panel with 3-in-1 RGB SMD2121 LED Configuration - Front and Rear Serviceable - 3.91mm Pixel Pitch
AMDJ-EVS300
Our Price: $899.99
Novastar VX600 All-In-One Video Processing Controller with 6x RJ45 / 2x 10G OPT / 1x HDMI1.3 Outputs
NVA-VX600
Our Price: $2,399.99
Connectronics CAT6A Snagless Molded 600MHz UTP 10 Gigabit Ethernet Patch Cable - 50 Foot - Black
CAT6A-050-BK
Our Price: $19.95
Connectronics VGA Male-Male Cable 10ft
VGA-MM-10
Our Price: $8.95
Connectronics CAT6A Snagless Molded 600MHz UTP 10 Gigabit Ethernet Patch Cable - 10 Foot - Black
CAT6A-010-BK
Our Price: $7.95
Connectronics ULTRA High Speed 8K HDMI 2.1 AM/AM Cable - 6 Foot
HDMI-21-06FT
Our Price: $7.49
Connectronics Dual Link DVI-D Male to DVI-D Male Cable 6Ft
DVID-DVID-6
Our Price: $7.99
Novastar MCTRL300 Video Processor Control Box for LED Video Panel Systems
NVA-MCTRL300
Our Price: $919.99
Laird NEUTRIK powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 50 Foot
PWRCN-ACIN-50
Our Price: $121.49
Laird NEUTRIK powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 10 Foot
PWRCN20-AB-10
Our Price: $45.49
Fehr Brothers SAFE-1 Safety Cable with 5/16 Inch Springhook - Galvanized - 30 Inch
SAFE-1
Our Price: $7.79
Chauvet CLP-02 - Heavy Duty Clamp
CHVT-CLP-02
Our Price: $8.80
Odyssey LTP2 12 Ft. Lighting Stand with 1 Cross Bar
ODSY-LTP2
Our Price: $129.95
Laird Stage Systems Heavy Duty 15-Amp 12/3 AC Power Extension Cord w/ Quad Box - 25 Foot
SSPC-25
Our Price: $198.49
Morley MHUMX Hum Exterminator
EB-HUMX
Our Price: $89.00

NVX111 - Reviews

NVX111 - Attachments

AMDJ-NVX111 Spec Sheet
AMDJ-NVX111 User Manual
