ADJ HEX444 40 HEX Panel IP Indoor/Outdoor Panel Light Fixture with 40x 20W RGBAL+UV LEDs - IP65 Rated

ITEM #: AMDJ-HEX444 MFG #: HEX444

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,499.95

Our Price:

$1,799.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


HEX444 - Overview

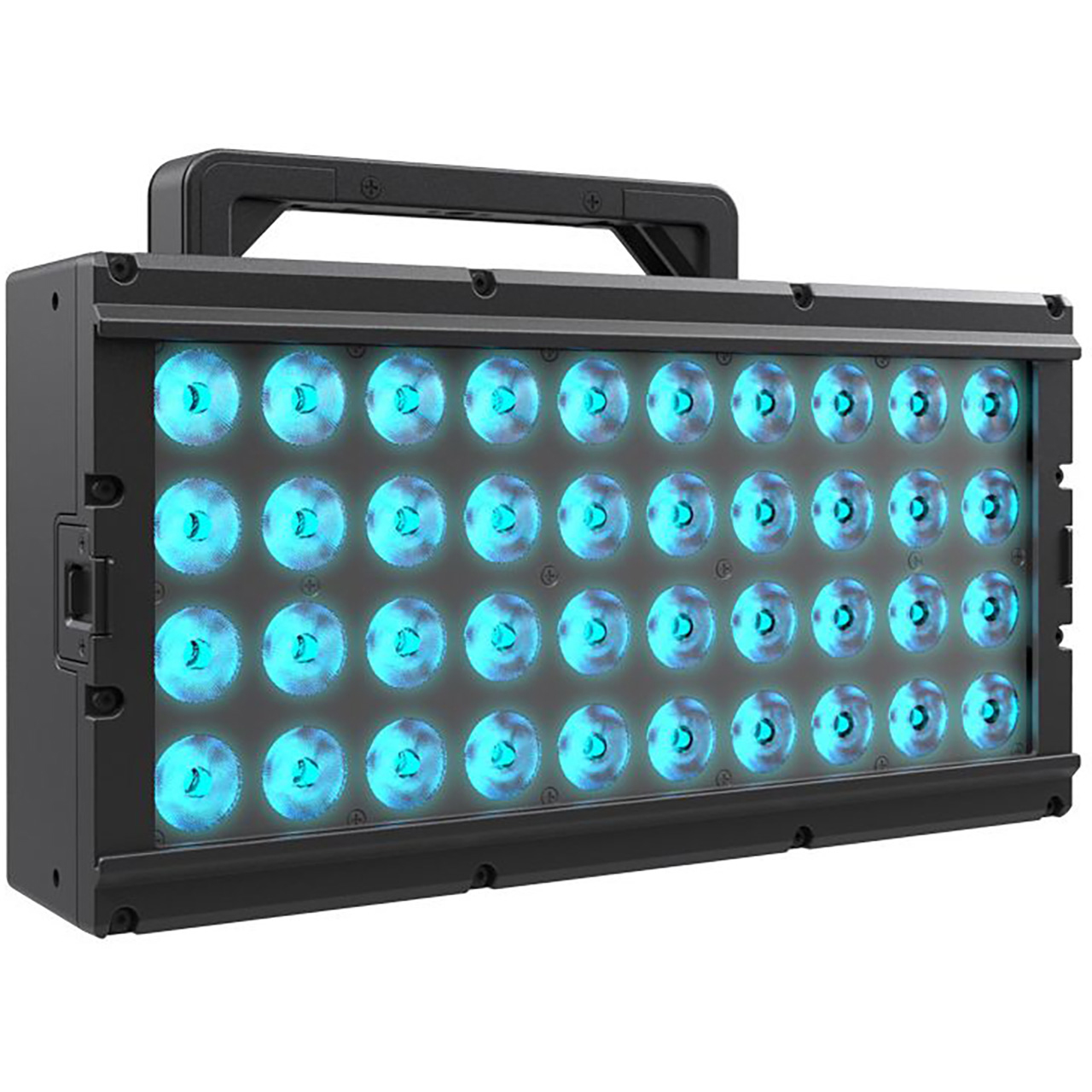

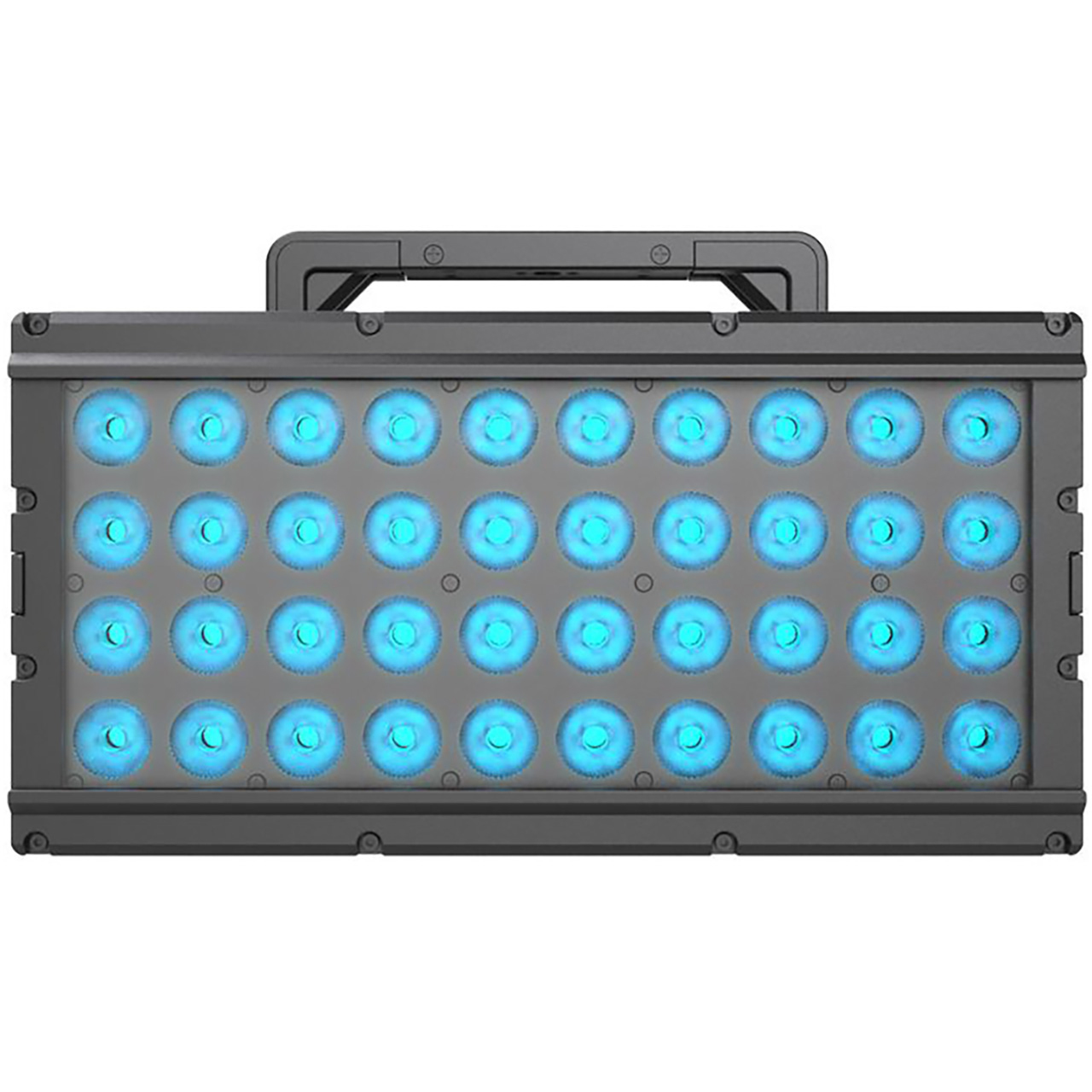

The ADJ HEX444 40 HEX Panel IP is a versatile, IP65-rated fixture designed for both indoor and outdoor applications as a wash light, blinder, or color strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal, black housing is IP65-rated, offering protection against dust, sand, moisture, and liquids. There is a channel system on the front of the unit that allows for light shaping filters to be easily and conveniently added to the fixture.

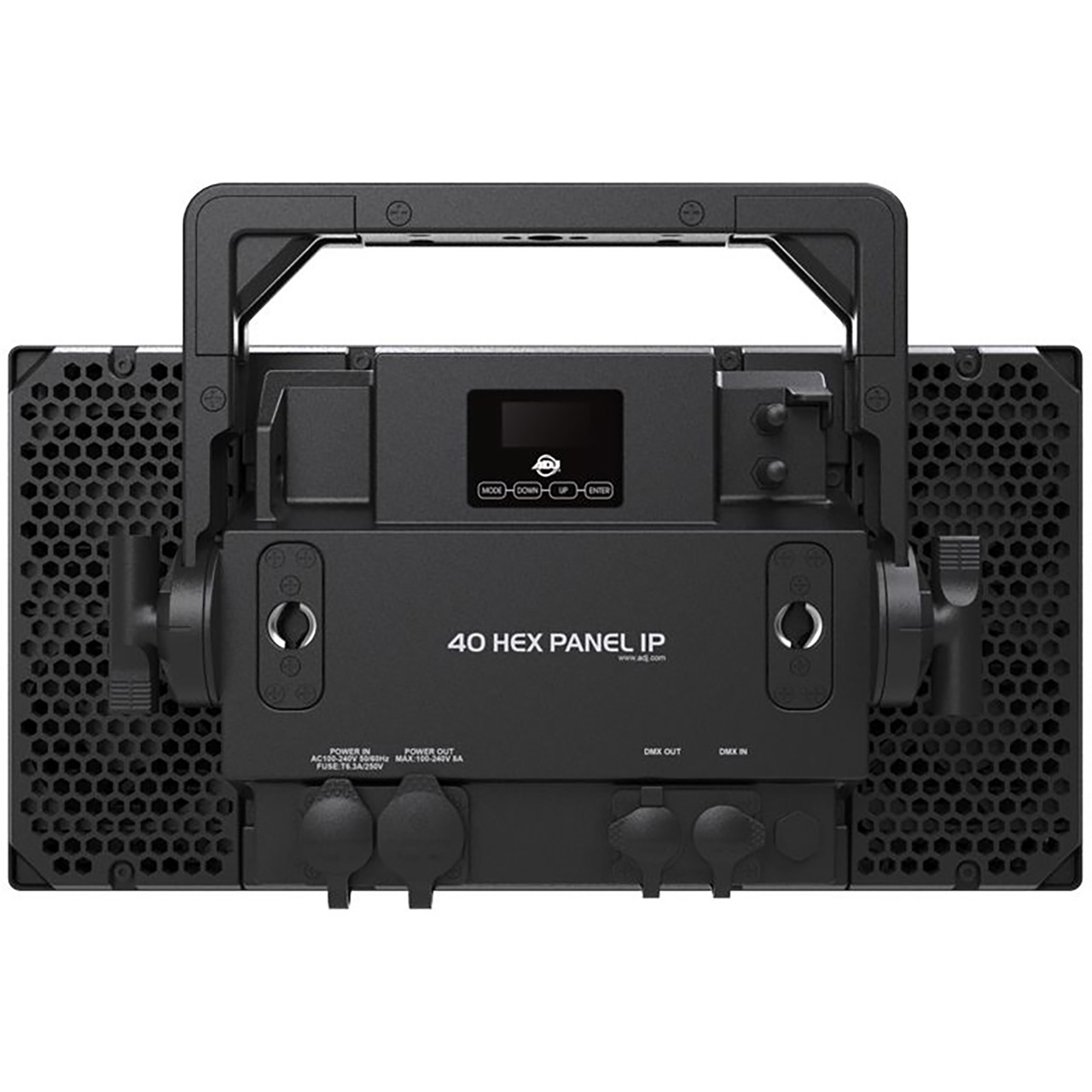

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections, enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons ensures easy access to the fixture's functions.

Perfect for film and broadcast, the 40 HEX Panel IP is flicker-free and offers various DMX control modes, dimming options, and LED refresh rate settings. Aria X2 wireless management system is built-in to the fixture for over the air firmware/software updates.

  • Features:

    • IP65 rated - protects from dust, sand, moister, water
    • Aria X2 Management System
    • All metal construction with black housing
    • Includes heavy duty bracket
    • Flicker free for film and broadcast
    • Linear variable white temperature control

  • Specifications:

      Light Source
    • LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr)
    • Beam Angle: X = 28.61°, Y = 23.72°
    • Field Angle: X = 50.82°, Y = 44.95°
    • Lumens: 19,590

      Construction
    • Display: OLED display with function buttons
    • All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications

      Colors/GOBOs
    • 11 Color/Gobo combinations (2 Beam Reducers)
    • Color/Gobo Shake

      Control
    • 24x DMX control modes; 6ch 1G/12Ch 1G/15Ch1G/16Ch 1G/20Ch 1G/24Ch 1G/12Ch 2G/20Ch 2G/24Ch 2G/27Ch 2G/29Ch 2G/36Ch 2G/30Ch 5G/40Ch 5G/60Ch 5G/63Ch 5G/68Ch 5G/72Ch 5G/60Ch 10G/70Ch 10G/120Ch 10G/123Ch 10G/128Ch 10G & 132Ch 10G modes
    • 4x Control Groups: 1/2/5 & 10 Groups
    • 0% - 100% Dimming + smooth 16-bit Dimming
    • 5x Dimming Curve Modes
    • Control Mode: DMX512, RDM (Remote Device Management)
    • LED Refresh Rate: Multiple settings
    • With Wired Digital Communication Network

      Connections
    • Data: IP65 Locking 5-pin DMX In/Out
    • Power: IP65 Locking Power In/Out

      Electrical
    • 100V - 240V 50Hz/60Hz (Auto Sensing)
    • Max Power Consumption: 513W @120V; 492W @220V
    • Max Power Link: 1pcs @120V; 4pcs @230V
    • Fuse Protected: T4A/250V Glass Fuse (5*20MM)

      Size/Weight
    • Length: 16.42" (417mm)
    • Width: 11.7" (296.8mm)
    • Height: 8.35" (212mm)
    • Weight: 24.58lbs (11.15kg)

      Approvals
    • CE
    • cETLus (Pending)
    • IP65

  • Item Includes:

    • 1x HEX444 Panel Light Fixture
    • 1x IP65 Locking Power Cable
    • 1x Frost Filter
    • 1x Safety Cable

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0810087373818
