ADJ HEX560 5PX HEX Pearl Versatile LED Par Fixture - 5 x 12W / 6-in-1 HEX LEDs

ITEM #: AMDJ-HEX560 MFG #: HEX560

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AMDJ-HEX560

HEX560 - Overview

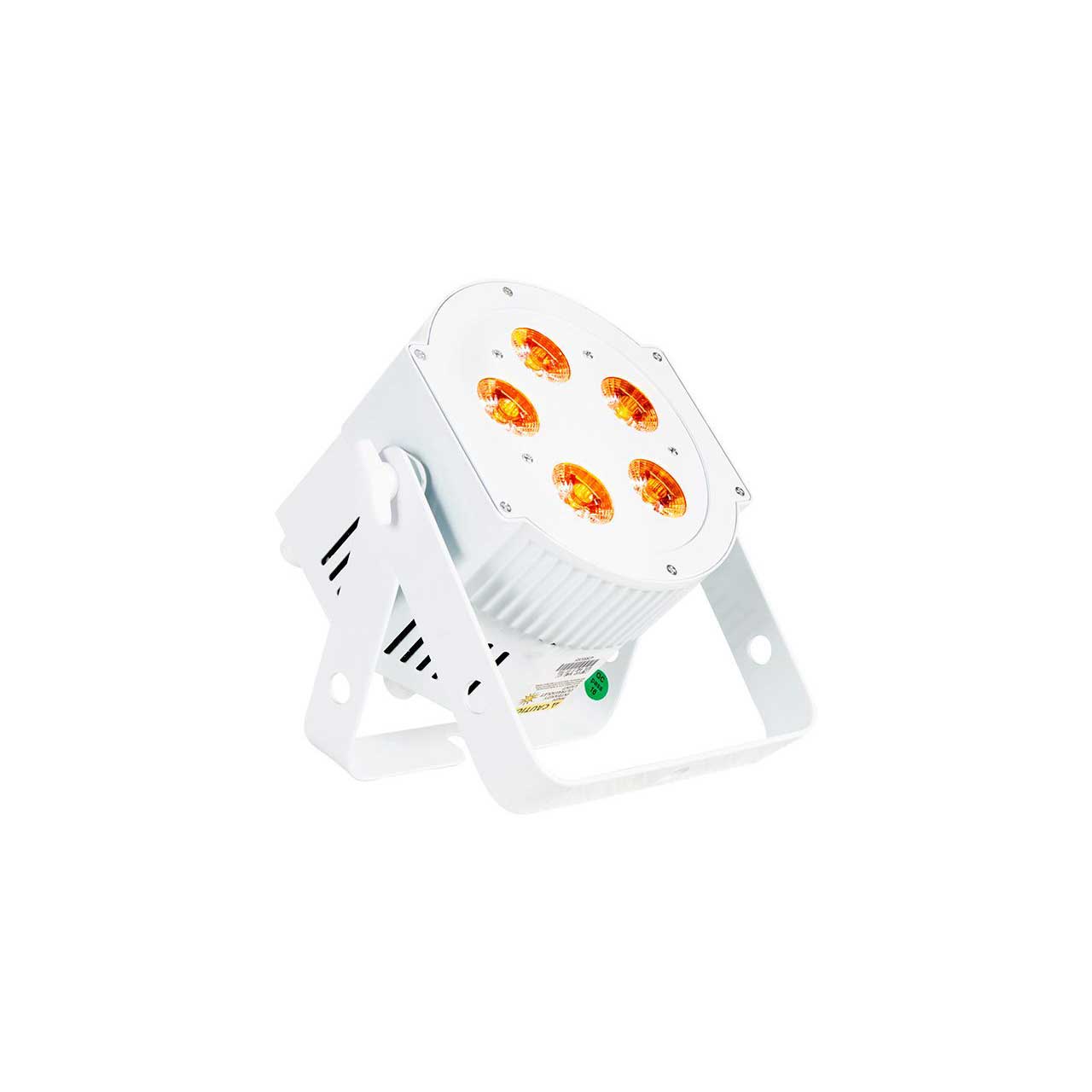

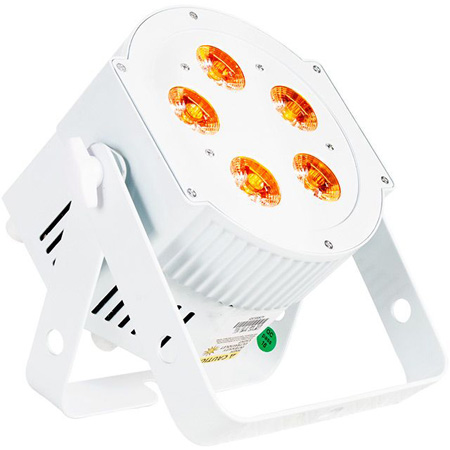

The ADJ 5PX HEX Pearl is a versatile LED Par fixture with 5x 12-Watt, 6-IN-1 HEX LEDs made from all metal white exterior housing. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it's great for uplighting a venue or used as a stage wash.

5PX HEX Pearl professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 8 units together via the fixtures built-in locking power In/Out connections. Users may choice 3-pin or 5-pin DMX connectors

The 5PX HEX Pearl is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively, the fixture may be operated via a DMX controller or the unit's built-in programs.

  • Features:

    • Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
    • Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
    • Scissor yoke + rubber feet allows fixture to be hung or set on the ground
    • Flicker Free operation (No flickering on camera)
    • Smooth RGBAW + UV color mixing
    • Metal white exterior housing

  • Specifications:

    • Optical:
    • Light Source: 5x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
    • LED life rated at approximately 50,000 hrs.
    • Beam angle: 30-degree

      Control:

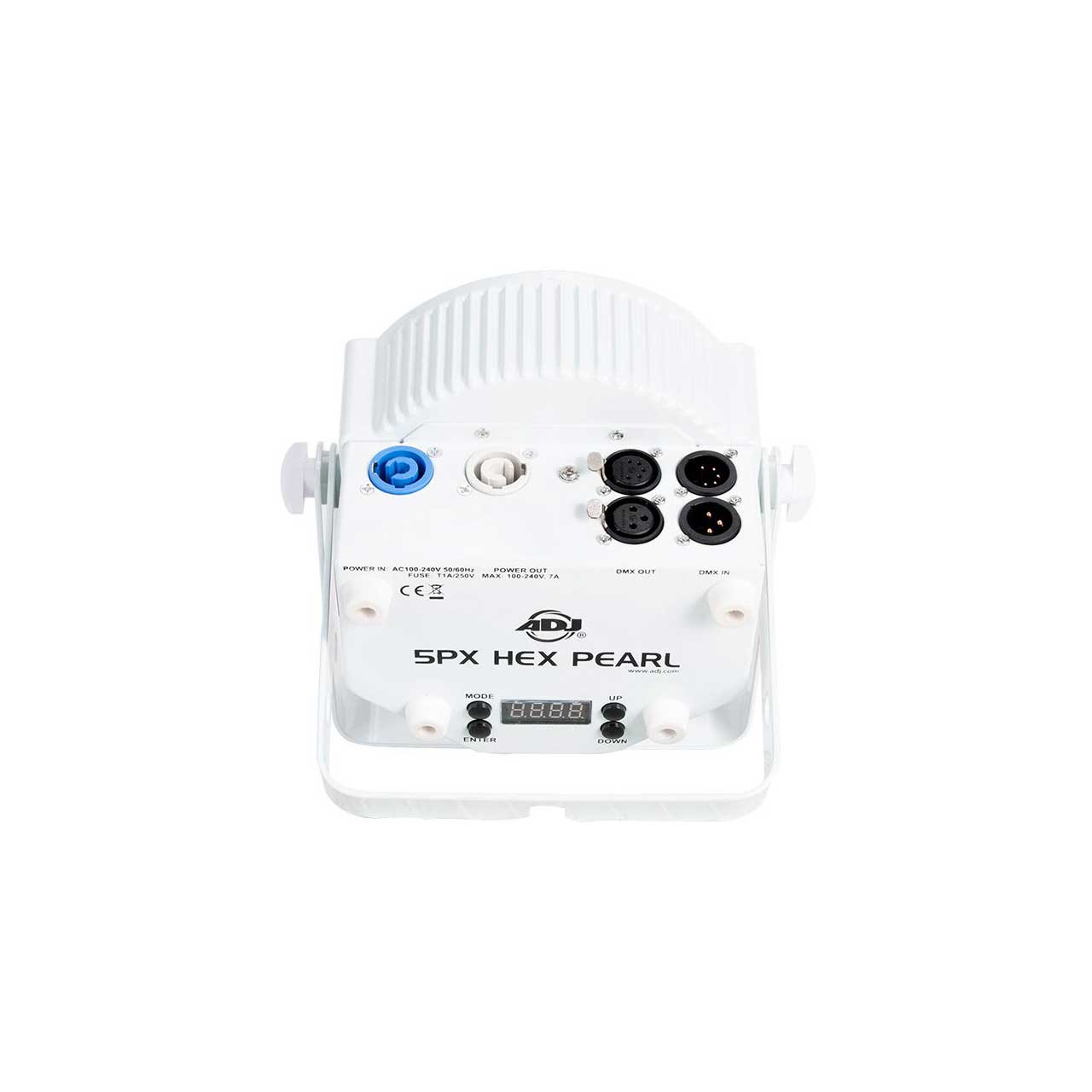

    • 4-button, DMX digital display on rear panel
    • Compatible with Dotz Par RF wireless remote control (sold separately)
    • 7 Built-In Programs
    • 63 built-in Color Macros
    • 4 DMX Modes: 6, 7, 8, & 12 channel
    • 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
    • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
    • LED pulse and strobe effect
    • Electronic Dimming: 0 - 100%

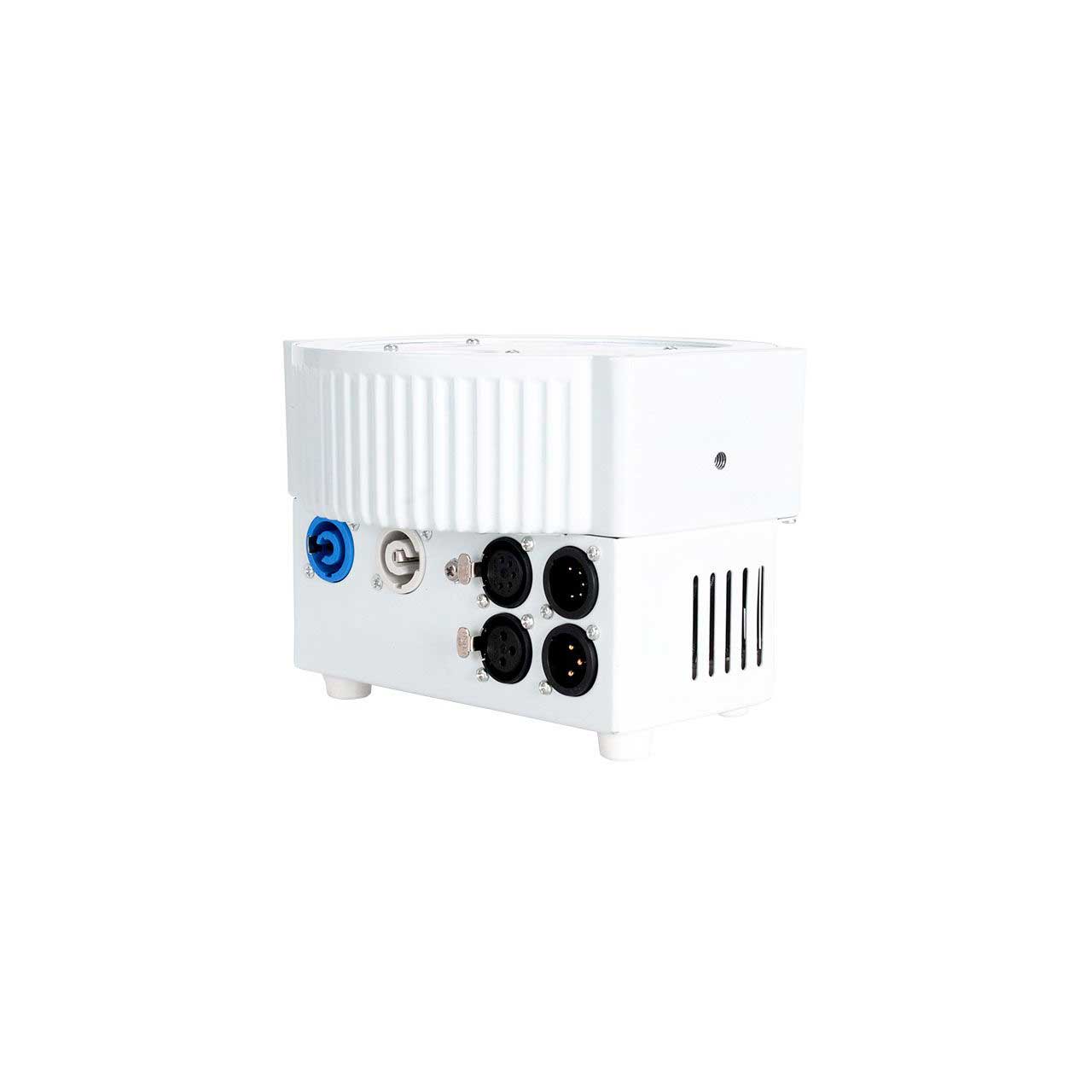

      Connections:
    • Data linkable via 3-pin or 5-pin DMX connections
    • Daisy chain power from locking power In/Out connections
    • With Wired Digital Communication Network

      Electrical:
    • Multi-voltage operation: AC 100-240V, 50/60Hz

      Dimensions:
    • Dimensions (LxWxH): 4.5"x 8.25"x 8.75"/ 114x 208x 222mm
    • Weight: 5.8 lbs. / 2.6 kgs

  • Item Includes:

    • 1x ADJ 5PX HEX Pearl
    • 1x Locking power to Edison cable
    • 1x Scissor yoke

  • Warranty:

    • 2 Years

  • GTIN:

    0818651025408
