Amino H200 High Definition 4K PoE Ruggedized IPTV Encoder/Media Player - B-Stock (Open Box/Used)

ITEM #: AMINO-H200-BSTK MFG #: AMINO-H200-BSTK

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AMINO-H200-BSTK

AMINO-H200-BSTK - Overview

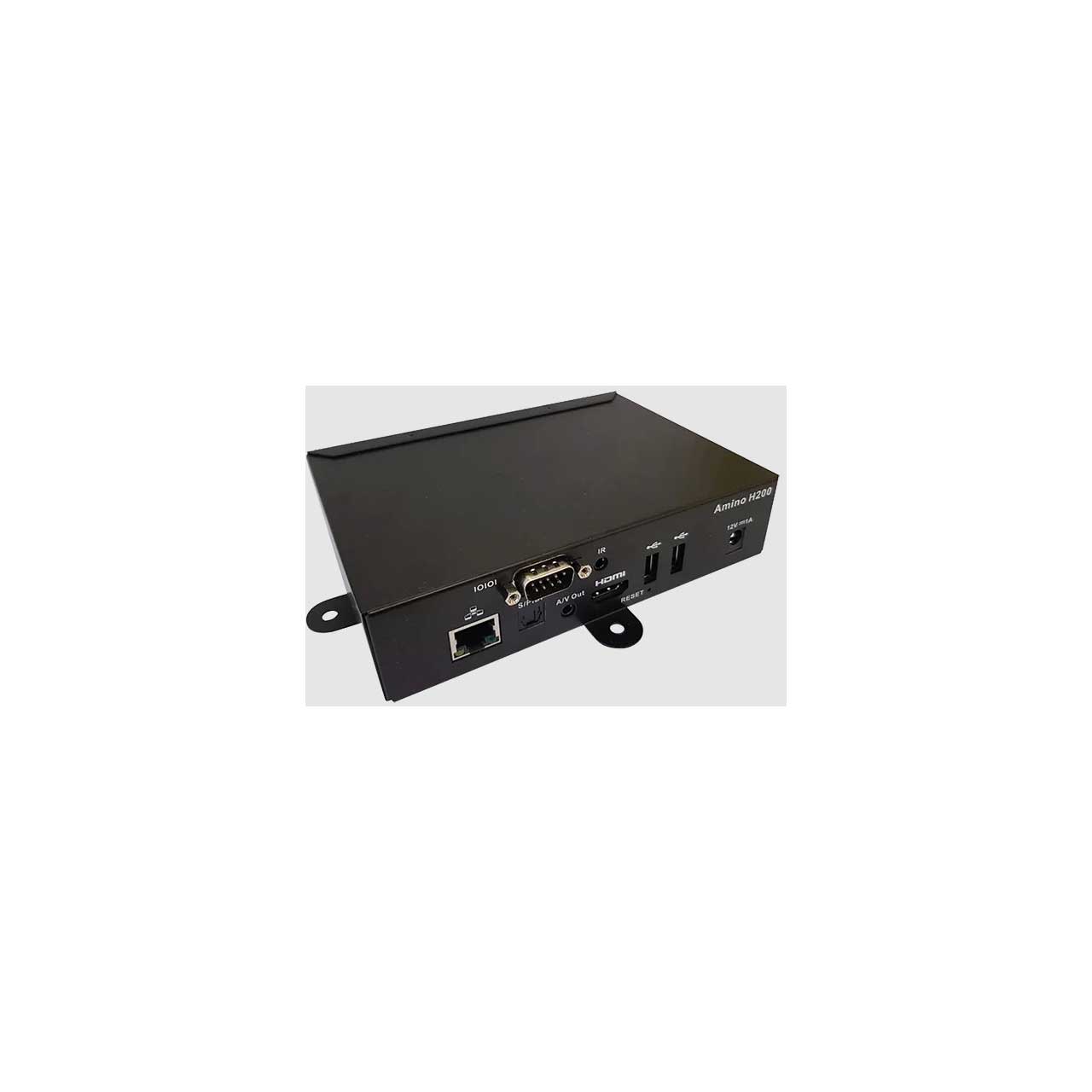

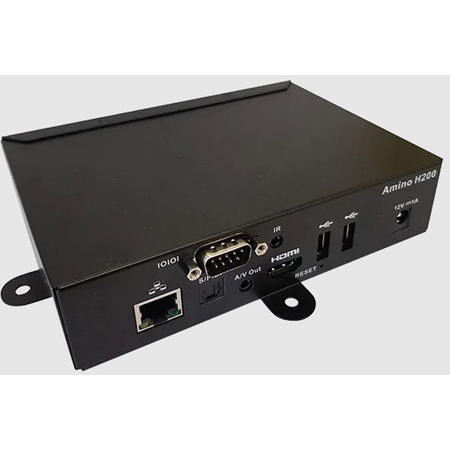

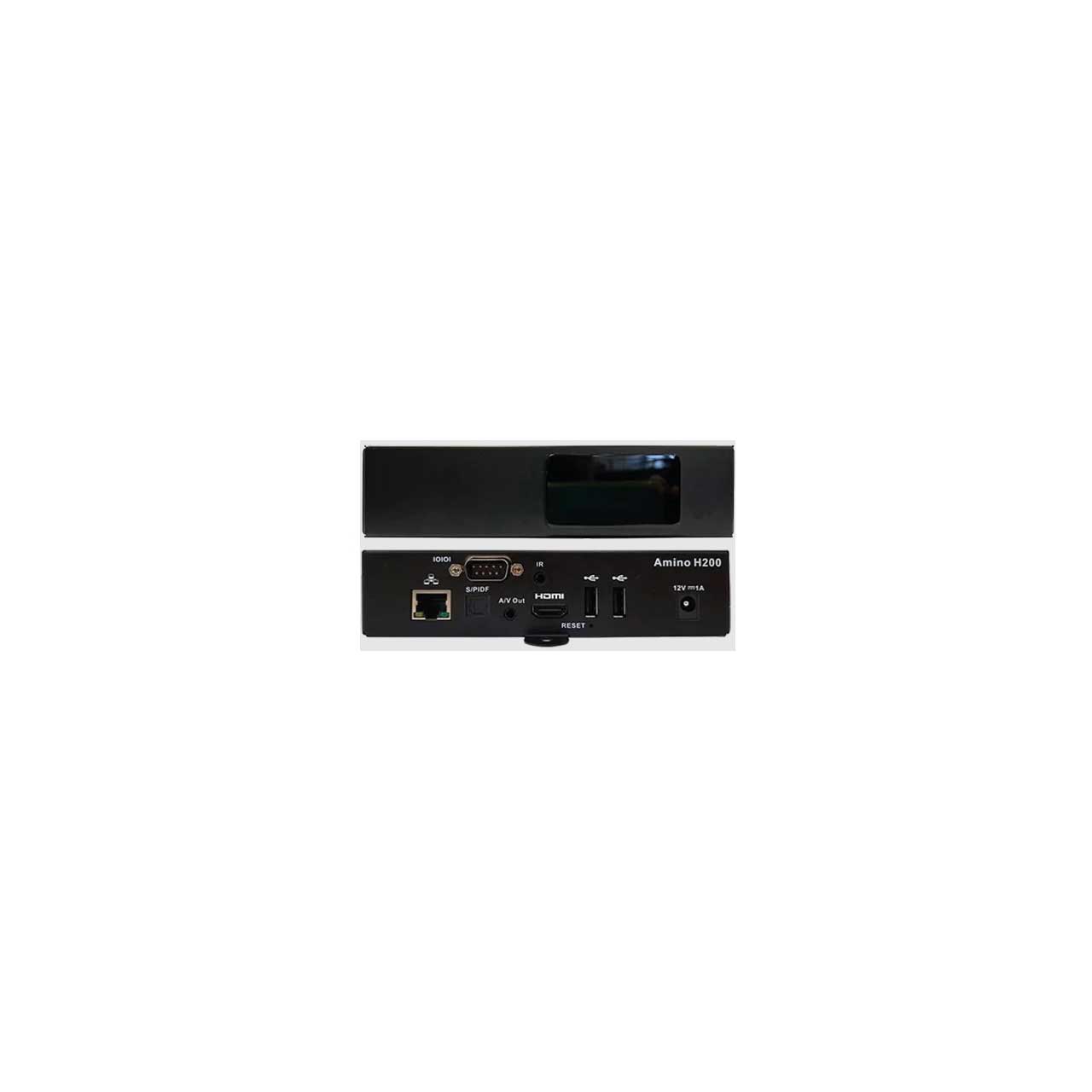

The Amino H200 is a High performance 4K UHD enterprise device, optimised to deliver high quality content to digital signage and hospitality applications.

The H200 is designed for "out of sight" operation to deliver content across a diverse range of environments - from in-room hospitality through public space signage and advertising applications where demand for 4k-based services is growing rapidly.

Sector-specific features include a Power over Ethernet (PoE) capability for single-cable installation that reduces installation time and cost. A serial display port, IR extender port and VESA mounting all support out-of-sight operation, easy installation, and promote a simplified user experience.

In a rugged case, the device combines a high performance AV1 and HEVC capability processor with graphics acceleration for fast rendering of high quality graphics. HEVC capability enables the delivery of high quality images in areas where bandwidth or physical head-end storage needs to be optimised.

Please Note! This is a B-Stock item. This encoder has been opened/used but is fully fuctional. It is missing its cardboard insert.

  • Features:

    • Please Note! This is a B-Stock item. This encoder has been opened/used but is fully fuctional. It is missing its cardboard insert.

      AV1/HEVC 4Kp60 provides high quality images at reduced bandwidth
    • Out-of-sight operation using TVI serial interface or IR extender port as standard
    • Tamper-proof, ruggedized chassis
    • Integrated mounting brackets (VESA) to fit behind a screen for digital signage apps or underneath a desk for hospitality apps
    • Power-over-Ethernet for single cable install

  • Specifications:

    • Chipset & Memory:
    • DMIPS: 22000
    • Memory (RAM): 2GB
    • Memory (Flash): 8GB or 32GB eMMC Flash
    • Internal microSD: Max 256GB

      Mechanics:
    • HDMI: 2.1
    • USB: 2 x USB2.0
    • Ethernet: 10/100/1000
    • IR: Yes w/ IR extender port
    • 3.5mm Jack (Composite AV): Yes
    • S/PDIF: Yes
    • POE (internal): Yes
    • RS232/TVI with IR pass-thru: Yes
    • Ruggedised case/VESA mount: Yes

      Video/Graphics Support:
    • AV1: Yes
    • HEVC: Yes
    • 4k UHD: Yes
    • 4K Graphics: 4K Still Support
    • Max. Single decode: 4kp60
    • OpenGL ES 2.0: Yes

      Regulatory Compliance:
    • Environment and Safety: FCC Certified, CB Certified, CE Certified, UKCA Certified, RCM Certified

      Power:
    • Power Supply: External 12V/1A (US, EU, UK and AU)
    • Power Consumption: 9W maximum, fully equipped

      Operating Environment:
    • Temperature: 5-40°C (40-104°F) operating temperature
    • Humidity: 30-95% relative humidity

      Physical Properties:
    • Size (L*W*H): 158 mm x 121 mm x 38 mm Mounting: 16 mm
    • Weight: 500g
