Anchor BEA-QUAD-HHBB Quad Package with BEA2-XU4 2 WH-Link Wireless Mics 2 WB-LINK Body Packs 2 Lapels & 2 Headset Mics

ITEM #: AN-BEA-QUAD-HHBB MFG #: BEA-QUAD-HHBB

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$6,399.00

Our Price:

$5,499.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


BEA-QUAD-HHBB - Overview

Now with increased wireless and battery performance, the Beacon® 2 is a battery powered portable line array sound system like no other othe market. It is completely self-contained and set up only takes a minute. The Beacon 2 is perfectly portable!

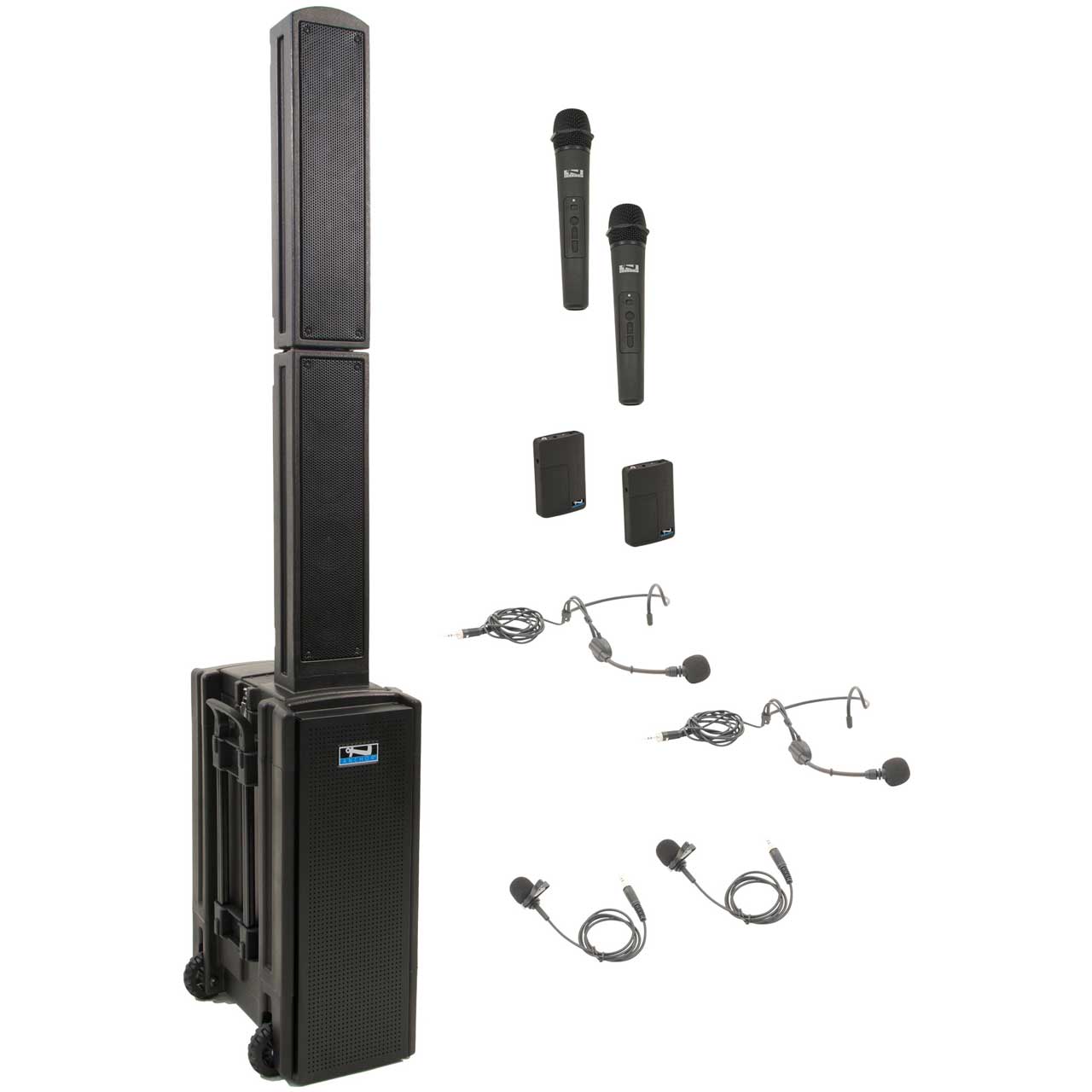

The Anchor Beacon Quad Package (BEA-QUAD-HHBB) includes BEA2-XU4 with Bluetooth, AIR wireless transmitter & two dual wireless mic receivers, two WH-LINK wireless handheld mics, and two WB-LINK wireless body pack transmitters (1.9 GHz) (each transmitter has 1 lapel & 1 headset mic)

The WH-LINK is a wireless handheld microphone with a sleek and lightweight design. It operates on the 1.9 GHz frequency. The WH-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries.

The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.

Applications:
Indoor & Outdoor Events
Schools & Universities
Sporting Events
Graduations
Auditoriums
Assemblies
House of Worship
Parks & Recreation
Auctions
Military Training & Ceremonies
Fitness Centers
Parades & Community Celebrations
Ceremonies
Rental
Public Gatherings
Weddings
and more!

  • Features:

    • Reaches crowds of 2,500+
    • Connect up to four wireless mics
    • Anchor AIR compatible
    • Built-in Class 1 Bluetooth
    • Nylon mic storage bag
    • Durable wheels for easy transport
    • Built-in rechargeable batteries operate
    • 6 - 8 hours on a single charge

  • Specifications:

    • Rated Power Output
    • 150 watts AC/DC

      Max SPL @ Rated Power
    • 120 dB @ 1 meter

      Frequency Response
    • 60 Hz - 15 kHz ± 3 dB

      Microphone Wireless Frequency
    • 1.9 GHz DECT

      Microphone Wireless Range
    • 300'+ line of sight

      Mic Inputs
    • Lo-Z, balanced, XLR & 1/4"
    • 34V DC condenser mic (phantom) power
    • Hi-Z (10 KW), unbalanced, 1/4" phone

      Line Inputs Unbalanced
    • 1/4" & 3.5 mm stereo

      Line Output (post fader)
    • Isolated, 600W, 1/4" phone

      Sensitivity For Rated Output
    • Lo-Z Microphone -52 dBV (2.5 mVrms)
    • Hi-Z Microphone -43 dBV (7.5 mVrms)
    • Auxiliary (line) -14 dBV (200 mVrms)

      Anchor AIR Technical Specifications
    • AIR Frequency Range 902 - 928 MHz
    • AIR Wireless Range 300'+ line of sight

      AC Power Reqs.
    • 100 - 240 VAC, 50/60 Hz, 250W max

      Battery
    • Two 12V LFP rechargeable batteries, 7.5 AH

      Dimensions Closed (H x W x D)
    • 28" x 11" x 18.5" (71.1 x 28 x 47 cm)

      Dimensions Opened (H x W x D)
    • 71.5" x 11" x 18.5" (181.6 x 28 x 47 cm)

      Weight
    • 43 lbs / 19.5 Kg

      Warranty
    • 6 years

  • Item Includes:

    • 1 BEA2-XU4
    • 2 WH-LINK wireless handheld mics
    • 2 WB-LINK body pack transmitters ( each transmitter has 1 Lapel & 1 headset mic )

  • Warranty:

    • 6 years

  • GTIN:

    0819941015260
