Apantac CP-16 16-button Control Panel for Tahoma Multiviewers

CP-16 - Overview

• Features:

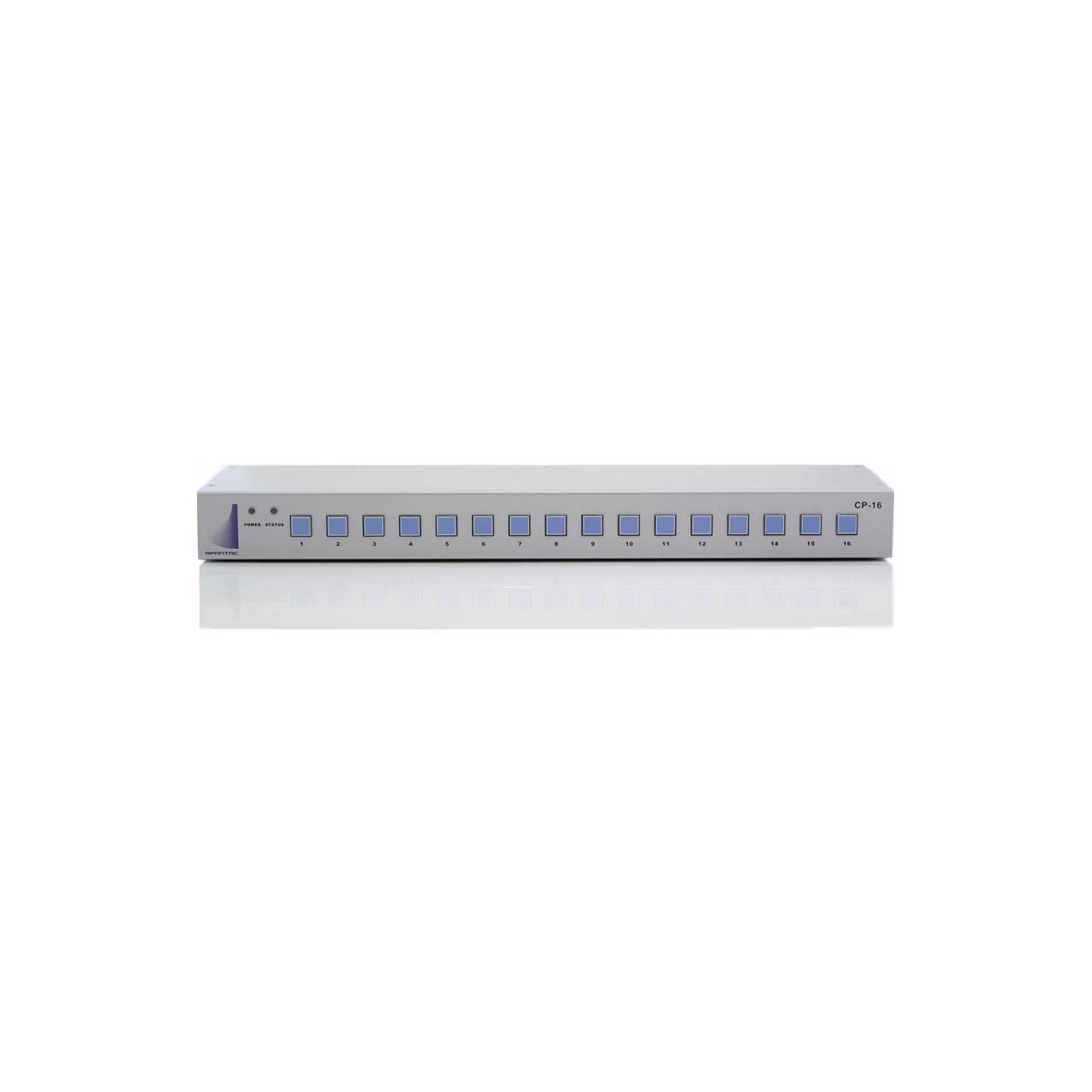

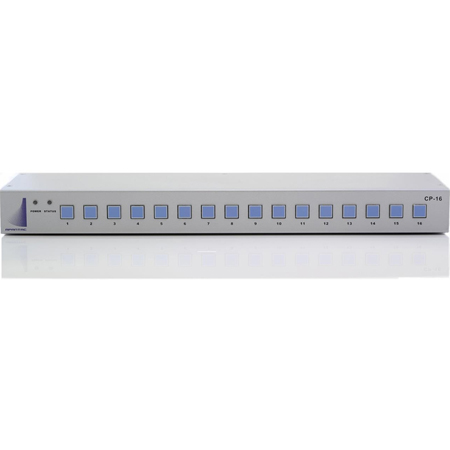

  • 16 configurable & Relegendable backlighted buttons
  • First 8 buttons can also be used a GPI triggers
  • Built-in web page setup, can be easily accessed by any web browser


• Specifications:

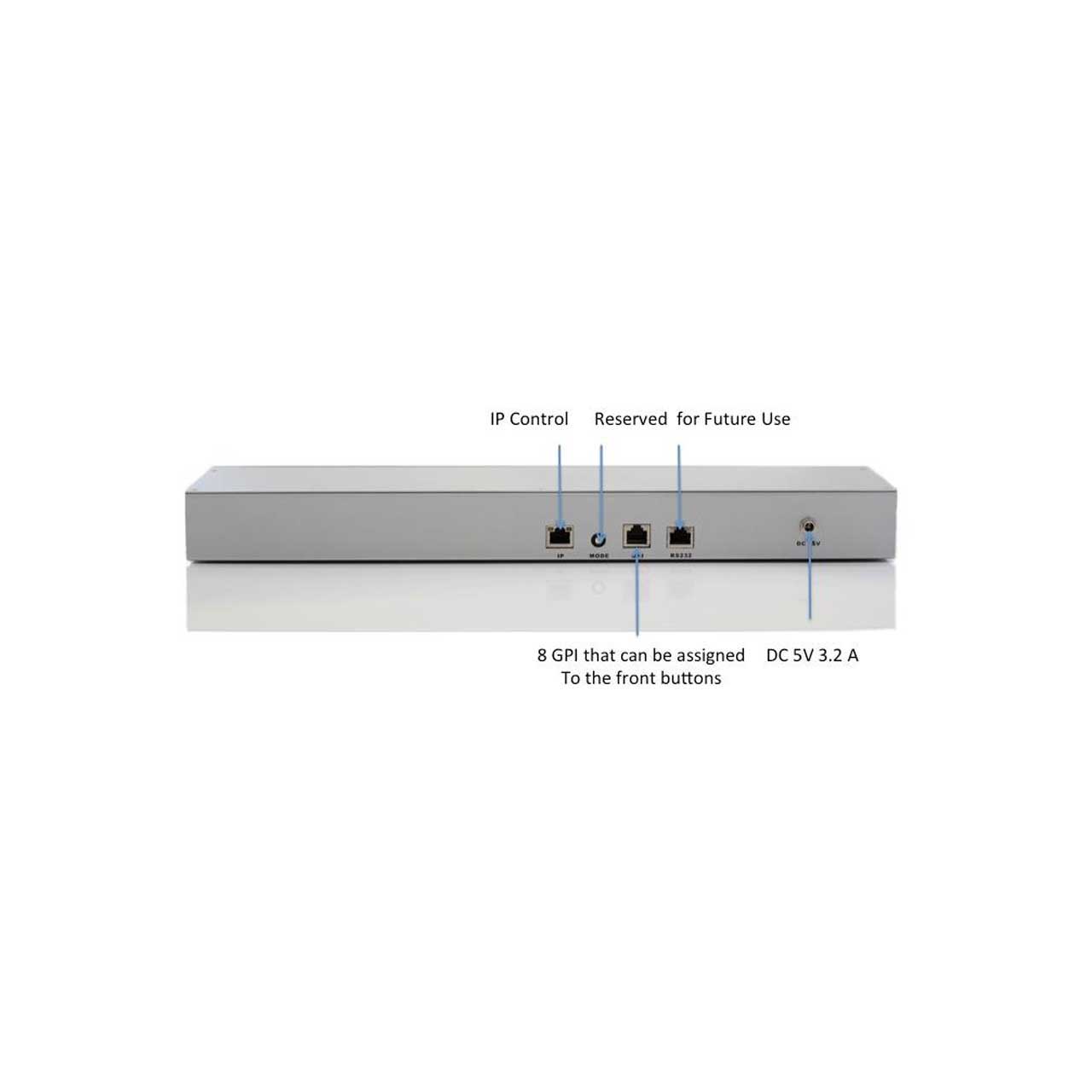

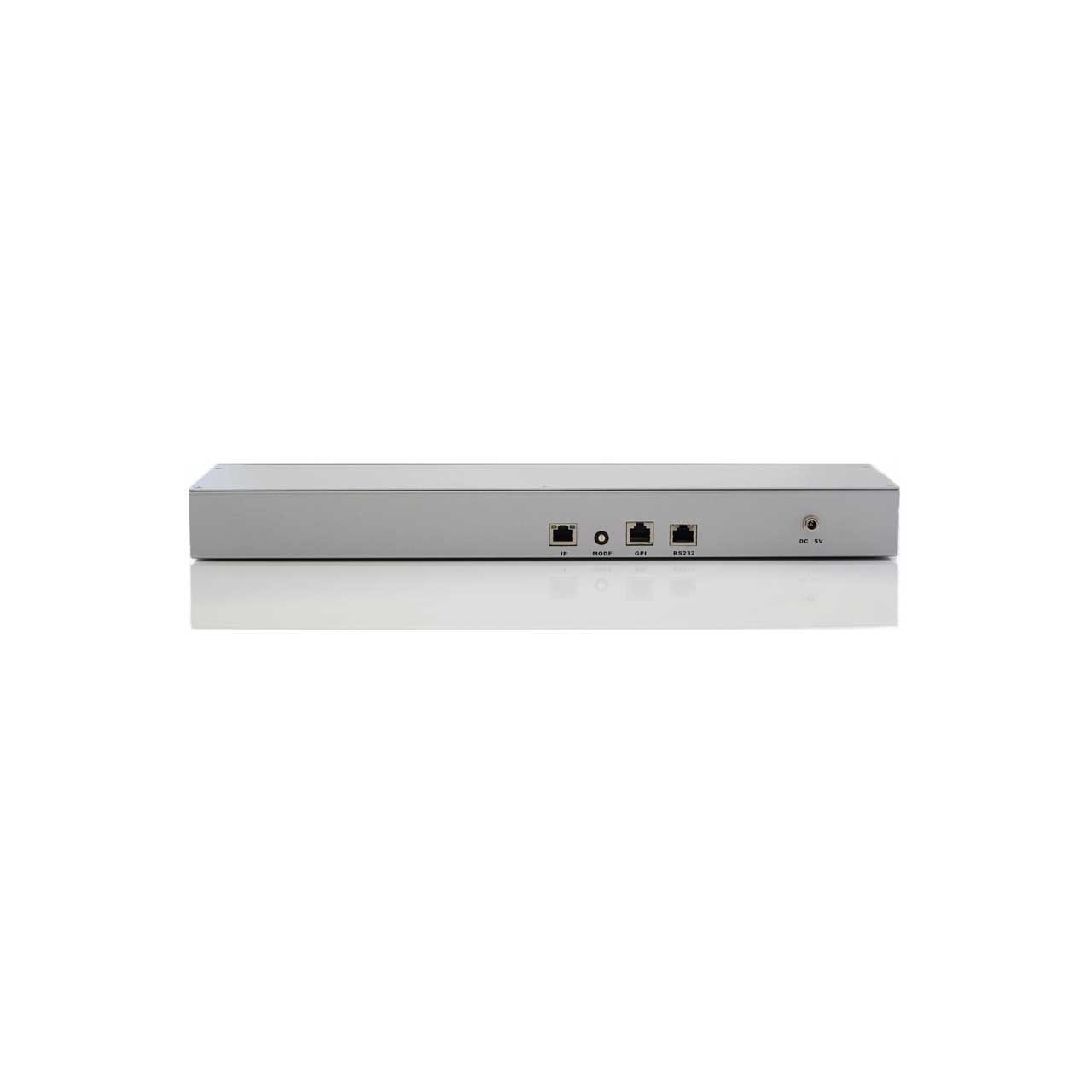

  • Connectors

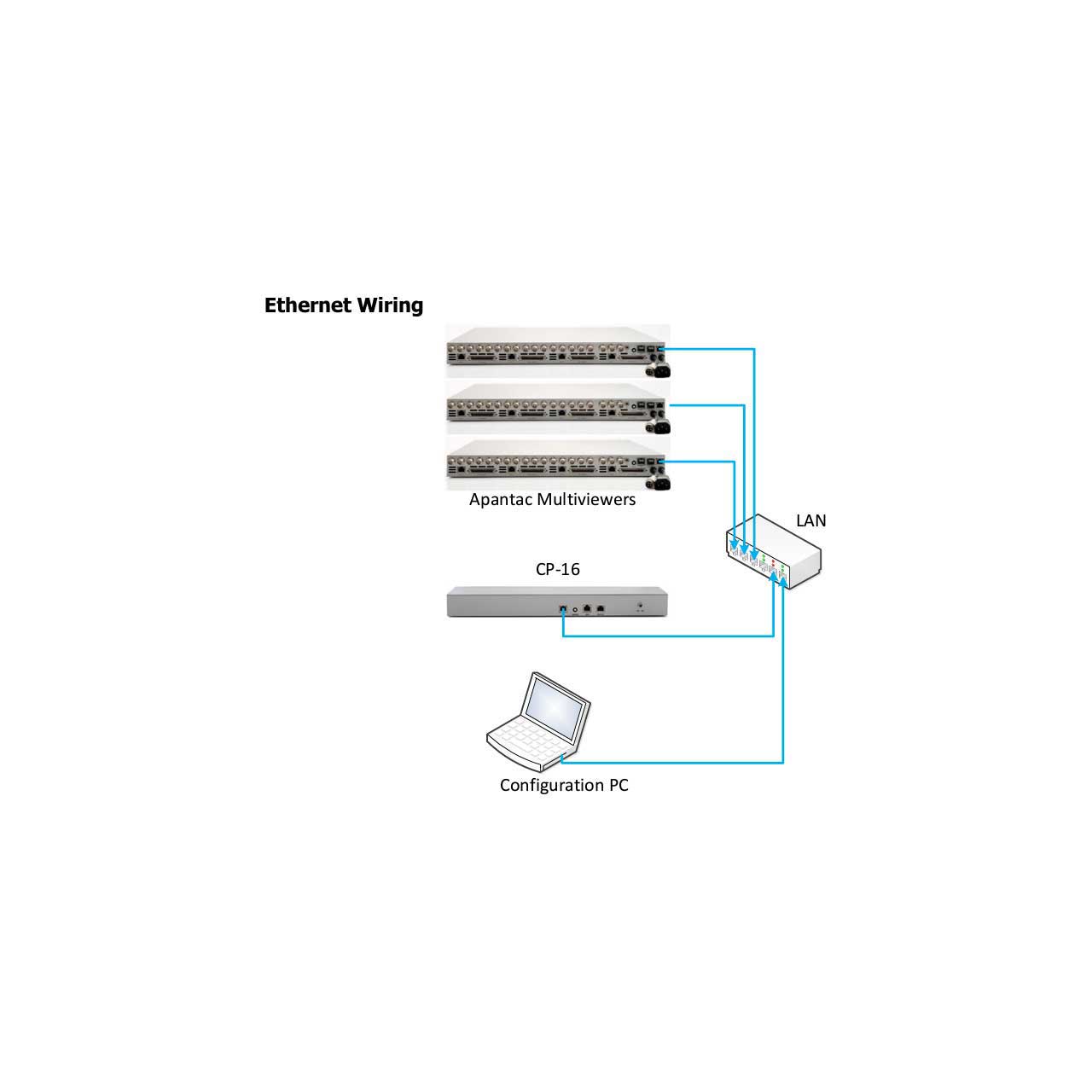

  • IP: 100 Base-Tx, Ethernet TCP/IP on RJ45 port
  • GPIO: 8 lines on 10-wire RJ50 port (adapter cable/breakout provided)
  • RS232: Serial on RJ45 connector (adapter cable provided). ( Serial port use not currently available in firmware )
  • EMI/RFI: Complies with FCC Part 15, Class A, CE, EU, EMC, C-tick


  • Power: DC 5-Volt, 3.2 Amp power adapter
  • Size: 440mm W x 125mm D x 44mm H (not including rack mounting 'rack-ears')
  • Mounting: Rack mount, 1 rack unit in height


• Item Includes:

  • 1x CP-16
  • 1x Rack Mount Kit
  • 1x RJ50 to DB9 cable with terminal block for GPI/Tally
  • 1x RJ45 to DB9 cablec for RS-232
  • 1x DC 5V 3.2A Power Adapter
  • 1x User Manual


• Warranty:

  • 3 Year Limited Warranty
