Belden 4694P CMP/Plenum Rated 12G-SDI 4K UHD RG-6 75 Ohm Coax Video Cable 18AWG - Black - 1000 Foot

ITEM #: BL-4694P-1000BK MFG #: 4694P 0101000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    4694P 0101000 - Overview

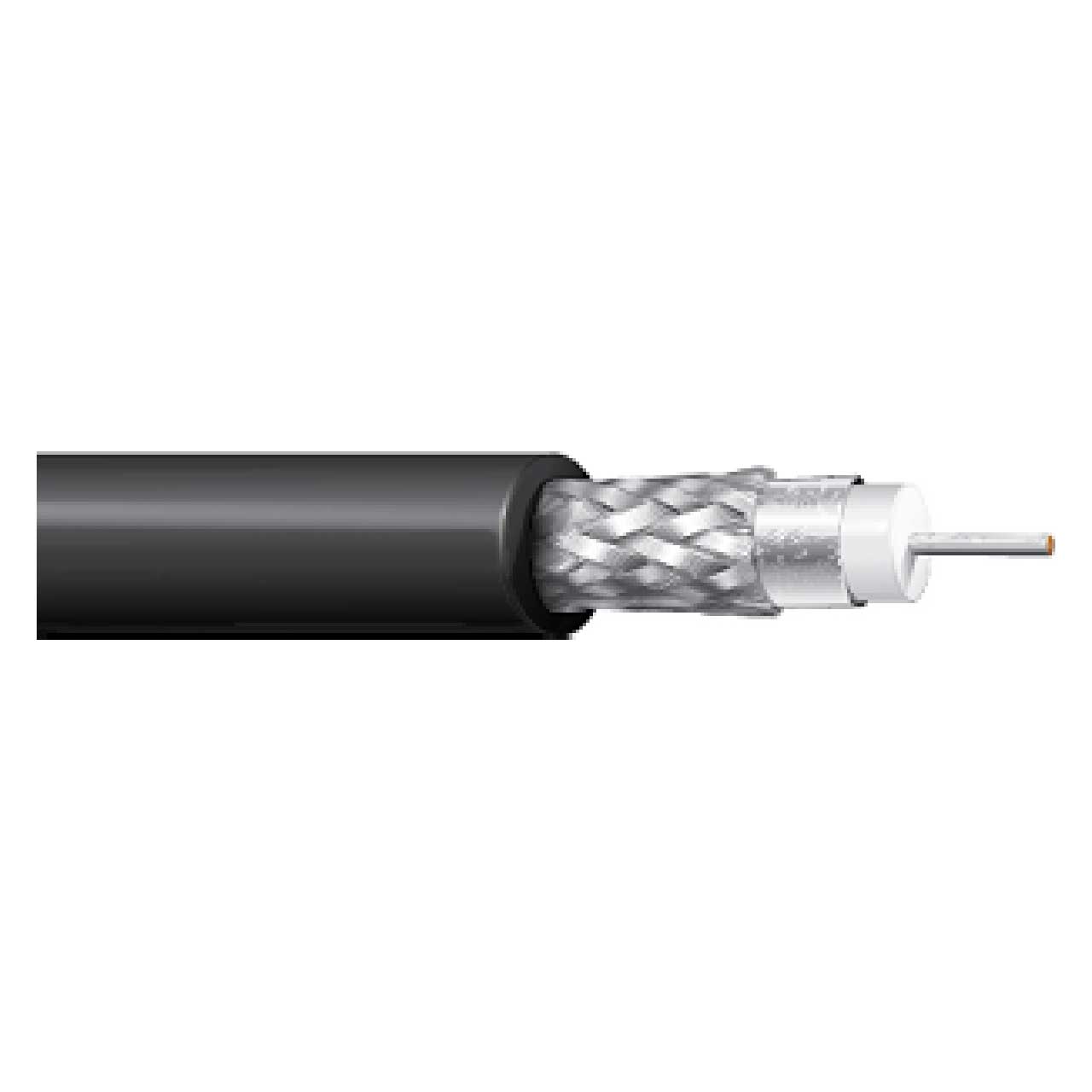

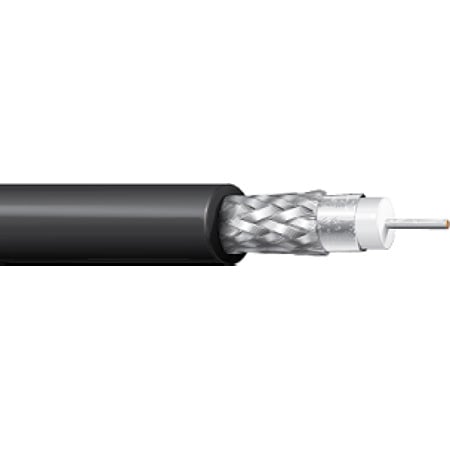

    Belden 4694P is a 12G-SDI, 4K UHD, 75 Ohm, RG6, 18 AWG Precision Indoor Plenum Coax Video Cable with a solid silver plated copper conductor and a foam FEP Duofoil bonded core plus a 95% tinned copper braid in a PVC jacket. 4694P is CMP rated.

    Belden 4K UHD Coax Cables for 12G-SDI maximize 4K signal transmission distance over a single coax, minimizing weight and space utilization compared to multi-link solutions. This solution provides significant headroom and guarantees -15 dB return loss from 4.5 to 12 GHz.

    Ultra-High Definition Digital Video
    4K Single-link 12 Gb/s UHDTV
    4K D-Cinema
    8K Quad-link UHDTV
    HD-SDI 1080p
    Multimedia and Lighting automation

    • Features:

      • Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
      • Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
      • Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
      • Supports 12 GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12 GHz bandwidth and enable a single-link configuration to transmit 4K
    • Specifications:

      • Conductor Size: 18 AWG
      • Conductor Stranding: Solid
      • Conductor Material: SC - Silvered Copper
      • Insulation Material: - Foam Fluorinated Ethylene Propylene
      • Nom. Insulation Diameter: 0.168 in
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Diameter: 0.229 in (5.82 mm)
      • Overall Cable Diameter (Nominal): 0.229 in (5.82 mm)
      • Outer Sheild Tape: - Duobond® II Aluminum/Polyester/Aluminum 100%
      • Braid: TC - Tinned Copper 95%
      • LS PVC - Low Smoke Polyvinyl Chloride: 0.229 in
      • Nominal Conductor DCR: 6.3 Ohm/1000ft
      • Outer Conductor DCR: 2.9 Ohm/1000ft
      • Frequency [MHz]: 5 MHz - 1600 MHz - 1600 MHz - 4500 MHz - 4500 MHz - 12000 MHz
      • Minimum Return (RL): 23 dB - 21 dB - 15 dB
      • UL Voltage Rating: 300 V
      • Operating Temp Range: -4F to 167F / -20C to 75C
      • Bulk Cable Weight: 41 lbs/1000ft
      • Max Recommended Pulling Tension: 69 lbs
      • Min Bend Radius/Minor Axis: 2.3 in
      • NEC/(UL) Specification: CMP
      • RG Type: 6/U Type
    • Item Includes:

      • 4694P CMP Rated RG-6 75 Ohm Plenum Coax Video Cable 18 AWG - Black - 1000 Foot
    • Warranty:

      • Limited 10 Year Warranty
