Apantac KVM-SET-1 Crescent 4K/UHD HDMI CAT6 KVM Transmitter and Receiver Set with USB 2.0 and PoE Support - 328 Feet

KVM-SET-17 - Overview

4K UHD KVM Extenders with USB 2.0 support and POE

• Features:

  • Supports HDMI 2.0 (4K@60 4:4:4 8 bit)
  • Supports 1080P@120Hz
  • Supports HDCP 1.4/2.2/2.3
  • HDMI loop through
  • Maximum bandwidth 600 MHz
  • Extends UHD HDMI signal up to 328 feet (100 meters)
  • Supports USB 2.0
  • Supports 3D and CEC pass-through
  • Supports bi-directional RS-232
  • Supports all frequency IR control Supports LPCM, Dolby True HD and Dolby Digital audio


• Specifications:

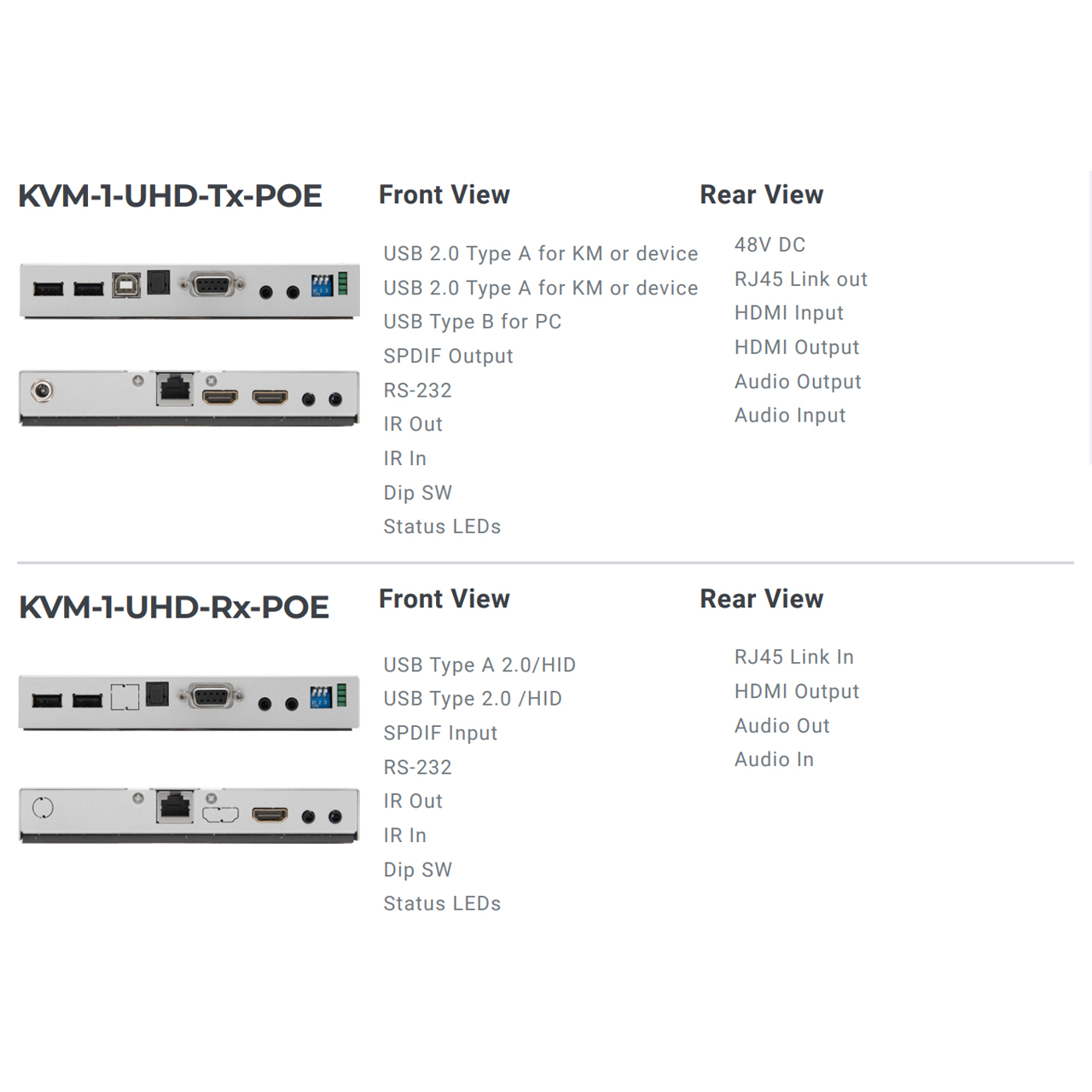

  • Video Connectors:
    - Transmitter: 1x HDMI Input, 1x HDMI Output, 1x RJ-45
    - Receiver: 1x HDMI Output, 1x RJ-45
  • Audio Connectors:
    - Transmitter: 1x 3.5mm jack input, 1x SPDIF input
    - Reciever: 1x 3.5mm jack output, 1x SPDIF input
  • RS-232 TX/RX: 1x DB9 Female
  • USB:
    - Transmitter: 2x USB Type A, 1 USB Type B
    - Receiver: 2x USB Type A
  • IR In/Out: 1x 3.5mm stereo jack each
  • Max resolution, distance: 328ft (100m) for 4K@60Hz
  • Power:
    - Transmitter: DC 48V
    - Receiver: POE
  • Weight TX/RX: 1.10lbs
  • Dimensions TX/RX: 4.83" x 2.91" x 1.14"


• Item Includes:

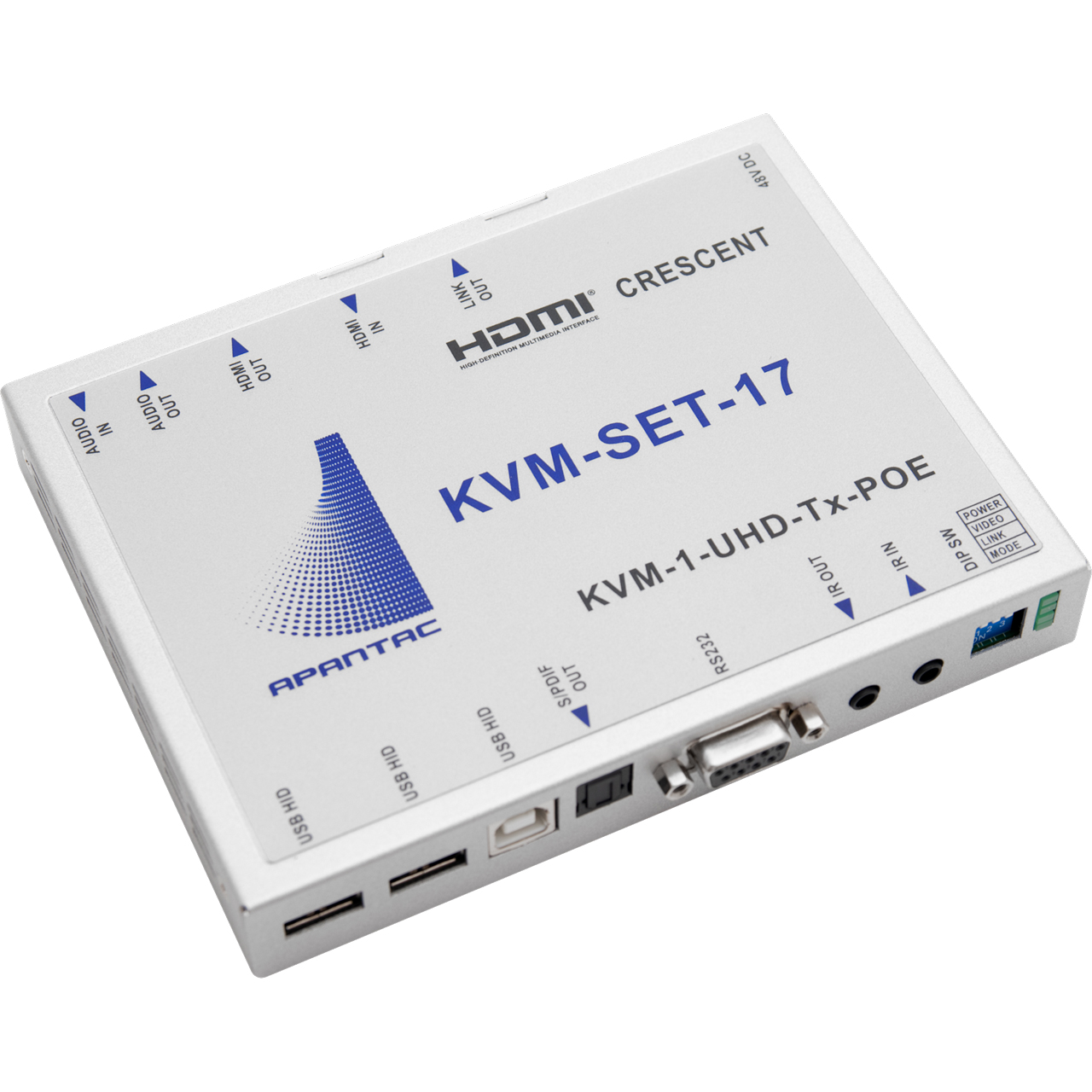

  • 1x KVM-1-UHD-Tx-POE (Transmitter)

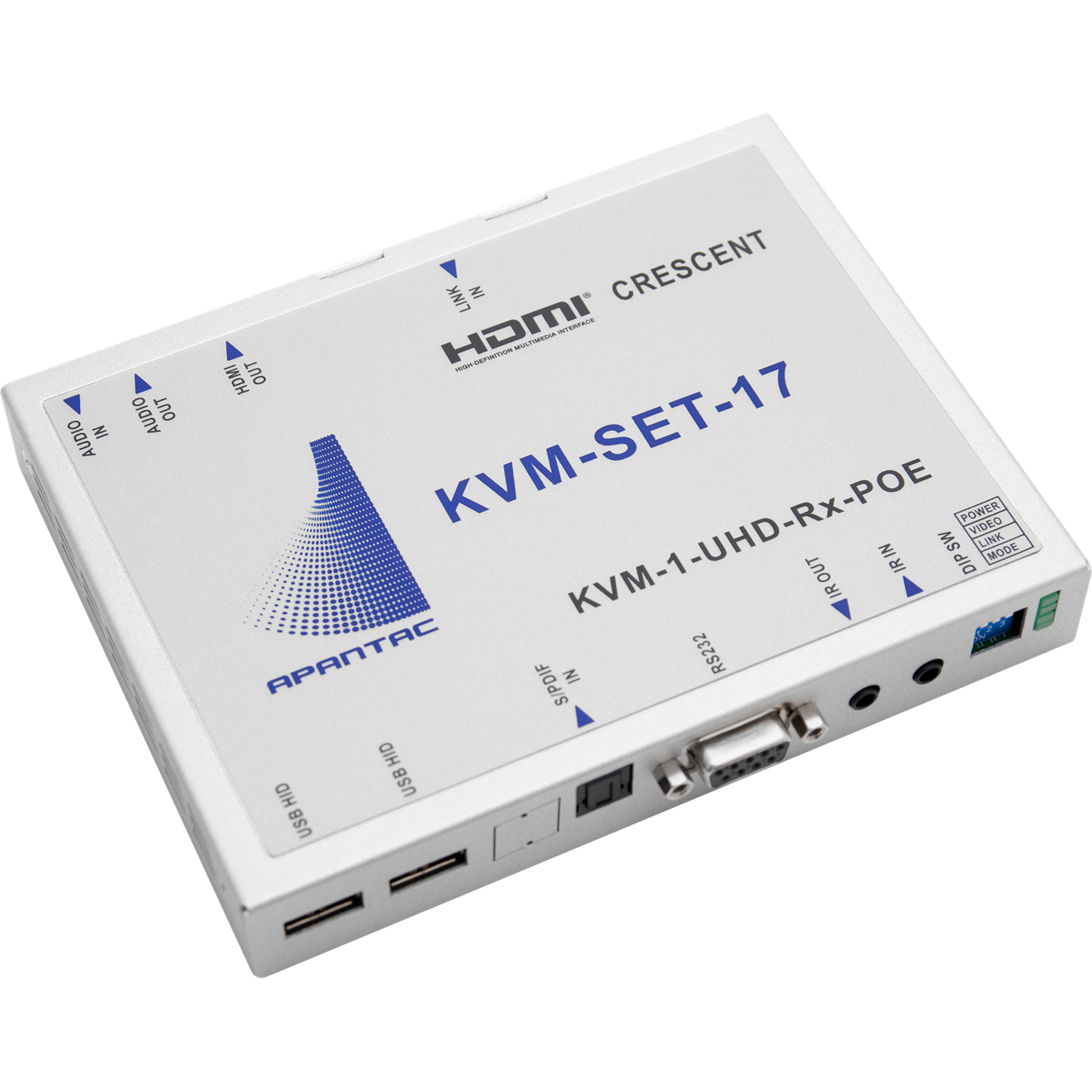

  • 1x KVM-1-UHD-Rx-POE (Receiver)
  • 1x Power adapter DC48V with lock + 2x mounting plates


• Warranty:

  • 3 Year Limited Warranty
