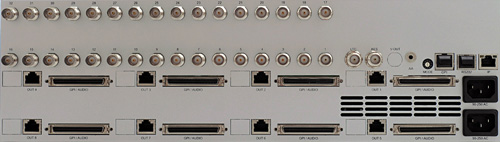

Apantac LX-32HD 32 HD-SDI Multiviewer w/ Built-in Routing Switcher

LX-32HD - Overview

• Features:

  • Built-in routing switcher - any input can be switched to one or more image window regardless of output configuration
  • Single frame of processing time
  • 32 auto-detect HD/SD-SDI inputs (3G ready) with active loop
  • Available in HD/SD-SDI models
  • Upgrade from SD to HD, HD to 3G via software
  • 16 channels of embedded audio per SDI input
  • 4 channels of discrete audio per input (optional)
  • Field upgradable to allow discrete audio (AES/AA)
  • Multiple outputs in DVI, HDMI or VGA (option)
  • Output resolution up to 2048 x 1080 (incl. 1080p)
  • Built-in CATx extenders for each output: Passive short-distance receivers up to 35 feet; Active long-distance receivers up to 115 feet (option)
  • Multiple labels per video windows - UMD, OMD, IMD, standalone labels
  • Automatic input aspect ratio detection
  • Built-in video, audio alarm detections - no audio, audio high/low, no video, video black, video frozen
  • Apantac skini technology allows on-screen graphical elements to be designed with any graphics tool
  • Front panel headphone jack with volume adjustment for audio monitoring
  • Front panel buttons for quick preset recalls
  • 2 RU with redundant power supply
  • 3 year limited warranty
