Apantac OG-SYNC-SET-1 openGear Sync Generator with Rear Module - 4 Configurable Outputs - Black Burst/Tri-level Sync

OG-SYNC-SET1 - Overview

• Features:

  • OGX/3.0 card-based form factor
  • Dashboard control enabled
  • Four independent configurable outputs for black burst or tri-level sync
  • Supports NTSC/PAL black burst and HD tri-level sync
  • Conforms to SMPTE 274M and 296M HD standards
  • Conforms to SMPTE 170M(NTSC) or PAL standards
  • Generates 48 KHz TTL-level Word clock output
  • AES tone is available for AES outputs
  • Does not require external reference to generate black burst or tri-level sync
  • Low power consumption


• Specifications:

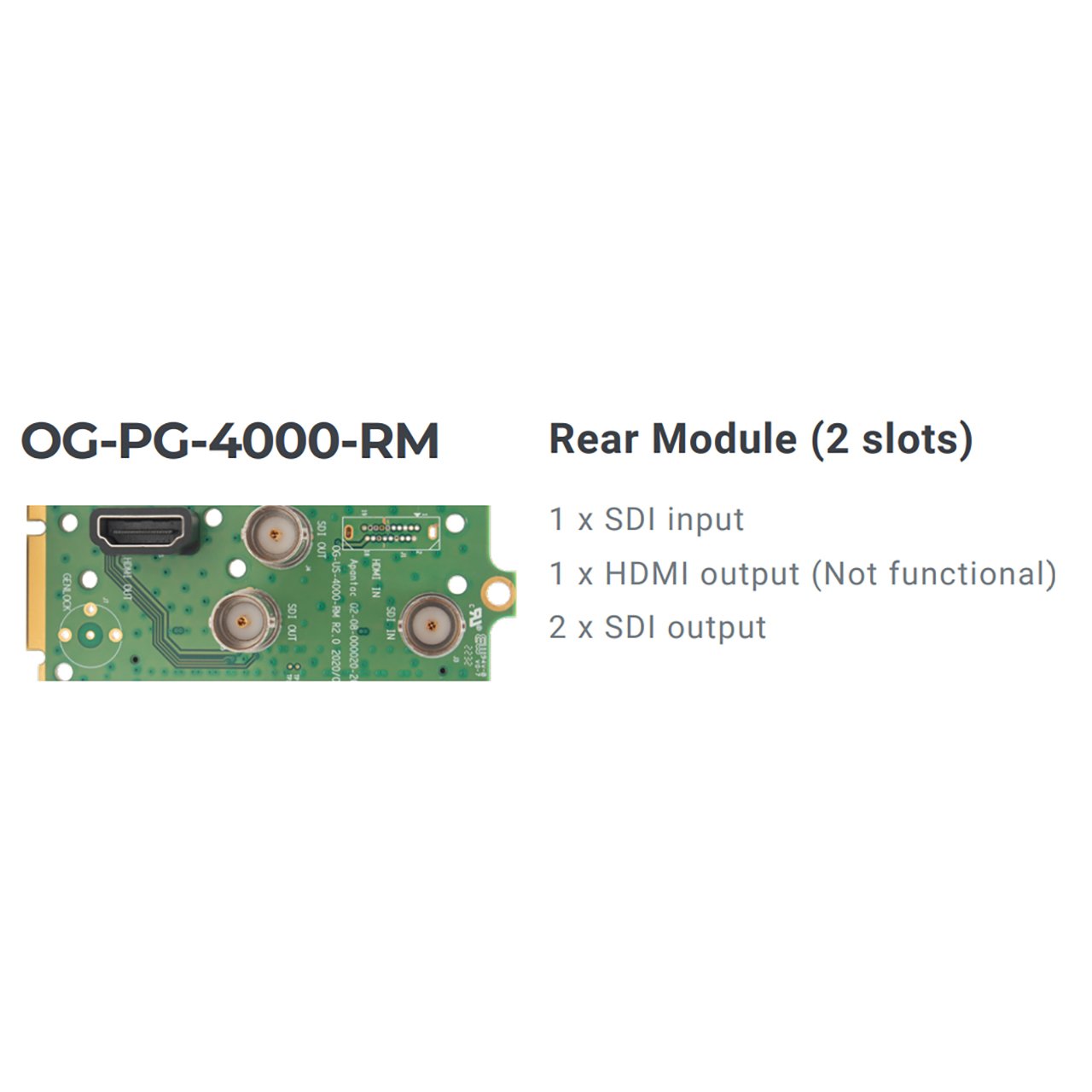

  • Input: 1x SDI
  • Output:
    - 2x SDI
    - 1x HDMI (non functional)
  • Control: Dashboard Genlock Analog black burst via BNC

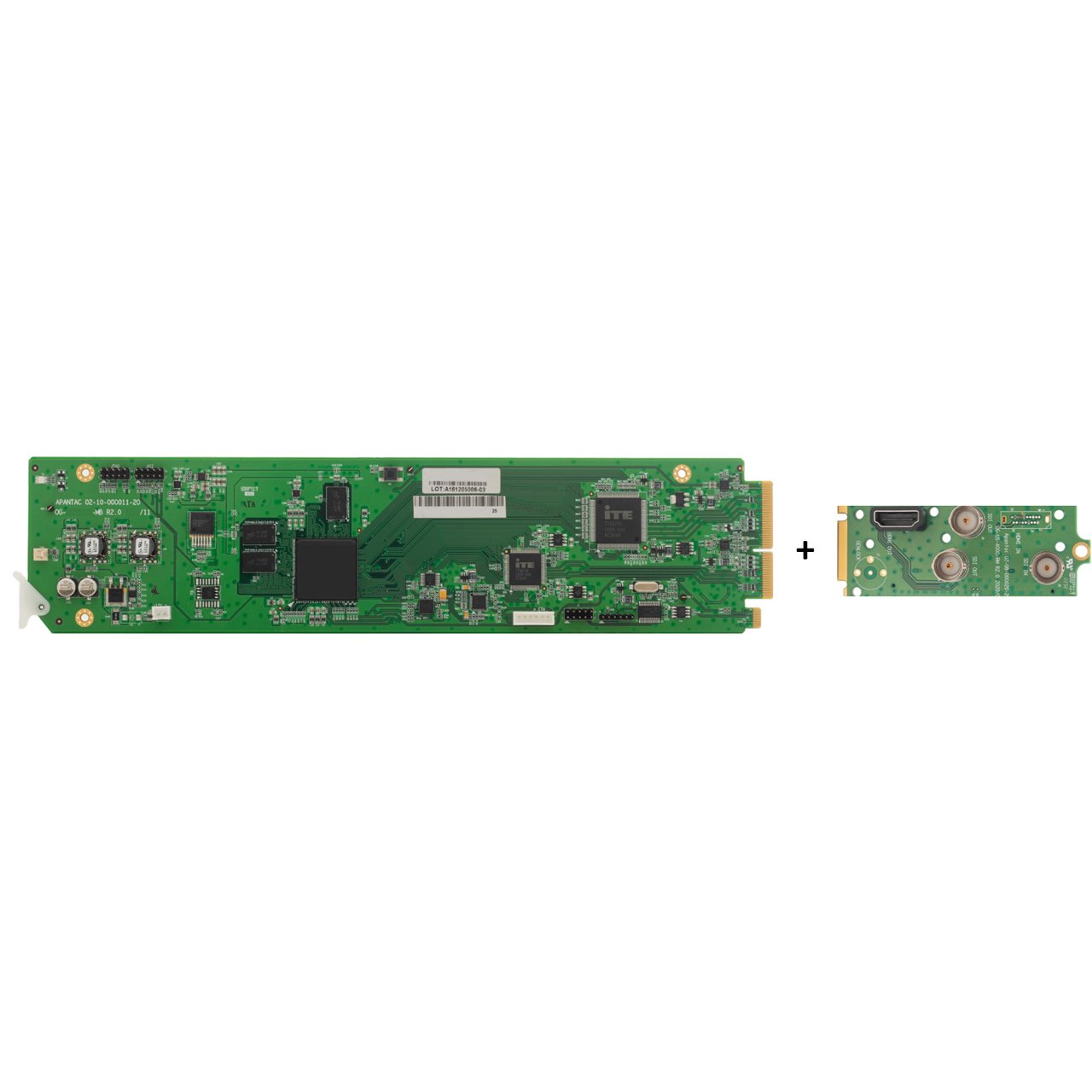

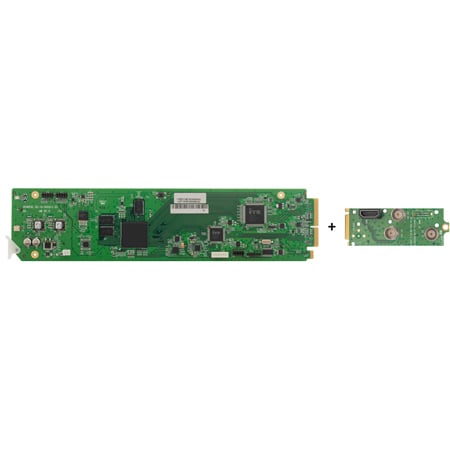

• Item Includes:

  • 1x OG-PG-4000-MB
  • 1x OG-PG-4000-RM


• Warranty:

  • 5 Year Limited Warranty
