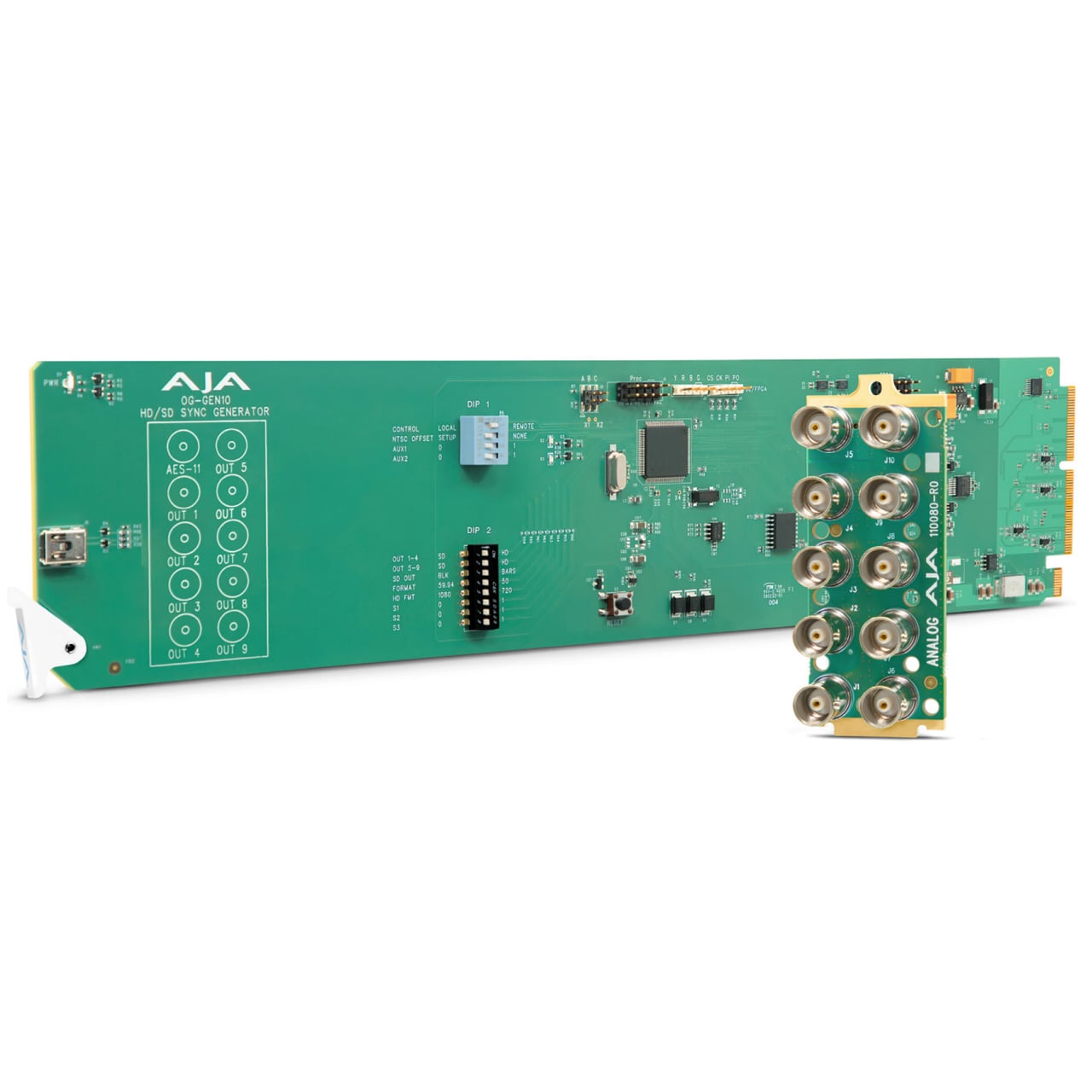

AJA OG-GEN10 openGear HD/SD and AES-11 Sync Generator with 9x BNC Analog SD/HD Output and 1x AES-11 Output

OG-GEN10 - Overview

• Features:

  • HD Tri-level sync generation
  • SD Color Black or Color Bars
  • 9x synchronized reference outputs
  • Group 1 (1-4)
  • Group 2 (5-9)
  • 2x groups of independently switchable outputs allow simultaneous HD and SD sync generation
  • AES-11 output switchable between silence and tone

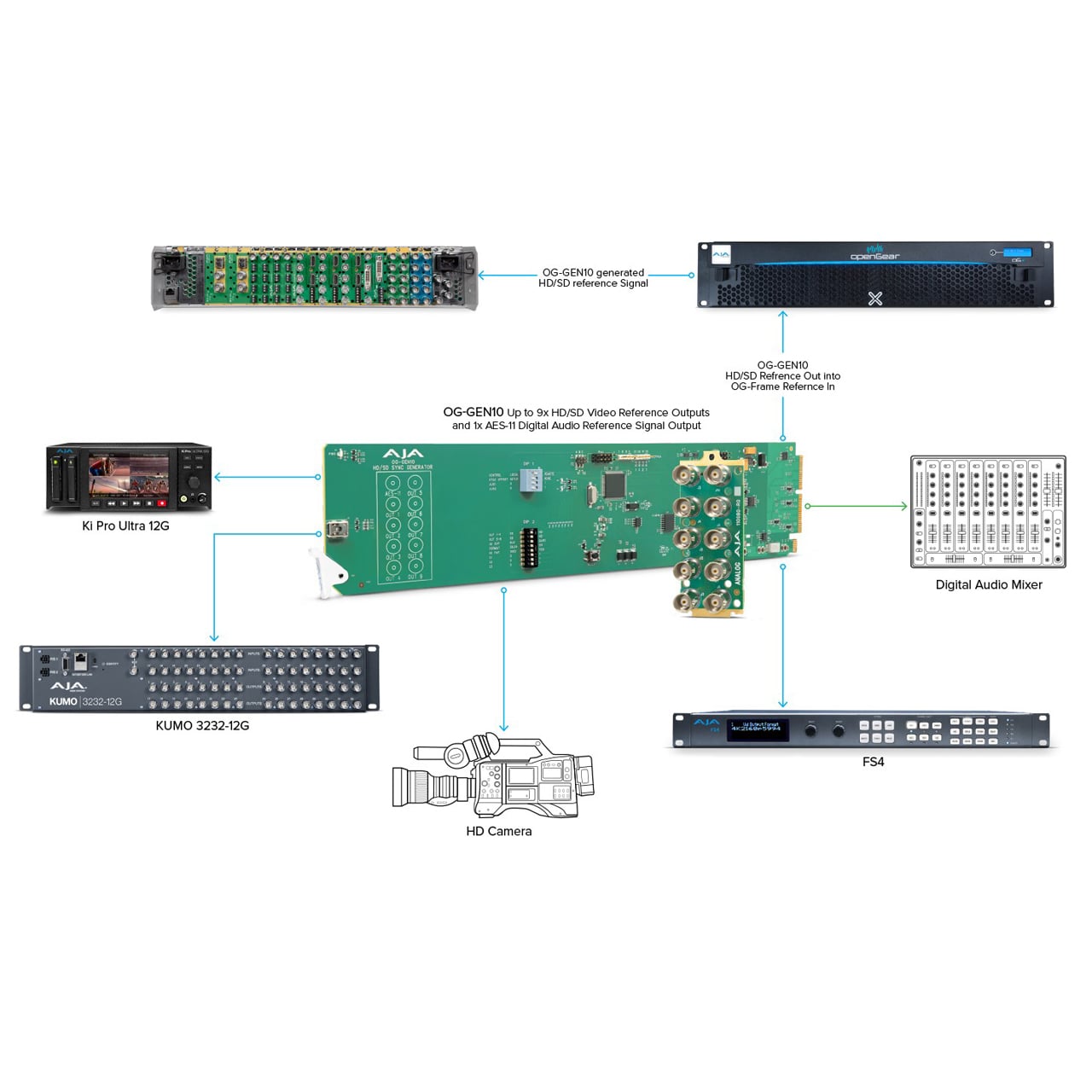

  • Multiple outputs can synchronize entire systems without requiring a Sync DA
  • External dip switch configuration
  • Remote control via the Ross DashBoard software
  • Optional Redundant power via the openGear frame
  • Hot swappable
  • Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
  • Power: 6.75 watts max per card


• Specifications:

  • Formats:
    - 1080i 50, 59.94, 60
    - 1080PsF 23.98, 24, 25, 29.97, 30
    - 1080p 23.98, 24, 25, 29.97, 30
    - 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    - 625i, 525i
  • HD Sync: Tri-level
  • SD Sync: Color Black, 75% Color Bars
  • AES: AES-11, 48 kHz, silent or 1 KHz tone (-20 or -18 dBFS)

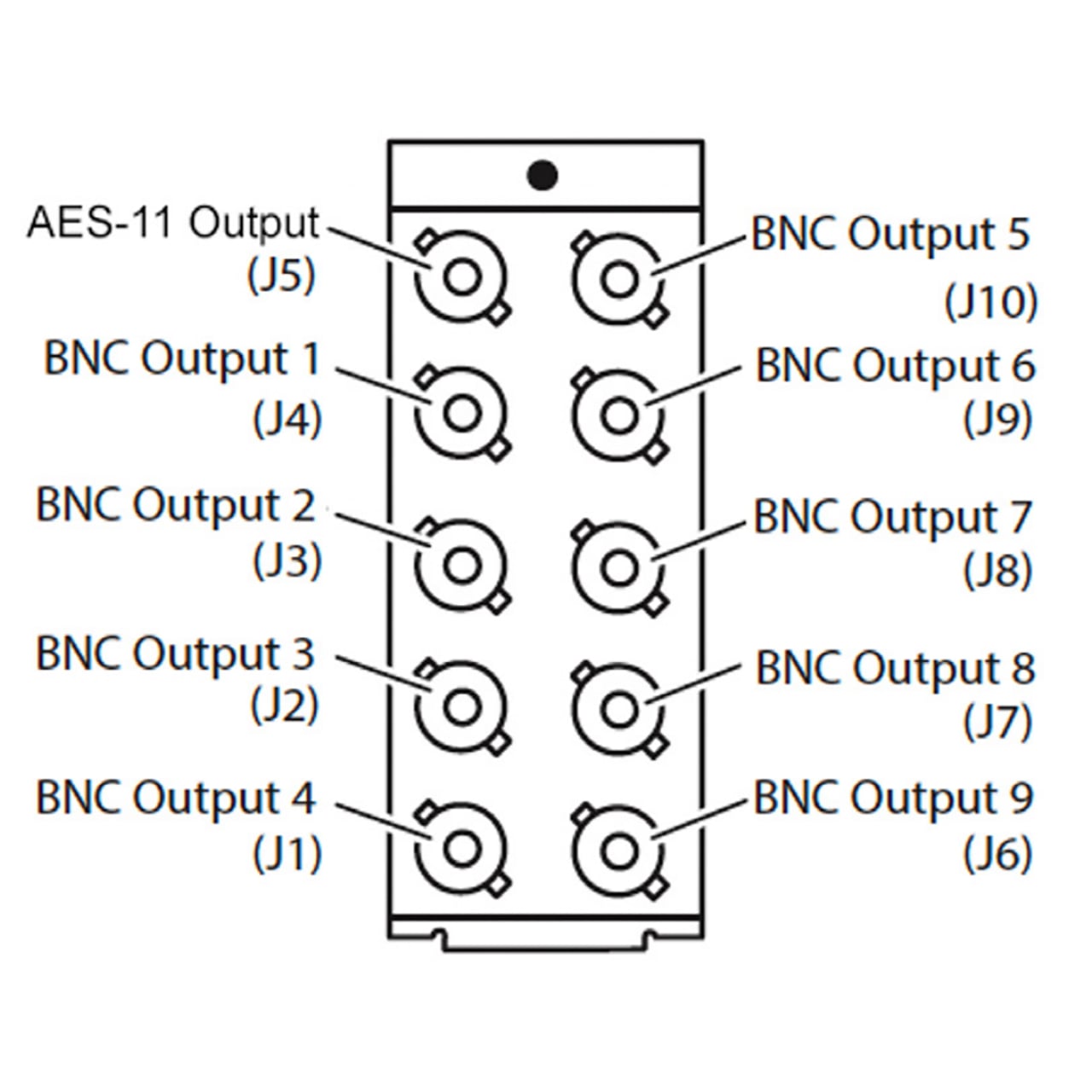

  • Output:
    - 9x BNC, Analog SD/HD Sync
    - 1x BNC, AES-11
  • Accuracy: 3ppm
  • User Interface:
    - openGear DashBoard network control software via Windows, macOS, or Linux
    - Local/Remote Control
    - External dipswitch
  • Size: openGear standard form factor, front slot and rear card / 2x slots required for each card
  • Weight: 0.5lb (0.3kg)
  • Power: openGear frame compatible, 6.75 watts max per card


• Item Includes:

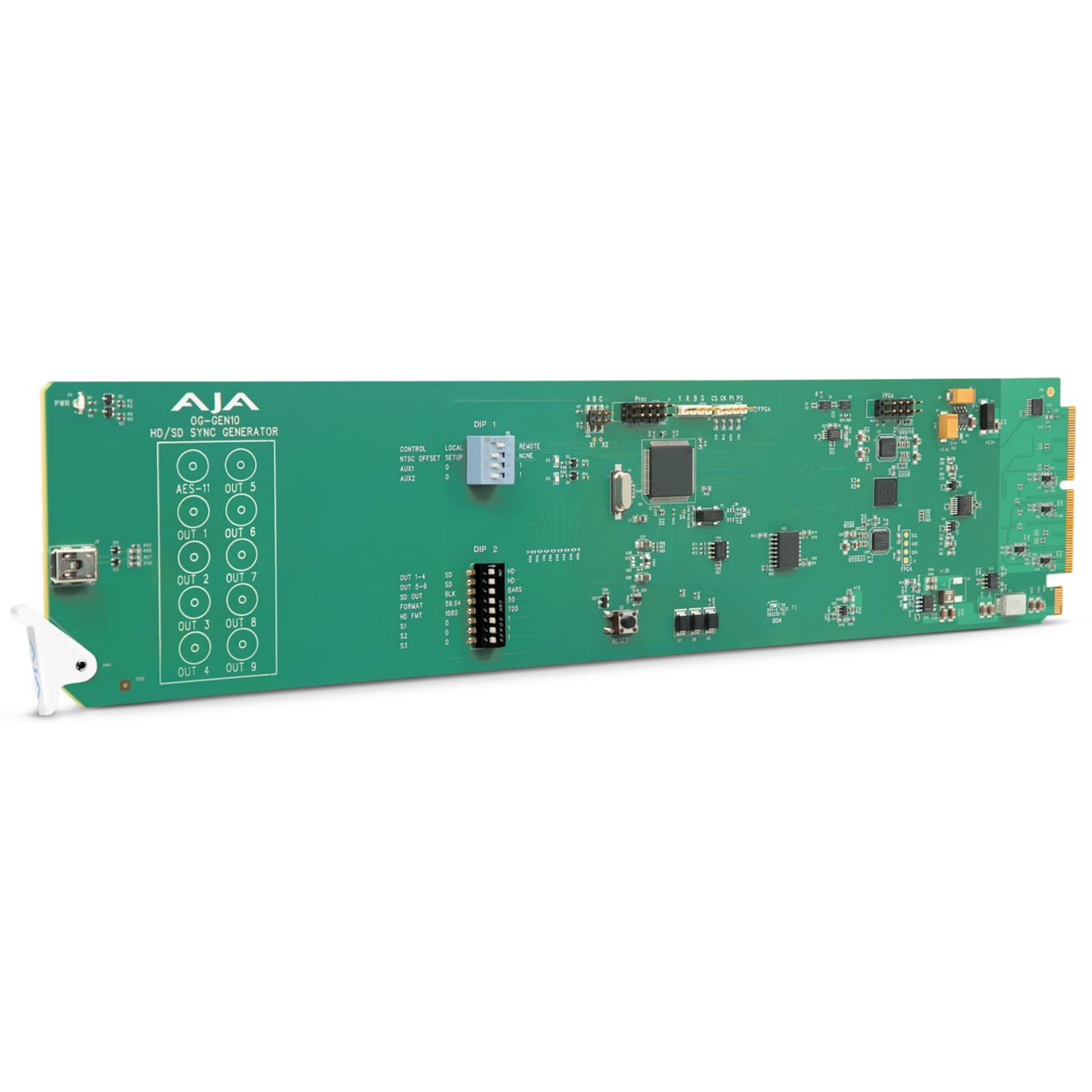

  • 1x OG-GEN10 Front Card in ESD bag
  • 1x Analog 10 BNC Rear Card in ESD bag


• Warranty:

  • 5-Year Limited Warranty
