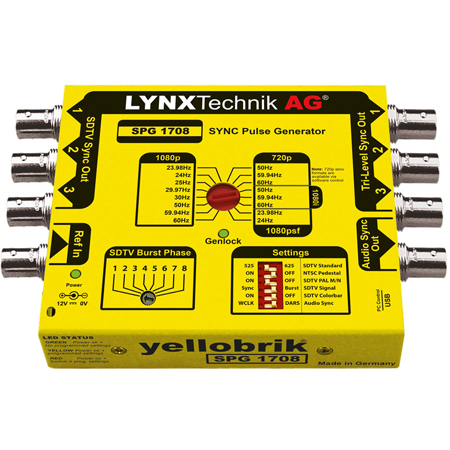

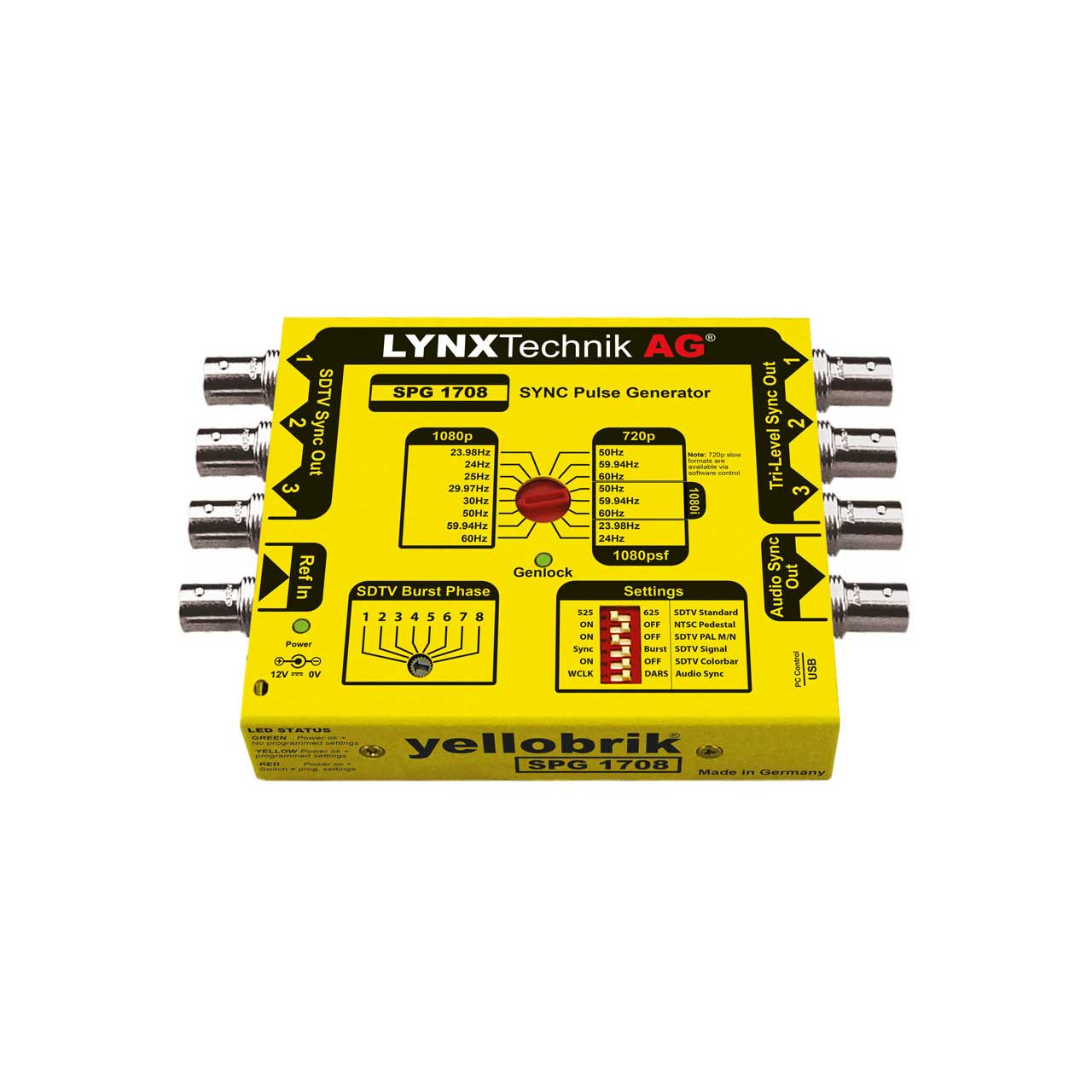

LYNX Technik Yellobrik SPG1708 HD / SD Sync Pulse Generator with Reference Input

ITEM #: LNX-SPG-1708 MFG #: SPG 1708

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    SPG 1708 - Overview

    The LYNX Technik SPG 1708 is a compact, versatile analog sync pulse generator with genlock providing Tri-/ Bi-Level video sync and audio signals. The module offers three Tri-Level sync outputs, three Bi-Level sync outputs, and a separate Audio Sync output, with 48kHz Word Clock or Digital Audio Sync Signal (DARS) capabilities.

    The sync generator has an accuracy of 2ppm, is robust and temperature stabilized. The flexible genlock capability allows the module to lock to any HD or SD Sync input, with full cross-lock functionality, even across unmatched standards.

    Bi-Level and Tri-Level sync outputs and audio sync signals are all frequency locked to the reference, regardless of the selected sync standard for the outputs. Output signals are timing locked if they are in the same frame rate group as the reference. Additionally, a delay in units of output line and pixel can be applied when remote controlling the SPG 1708 via yelloGUI.

    Available sync formats for Bi-Level Sync are NTSC, PAL, or PAL M/N. In addition it can output Color Bars, Black Burst, or just the Sync signal with selectable 7.5 IRE pedestal for NTSC standards with adjustable burst phase in 8 increments. The Tri-level sync outputs can be set to any of the available HD/3G standards.

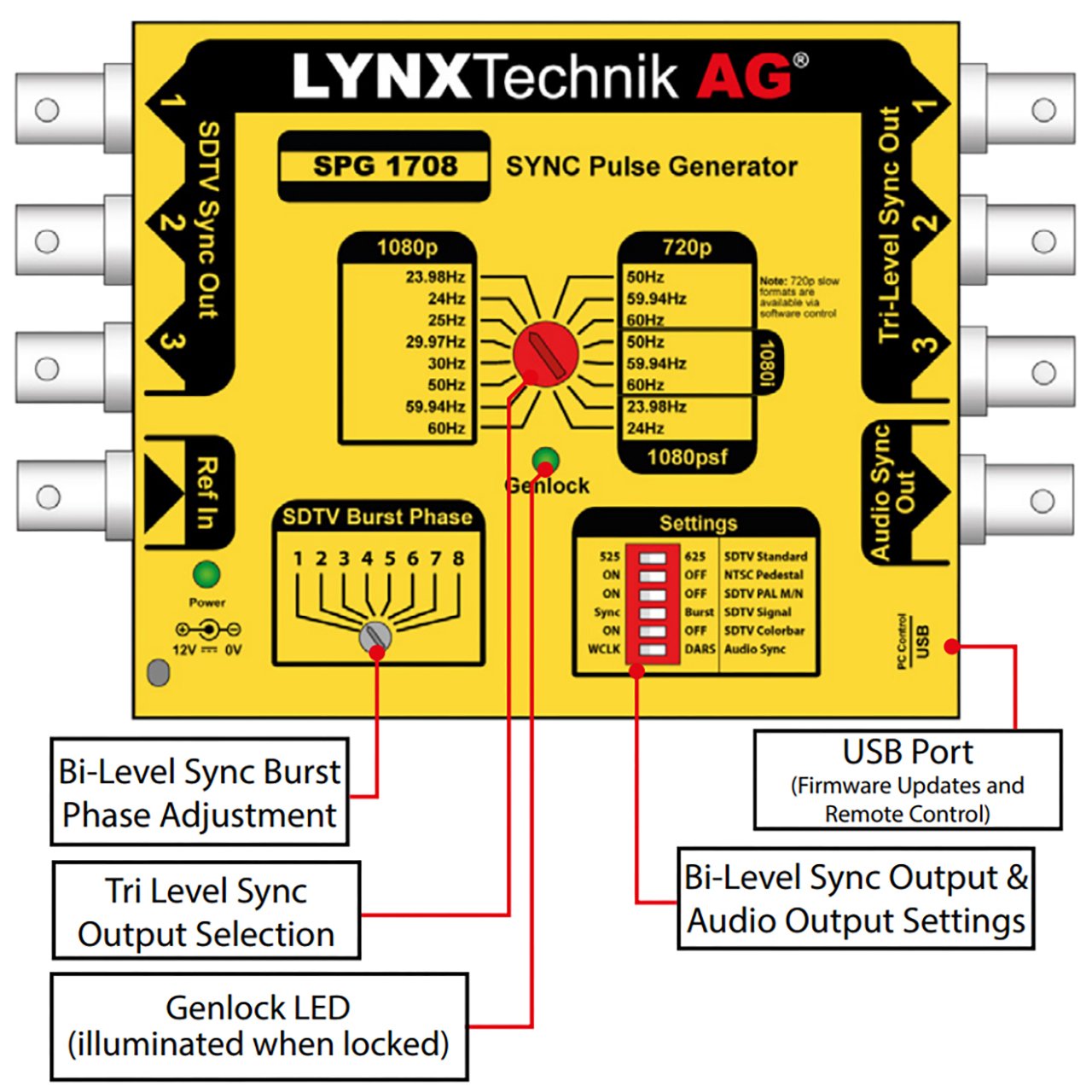

    User controls are located on the top side of the module, clearly labeled, and easily accessible. When remote controlling the device via USB, more options and settings are available with the yelloGUI software.

    • Features:

      • Supports all regular analog Tri- and Bi-Level Sync standards
      • Simultaneous HD/Tri-Level and SD/Bi-Level sync outputs
      • 3 x HD/Tri-Level and 3 x SD/Bi-Level sync outputs
      • Genlock with cross lock to any sync standard
      • "Color Bars", "Black Burst" or "Sync Only" for SD
      • NTSC, PAL or PAL M/N for Bi-Level sync outputs
      • Programmable sync delay output relative to reference
      • Burst phase adjustment for NTSC and PAL sync
      • Audio Sync output 48kHz Word Clock or DARS
      • yelloGUI compatible to access additional internal settings
    • Specifications:

      • HD Sync
      • 3x Tri-level Sync outputs
      • 1080i 50Hz / 59.94Hz / 60Hz
      • 1080p 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz / 50Hz / 59.94Hz / 60Hz
      • 720p 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz / 50Hz / 59.94Hz / 60Hz
      • 1080psf 23.98Hz / 24Hz
      • SMPTE 274M, SMPTE 296M
      • Selectable via integrated 16 position rotary switch
      • Return Loss: >40dB up to 5MHz
      • SNR > 75dB

        SD Sync
      • 3x Bi-level Sync outputs
      • NTSC, PAL, PAL M/N
      • SMPTE 170M, ITU-R BT 470.6
      • Selectable: 75% color bars / black burst / sync only
      • NTSC 7.5 IRE pedestal ON/OFF
      • Adjustable burst phase in 8 increments
      • Return Loss: >40dB up to 5MHz
      • SNR > 75dB

        Ref Input
      • Bi-level or tri-level analog sync
      • Cross lock compatible to 525 and 625 SD sync and all HD sync standards
      • SMPTE 274M, SMPTE 296M

        Audio Sync
      • 48kHz Word Clock or DARS
      • 48kHz Word Clock: 0 - 5.0V
      • DARS: SMPTE 276M unbalanced AES (24-bits) - Grade 2

      • Accuracy: 2 ppm
      • Power: +12V DC @ 2.4W nominal - (supports 7 - 17V DC input range)
      • USB: Mini "Type B" connection for firmware upgrades and remote control
      • Physical Size (incl. Connectors): 140 x 90 x 22mm (5.51 x 3.34 x 0.86")
      • Weight: 300g (10.6oz)
      • Ambient Temperature: 5° to 40°C (41° to 104°F) 90% Humidity (non condensing)
    • Item Includes:

      • 1x SPG 1708 Module
      • 1x AC power supply
