    GEN10 - Overview

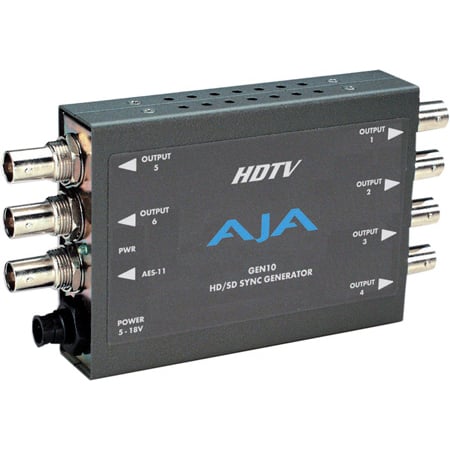

    The AJA GEN10 is a cost effective and flexible SD/HD/AES sync generator. The GEN10 features 7 outputs including 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between SILENCE and TONE. All outputs are in sync with each-other and are sourced from an accurate master time base.

    AJA Mini-Converters are Compact and Portable! They're small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig but tough enough for the road! All Mini-Convertors ship with a universal power supply that includes international plug connections for use around the world and a feature locking power connector that can't accidentally pull loose.

    • Features:

      • HD Tri-level sync generation
      • SD Color Black or Color Bars
      • Two groups of independently switchable outputs allows simultaneous HD and SD sync generation
      • AES-11 output switchable between silence and tone
      • Multiple outputs can synchronize entire systems without requiring a Sync DA
      • 5-18VDC Power
      • External dip switch configuration
    • Specifications:

      • HD Sync: Trilevel
      • SD Sync: Color Black, 75% Color Bars
      • AES: AES-11, 48KHz, Silent or 1KHz Tone (-20db FSD)
      • Accuracy: 3 ppm
      • User Controls:(External Dipswitch)
      • Power: +5-18VDC, 2 watts, Power Supply Required (included with purchase)
      • Formats: 1080i 50, 59.94, 60/1080PsF 23.98, 24, 25, 29.97, 30/1080p 23.98, 24, 25, 29.97, 30/720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60/625i, 525i
    • GTIN:
