Apantac OG-12G-DEMUX-3G-MB OpenGear 12G SDI Demux to 4x 3G SDI with Down Converted 3G SDI Output

ITEM #: APA-OG12GDEMUX3G MFG #: OG-12G-DEMUX-3G-MB

Primary Image
Apantac
Free Shipping with $49 Minimum Order

Our Price:

$1,575.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    OG-12G-DEMUX-3G-MB - Overview

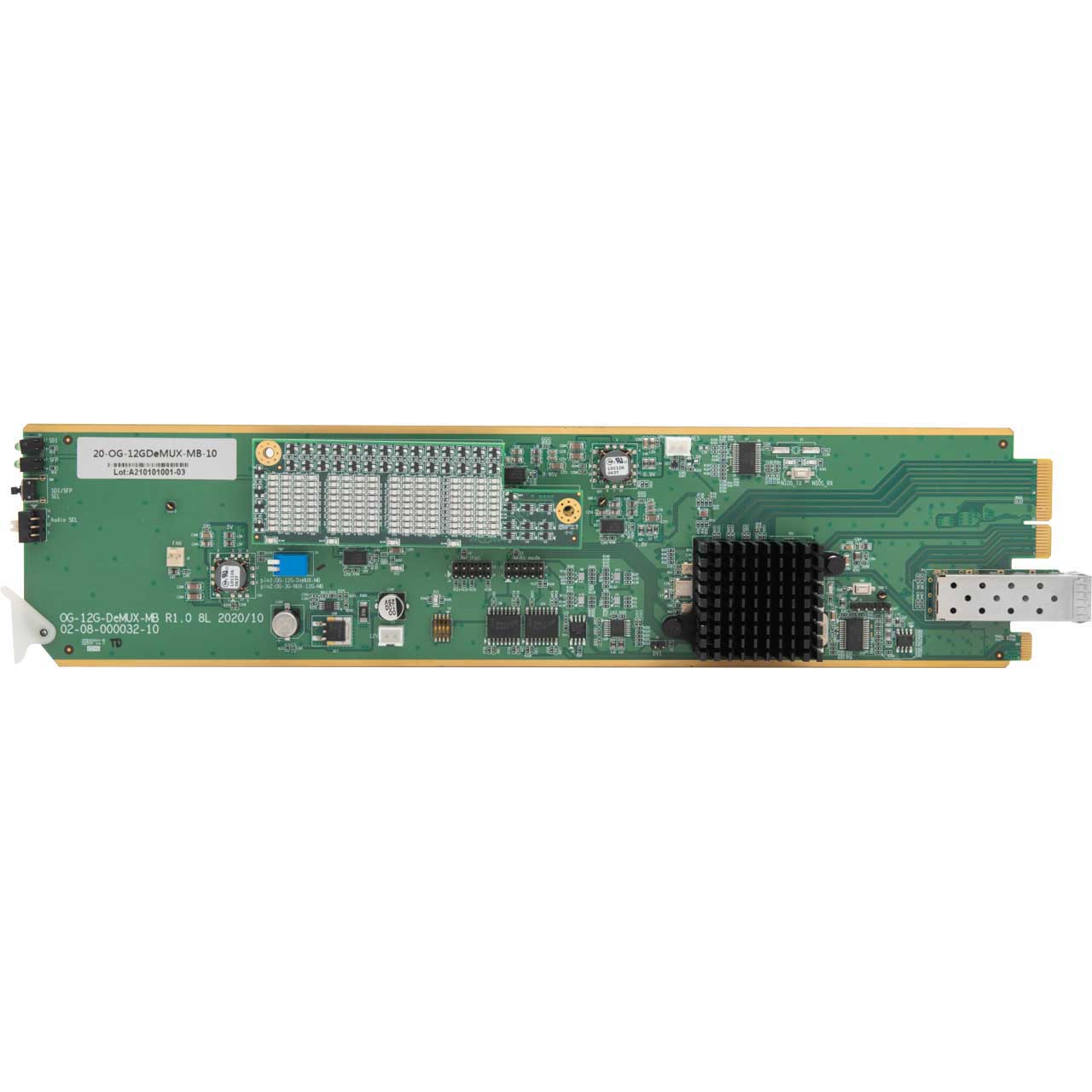

    Apantac OG-12G-DEMUX-3G-MB is a 12G SDI demux to 4 x 3G SDI with a down converted 3G SDI output. Occupies 2 slots in the openGear frame.

    • Features:

      • OGX/3.0 card-based form factor
      • Dashboard control enabled
      • Supports one 12G SDI video input
      • Supports 4 x 3G output (quad link) in 2SI or Square Division
      • Analog audio output
      • Passes HDR from input to output
      • Optional 12G SDI fiber input via SFP
      • Low power consumption - less than 15W


    • Specifications:

      • Description: 12G SDI to quad 3G SDI demux with down converted 3G SDI output
      • Inputs: 1 x 12G SDI input, optional fiber input
      • Outputs: Quad link 3G SDI output with a down converted 3G SDI output
      • Audio: Stereo Analog audio output
      • Control: Dashboard


    • Warranty:

      • 5 Years
