    SDM-SDI-HDTV-UHD - Overview

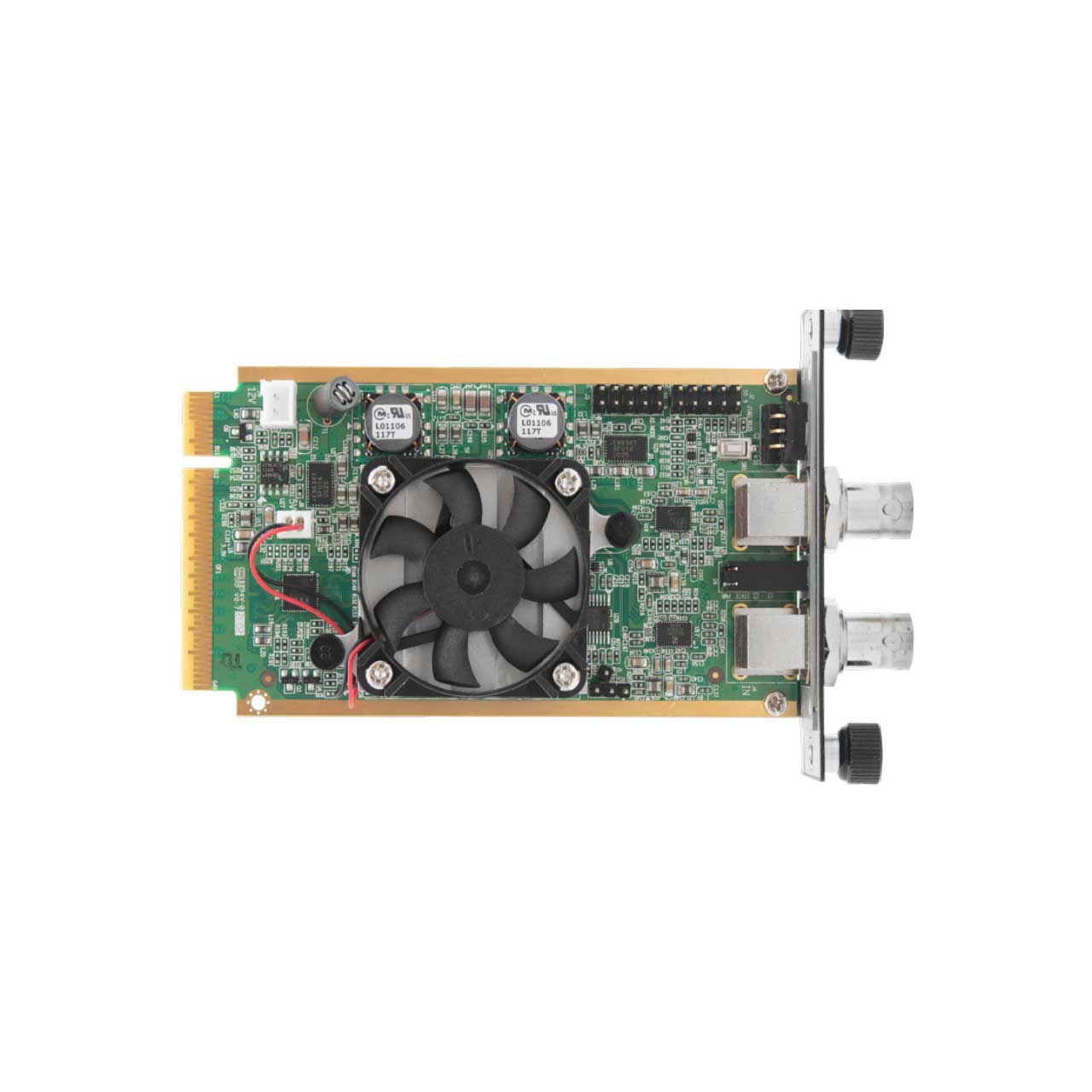

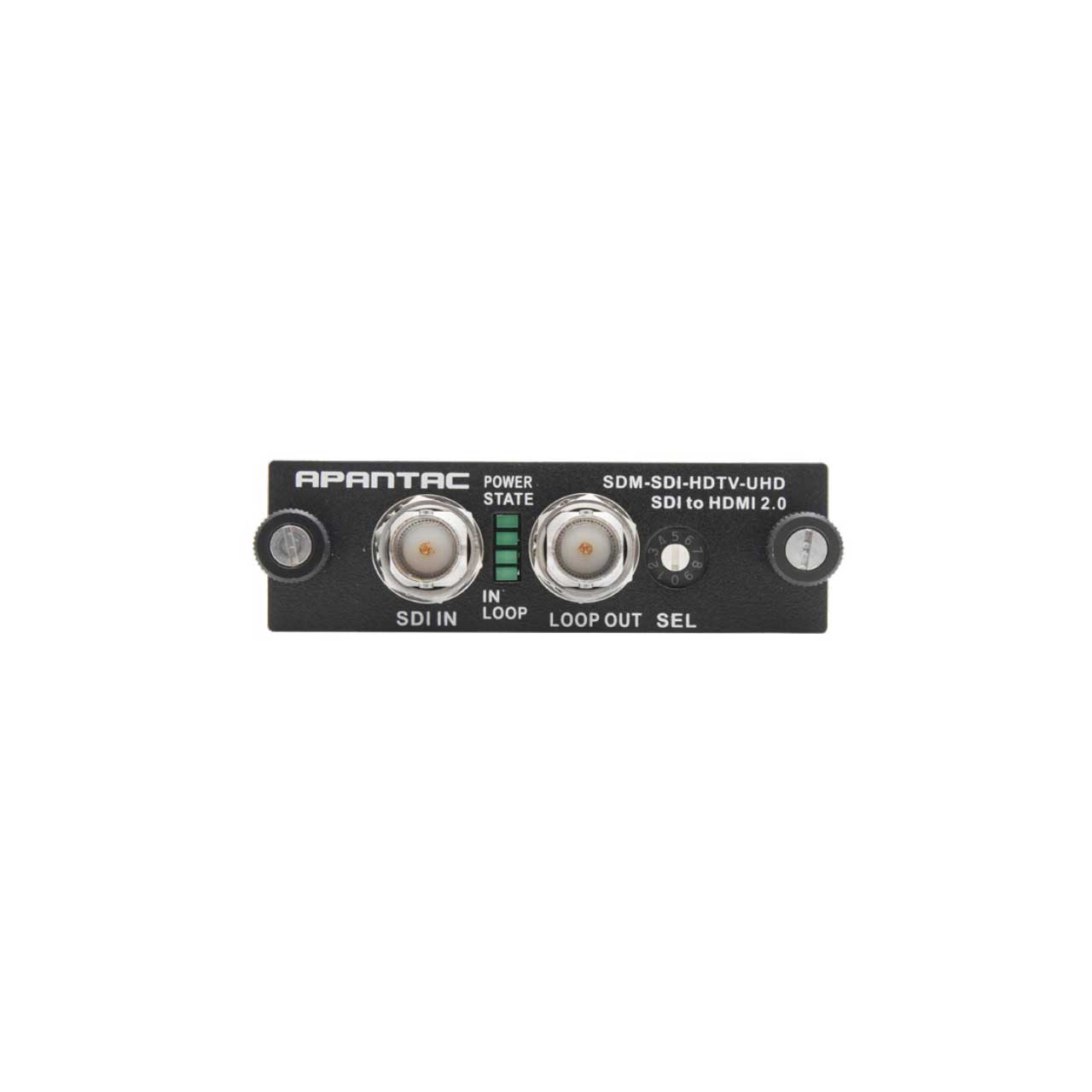

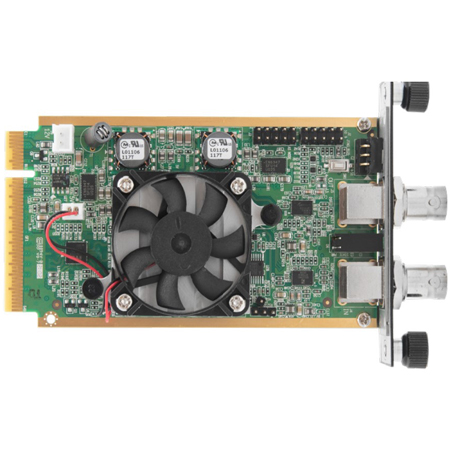

    The Apantac SDM-SDI-HDTV-UHD is a SD/HD-SDI/3G/12G Receiver for Crescent Smart Display Modules.

    Apantac SDM-SDI-HDTV-UHD display interfaces employ Intel's "Smart Display Module" (SDM) platform and reduce power and cabling requirements while providing a streamlined connection system for video walls, displays, and projectors. SDM is designed to be scalable into the future as video formats change and evolve. In addition, Apantac SDM interfaces provide critical information about display performance. With details such as the power being drawn and the amount of cooling needed, you get a better sense of system stability and a larger toolset for ensuring the ongoing reliability of your installed displays."

    • Features:

      • UHD SDI receiver for SDM-S
      • Supports 12G/6G/3G/HD-SDI input
      • SDI loop out
      • Output follows Input on Rec 709/2020
      • 9.5W maximum power consumption

    • Specifications:

      • Input: 12G/6G/3G/HD-SDI
      • Output: SDM Connector
      • Loop out: SDI
      • Dimension: 80 mm Width x 112 mm Depth
      • Power Consumption: 9.5W max

        Environment:
      • Operating Temperature: 0C - 55C
      • Storage: -20C to 60C
      • Humidity: 20% - 90% non-condensing

      • Weight: 230g
