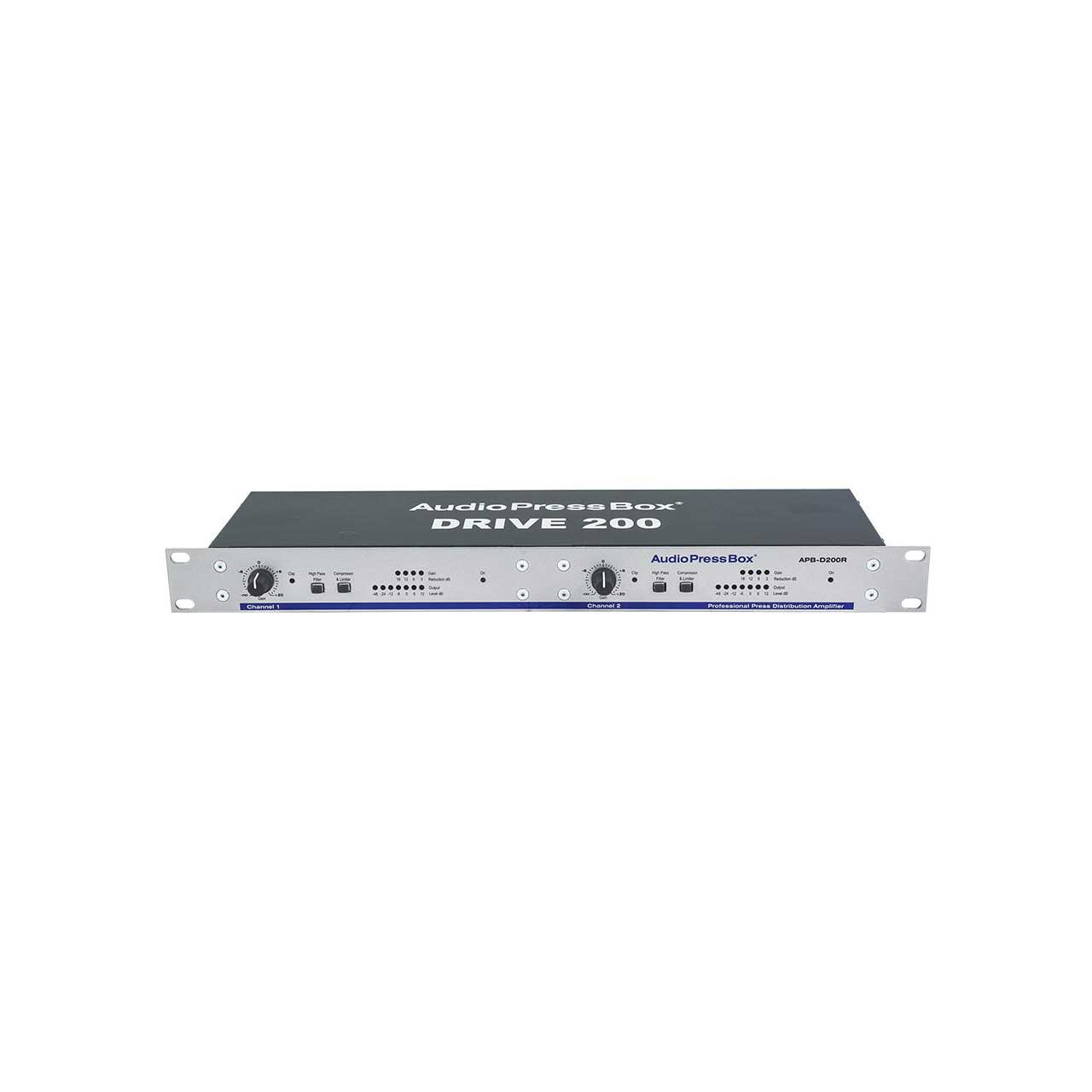

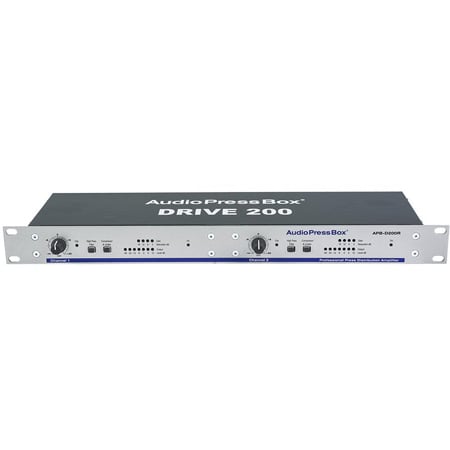

AudioPressBox APB-D200R Active 19 In Rack Distribution/Drive Unit for 6 PressBox Expanders/2 Line In/4 Buffered Out

ITEM #: APB-D200R MFG #: APB-D200R

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$2,209.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    APB-D200R - Overview

    AudioPressBox APB-D200R is a professional active press box Audio Splitter serving as a source for AudioPressBox expanders. Featuring 2 Line Input and 4 buffered expander Outputs the APB-D200R is a 1 channel drive unit that will feed any AudioPressBox expanders. This drive unit can power up to up to 96 Line/MIC outputs and easily connects to the expanders.

    • Features:

      • Professional active 19" rack AudioPressBox Drive unit
      • Channels (2x balanced LINE Input)
      • Switchable High-Pass filter for for each Input channel
      • Switchable Compressor and Limiter for for each Input channel
      • 4 separately buffered Outputs (2 for each channel) that can drive 6x APB-008 or 2x APB-024 Output expanders.
      • Maximum drive capacity 96 Line or Mic Outputs

    • Specifications:

      • Type: 2 IN/ 4 Drive OUT for 12xAPB 8-Output expanders or 4xAPB 24- Output expander
        Note: Total capacity - 96 Line/Mic outputs (12x APB-008 xx-EX or 4x APB-024 R-EX)
      • Inputs: 2
      • Input Connectors: Balanced, XLR
      • Max. Input Level: Line: +32/+2dBu
      • Input Impedance: >5kOhm
      • Outputs: 4 separately buffered, balanced outputs for AudioPressBox expanders
      • Output Connectors: Balanced, XLR
      • Nominal Output Level: +6 dBu
      • Maximum Output Leve: +20dBu with 48 Outputs in use / +16dBu (600kOhm)
      • Output Impedance: Mic: 220 Ohm / Line: 600 Ohm
      • Transformer Isolated Outputs: Yes (each expander output is Independant Transformer Isolated)
      • SNR: 86dB at 0dB Gain / 78dB at +20dB Gain
      • Frequency Response: 30/160Hz (filter) to 60kHz/-1dB

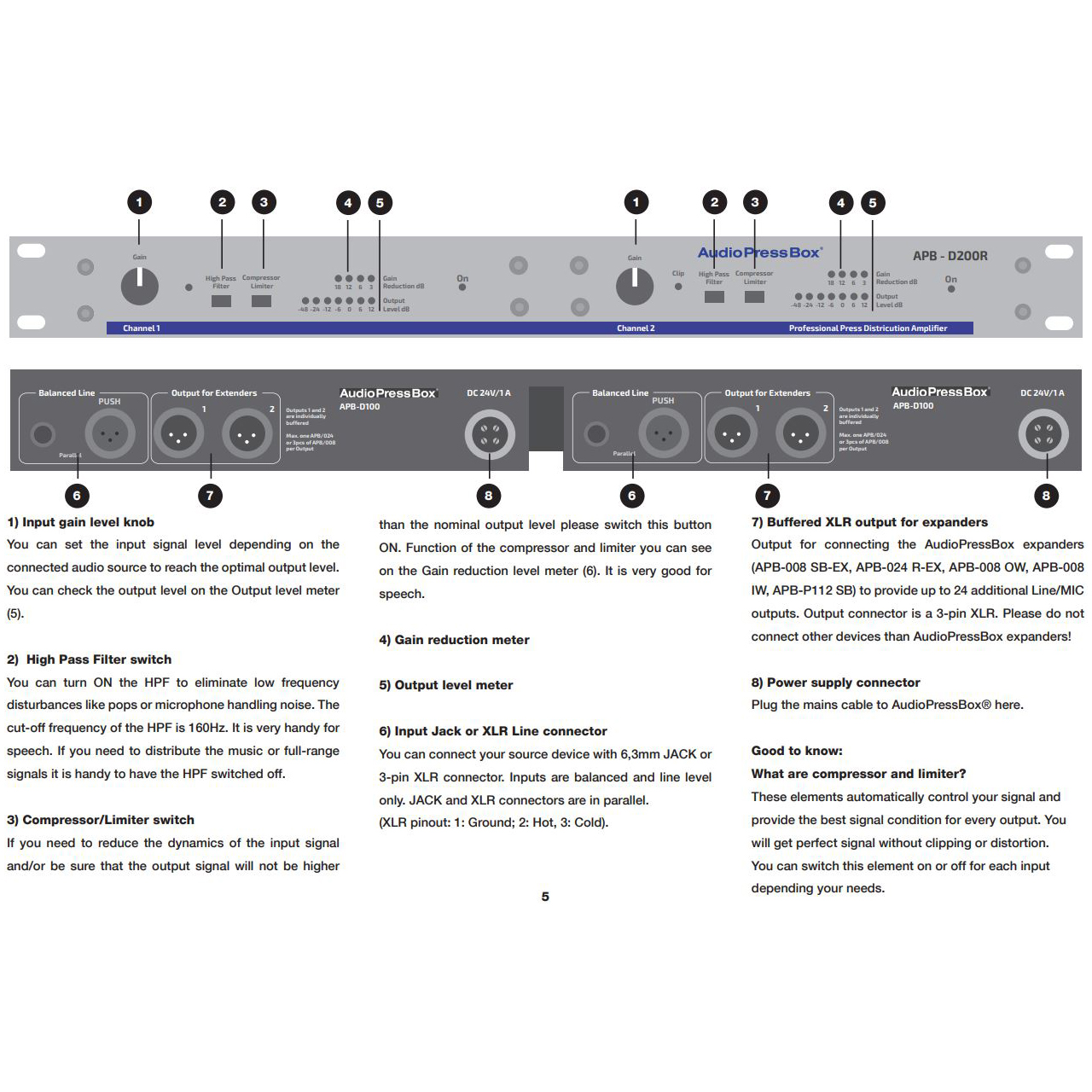

      • Controls: Input gain, Compressor and Limiter, High Pass Filter, Power
      • Indicators: Input clip, Output level, Gain reduction, Power

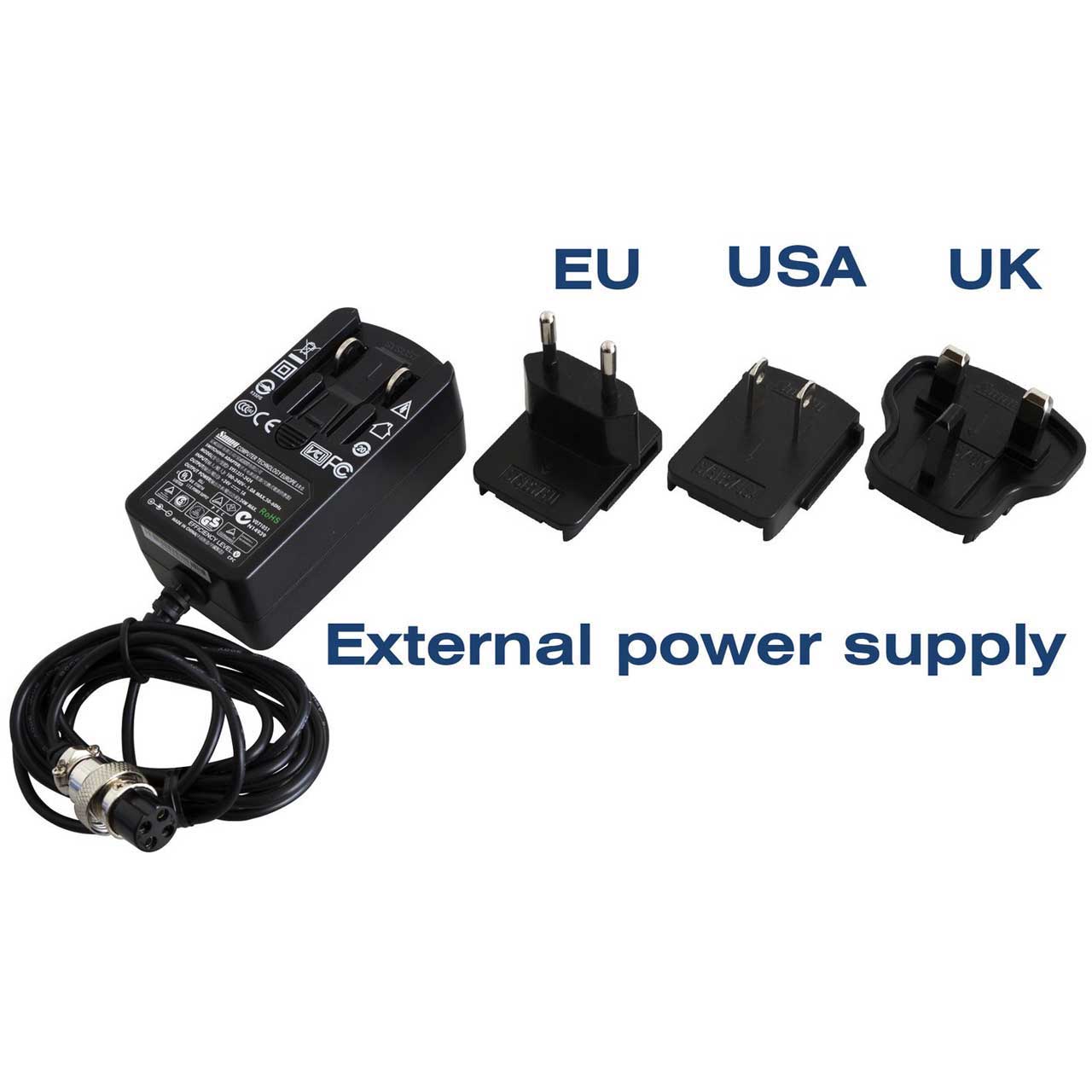

      • Power Supply: 24V DC, 300mA external adaptor
      • Dimensions (WxHxD): 480x120x44mm
      • Weight: 1210g

    • Item Includes:

      • 1x AudioPressBox APB-D200R Active 19 In Rack Distribution/Drive Unit for 6 PressBox Expanders/2 Line In/4 Buffered Out

    • Warranty:

      • 2 Year

    • GTIN:

      8588007614151
