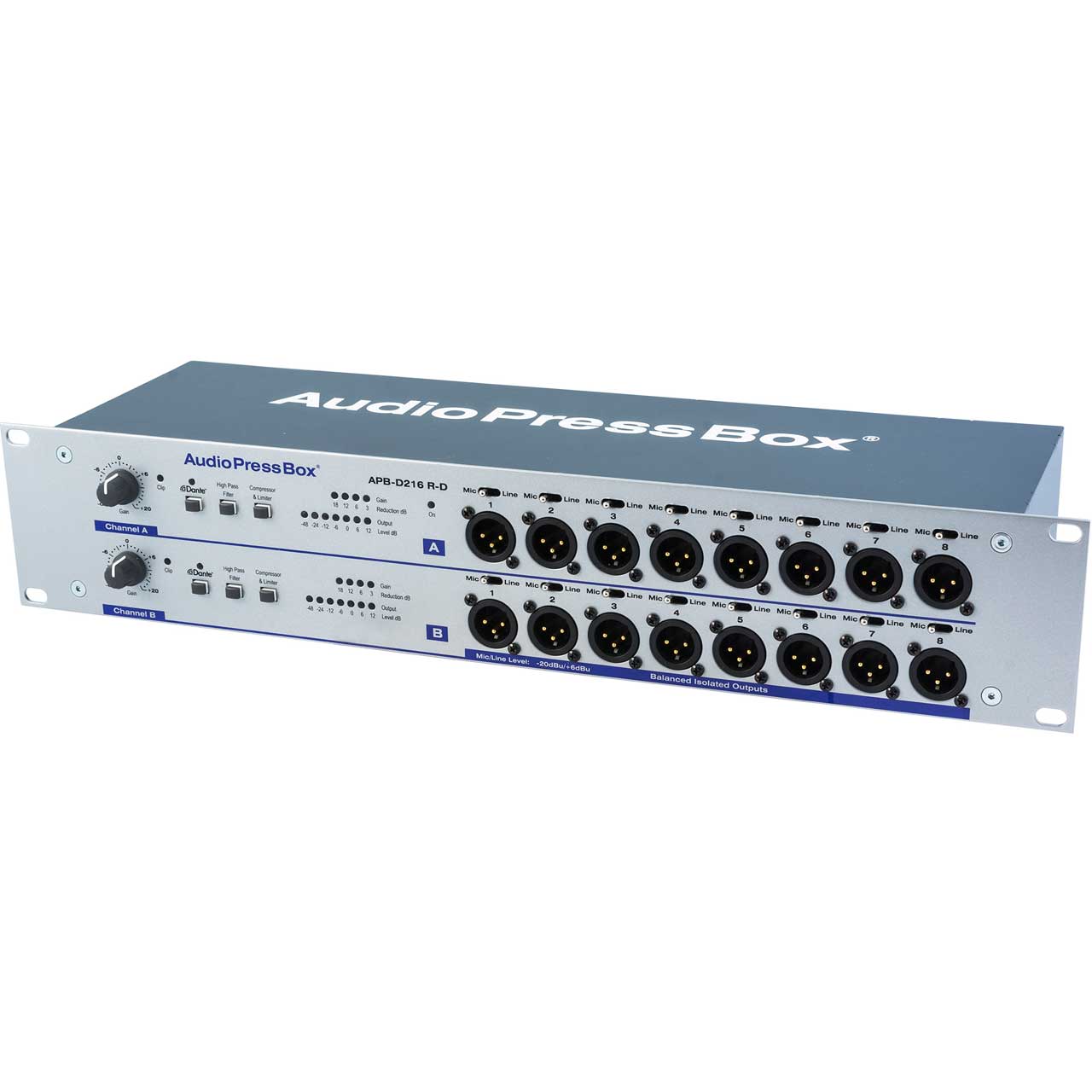

AudioPressBox APB-D216 R-D Active 19in Rack PressBox Drive Unit - 2 LINE Inputs/2-Ch Dante Interface/16 Line/MIC Outputs

APB-D216 R-D - Overview

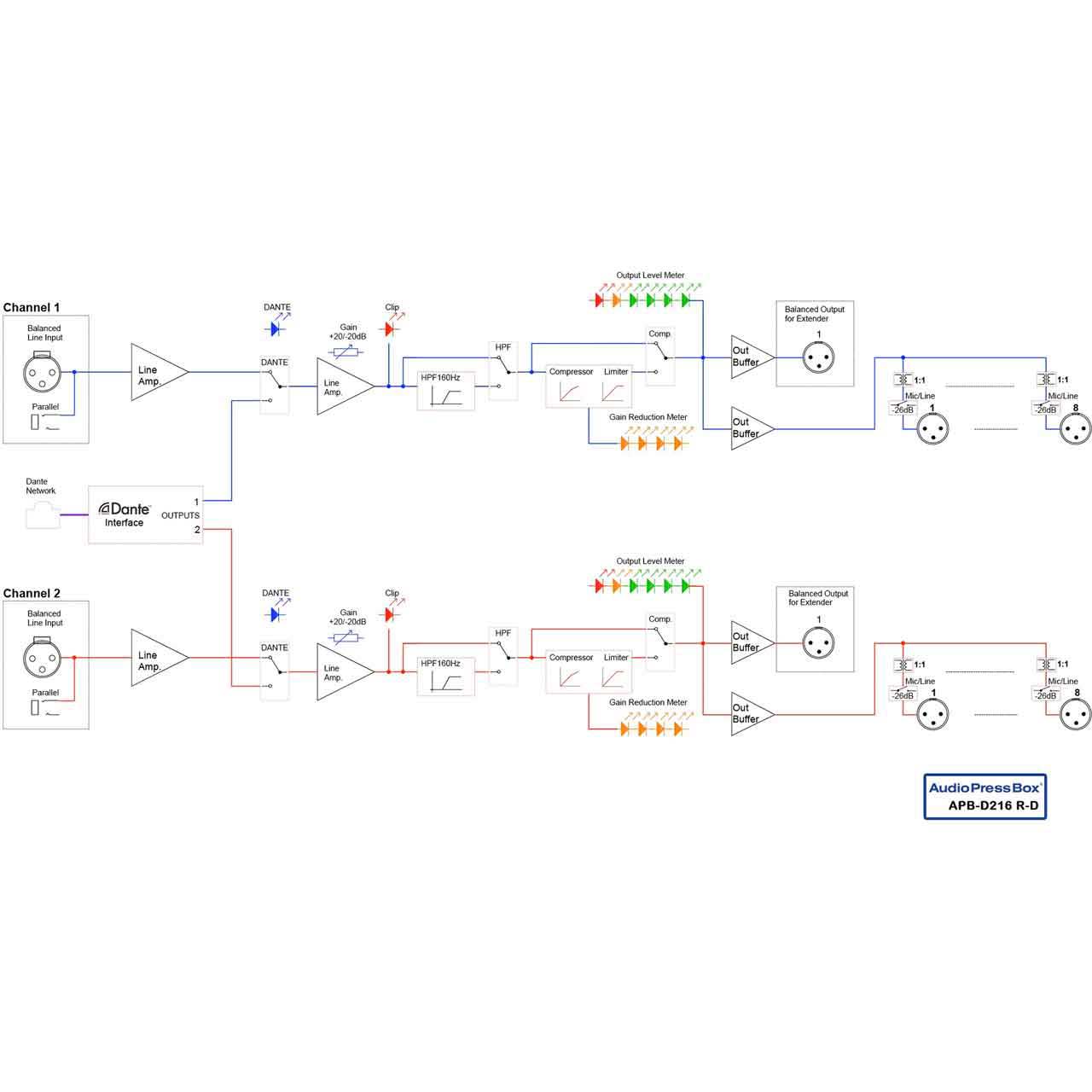

• Features:

  • 2 Balanced LINE Inputs - XLR/ 6.3mm JACK
  • 2-channel DANTE input with high-quality digital-to-analogue converter
  • Switch between Line or Dante input.
  • 16 High quality balanced, individually transformer isolated outputs
  • Each Output is switchable between MIC or LINE level
  • Switchable High-Pass filter for each Input channel
  • Switchable Compressor and Limiter for Input channel

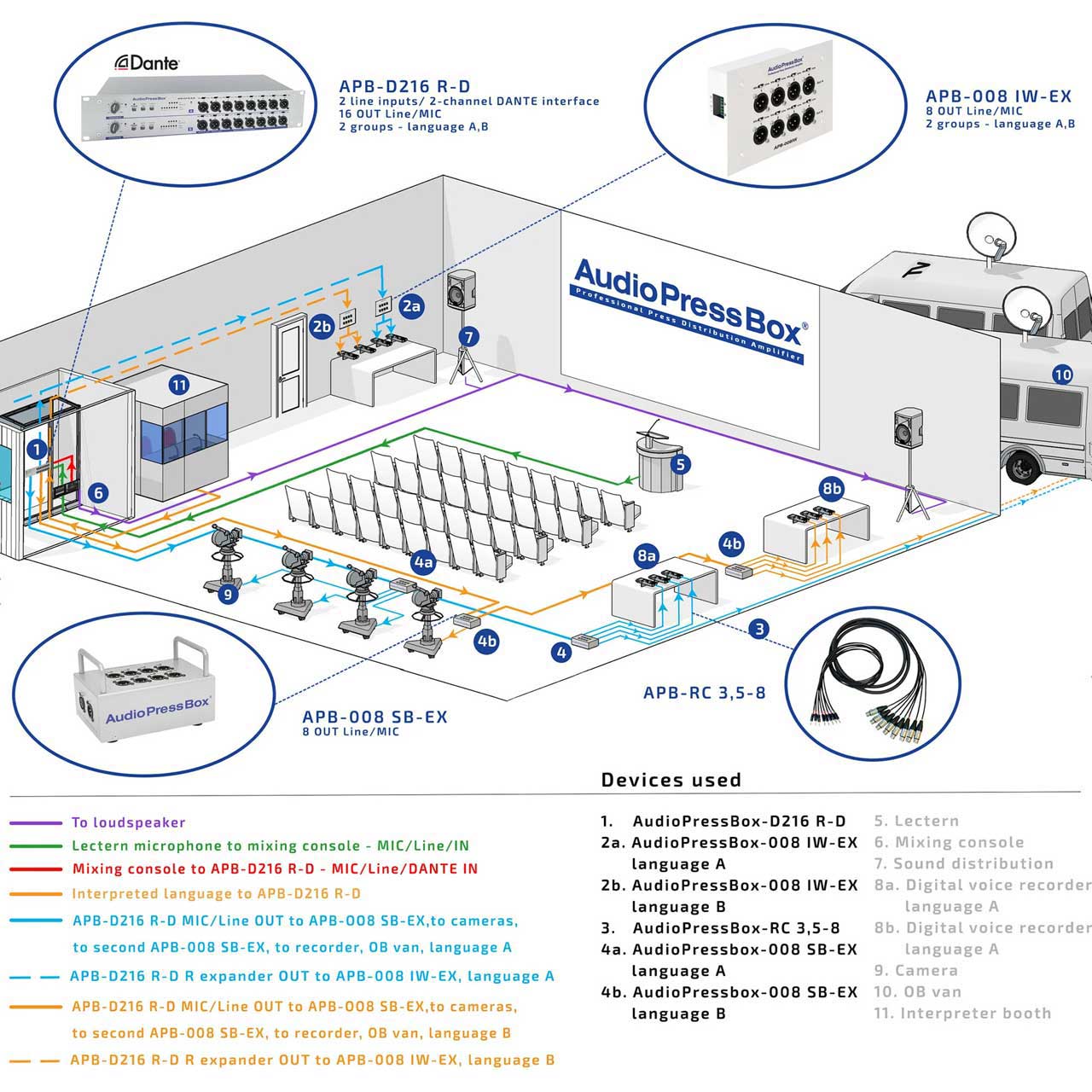

  • 2 separately buffered Outputs that can drive 6x APB-008 or 2x APB-024 Output expanders.
  • Maximum drive capacity 48 Line or Mic Outputs.


• Specifications:

  • Input section
  • Inputs: 2 (Line or Dante)

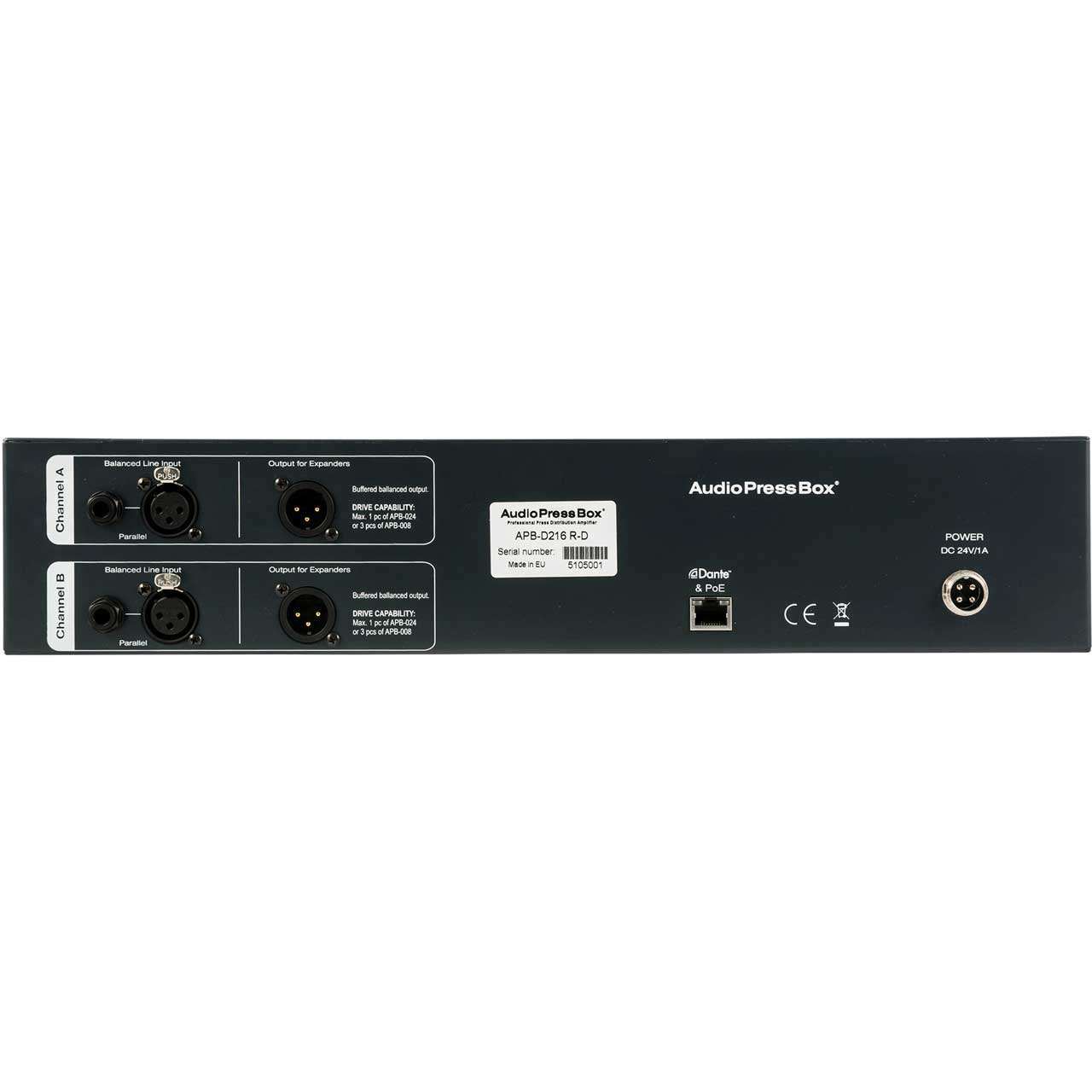

  • Input connectors: Balanced, XLR / 6.3mm JACK, RJ45-Dante
  • Max. input level: Line: +32/+2 dBu
  • Input Impedance: >5kOhm

    Output section
  • Outputs: 16 Line/MIC level, 2 buffered outputs for expanders (max 48 Line/MIC outputs)
  • Output connectors: Balanced, XLR
  • Nominal Output Level: +6dBu (front outputs)
  • Maximum Output Level: +20dBu (no load), +14dBu (600Ohm)
  • Output impedance: Mic: 220 Ohm Line: 600 Ohm
  • Transformer isolated outputs: Yes (each output)
  • SNR: 86dB at 0dB Gain, 78dB at +20dB Gain
  • Frequency Response: 20/160Hz (flter) to 36kHz/-3dB (front outputs)

    Physical Specifications

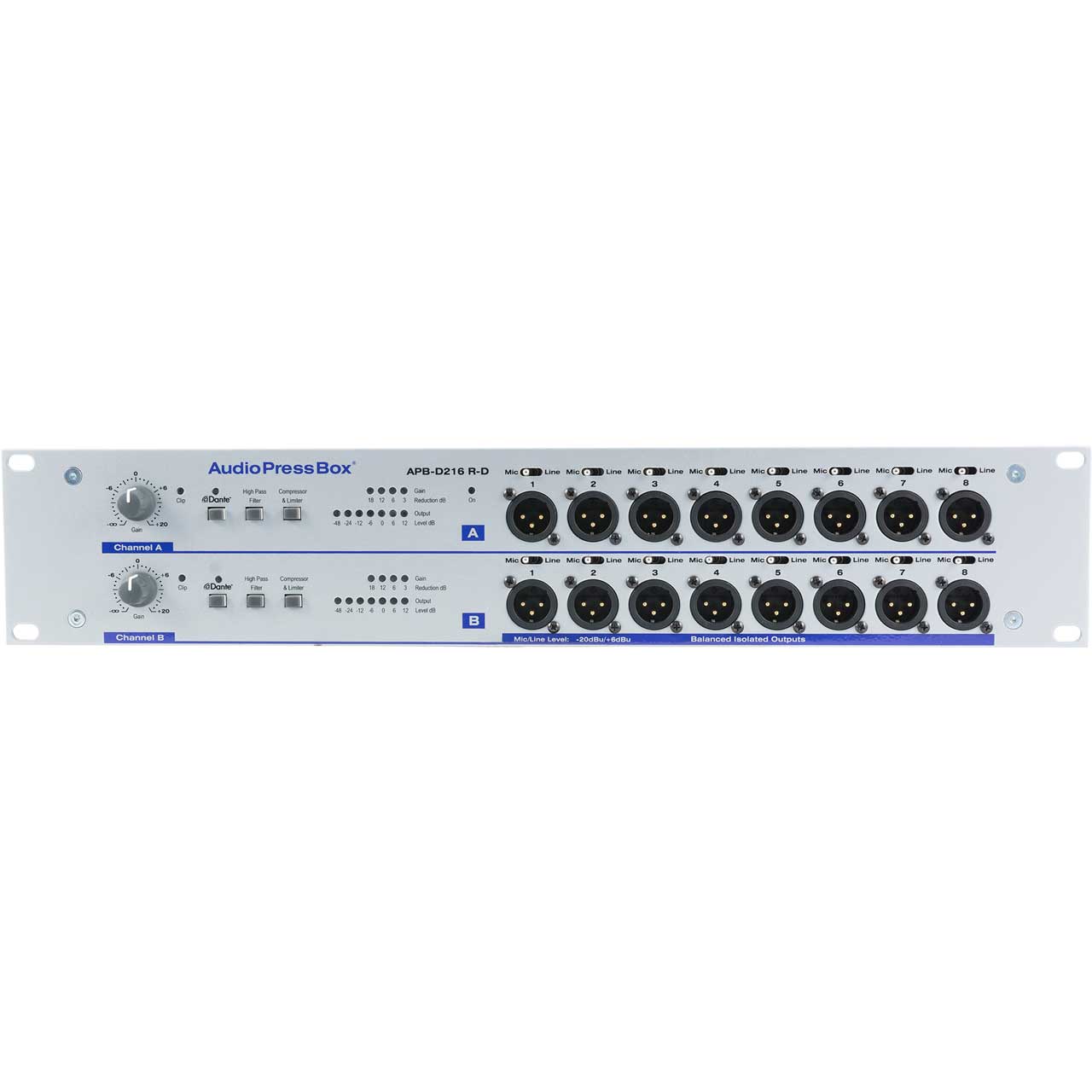

  • Controls: Input gain, Dante switch, High-pass Flter, Compressor, Output PAD
  • Indicators: Input clip, Dante, Output level, Gain reduction, Power
  • Power Supply: 24V DC, 1A external adaptor
  • Dimensions (WxHxD): 2 RU, 18.89" x 5.3" x 3.54" (480mm x135mm x 90mm)
  • Weight: 7.62lbs (3460 g)


• Item Includes:

  • 1x APB-D216R-D
  • 1x 24V DC Power Supply
  • 1x User Manual
  • 1x Test Report


• Warranty:

  • 2-Year Limited Warranty
