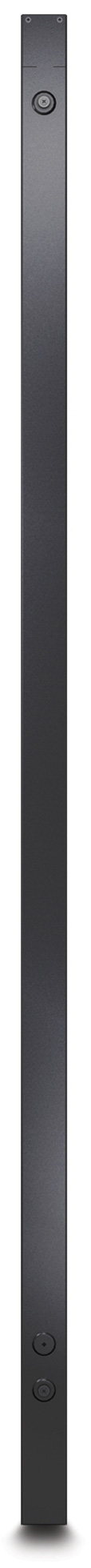

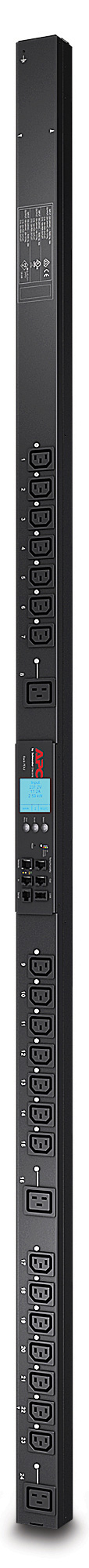

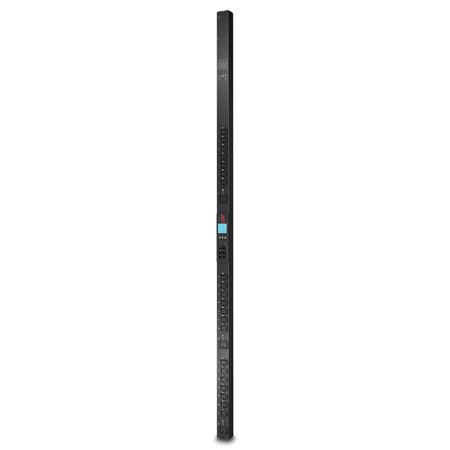

APC AP8959 APC Rack PDU 2G Switched ZeroU 20A/208V 16A/230V (21) C13 & (3) C19

ITEM #: APC-AP8959 MFG #: AP8959

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the APC-AP8959

AP8959 - Overview

APC AP8959 is a switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low-profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

  • Features:

    • Single Input Power Source
    • Wide Range Of Input And Output Connections
    • Rack-Mountable
    • Local Current Monitoring Display
    • Alarm Thresholds
    • Power Delays
    • Remote Individual Outlet Controls
    • Remote Management Capabilities
    • Flash Upgradeable
    • Multi-Tier User Accesskey
    • Network Management Capabilities
    • Intergrates With StruxureWare Data Center Expert
    • Network Port Sharing
    • Local Current Monitoring Display
  • Specifications:

    • Output
    • Nominal Output Voltage: 100V, 200V, 208V, 230V
    • Overload Protection: No
    • Maximum Total Current Draw: 16
    • Output Connections: (3) IEC 320 C19 (Battery Backup)(21) IEC 320 C13 (Battery Backup)

    • Nominal Input Voltage: 200V, 208V, 230V
    • Input frequency: 50/60 Hz
    • Input Connections: IEC-320 C20
    • Acceptable Input Voltage: 100-240VAC
    • Load Capacity: 3300VA
    • Maximum Input Current: 20A
    • Regulatory Derated Input Current (North America): 16A

    • Maximum Height: 70.5inches (1791MM, 179.1CM)
    • Maximum Width: 2.2inches (56MM, 5.6CM)
    • Maximum Depth: 1.82inches (46MM, 4.6CM)
    • Net Weight: 12.6lbs. (5.73KG)
    • Shipping weight: 17.3lbs. (7.86KG)
    • Shipping Height: 78.8inches (2002MM, 200.2CM)
    • Shipping Width: 6.5inches (165MM, 16.5CM)
    • Shipping Depth: 4.5inches (114MM, 11.4CM)
    • Color: Black
    • Units per Pallet: 48.0

    • Operating Temperature: 23 - 113°F (-5 - 45°C)
    • Operating Relative Humidity: 5 - 95 %
    • Operating Elevation: 0-10000ft (0-3000meters)
    • Storage Temperature: -25 - 65 °C
    • Storage Relative Humidity: 5 - 95 %
    • Storage Elevation: 0-50000ft (0-15000meters)

    • Approvals: cUL Listed, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15; Class A, ICES-003, PSE, UL Listed, VDE
    • Standard warranty: 2 years repair or replace

      Sustainable Offer Status
    • RoHS: Compliant
    • REACH: Contains No SVHCs
    • Battery Directive: Compliant
  • GTIN:
