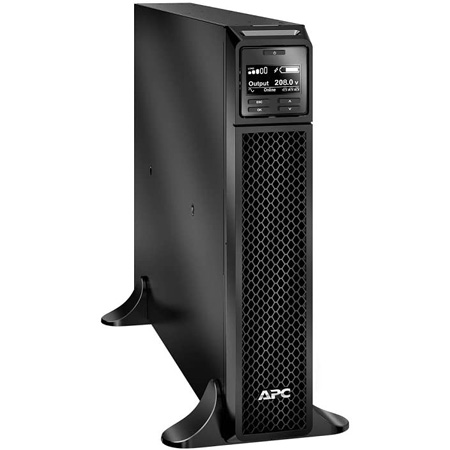

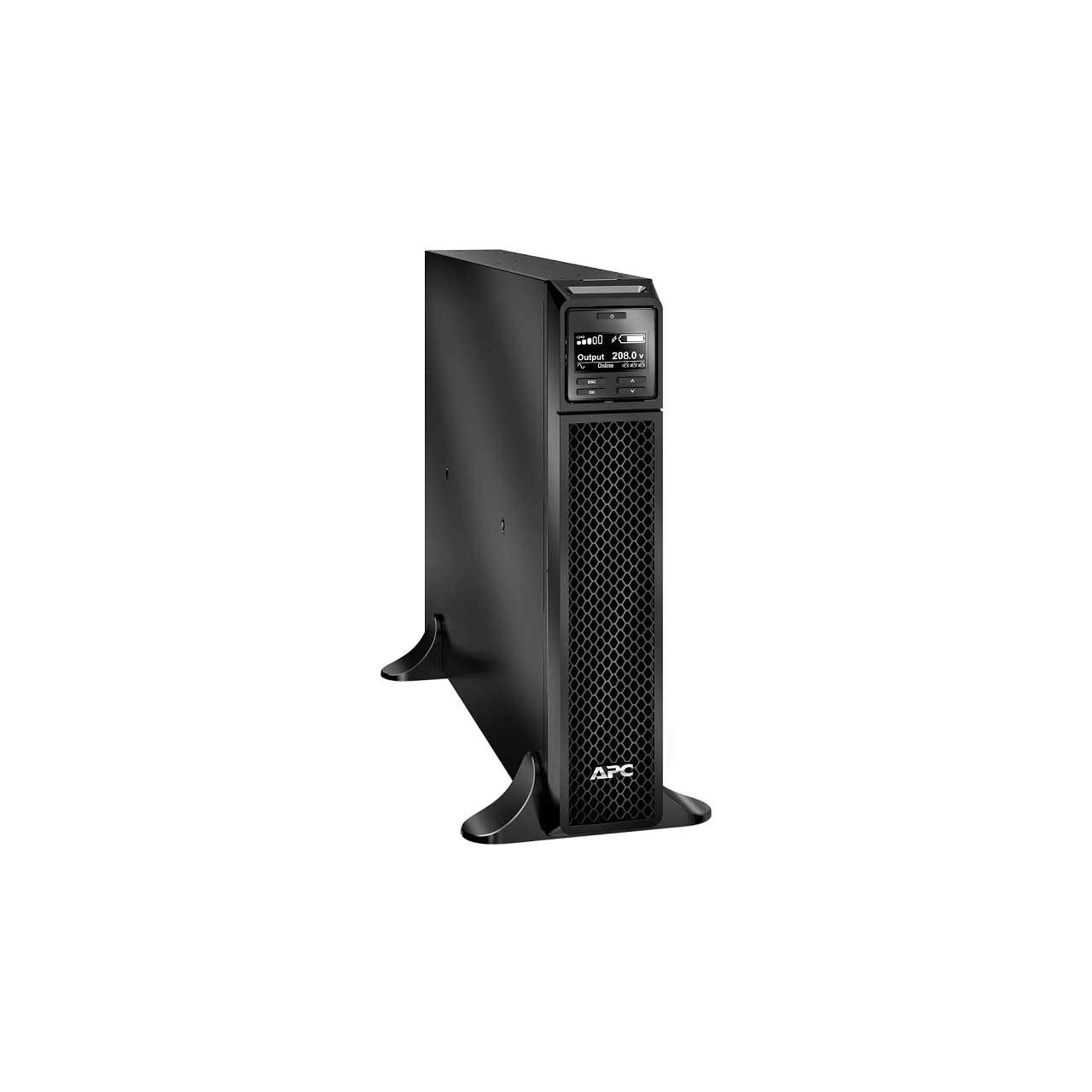

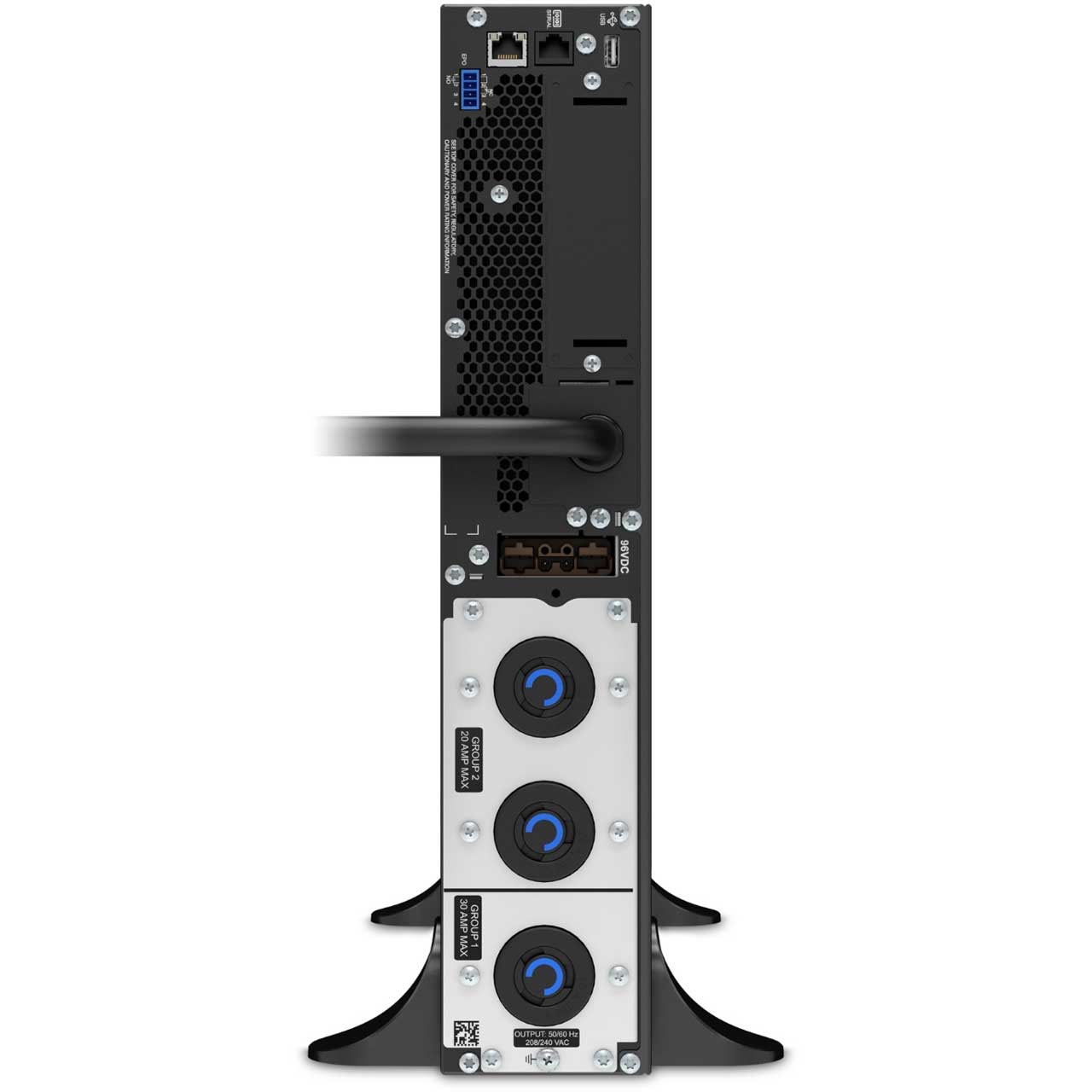

APC SRT3000XLT Smart-UPS SRT 3000VA 208V

SRT3000XLT - Overview

• Features:

  • Cold-start capable: Provides temporary battery power when the utility power is out.
  • Resettable circuit breaker: Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
  • Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
  • Input Power Factor Correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Frequency and voltage regulation: Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
  • Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used.


• Specifications:

  • Output
  • Max Configurable Power: 2.7kW / 3.0kVA
  • Output Voltage Note: Configurable for 208 or 240 nominal output voltage
  • Output Voltage Distortion: Less than 2%
  • Output Frequency (sync to mains): 50/60 Hz ±3 Hz Sync to mains
  • Other Output Voltages: 240
  • Load Crest Factor: 3:1
  • Topology: Double conversion online
  • Waveform Type: Sine wave
  • Bypass: Internal bypass (automatic and manual)

    Input
  • Input frequency: 40 - 70 Hz Auto-sensing
  • Input voltage range for main operations: 100 - 275 Adjustable (half load), 160 - 275V
  • Number of Power Cords: 1
  • Other Input Voltages: 240

    Batteries & Runtime
  • Battery type: Lead-acid battery
  • Included Battery Modules: 1
  • Typical recharge time: 3-hours
  • Nominal Battery Voltage: 96 V
  • Replacement Battery: APCRBC152
  • Expected Battery Life: 3 - 5 Years
  • RBC Quantity: 1
  • Battery Charge Power: 165 Watts
  • Extendable Run Time: 1
  • Battery Volt-Amp-Hour Capacity: 497
  • Extended Run Options: APC-Smart-UPS-SRT-3000VA-208V

    Communications & Management
  • Interface Port(s): RJ-45 Serial, Smart-Slot, USB
  • Control panel: Multifunction LCD status and control console
  • Audible Alarm: Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO): Yes
  • Available SmartSlot™ Interface Quantity: 1

    Surge Protection and Filtering
  • Surge energy rating: 340Joules

    Physical
  • Dimensions (HxWxD): 17 x 3.3 x 25" (432 x 85 x 635mm)
  • Weight: 69Lbs (31.3kg)
  • Shipping Dimensions (HxWxD): 9.7 x 23.6 x 34.3" (246 x 599 x 871mm)
  • Shipping weight: 81Lbs (36.74kg)
  • Color: Black
  • Units per Pallet: 6

    Environmental
  • Operating Temperature: 32° to 104°F (0° to 40 °C)
  • Operating Relative Humidity: 0 to 95 %
  • Operating Elevation: 0 to 10,000' (0 to 3048m)
  • Storage Temperature: 5° to 113°F (-15° to 45°C)
  • Storage Elevation: 0 to 50,000' (0 to 15240m)
  • Audible Noise at 1m From Surface of Unit: 55.0dBA
  • Online Thermal Dissipation: 773.0BTU/hr
  • Protection Class: IP20

    Conformance
  • Approvals: CSA C22.2 No 107.3-05, ENERGY STAR V2.0 (USA), FCC part 15 class A, UL 1778
  • RoHS: Compliant


• Item Includes:

  • 1x CD with software
  • 1x Documentation CD
  • 1x Installation guide
  • 1x Removable support feet
  • 1x USB cable
  • 1x Warranty card


• Warranty:

  • Standard warranty: 3 years repair or replace (excluding battery) and 2 years for battery


• GTIN:

  0731304317685
