The Appsys ProAudio FLX-DANTE/SRC is a compact DANTE-to-anything converter with built-in 64x64ch Sample Rate Converter (SRC). It can convert 64x64ch of Dante to to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-mkII or another Flexiverter.

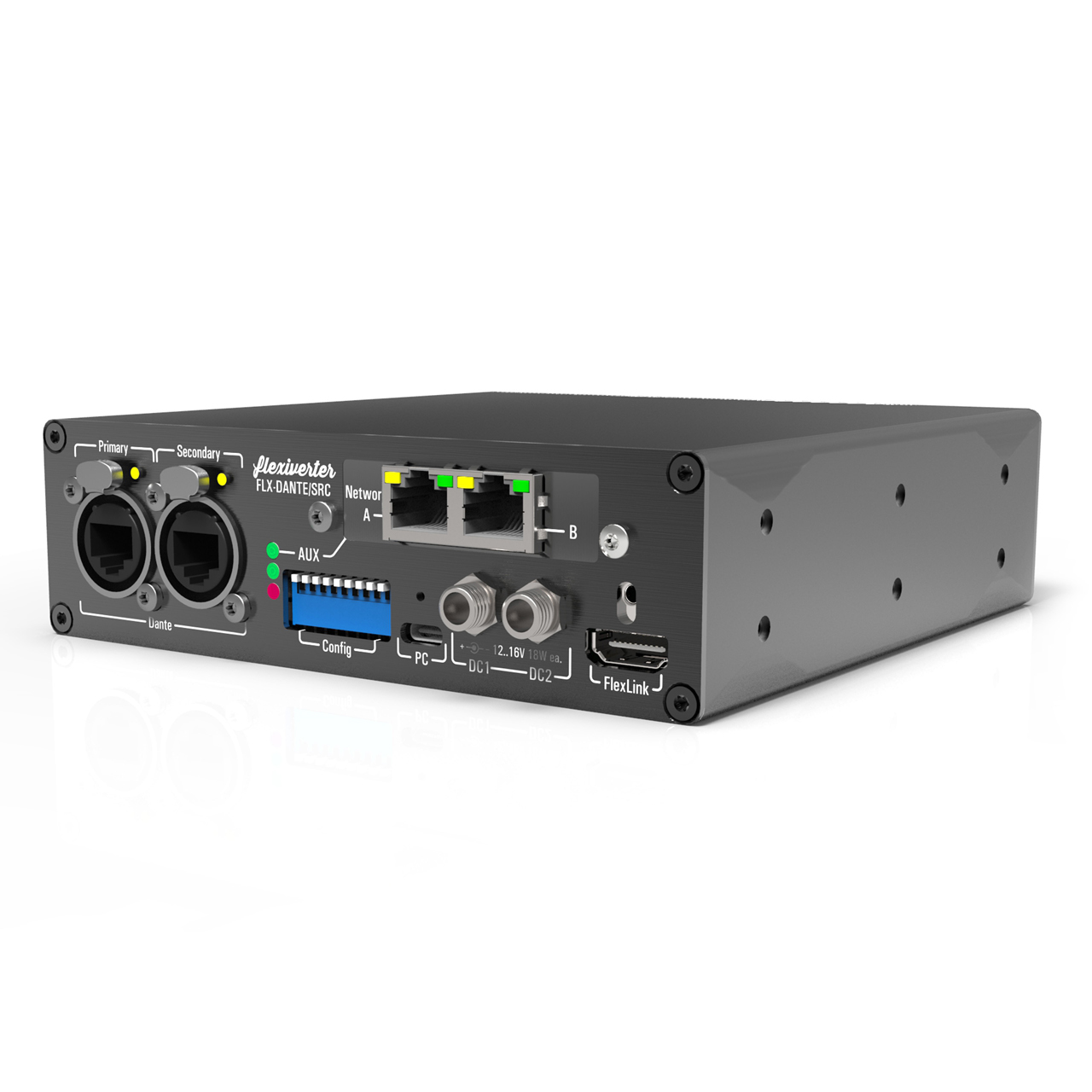

FlexLink Connection
The FlexLink connection is designed to connect Flexiverters with each other, or with the Multiverter. It provides:
• 192x192 channels (at 48kHz) bi-directional transmission of 24-bit uncompressed audio (fully transparent to AES3 compatible metadata bits)
• Super-low link latency of 4 samples
• Dedicated, high-quality reference clock signal with automatic configuration
• Power supply for connected devices (to reduce cabling), alternatively serves as redundancy scheme when both devices are powered: in case of power failure, both devices keep working from the remaining power supply.
• Uses standard HDMI cables (with locking screws), to provide easy field replacement in case of defects.

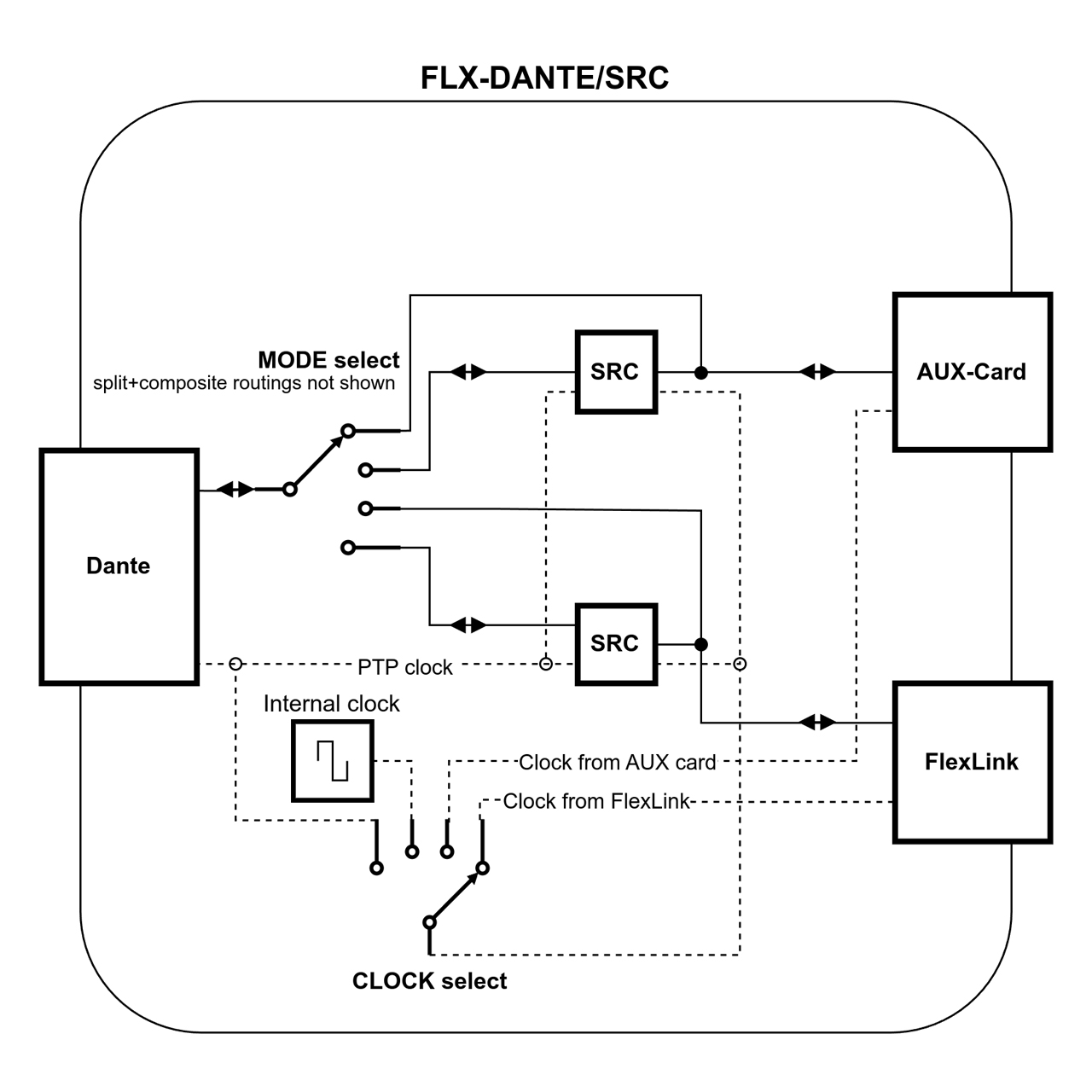

Audio Routing

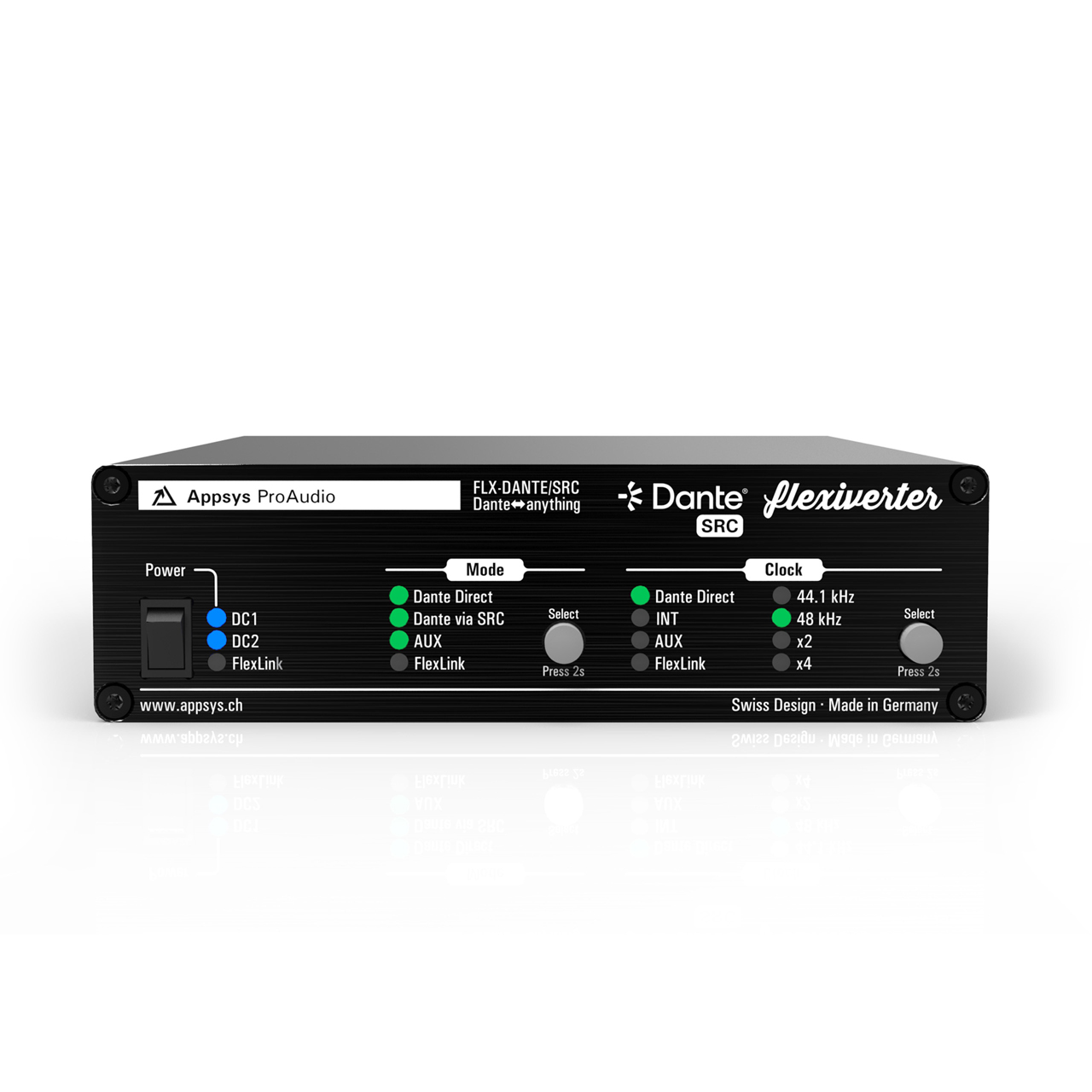

The flexiverter can operate in various routing modes, allowing you to pass audio between the available interfaces in many different ways. The LEDs in the "MODE" section indicate the involved interfaces.
