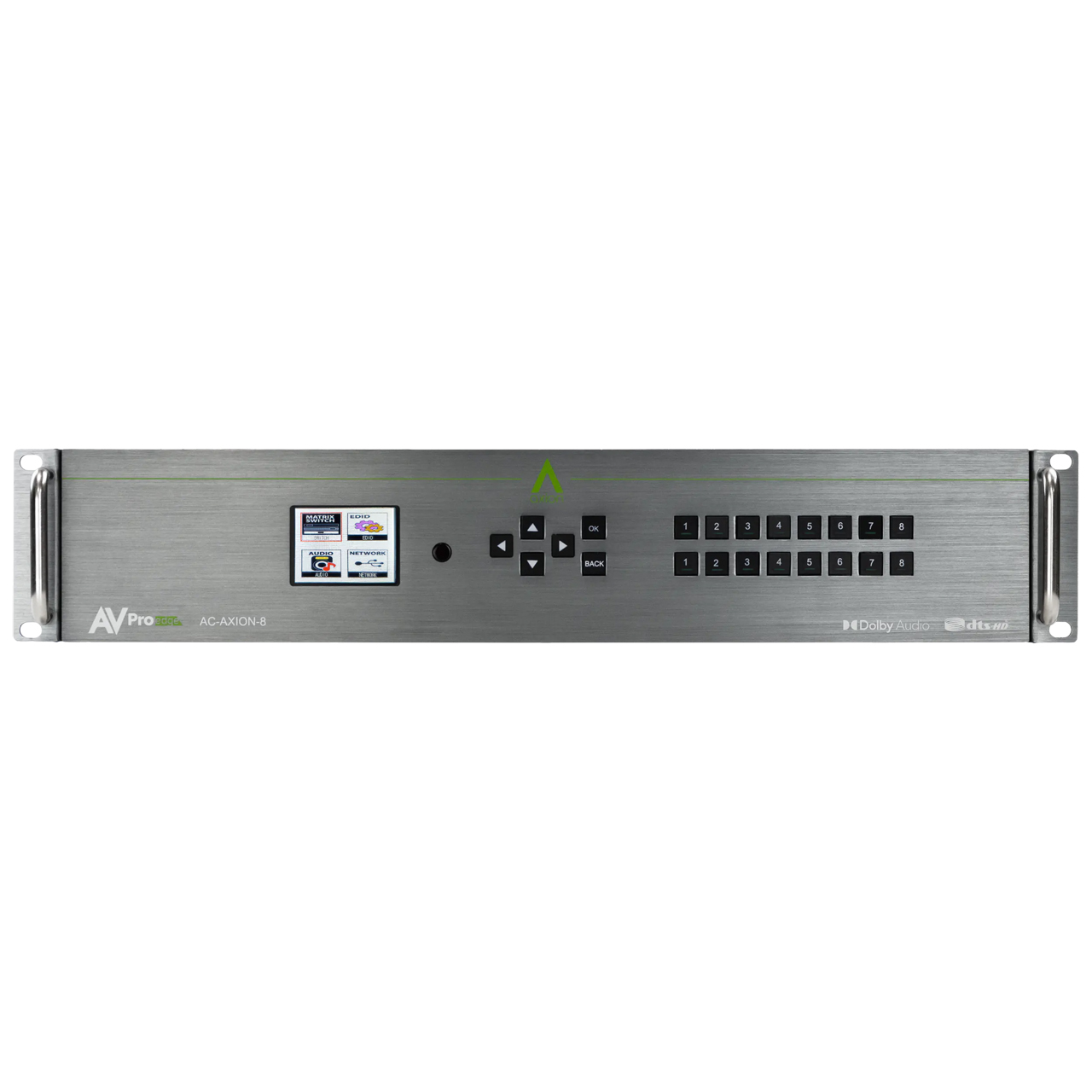

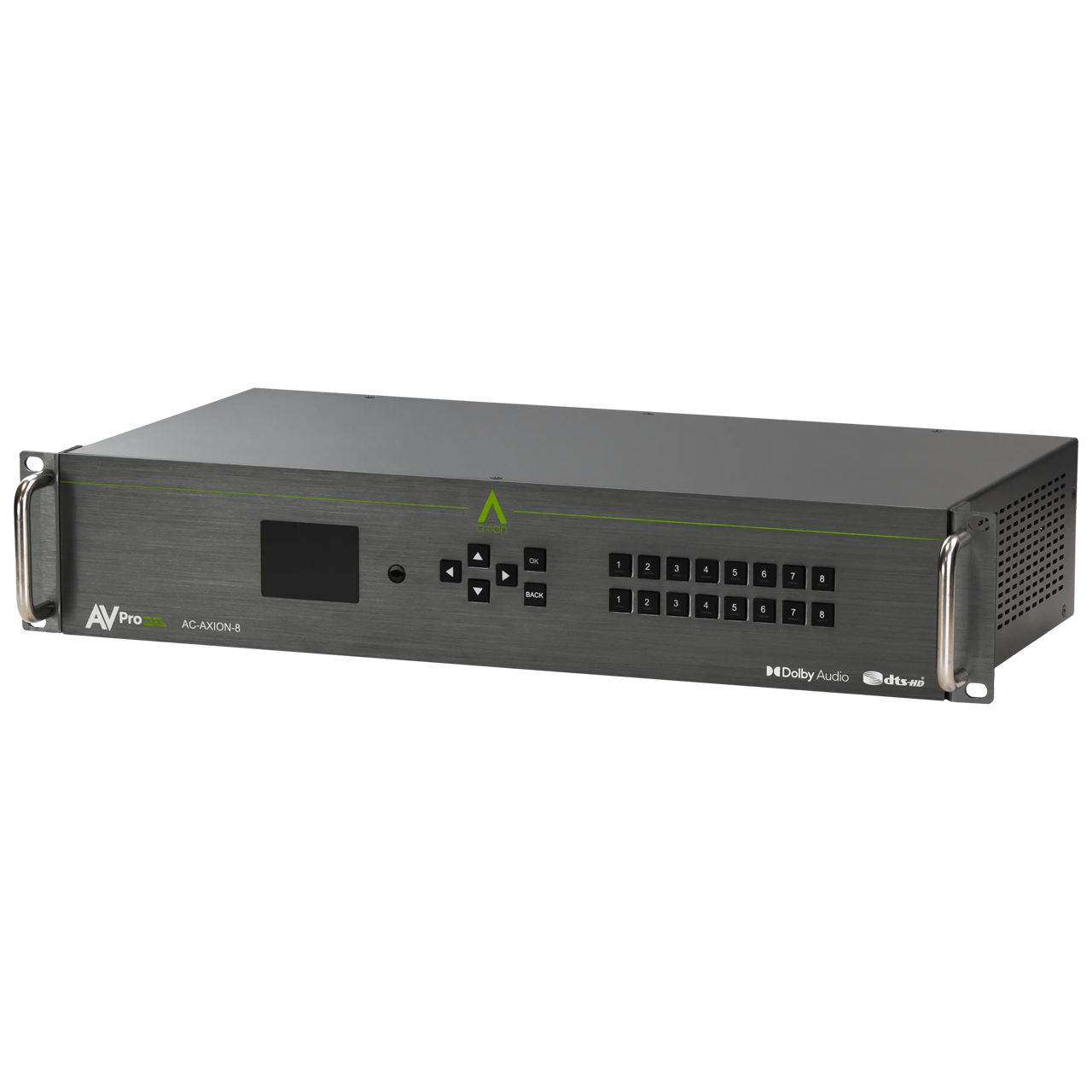

The AVPro Edge AC-AXION-8 is a high bandwidth audio/video matrix switcher. What really makes this product special is the ability to down-mix bitstream audio beyond 7.1 channel into a 2 channel audio signal via all 8 inputs, that includes Dolby Atmos and DTS:X. In a multi-zoned distribution system every zone is not set to handle full Dolby Atmos sound. Most zones are going to need 2 channel audio. This AC-AXION-8 Matrix Switcher allows you to deliver 24+ channels to your Dolby Atmos home theater, at the same time it delivers 2 channel to the rest of the zones.
AVPro Edge does this by allowing the down-mixing to only affecting the de-embedded audio outputs, the HDBaseT and HDMI ports leave the audio unimpeded, allowing you to distribute full Dolby Atmos and DTS:X HD through them.
Supporting the full HDMI 2.0 a/b specification and supporting every flavor of HDR, this matrix will ensure you can get the most out of any system. This 8x8 down-mixing matrix supports HDR formats Including HDR, HDR10, HDR10+, Dolby Vision, HLG, BBC and NHK. All of them are supported in up to 4K 60Hz and up to 12 Bit Deep Color. All color space compression is compatible. This powerhouse matrix switcher is the ideal solution for a multi-zone setups that need audio down-mixing.
Control is not a problem, through the web GUI you can manage all the settings and controls. We also offer drivers for all the top control systems. Combine that with the LED setup screen on the front and management is a breeze. The AC-AXION-8 will become a staple in your large demanding installations!
Invisible Compression
ICT is a technology we developed to ensure 18Gbps distribution over standard category cable. That means what you put in is what you see on the screen. No need to worry about compression artifacts and banding like you find with other compression methods.
Ultimate HDR Support
This matrix supports all flavors of HDR in all formats. Including HDR, HDR10, HDR10+, Dolby Vision, HLG, BBC and NHK. All of them are supported in up to 4K 60Hz and up to 12 Bit Deep Color. All color space compressions are compatible.
