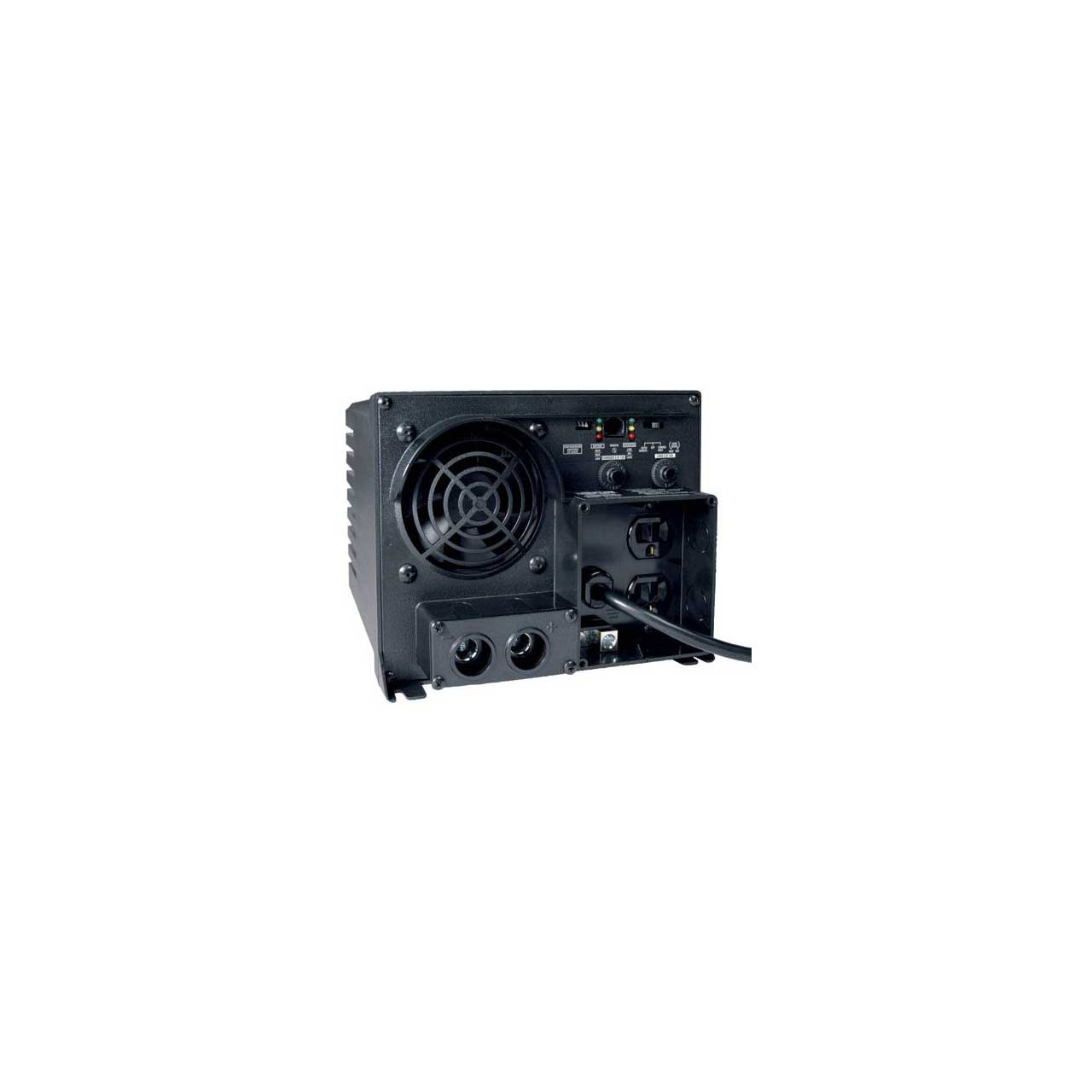

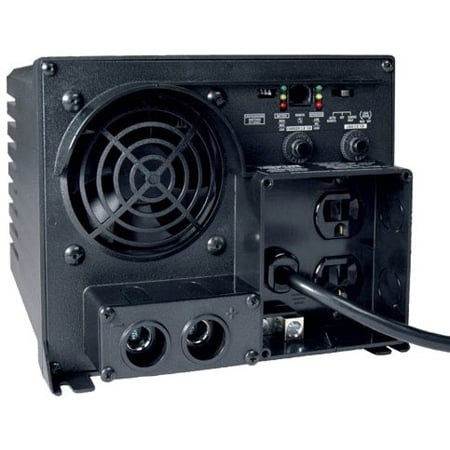

Tripp Lite APS1250 PowerVerter APS Inverter/Charger with Auto-Transfer Switching

ITEM #: APS1250 MFG #: APS1250

free ship

List Price:

$1,145.66

Our Price:

$803.45

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    APS1250 - Overview

    ripp Lite's APS1250 DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 1250 watts of continuous 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. OverPower inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes and DoubleBoost inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment.

    When AC cable is connected to a live wall socket, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 30 amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utility or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup.

    Optional APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status information (APSRM4 sold separate). Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages.

    • Features:

      • APS1250 serves as an automotive or stationary DC-to-AC inverter with automatic line-to-battery transfer and integrated battery charger
        Supports 120V AC output from a 120V AC line power source or 12V DC battery source
        16.6 millisecond automatic transfer between line and battery power supports UPS protection during blackouts and voltage fluctuations for equipment compatible with a one cycle transfer time
        1250 watts continuous AC output in inverter mode, 1440 watts continuous AC output in AC mode
        Double Boost inverter output supports momentary startup loads up to 200% of the continuous rating for up to 10 seconds
        OverPower inverter output supports longer duration overloads to 150% for 1-60 minutes under ideal battery and temperature conditions (For best results, utilize OverPower usage for as short of a duration as possible, ensure battery bank and cabling is able to provide full nominal DC voltage under load and allow inverter/charger to fully cool before and after OverPower usage).
        3 stage, 30 amp battery charger with adjustable settings for wet/gel battery types offers fast, reliable battery recharging
        Protected hardwire bolt-down input lugs safely accept heavy gauge input wiring from attached battery bank
        Two built-in NEMA 5-15R output receptacles pass 120V line power or inverter output through to connected equipment
        Reliability enhanced large-transformer design with secure mounting flanges and protected DC wiring terminals
        Moisture-resistant construction enables vehicular or marine operation in high humidity environments
        3 position operating mode switch supports "AUTO" mode to enable automatic transfer between DC and AC modes, CHARGE-ONLY to maintain a full battery charge when AC is present without auto transfer and SYSTEM OFF settings.
        Set of six front panel LEDs display AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status
        Set of 4 configuration dipswitches support wet/gel battery charging profiles, adjustable 135/145V high voltage auto transfer during overvoltages and selectable 75/85/95/105V AC low voltage auto transfer during brownouts
        Resettable 8A charger AC input breaker and resettable 12A AC output breaker and automatic 2 speed cooling fan protect the inverter from load and temperature related failures
        Grounding lug properly connects the inverter/charger system to earth ground or vehicle grounding system
        Automatic overload and thermal shutoff safely turns off inverter as excessive loads or overheating conditions develop
        Front panel remote control connector enables remote off/on switching (requires APSRM4 switch accessory). Optional APSRM4 accessory also includes user configurable jacks to support inverter shutoff or startup as a vehicle ignition is engaged.

    • Specifications:

      • 12V DC or 120V AC input; 120V AC output; 2 outlets
      • 1250 watts continuous, 1875 watts OverPower and 2500 watts DoubleBoost inverter output
      • 2 NEMA 5-15R receptacles
      • 3 stage, 30 amp wet/dry cell battery charger
      • Auto Transfer Switching option for battery backup / UPS operation
      • Reliability enhanced large-transformer design with protected DC wiring terminals

    • Item Includes:

      • APS1250 Inverter/Charger
      • Instruction manual with warranty information

    • Applications

      :

      • Versatile inverter/charger system with auto-transfer switching serves as an automotive inverter for RVs, over-the-road trucking, conversion vans and fleet service vehicles; a standalone alternative power source for off-grid, alternative energy or export applications and as an uninterruptible power supply (UPS) for items compatible with a 16.6 millisecond transfer time.

    • GTIN:

      0037332121653
