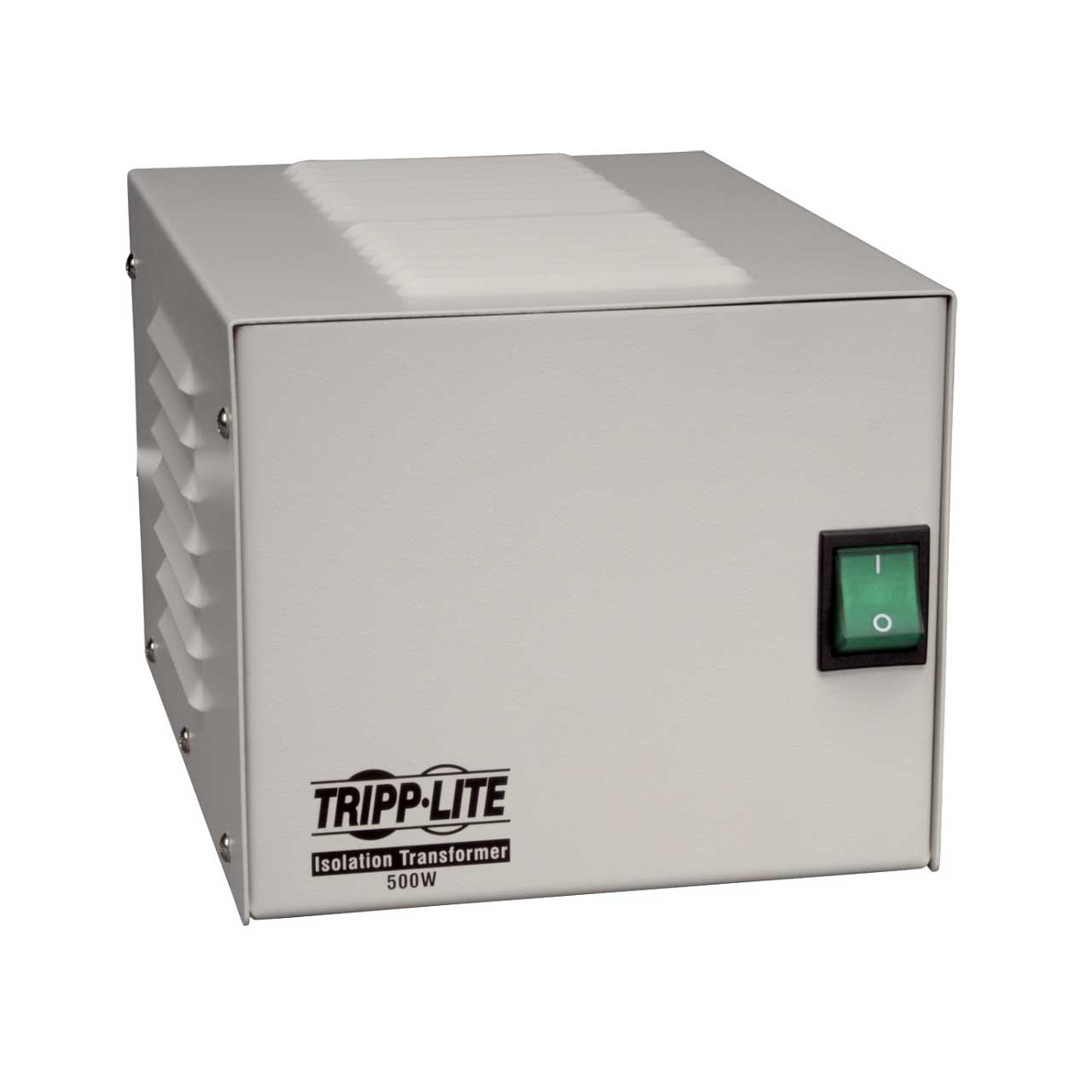

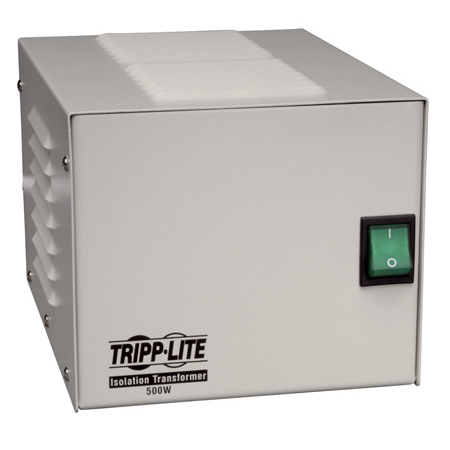

Tripp Lite IS500HG Isolation Transformer 500W Medical Surge 120V 4 Outlet TAA GSA

ITEM #: TRL-IS500HG MFG #: IS500HG

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$538.00

Our Price:

$358.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    IS500HG - Overview

    Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input - NEMA 5-15P Hospital Grade; Output - 4 NEMA 5-15R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 2.1A (Requires NEMA 5-15R wall receptacle)

    • Features:

      • The IS500HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering
      • Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
      • Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas.
      • Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps.
      • Secondary neutral-to-ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment

    • Specifications:

      • Efficiency 0.96
      • Let-through Voltage (Combination Wave) L-N: 250V L-G: 250V N-G: 0.5V
      • Let-through Voltage (Ring Wave) L-N: 20V L-G: 20V N-G: 0.5V
      • Noise Suppression Rating 35-65 DB
      • Nominal Voltage / Frequency 120 /60Hz
      • Over Current Protection 1 X THERMAL, 2 POLE, ROCKER
      • Shipping Weight 22.20 lbs
      • Total Harmonic Distortion Less than 1%
      • VA / Watt Capacity 500
      • Transformer Type Medical-grade, low impedance transformer-based line isolation transformer

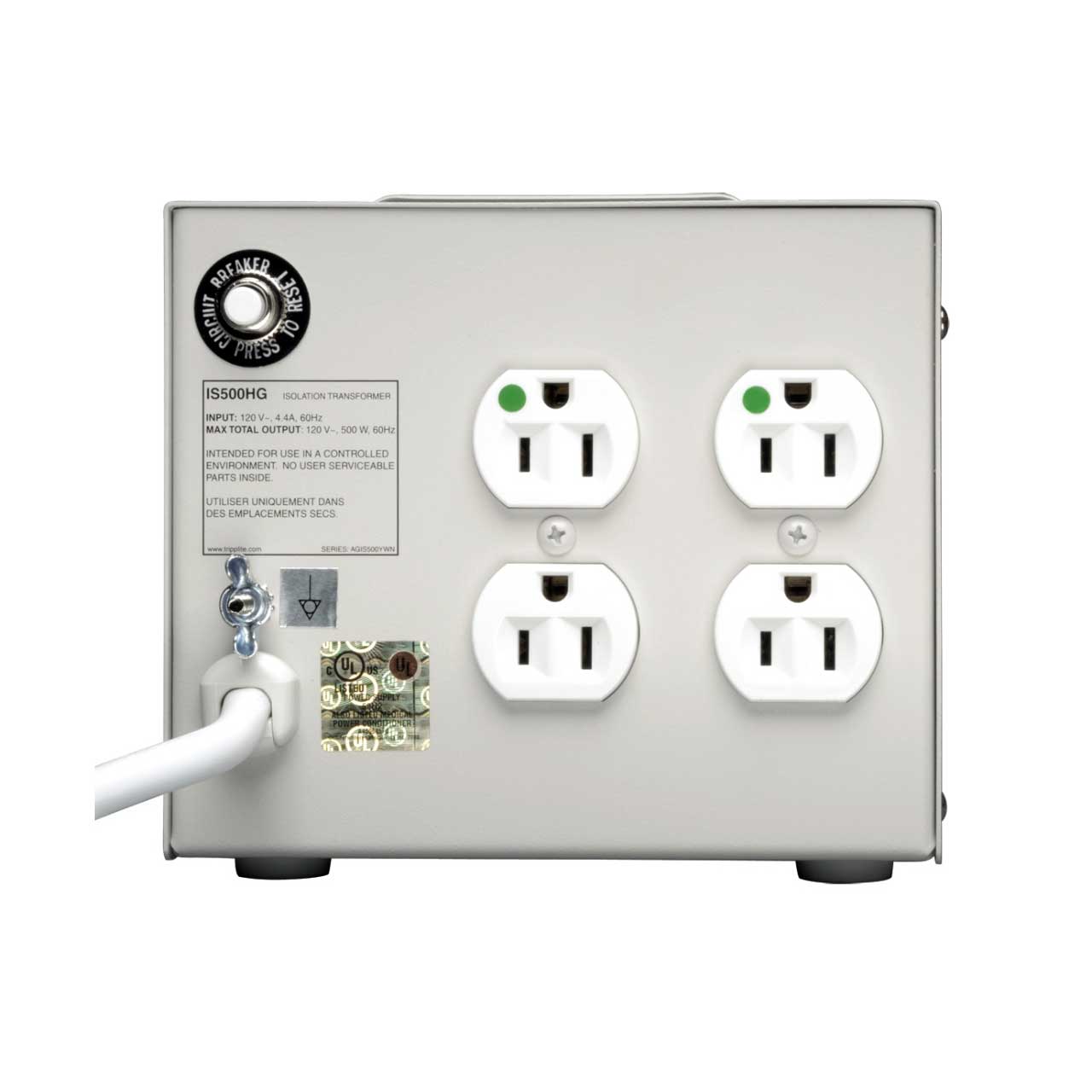

      • Output Receptacles (4) 5-15R-HG
      • Ouput Amp Capacity 4.2
      • Input Cord Length (ft.) 10
      • Input Cord Length (m) 3.05
      • Input Plug Type NEMA 5-15P-HG
      • Leakage Current Less than 100 microamps
      • Unit Dimensions (hwd / in.) 5.75 x 6.25 x 9.25
      • Unit Dimensions (hwd / cm) 14.61 x 15.88 x 23.50
      • Cooling Method Convection
      • Form Factors Supported Tower
      • Certifications Tested to UL60601-1
      • Product Warranty Period (Worldwide) 2-year limited warranty

    • GTIN:

      0037332115898
