ARX RS-2 Remote Switched Stereo Selector

ITEM #: ARX-RS-2 MFG #: RS-2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    RS-2 - Overview

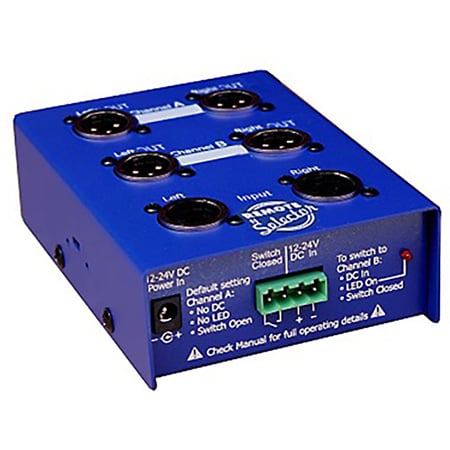

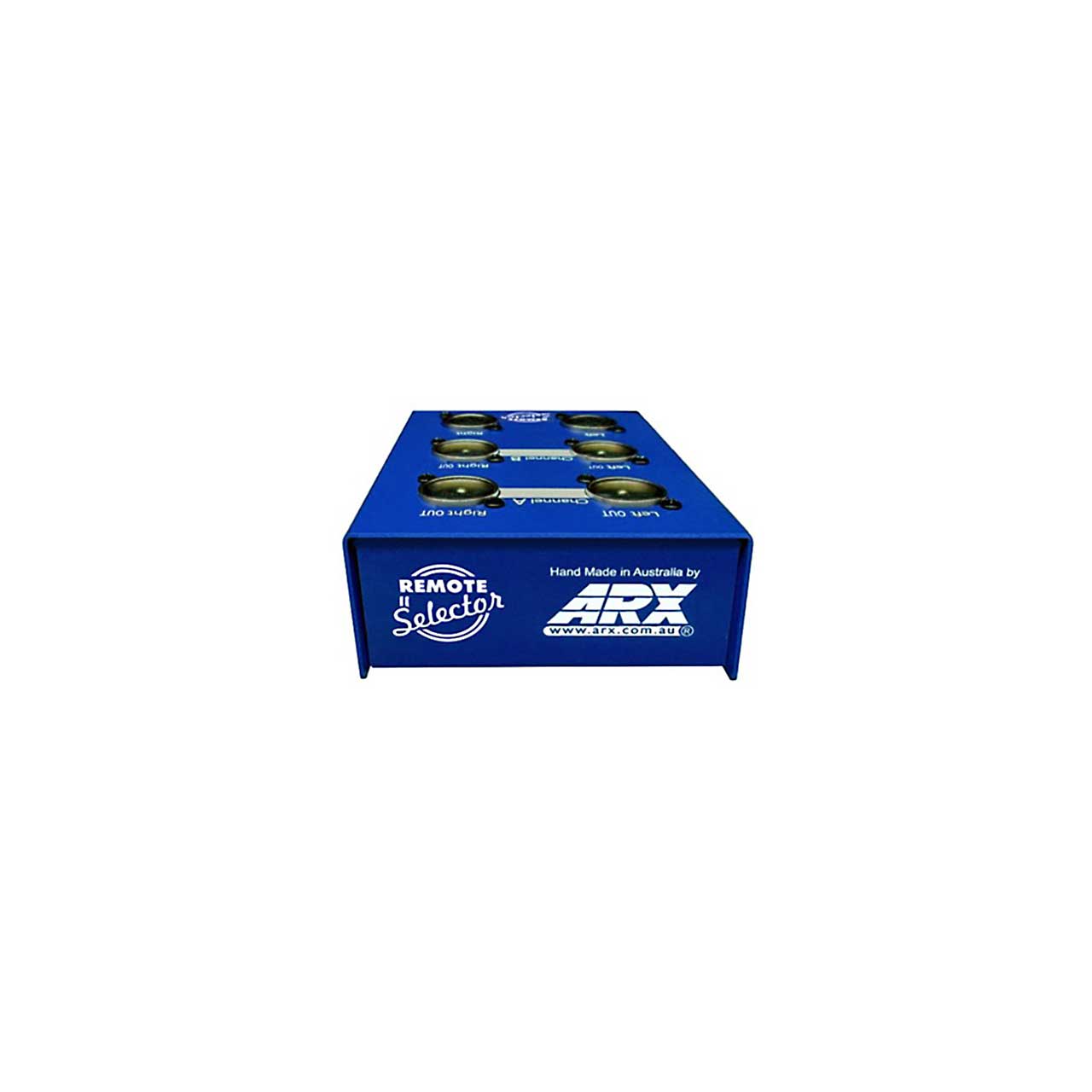

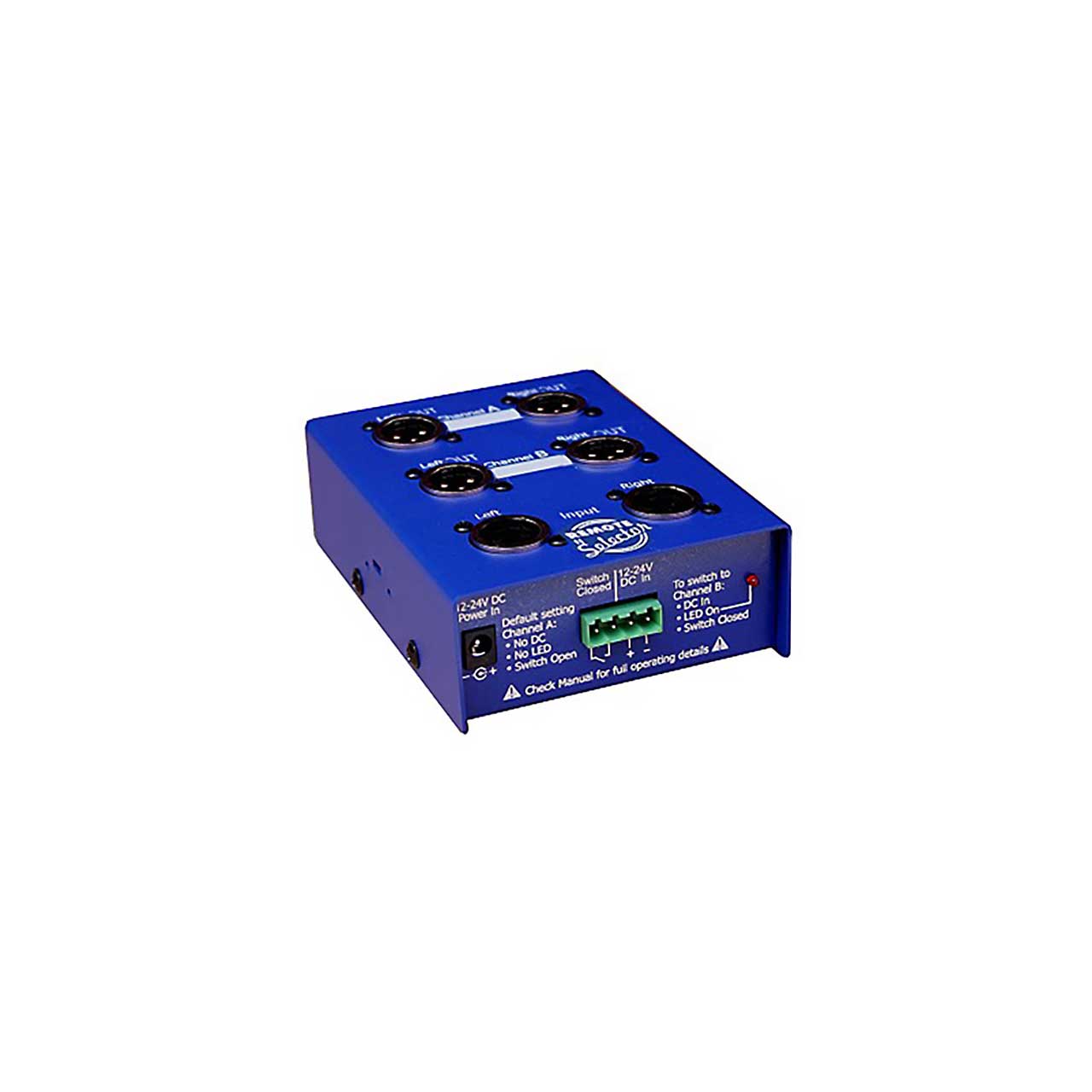

    ARX's new RS-2 is a remote switched stereo A/B selector with 2-XLR Female inputs and 4-XLR Male outputs. It works with the extremely popular Audibox ™ range. The new RS-2 remote switcher silently switches between a stereo pair of XLR female input connectors to either A or B pairs of male XLR outputs. ARX SoftSwitch ™ technology achieves this with no loud bangs through the audio system when switching. Typical applications include switching between Audio Systems, and EWIS emergency announcements. Output Channel control can be selected in 2 ways. You choose Mode 1 by remote switch/relay closure with an external power pack / wall wart, or choose Mode 2 by 12 - 24VDC. With no DC voltage applied, Output A, the default normal audio signal is selected. When +12 - 24VDC is applied to Pins 3 and 4 on the Dinkle type connector, then Output B is selected. Another useful application is remotely switching between Live Band or DJ when both are using the different speaker systems.

    • Specifications:

      • Frequency Response: 10Hz to 50KHz + - 0.5dB
      • Power Requirements: DC Input +12 - 24 VDC Connector 2.5mm centre pin
      • Remote Switch and External Input: 4 Pin Dinkle type socket, 5mm pin spacing. Connector supplied with unit Pin 1 and 2 Remote Switch - Open Input = Channel A selected, Closed Input = Channel B selected. Pin 3 and 4 Remote DC control - Pin 3 +12 - 24VDC Pin 4 0VDC / Gnd
      • Input Connectors: Female XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 - Cold
      • Output Connectors A and B: Male XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 - Cold Chassis Ground/Earth: Via Pin 1's on Left Channels
      • Construction: All-steel polyurethane coated chassis, fibreglass PCB
