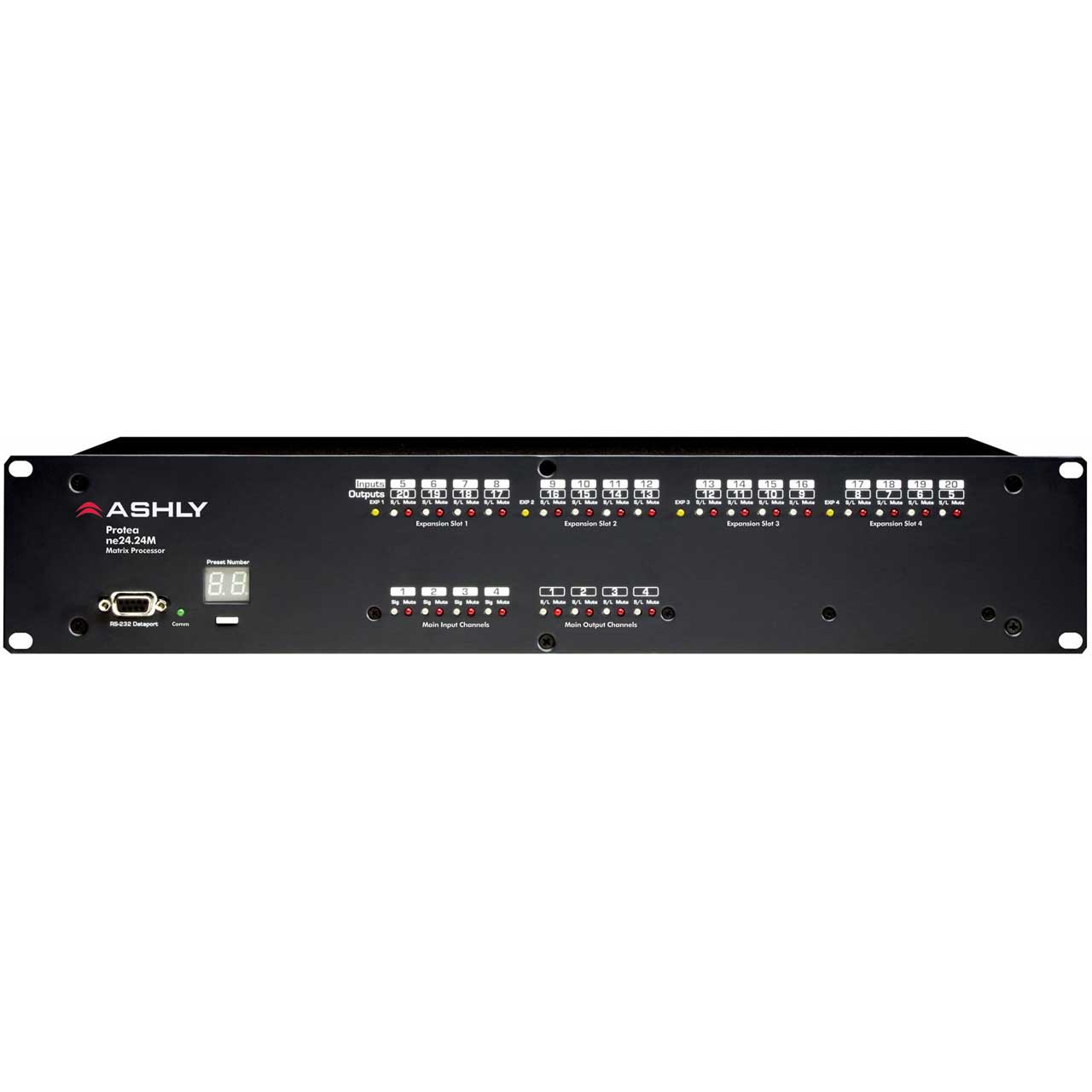

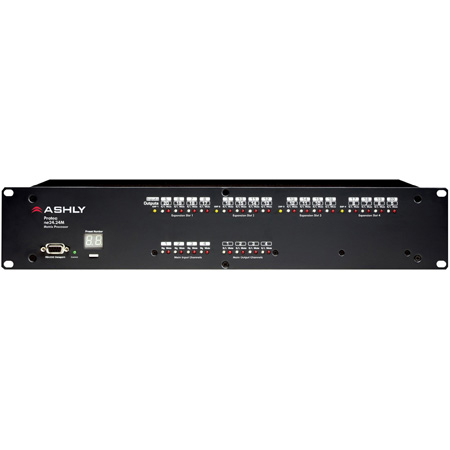

Ashly Audio NE24.24M 4X8 Protea DSP Audio Matrix Processor 4-In 8-Out

ITEM #: ASH-NE2424M-4X8 MFG #: NE24.24M 4X8

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,549.00

Our Price:

$2,049.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    NE24.24M 4X8 - Overview

    Ashly Audio's widely-popular Protea™ ne24.24M Matrix Processor will more than satisfy your requirements for any zoned system


    When your install requires input/output matrixing with signal processing it doesn't get much easier than programming your channels using Protea™ ne Software on your PC. The ne24.24M uses modular expansion cards to provide up to 24-channels of audio matrixing and processing. The base unit offers a 4-input/4-output configuration. Each input and output expansion card has an individual DSP processor allowing you to expand the total input or output 4 channels of DSP processing at a time. These cards are easily installed in the field without the need to reprogram the device.

    Matrixing allows you to route any input to any output and control individual levels once they have been assigned. Fixed path architecture and extensive processing power per channel will reduce the amount of time it takes to set up your system.

    An optional GPO Logic Card allows the ne24.24M to trigger projection screens, curtains or lights. The logic card is installed in place of a 4-input or 4-output card and occupies one of the four expansion slots.

    • Features:

      • 10/100 Ethernet & RS-232 computer interface standard
      • Extensive DSP available
      • Easy and intuitive user interface
      • Mic/line inputs
      • 24-bit A/D-D/A audio resolution
      • Up to 24-channels of audio processing
      • 4x4 base unit configuration
      • Expand inputs or outputs 4-channels per module
      • Modules easily field installable
      • Euroblock connectors for audio, preset recall, DC remote level control and data in/out
      • 31 preset locations
      • Remote controls for level, preset recall and programmable functions
      • Third-party control-friendly
      • Input and output metering viewable in dBu
      • Multi-level security
      • Safety/Compliance: cTUVus, FCC, CE, RoHS

    • Specifications:

      • Input: Active Balanced, 18k Ohms
      • Input Gain Range: -50dB - +12dB, Selectable Polarity
      • Output: Active Servo Balanced, 112 Ohms
      • Input/Output Level: +20dBu (Max)
      • Output Gain Range: -50dB - +12dB, Selectable Polarity
      • Frequency Response: 20Hz-20kHz, ±0.25 dB
      • THD: <0.01% @ 1kHz, +20 dBu
      • Dynamic Range: >110dB (20Hz-20kHz) Unweighted
      • Output Noise: <-90 dBu Unweighted
      • Environmental: 40-120 deg. F, (4-49 deg, C) noncondensing

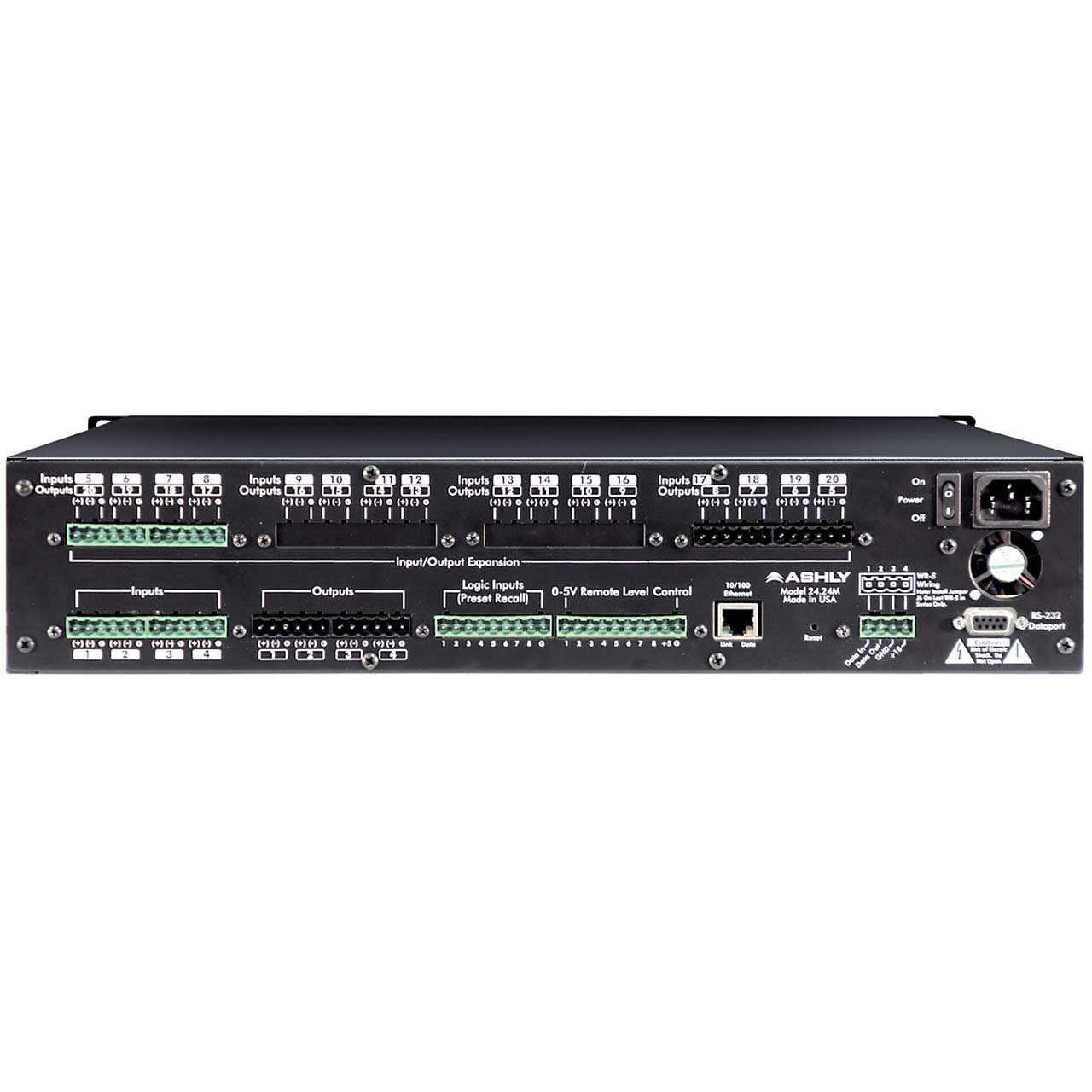

        Rear Panel
      • Controls: Remote level control, Data In/Out ports, Preset Recall, Logic Inputs, On/Off switch
      • Connections: 10/100 Ethernet port, RS-232, Euroblock In/Out
      • Power Cord: 3-Prong, Detachable

        Weight, Dimensions & Power
      • Dimensions: 19"L x 3.5"H x 8.5"D (483mm x 89mm x 216mm)
      • Unit Weight: 8.9lbs (4.04kg)
      • Shipping Weight: 12lbs (6kg)
      • Power Requirements: 90 - 240VAC, 50/60Hz, 40W

    • GTIN:

      0694970381919
