Ashly Audio NE8250.70 Eight-Channel 250W 70V Network-Enabled Power Amplifier

ITEM #: ASH-NE8250.70 MFG #: NE8250.70

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Ashly Audio
Free Shipping with $49 Minimum Order

List Price:

$3,199.00

Our Price:

$2,559.00

Special Price:

$2,499.00

Add to Wish ListLeasing Options
Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NE8250.70 - Overview

The Ashly Audio NE8250.70 is an 8 x 250W @ 4 Ohm Power Amplifier. Connecting and controlling an amplifier for networked systems has now been simplified with Network-Enabled Amplifiers. This line offers ease of use, setup and control using standard 10/100 Ethernet protocol and Protea™ ne Software. No special outboard control units are needed.

ne Series amplifiers are offered in two separate platforms-the standard network amplifier or a network amplifier with an on-board Protea™ DSP Processor. Each can be customized for any installation by adding your choice of AES3 inputs, Dante or CobraNet card.

  • Features:

    • FIR Filter capable (pe versions only)
    • DC voltage remote gain control
    • Ethernet remote control and monitoring
    • DSP Processing on inputs and outputs (pe only)
    • Switch mode supply, Class-D output
    • Stepped, calibrated input attenuators
    • Remote turn on/off
    • Disable all front panel controls via software
    • Temperature-sensitive variable speed fan with side-to-front airflow
    • 4-stage level meters
    • Output current and temp indicators
    • Low Impedance, 25V, 70V, 100V models
    • Safety/Compliance: TUV, CE, FCC,RoHS
    • 10/100 Ethernet comes standard


  • Specifications:

      General
    • Frequency Response: 20Hz - 20kHz, (unweighted) ±1dB
    • Input Impedance: 20kΩ, Balanced
    • Voltage Gain: 32dB
    • Input Sensitivity: 7.2dBu
    • Maximum Input Level: +21dBu
    • Software Contolled Internal HPF (25V, 70V, 100V models): 80Hz (12dB/oct), 400Hz (6dB oct), OFF
    • Signal to Noise (20 - 20k, Unweighted): >107db (8250)
    • Distortion (8Ω load):
      - SMPTE: <0.5% typical
      - THD-N: <0.5% typical (20Hz - 20kHz)
    • Damping Factor (8Ω, 1kHz): >250
    • Output Circuitry: Class D
    • Amplifier/Load Protection: Output Overcurrent, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse

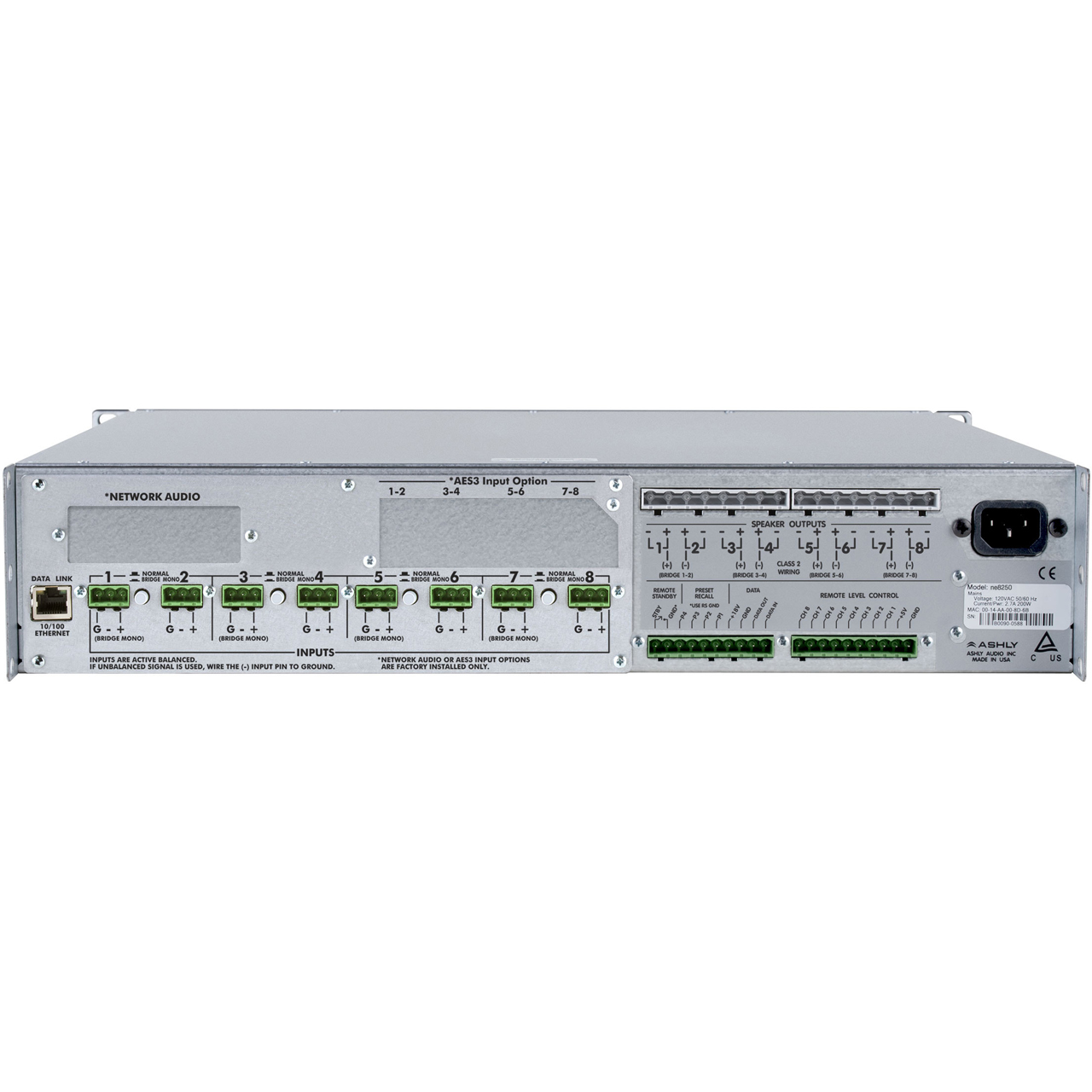

      Rear Panel
    • Controls:
      - Ethernet
      - Channel Bridge Switch
      - Remote Standby
      - 4x Preset Recall
      - 8x Remote Level
      - Remote Data
    • Connectors (each channel):
      - Input: Euroblock
      - Output: Euroblock

      Power Requirements
    • AC Main: 120VAC or 240VAC ±10% (factory set), 50-60Hz
    • Power Cable Connector: 15A Edison, 3-Prong IEC

      Physical
    • Dimensions (HxWxD): 3.50" x 19" x 16.84" (89mm x 483mm x 428mm)
    • Airflow: IN through sides, OUT through front
    • Unit Weight: 24.7lbs (11.2kg)
    • Shipping Weight: 30.8lbs (13.9kg)
    • Environmental: 40°F - 120°F (4°C - 49°C) non-condensing
    • Safety/Compliance: cTUVus, CE, FCC, RoHS


  • Warranty:

    • 5 Year Warranty
