Ashly Audio NE8250 8 x 250W @ 4 Ohm Power Amplifier Line Level In/Out

NE8250 - Overview

8 x 250W @ 4Ω Power Amplifier - Line Level In/Out

• Specifications:

  • Output Circuitry: Class D
  • Input Sensitivity: 6.2dBu
  • Frequency Response: 20Hz - 20kHz, ±1.0dB
  • Damping Factor: - 8Ω load, > 250
  • Input Impedance: 20kΩ, balanced
  • Maximum Input Level: +21dBu
  • Cooling: Temperature dependent speed-controlled fan (Front In, Side Out)
  • Front Panel Indicators per Channel: Signal: -18dB, -12dB, -6dB, Clip, Temp, Current, Bridge

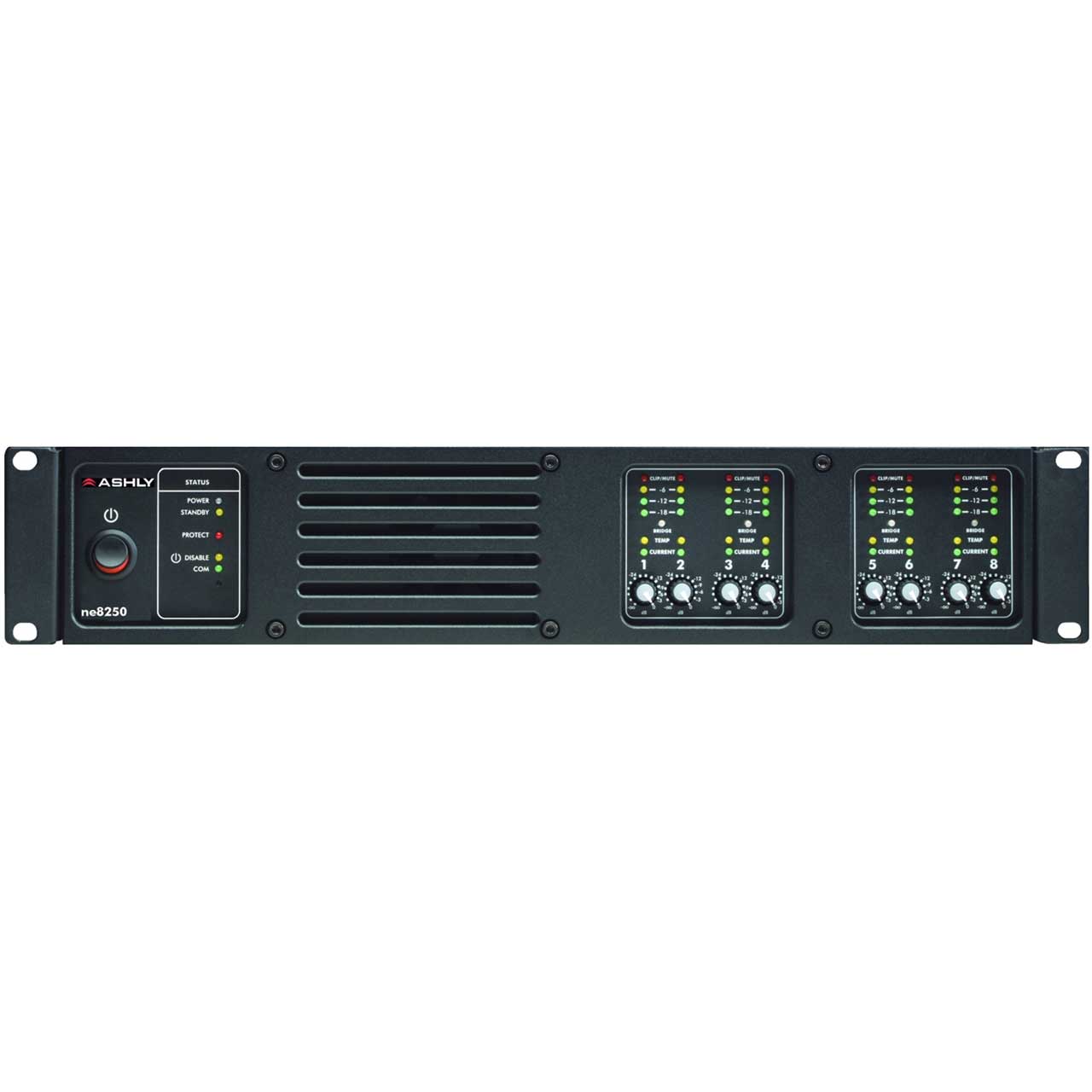

  • Front Panel Indicators: Overall power, standby, protect, disable, com
  • Attenuators: Per channel front panel

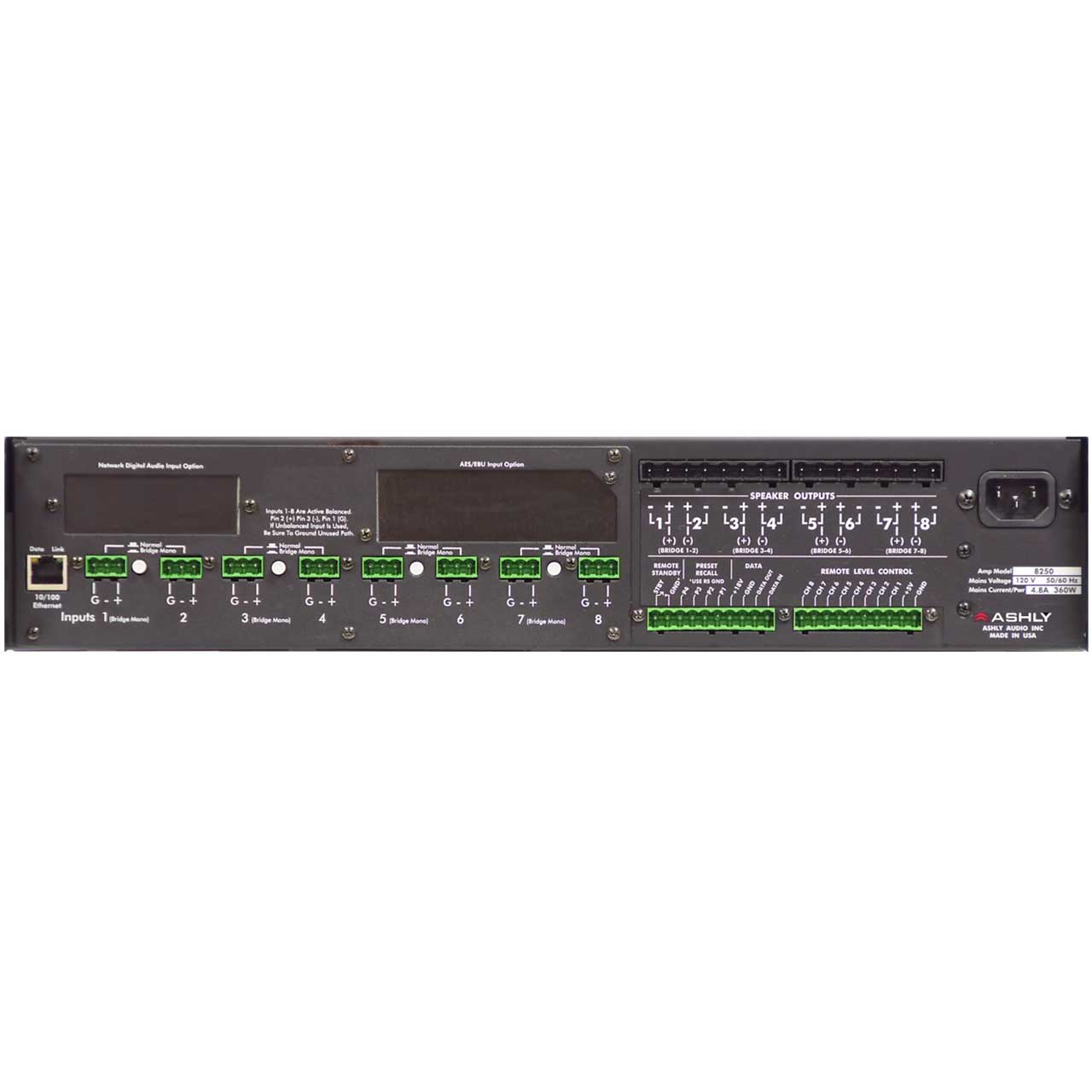

  • Input Connectors: Each channel 3-Pin Euroblock
  • Output connectors: Each channel Euroblock
  • Amplifier Protection: Output Overcurrent, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse
  • Power Cable Connector: 15A Edison 3-Prong IEC
  • Dimensions: 19" x 3.5" x 15.5" (88.9mm x 483mm x 394mm)


• GTIN:

  0694970561823
