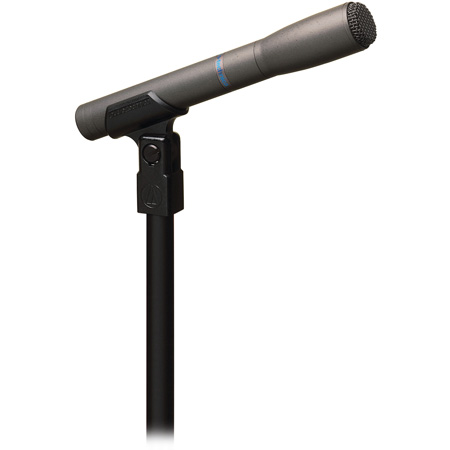

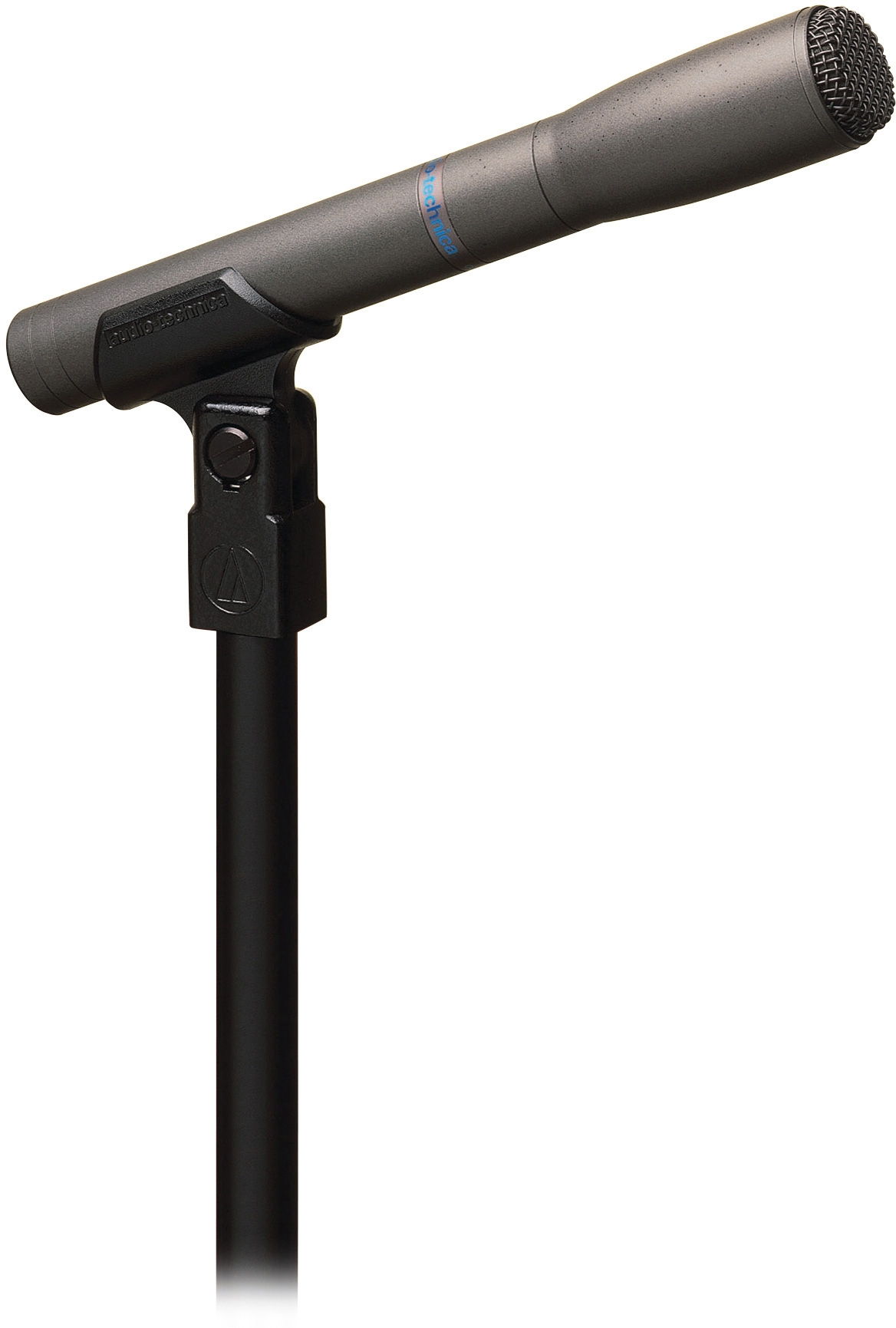

Audio-Technica AT8010 Omnidirectional Condenser Microphone

ITEM #: AT-AT8010 MFG #: AT8010

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AT-AT8010

AT8010 - Overview

The Audio-Technica AT8010 is ideal for interviews, pickup of audience reaction and musical events. The AT8010 features an omnidirectional polar pattern that provides maximum ambient pickup. The microphone provides an extremely smooth, extended response on- and off-axis and operates on battery or phantom power.

  • Features:

    • Ideal for interviews, group vocals, strings, cymbal overheads, acoustic guitar and piano
    • Omnidirectional polar pattern provides maximum ambient pickup
    • Extremely smooth, extended response on- and off-axis
    • Low sensitivity to popping and overload
    • Operates on battery or phantom power
    • RoHS compliant-free from all substances specified in the EU directive on hazardous substances
  • Specifications:

    • Element: Fixed-charge back plate permanently polarized condenser
    • Polar Pattern: Omnidirectional
    • Frequency Response: 20 - 20,000Hz
    • Low Frequency Roll-Off: 80Hz, 18dB/Octave
    • Open Circuit Sensitivity: Phantom: -44dB (6.3mV) re 1V @ 1Pa; Battery: -45dB (5.6mV) re 1V @ 1Pa
    • Impedance: Phantom: 250Ω; Battery: 300Ω
    • Maximum Input Sound Level: Phantom: 137dB SPL, 1kHz @ 1% T.H.D.; Battery: 123dB SPL, 1kHz @ 1% T.H.D.
    • Dynamic Range (typical): Phantom: 113dB, 1kHz @ Max SPL; Battery: 99dB, 1kHz @ Max SPL
    • Signal-To-Noise Ratio: 70dB, 1kHz @ 1Pa
    • Phantom Power Requirements: 11 - 52V DC, 2mA typical
    • Battery Type: 1.5V AA/UM3
    • Battery Current/Life: 0.4mA/1200 hours typical (alkaline)
    • Switch: Flat, roll-off
    • Weight: 5.8oz
    • Dimensions: 7.01" long, 1.02" head diameter
    • Output Connector: Integral 3-pin XLRM-type
    • Audio-Technica Case Style: S4

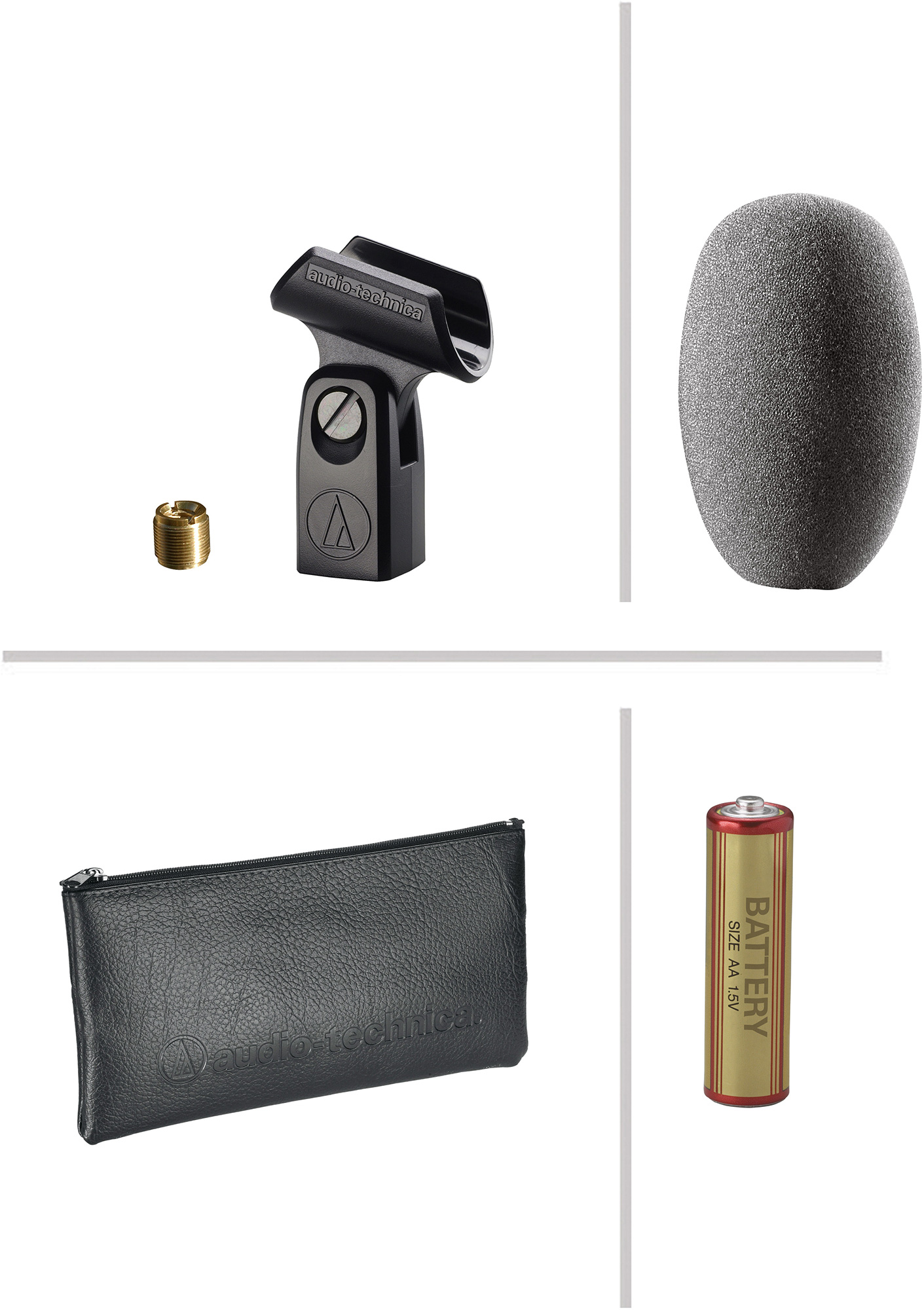

  • Item Includes:

    • AT8405a stand clamp for 5/8"-27 threaded stands
    • 5/8"-27 to 3/8"-16 threaded adapter
    • AT8136 windscreen
    • Battery
    • Soft protective pouch
  • Warranty:

    • 5 Year Limited End-User
  • GTIN:
