Audio-Technica ATCS-A60 IR Transmitter/Receiver for ATCS-60 IR Conference System

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Audio-Technica ATCS-A60 IR Transmitter/Receiver for ATCS-60 IR Conference System

    Manufacturer: Audio-Technica

    Item #: AT-ATCS-A60   •   MFG #: ATCS-A60



    List Price:$1,150.00
    Our Price:$740.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.


    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

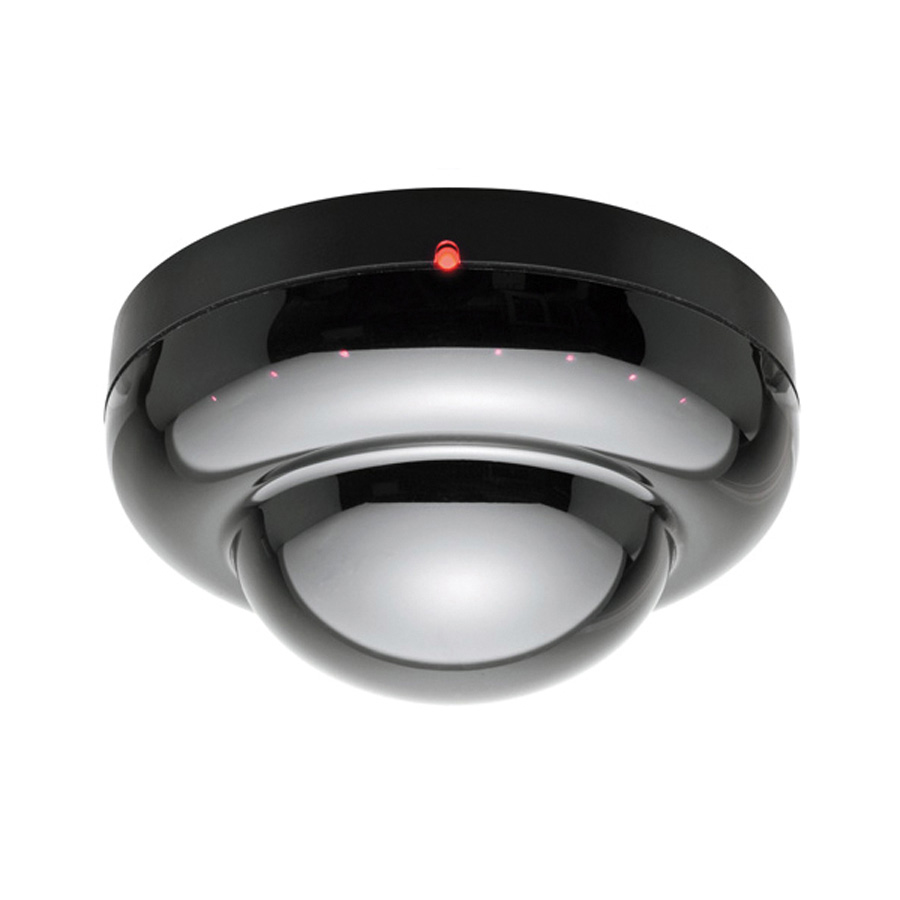

    The ATCS-A60 is an IR Transmitter/Receiver Antenna Transceiver for the ATCS-60 Conference system.

    In the digital era, the safeguarding of information is paramount. With the Audio-Technica infrared conference system your wireless signal will not leave the room; it is impossible to capture the broadcast from another building, for example. Compared to a UHF system that uses radio waves, which behave the same way as a radio station, transmitting over a broad area, the infrared system excels at protecting your information, as no leakage is possible.

    The antenna of the transmitter / receiver is mounted on the ceiling or on the wall, using a coaxial connection cable BNC 75 ohm to the central control unit. The automatic gain during use makes the ATCS-A60 one of the best performing systems on the infrared market.


    • Features

      • Bespoke antenna for the Audio-Technica ATCS-60 infrared conferencing system
      • Ability to activate automatically upon microphone detecting a voice
      • Installs onto a ceiling or wall, with support included as standard
      • The antenna connects to and is powered by a 75-ohm BNC coaxial cable (not included) that connects it to the ATCS-C60 control unit
      • The scope of infrared rays is 5m
      • An LED indicates the unit is in use
      • The angle of transmission / reception is approximately 120°

    • Specifications

      • Overall System
      • Operating Frequencies: Infrared
      • Number Of Channels: Voice: 5 channels, Monitor: 4 channels, Data: 2 channels
        Antenna & Distribution
      • Operating Bandwidth: 1 - 10 MHz
      • Connections: BNC Terminal (75 ohms) x1
      • Power Supply: 24 V DC (provided by ATCS-C60)
      • Dimensions: 108 mm, 55.5 mm depth
      • Weight: 151 g
        Infrared
      • Bandwidth: 1 - 10 MHz
      • Modulation Method: FM Modulation
      • Data Communication: 9,600 bps

    • Item Includes

      • Installation bracket x1
      • Fixation screws x2

    • Warranty

      • 5 Years
