Eclipse® HX Matrix Intercom Systems, powered by EHX configuration software, deliver a redundant, modular, and scalable communications solution. The self-contained intercom system offers advanced workflow capabilities designed for both local and global operations.

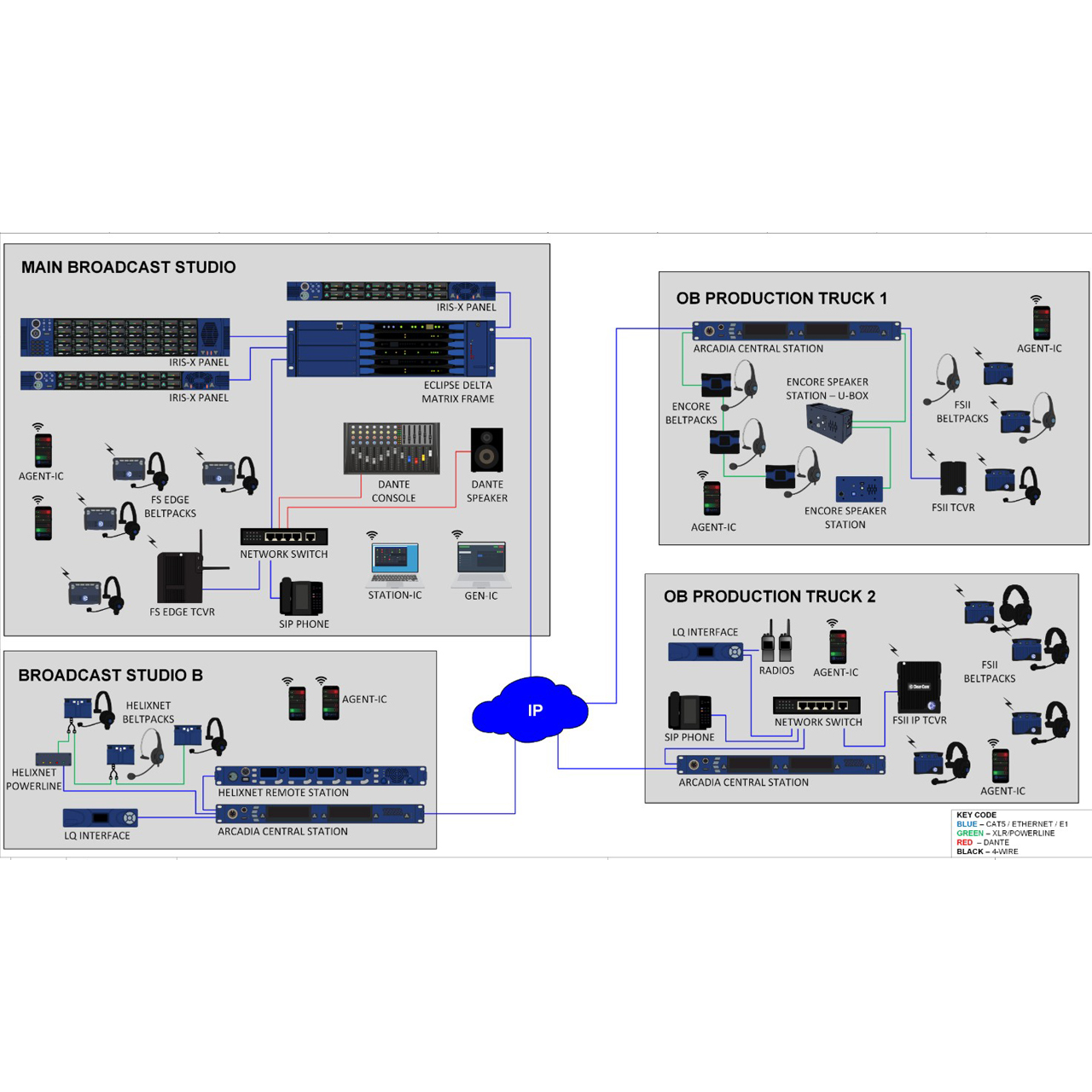

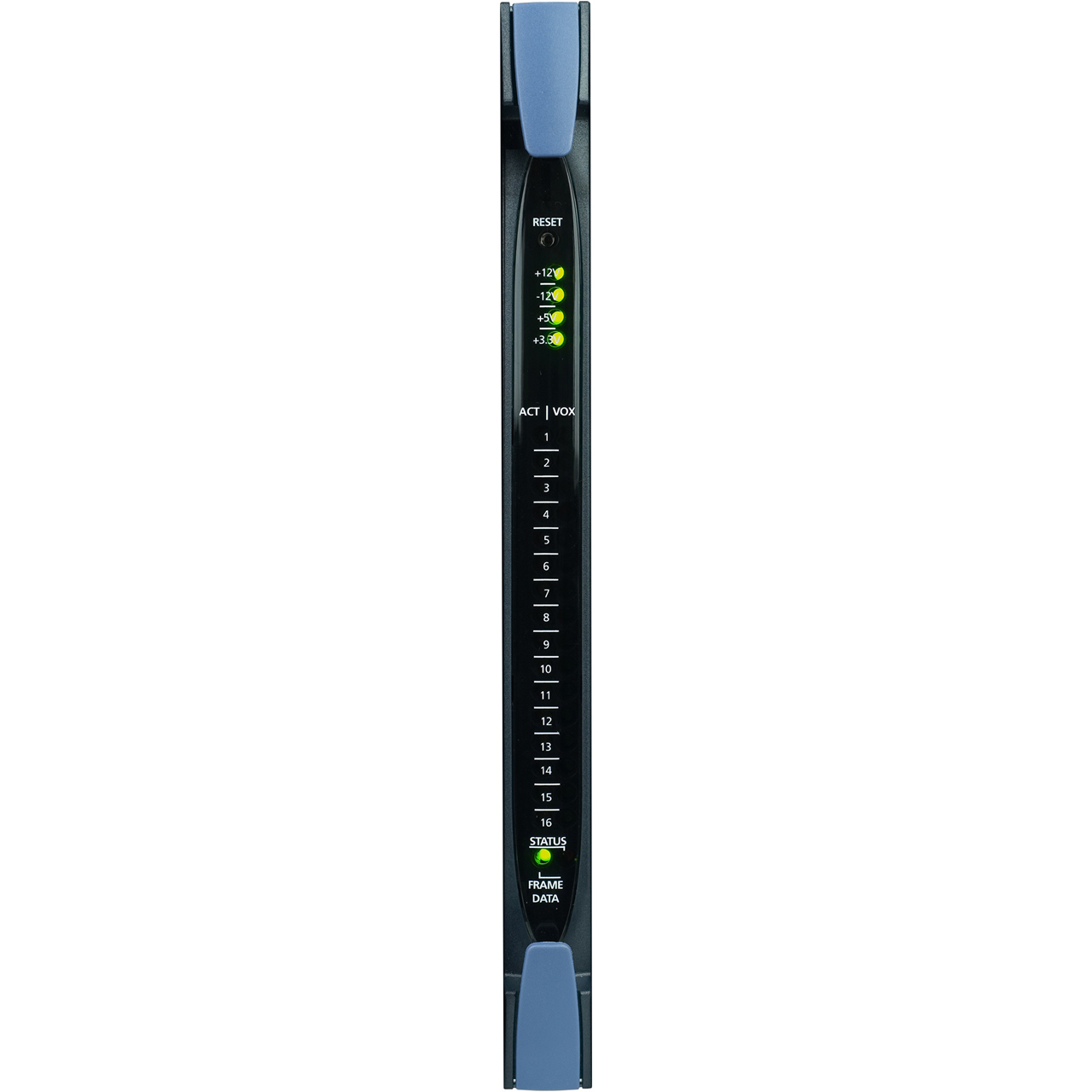

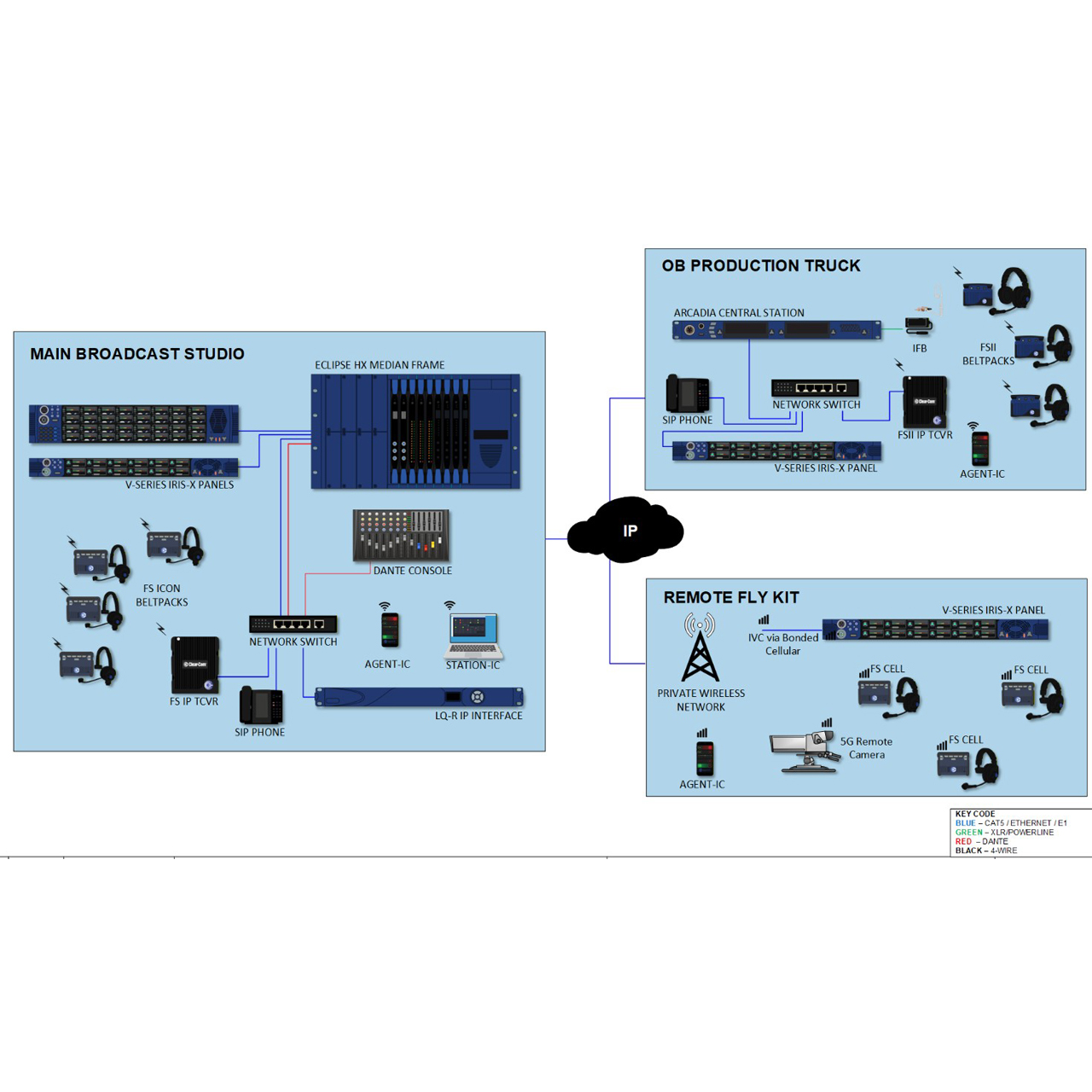

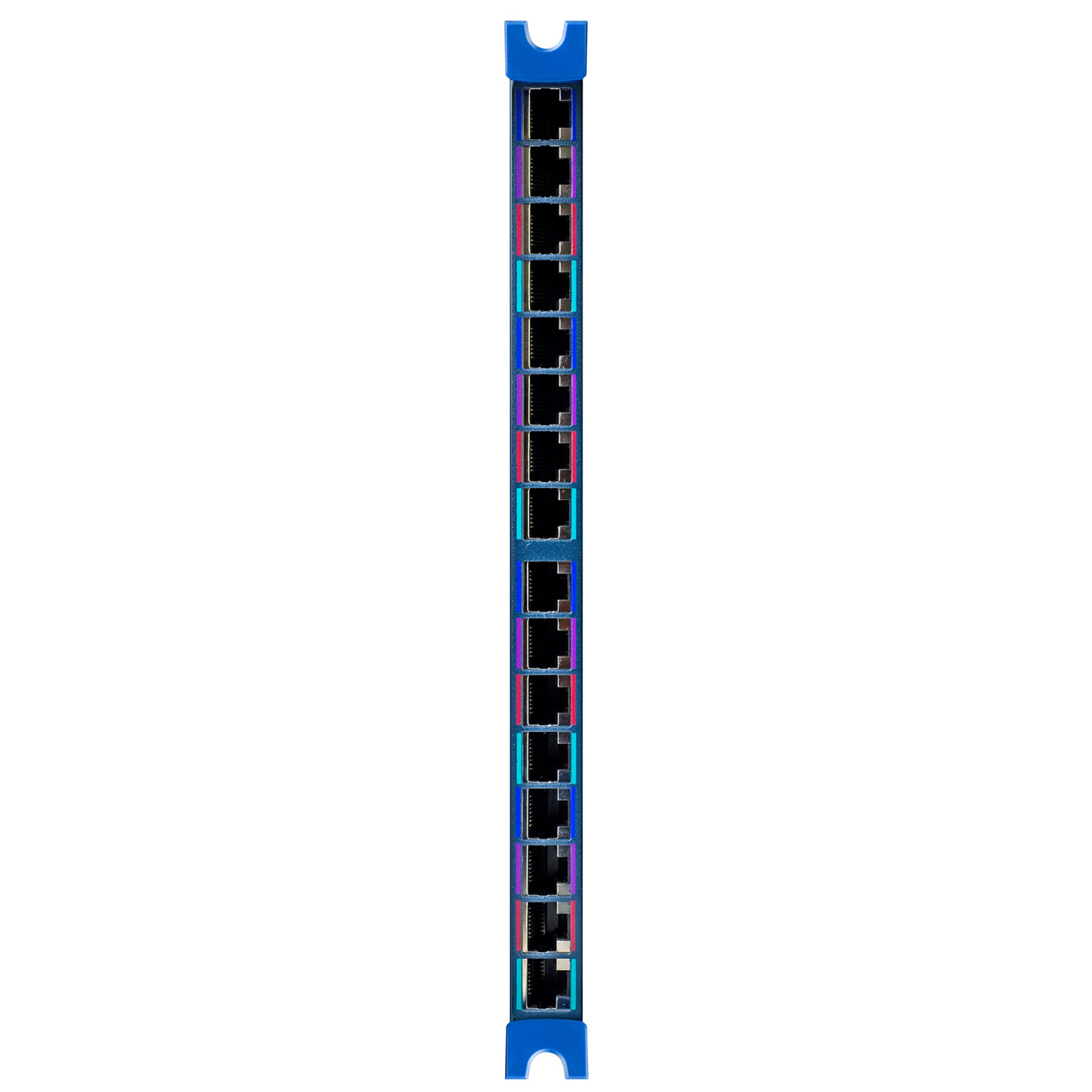

The Clear-Com MVX-A16-HX is a 16-port analog interface card designed for versatile audio connectivity. It provides plug-and-play integration for Clear-Com's V-Series IrisX keypanels,LQ SIP Interfaces and Eclipse Interface Modules, as well as intelligent linking to other Eclipse frames. Additionally, the MVX delivers robust connectivity for third-party systems using balanced line-level audio.
Matrix Frame Architecture:
• Eclipse CPU and Audio interface cards communicate on the frame's TDM backplane using a proprietary serial protocol that passes requests and instructions from the cards.
• Eclipse Audio interface cards make its audio inputs available on the frame's TDM backplane using PCM audio and receives from its other card inputs for mixing to its outputs.
• Eclipse CPU controller cards communicate externally to the configuration computer or control system via a serial network interface.
• Eclipse Audio interface cards communicate externally on their own dedicated interfaces. Externally each card is an individual clock domain and does not bridge to other cards.
• No network connections are shared or bridged between cards.
