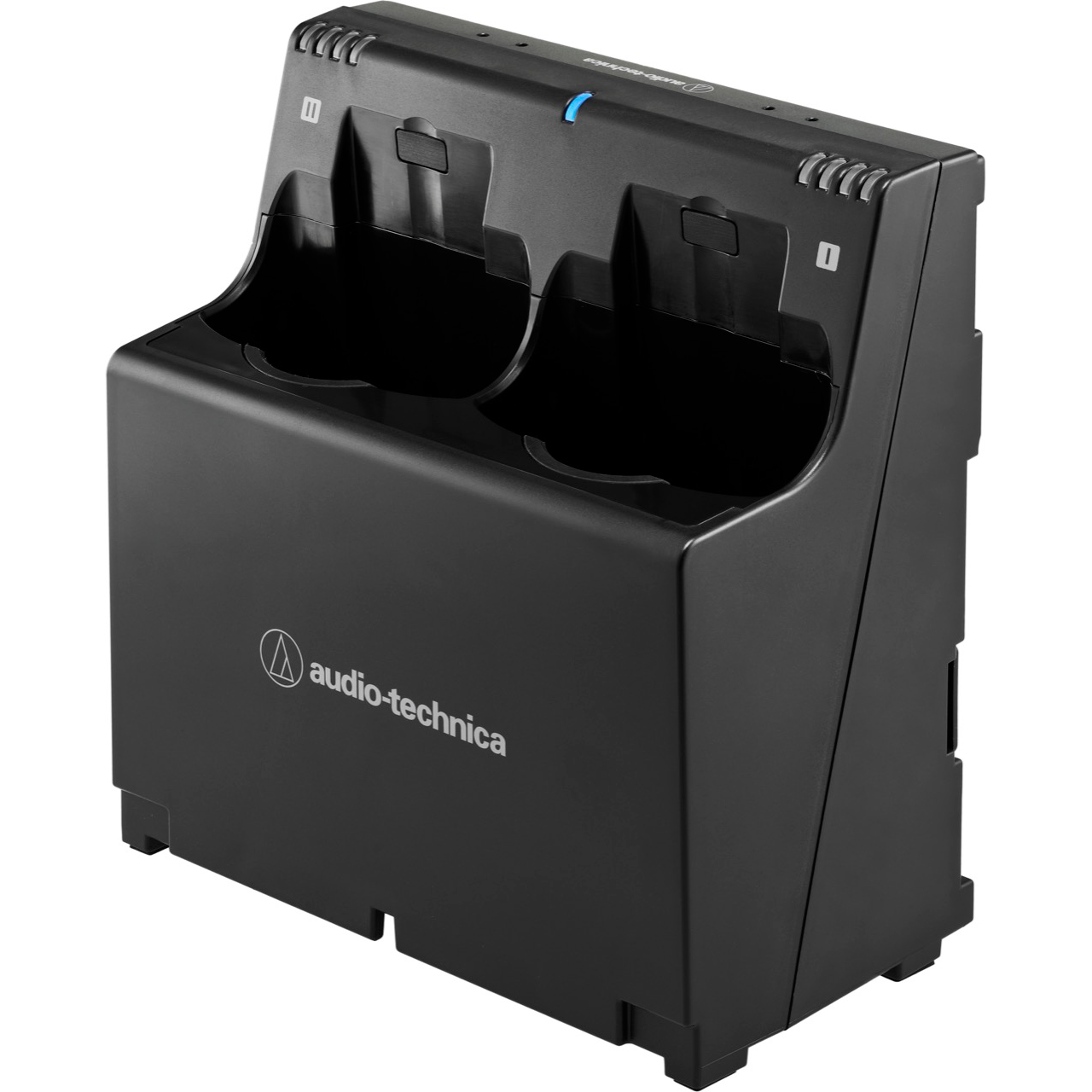

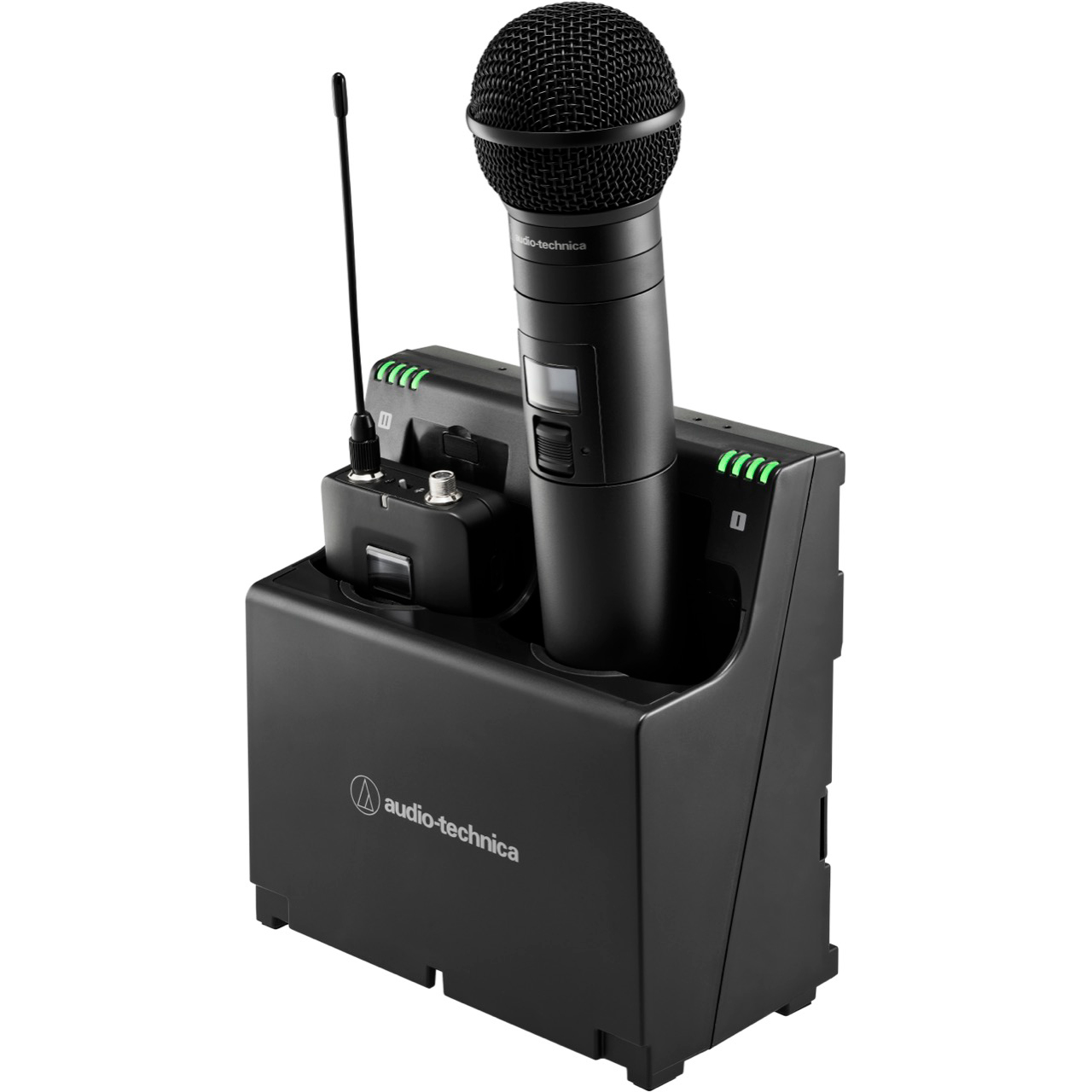

The Audio-Technica ATW-CHG6 two-bay charging station is used to charge D50 wireless system body-pack (ATW-DT3201) and handheld (ATW-DT3202) transmitters. The charger can also accept the ATW-CHGA6 single battery charger. Up to four charging stations can be linked with the included cable and powered by a single AC adapter; up to three stations can be linked and powered by PoE+. Indicator lamps on the front of the station allow users to easily monitor charging status and battery level, which can also be viewed in the Wireless Manager software. Transmitter firmware can be updated while transmitters are docked in the charging station.

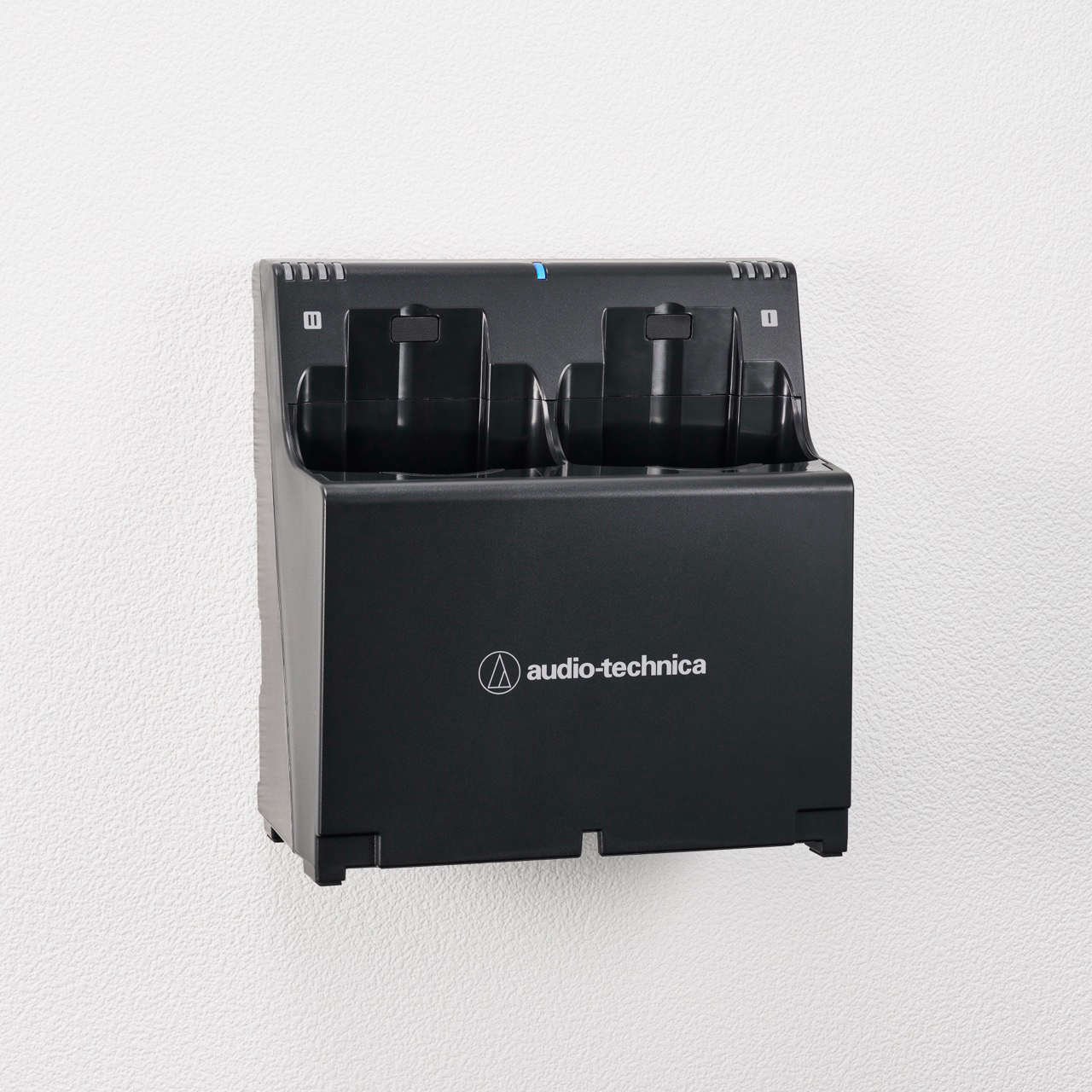

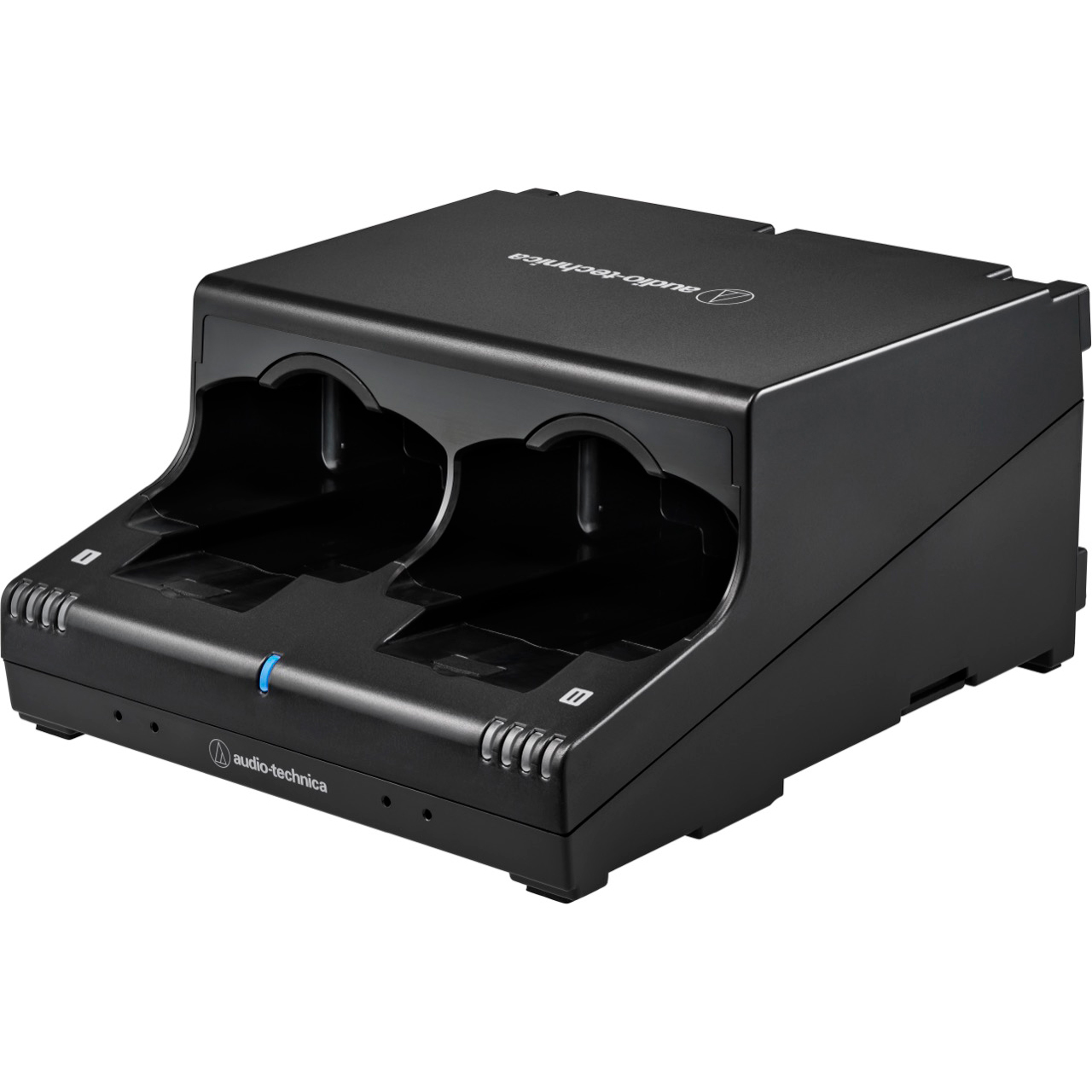

Charging stations are designed to mount vertically or horizontally on a rack, wall, or other location. Alternatively, up to three ATW-CHG6 charging stations can be installed in a single 2U rack space by using the AT8620 rack-mount tray (sold separately).
