Audio-Technica ATW-DT3201DF2 D50 Body-Pack Transmitter with LI-220 Battery for D50 Digital UHF Wireless System

ITEM #: AT-ATWDT3201DF2 MFG #: ATW-DT3201DF2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$549.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ATW-DT3201DF2 - Overview

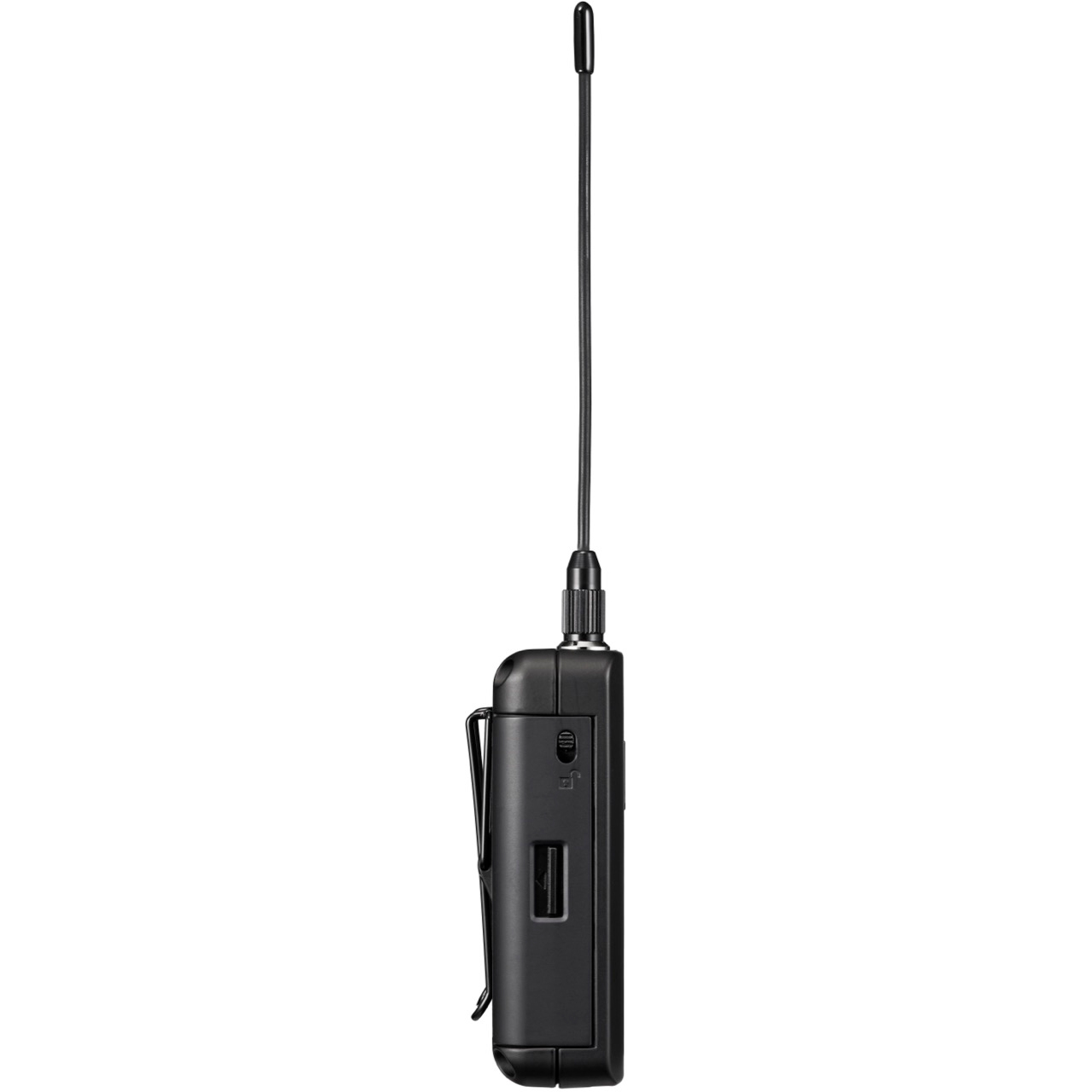

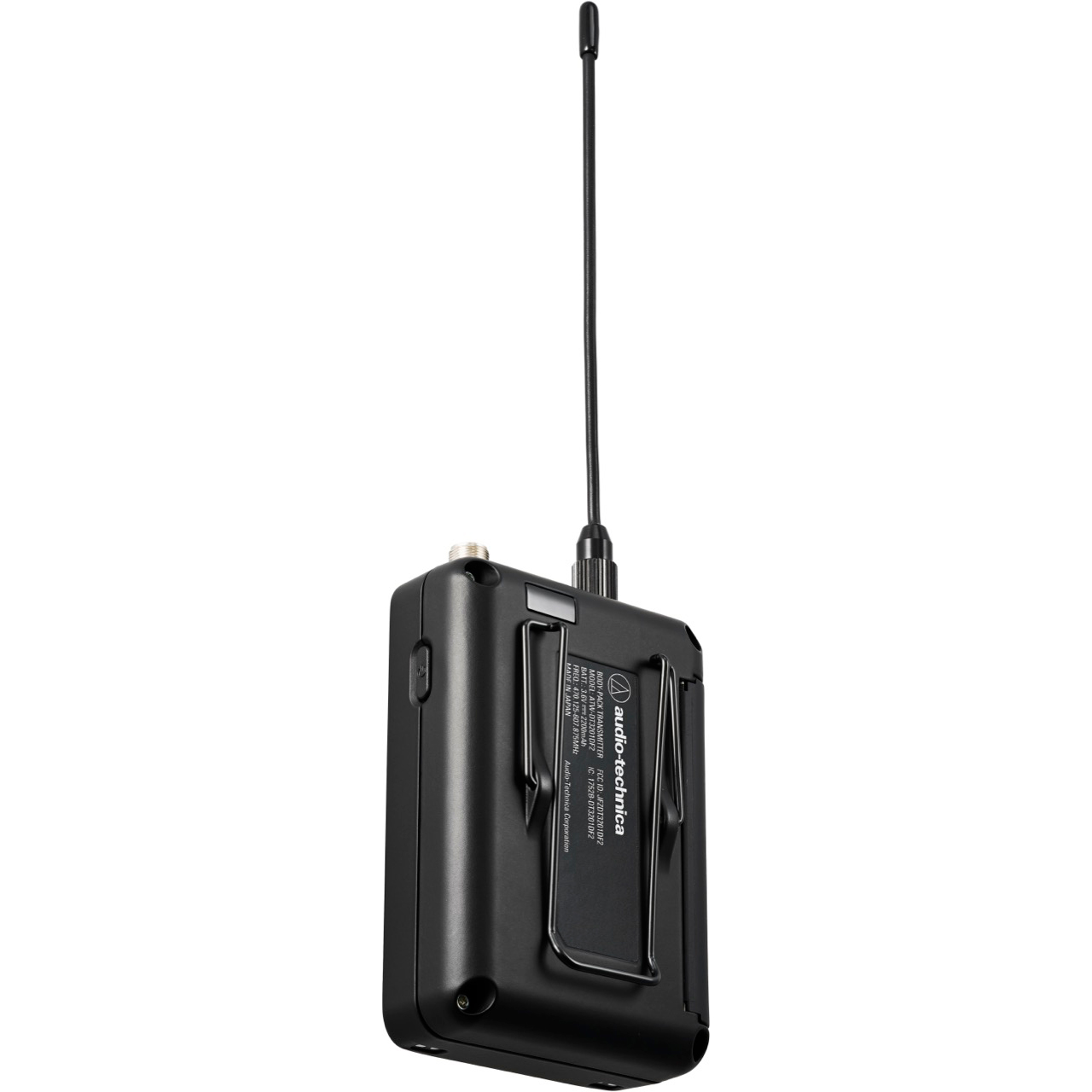

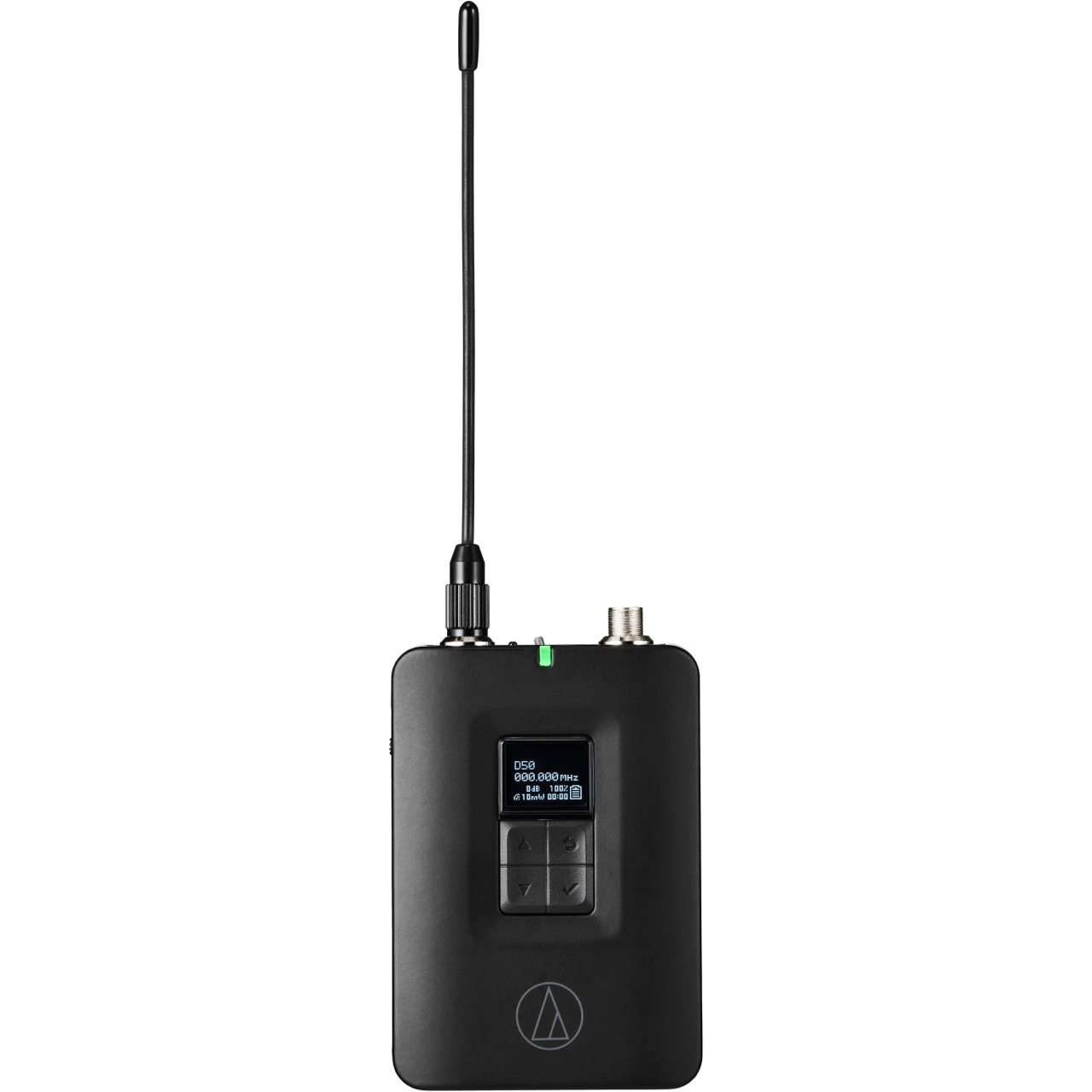

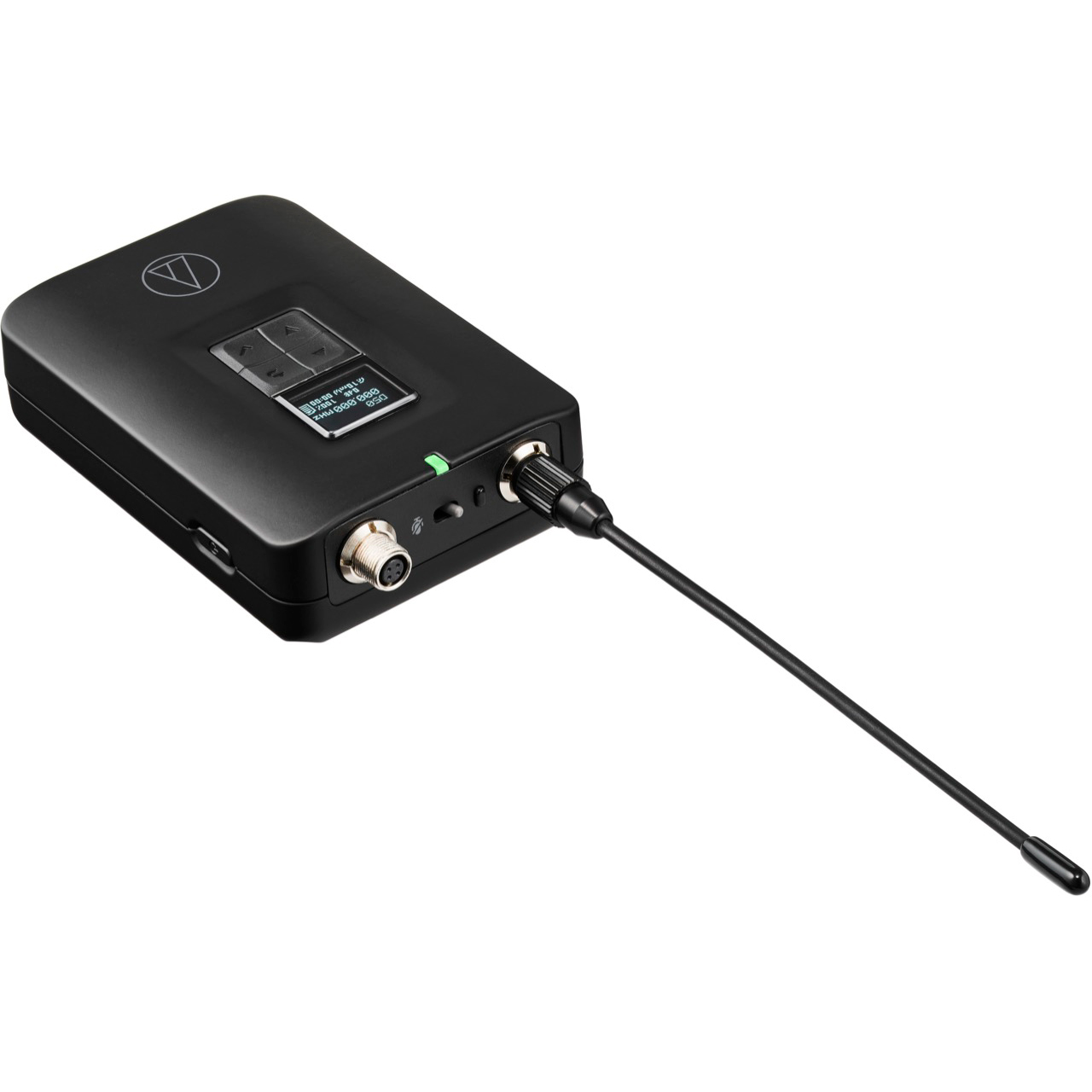

The Audio-Technica ATW-DT3201DF2 is a compact body-pack transmitter for use with the D50 digital UHF wireless system. The transmitter is equipped with a cH-style screw-down 4-pin input connector for secure connection with compatible lavalier mics, headworn mics, and cables. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows users to switch audio to a second output - providing discrete live communications with fellow performers or audio engineers.

The transmitter is powered by a custom-designed lithium-ion battery, providing best-in-class battery life. The battery can be charged in the transmitter, using the ATW-CHG6 two-bay charging station, or can be removed from the transmitter and charged separately in the ATW-CHGA6 battery charger (ATW-CHG6 and ATW-CHGA6 sold separately).

  • Features:

    • Compact body-pack transmitter for the D50 digital UHF wireless system
    • Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with a cH-style screw-down 4-pin connector
    • Features external control buttons, mute switch, OLED display, and a SideTrack function that enables switching between multiple outputs
    • Powered by a custom-designed lithium-ion battery for best-in-class battery life and convenient charging in the ATW-CHG6 two-bay charging station or ATW-CHGA6 battery charger (both sold separately)

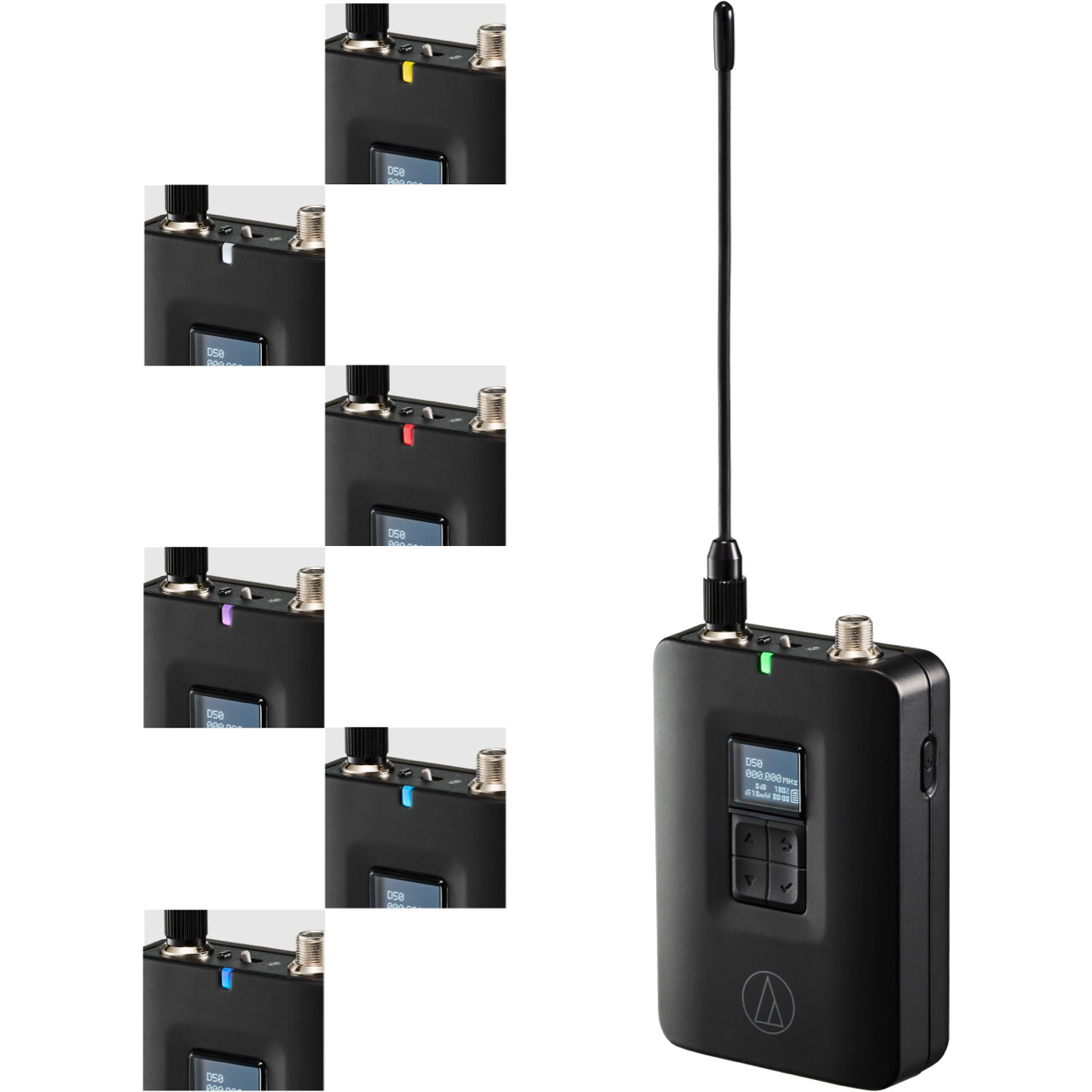

    • Seven-color LED, along with seven physical color rings, make it easy to color code each channel
    • IR sync functionality enables easy synchronization with receiver
    • Best-in-class, all-metal construction

  • Specifications:

    • RF Output Power:
      - Standard: 20mW, 10mW, 1mW
      - HD Mode: 1mW
    • Input Connection:
      - Four pin locking connector
      - Pin 1: GND
      - Pin 2: INST. INPUT
      - Pin 3: MIC INPUT
      - Pin 4: DC BIAS +10V
    • High-Pass Filter: 120Hz, 12dB/octave
    • Battery: Lithium-ion battery LI-220 (included)
    • Battery Life: 12 hours (10mW), may vary depending on usage conditions.
    • Operating Temperature Range: 23°F - 113°F (-5°C - 45°C)
    • Storage Temperature Range: -4°F - 131°F (-20°C - 55°C)
    • Dimensions (WxDxH): 9.6" x 4.8" x 2.67" (243.8mm x 121.9mm x 67.8mm)
    • Weight: 0.89lbs (0.4kg)

  • Item Includes:

    • 1x ATW-DT3201 Body-pack transmitter
    • 1x LI-220 rechargeable lithium-ion battery
    • 1x ATW-TI10 color ring indicator kit

  • Warranty:

    • 1 Year Limited Warranty
