Audio-Technica ATW-CHG6/8620 Handheld and Body-Pack Charger with Rack Tray for Use with D50 Digital UHF Wireless System

ATW-CHG6/8620 - Overview

• Features:

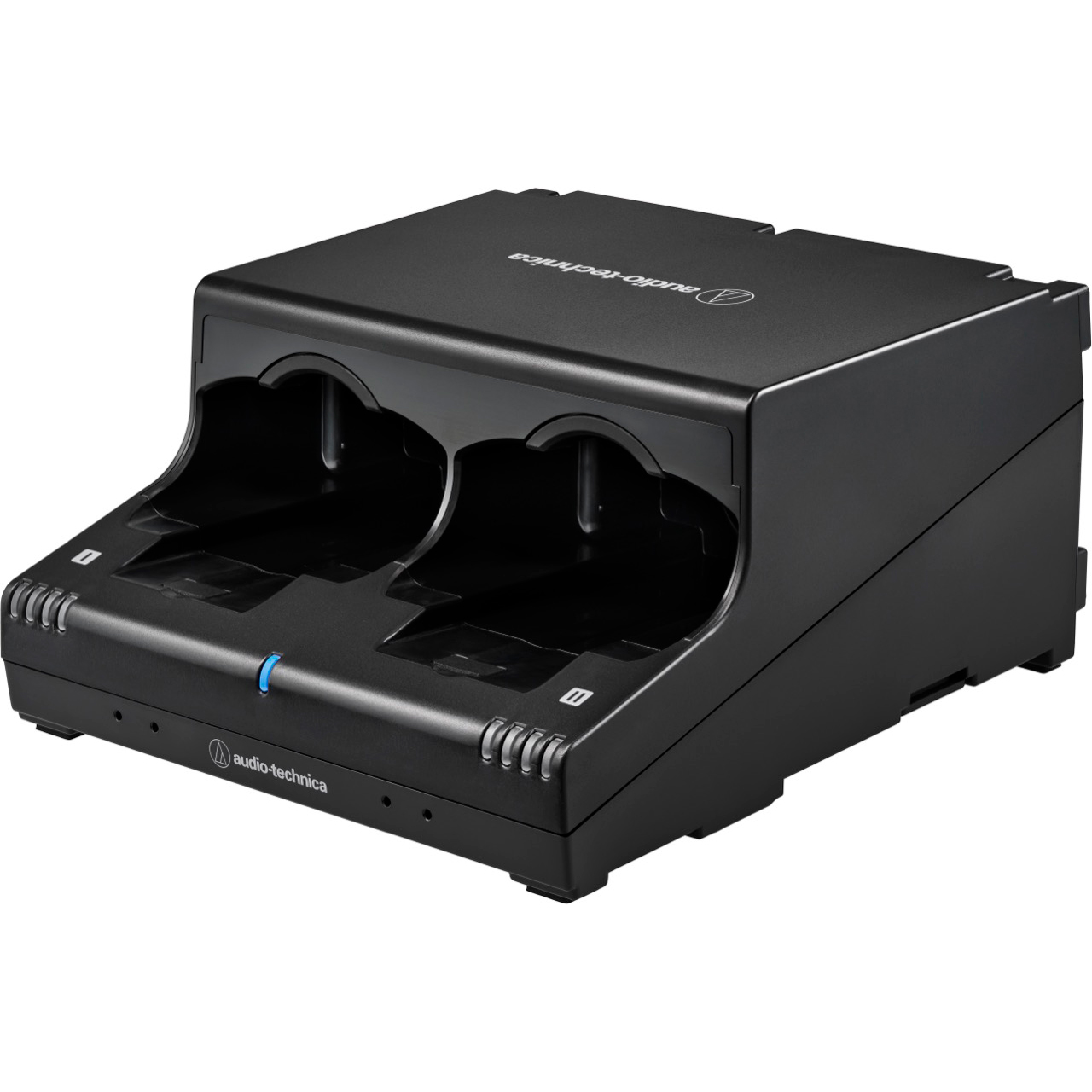

  • Two-bay charging station for charging D50 wireless system body-pack and handheld transmitters

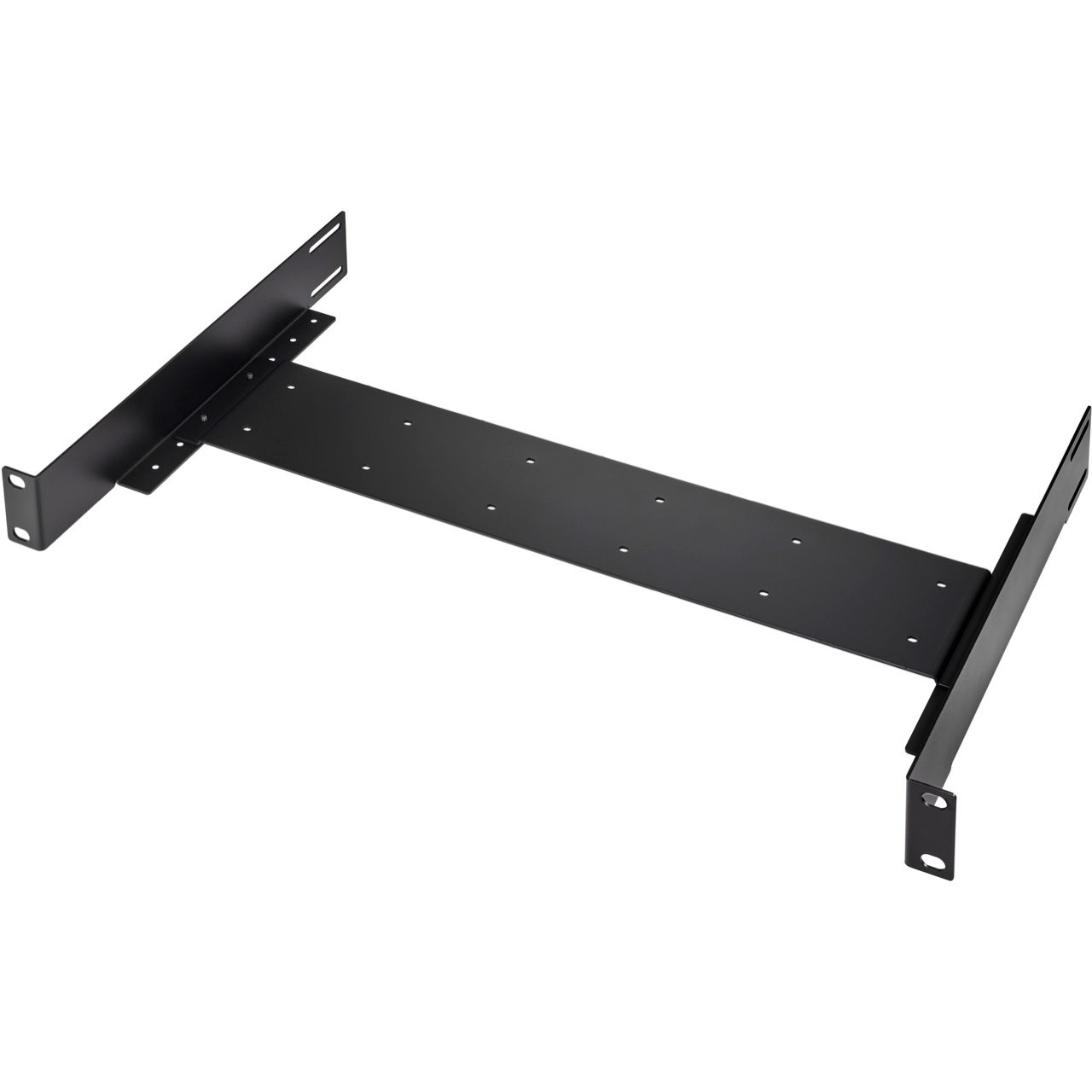

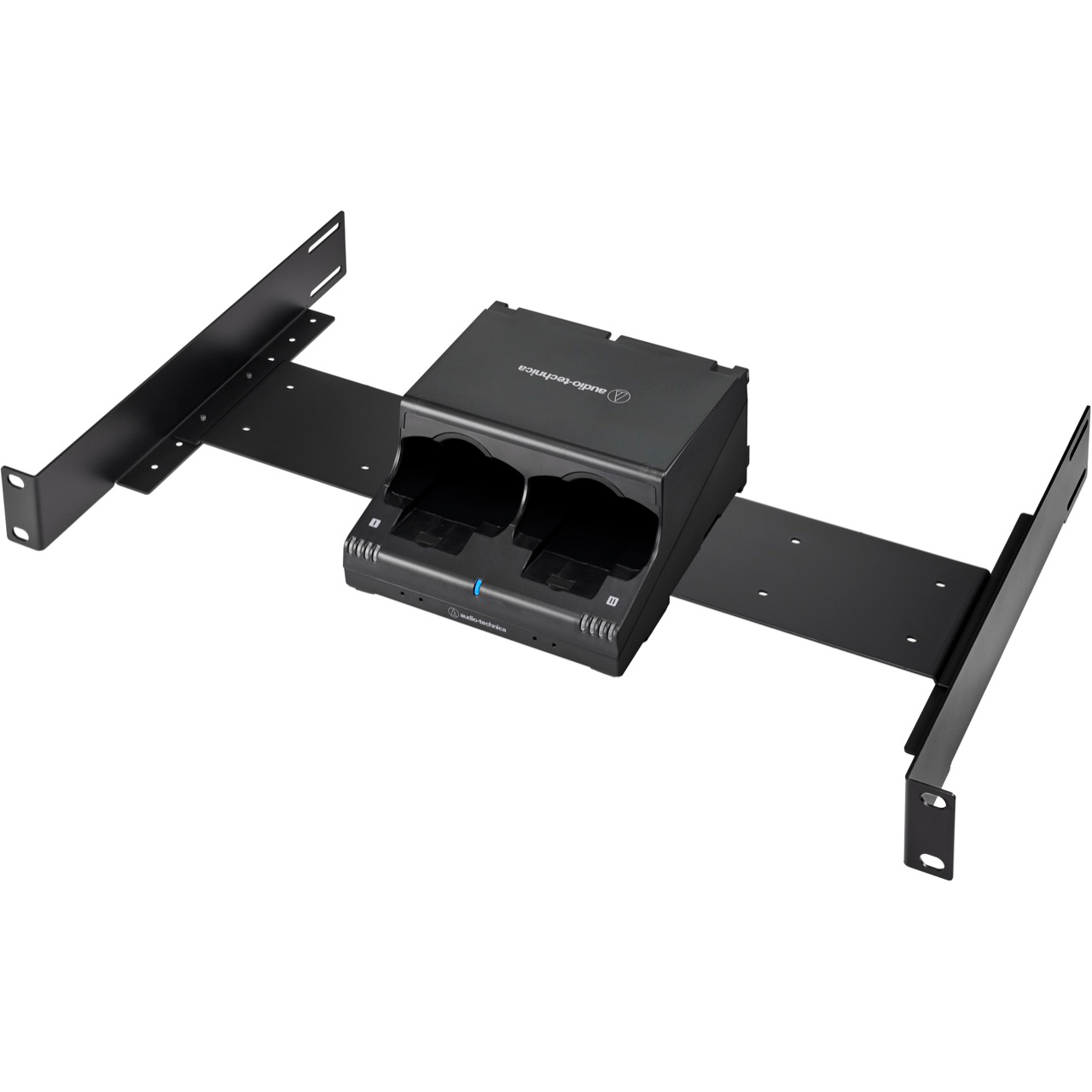

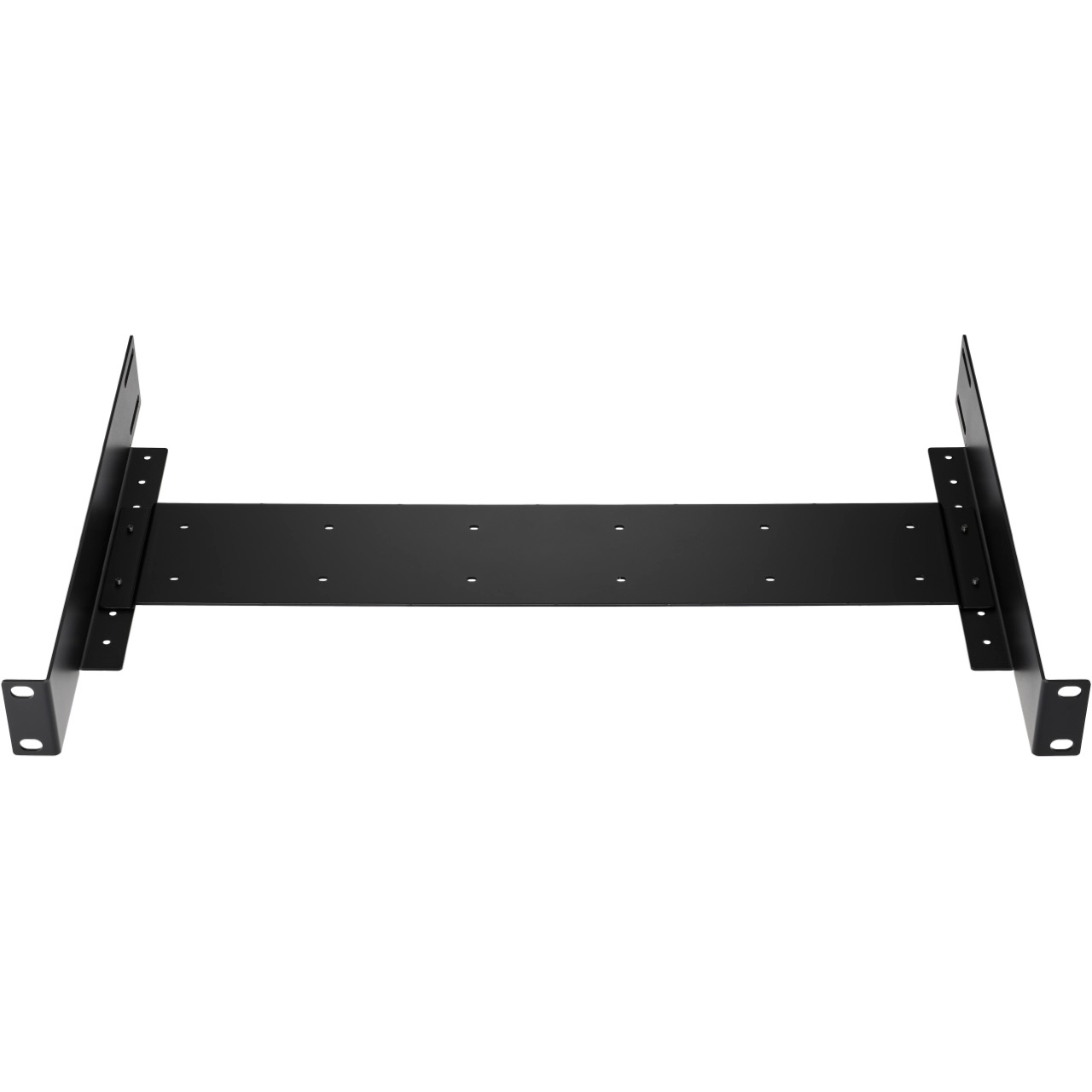

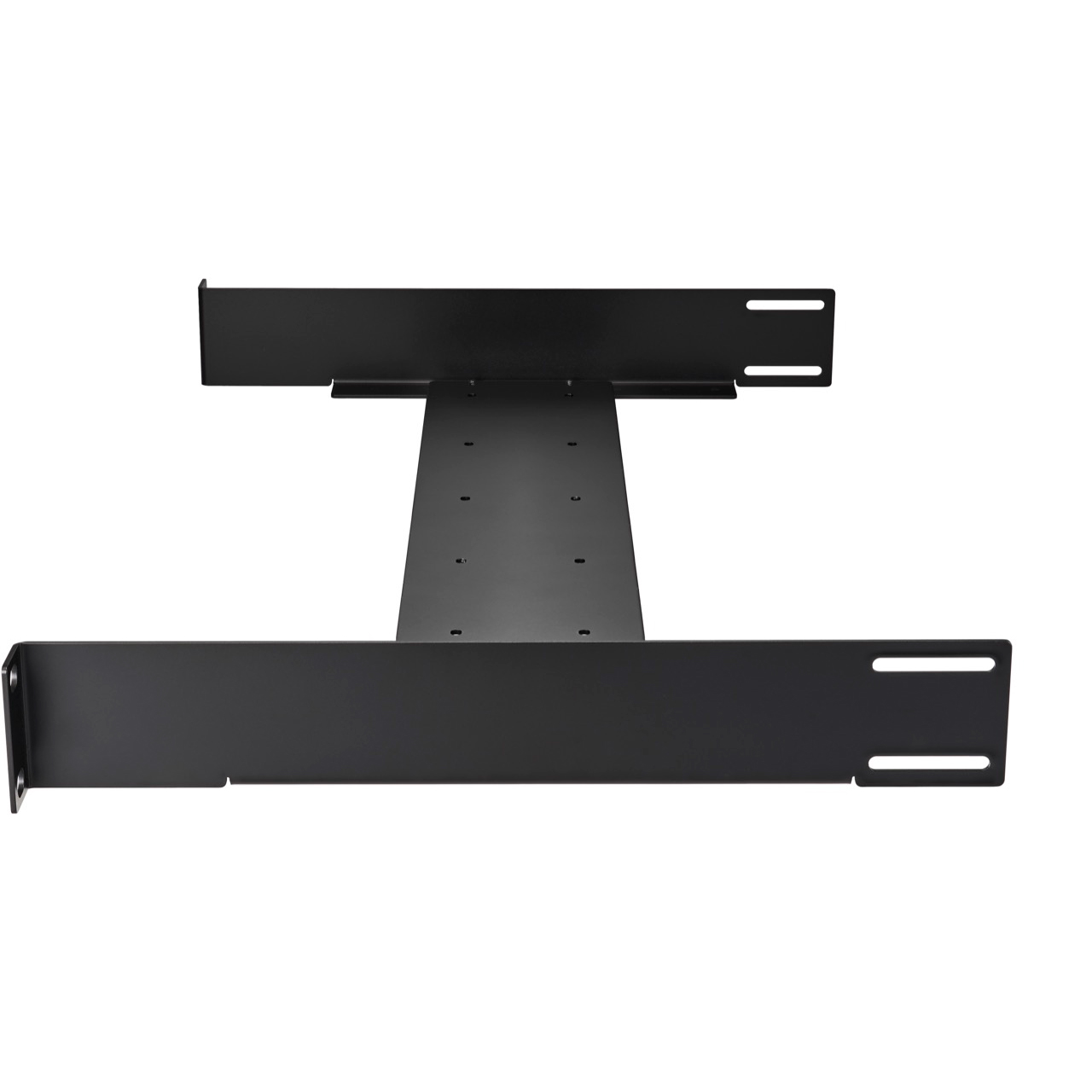

  • Included AT8620 rack-mount tray allows three ATW-CHG6 charging stations to be mounted in a 2U space
  • Up to four charging stations can be linked with Cat5e cable and powered by a single AC adapter; up to three stations can be linked and powered by PoE+
  • Charging status and battery level can be monitored via the station's LED indicators or in Audio-Technica's Wireless Manager
  • Two microphone hangers are included for convenient lavalier mic storage
  • Transmitter firmware can be updated while transmitters are docked in the charging station
  • Charging station can be mounted vertically or horizontally outside of rack tray if necessary


• Specifications:

  • Power Supply: 12V DC, 3.0A
  • Charging Output:
    - AC Adapter Charging 1 - 4 Transmitters: 5V, 1.1A
    - AC Adapter Charging 5 - 6 Transmitters: 5V, 0.8A
    - AC Adapter Charging 7 - 8 Transmitters: 5V, 0.5A
    - PoE+ Charging 1 - 2 Transmitters: 5V, 1.1A
    - PoE+ Charging 3 - 6 Transmitters: 5V, 0.5A
    - Energy-Saving Mode: 12V, 0.2A
  • Maximum Power Consumption when Charging 2 Transmitters:
    - AC Adapter: 15W (51 Btu/h)
    - PoE+: 16W (55 Btu/h)
  • Charging Time (AC Adapter):
    - ATW-DT3201 (LI-220) Charging 1 - 4 Transmitters: Approx. 2 hours 30 minutes
    - ATW-DT3201 (LI-220) Charging 5 - 6 Transmitters: Approx. 3 hours 10 minutes
    - ATW-DT3201 (LI-220) Charging 7 - 8 Transmitters: Approx. 5 hours
    - ATW-DT3202 (LI-320) Charging 1 - 4 Transmitters: Approx. 3 hours 50 minutes
    - ATW-DT3202 (LI-320) Charging 5 - 6 Transmitters: Approx. 5 hours
    - ATW-DT3202 (LI-320) Charging 7 - 8 Transmitters: Approx. 7 hours 10 minutes
  • Charging Time (PoE+):
    - ATW-DT3201 (LI-220) Charging 1 - 2 Transmitters: Approx. 2 hours 30 minutes
    - ATW-DT3201 (LI-220) Charging 3 - 6 Transmitters: Approx. 5 hours
    - ATW-DT3202 (LI-320) Charging 1 - 2 Transmitters: Approx. 3 hours 50 minutes
    - ATW-DT3202 (LI-320) Charging 3 - 6 Transmitters: Approx. 7 hours 10 minutes
  • Charging Time (Energy-Saving Mode):
    - ATW-DT3201 (LI-220): Approx. 5 hours
    - ATW-DT3202 (LI-320): Approx. 7 hours 10 minutes
  • Network: 100Mbps
  • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature Range: -4°F - 131°F (-20°C - 55°C)
  • Cooling Method: Fan-assisted air cooling
  • Airflow Direction: Front intake/Rear exhaust
  • Dimensions: 6.1" x 5.7" x 3.1" (154mm x 145.6mm x 78.3mm)
  • Weight: 1.5lbs (0.6kg)


• Item Includes:

  • 1x ATW-CHG6/8620


• Warranty:

  • 2 Year Limited Warranty
