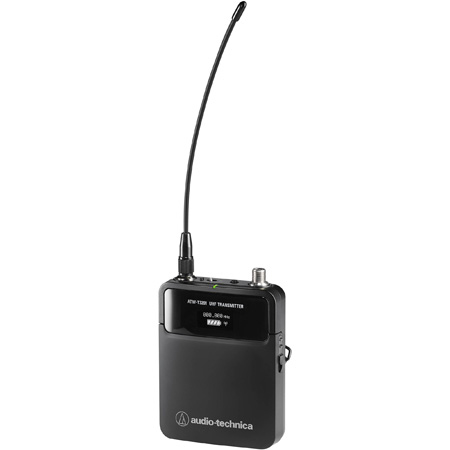

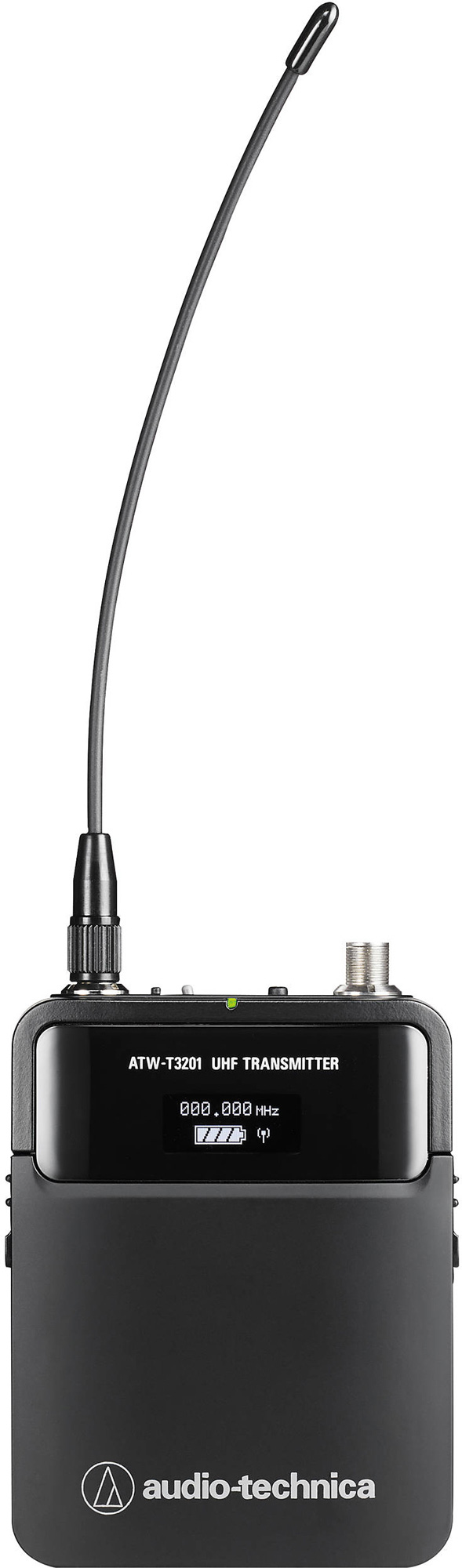

Audio-Technica ATW-T3201EE1 3000 Series Body-Pack Transmitter with CH-Style Screw-Down 4-Pin Connector - 530-590MHz

ITEM #: AT-ATW-T3201EE1 MFG #: ATW-T3201EE1

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    ATW-T3201EE1 - Overview

    The Audio Technica ATW-T3201 body-pack transmitter features a tactile mute toggle switch (defeatable) for physical confirmation of the mute status when the transmitter display is not visible. It also has a multifunction button that can be programmed to perform one of two functions when pressed and held: turn off RF transmission or switch to a preselected backup frequency to avoid interference. (The multifunction button can also be disabled.) An input is available on the transmitter for lowimpedance microphone, and high-impedance musical instrument or line input. The transmitter supplies 5V DC bias to power condenser microphones. The rugged cH-style screw-down 4-pin input connector provides secure connection to cH-style lavalier mics, headworn mics, and cables. The durable metal body-pack transmitter features a field replaceable whip antenna, OLED screen, and a secure, locking battery compartment door.

    • Features:

      • Extremely wide 60MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in four frequency bands
      • Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
      • Unique multifunction button on the body-pack transmitter can be used to switch to a backup frequency
      • IR sync functionality for ease of setup
      • Rugged 4-pin cH-style screw-down connector provides secure connection
      • Charging terminals on transmitters to recharge NiMH batteries
    • Specifications:

      • RF Power Output: High: 30mW, Low: 10mW (switchable), @ 50Ω
      • Spurious Emissions: Following Federal and National Regulations
      • Input Connections: cH-style screw-down 4-pin connector; Pin 1: GND; Pin 2: INST INPUT; Pin 3: MIC INPUT; Pin 4: DC BIAS +5V
      • High-pass (low-freq. roll-off): 125Hz, 12dB/octave
      • Batteries Two: 1.5V AA, not included
      • Battery Life: High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline); High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) (Depending on battery type, usage, and environmental conditions)
      • Dimensions (HxWxD): 0.91" x 2.52" x 3.22"
      • Net Weight: 3.6oz, without batteries
    • GTIN:
