Audio-Technica ATW-DR3240DANDF2 D50 4-Channel Dante-Enabled Half-Rack Receiver for D50 Digital UHF Wireless System

ITEM #: ATWDR3240DANDF2 MFG #: ATW-DR3240DANDF2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,799.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ATW-DR3240DANDF2 - Overview

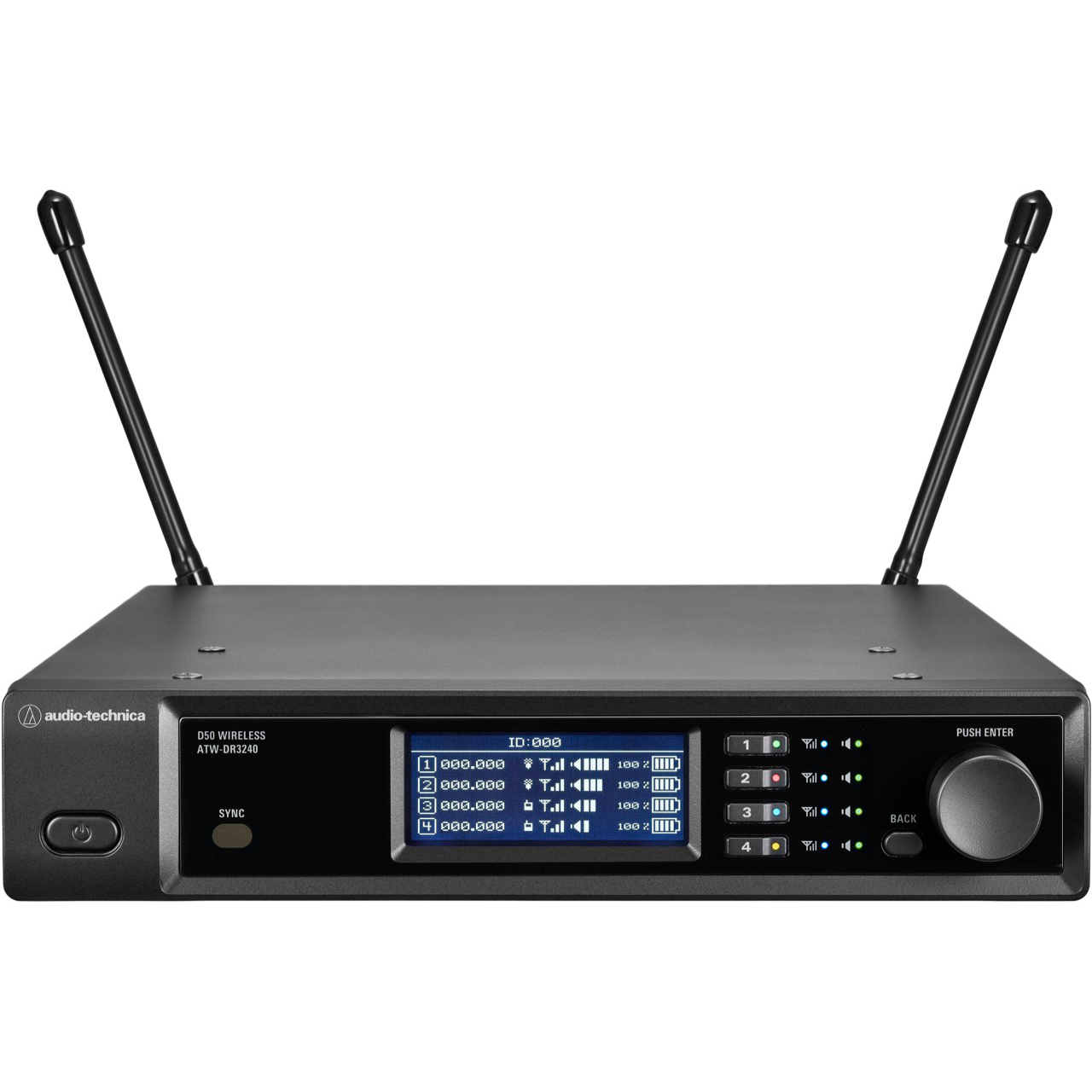

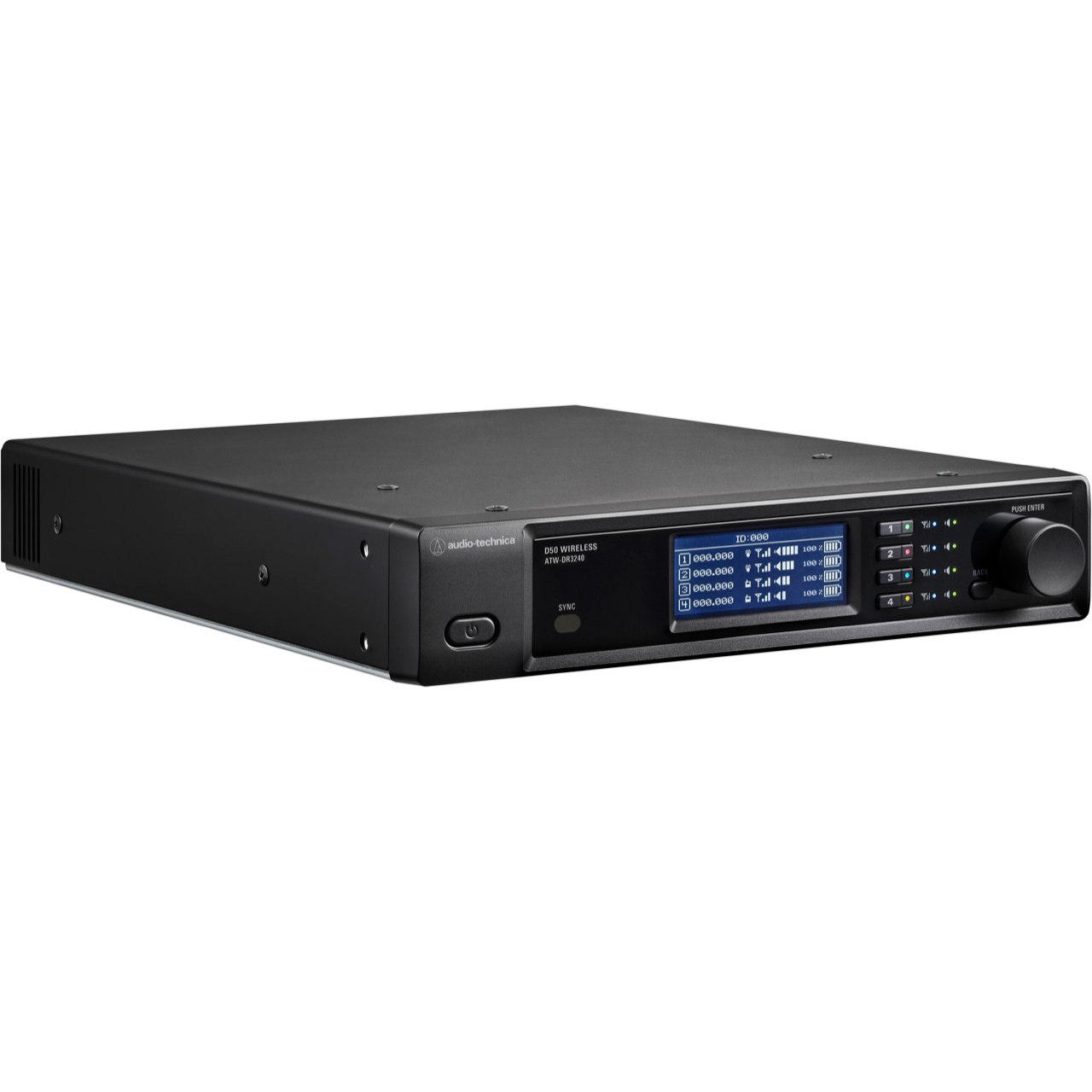

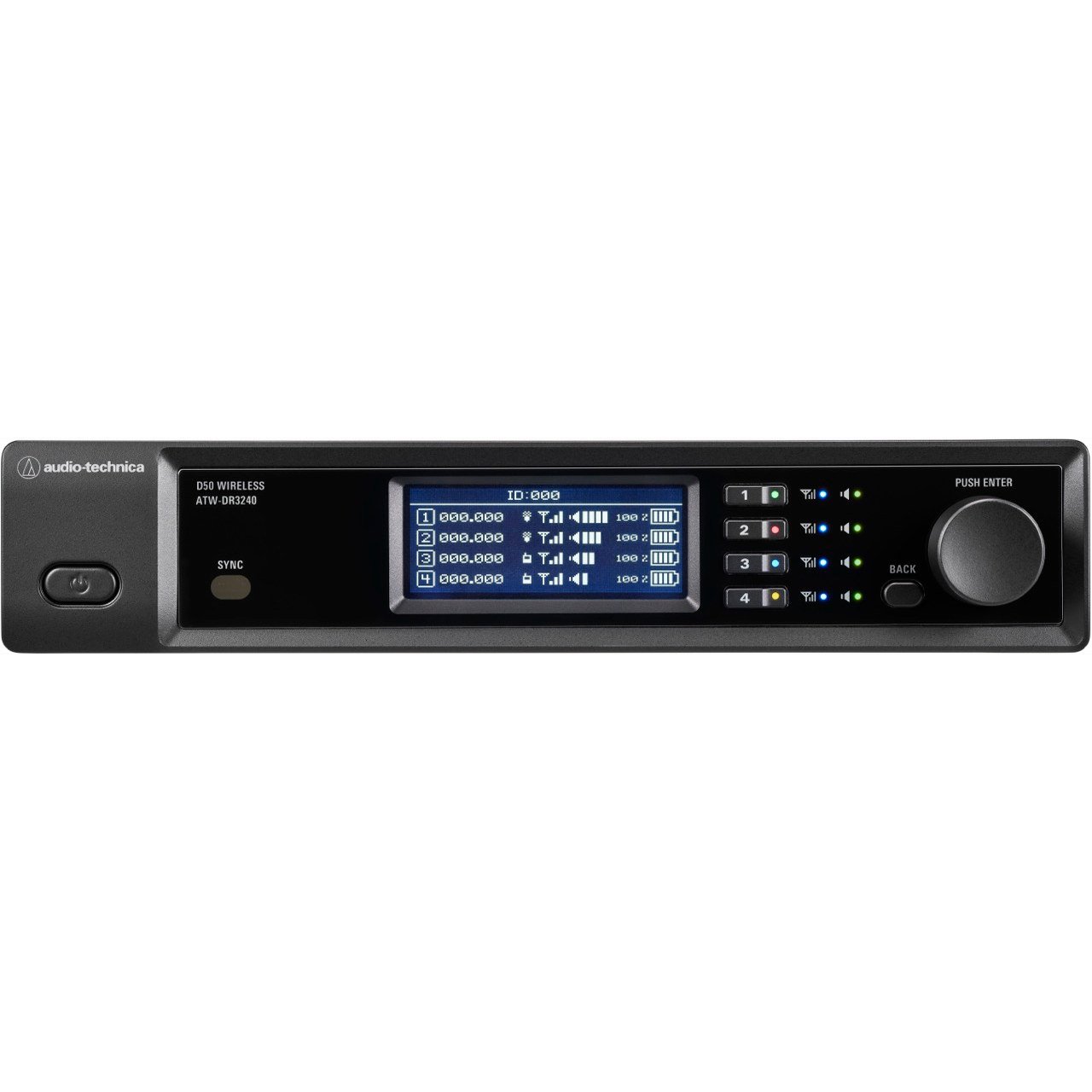

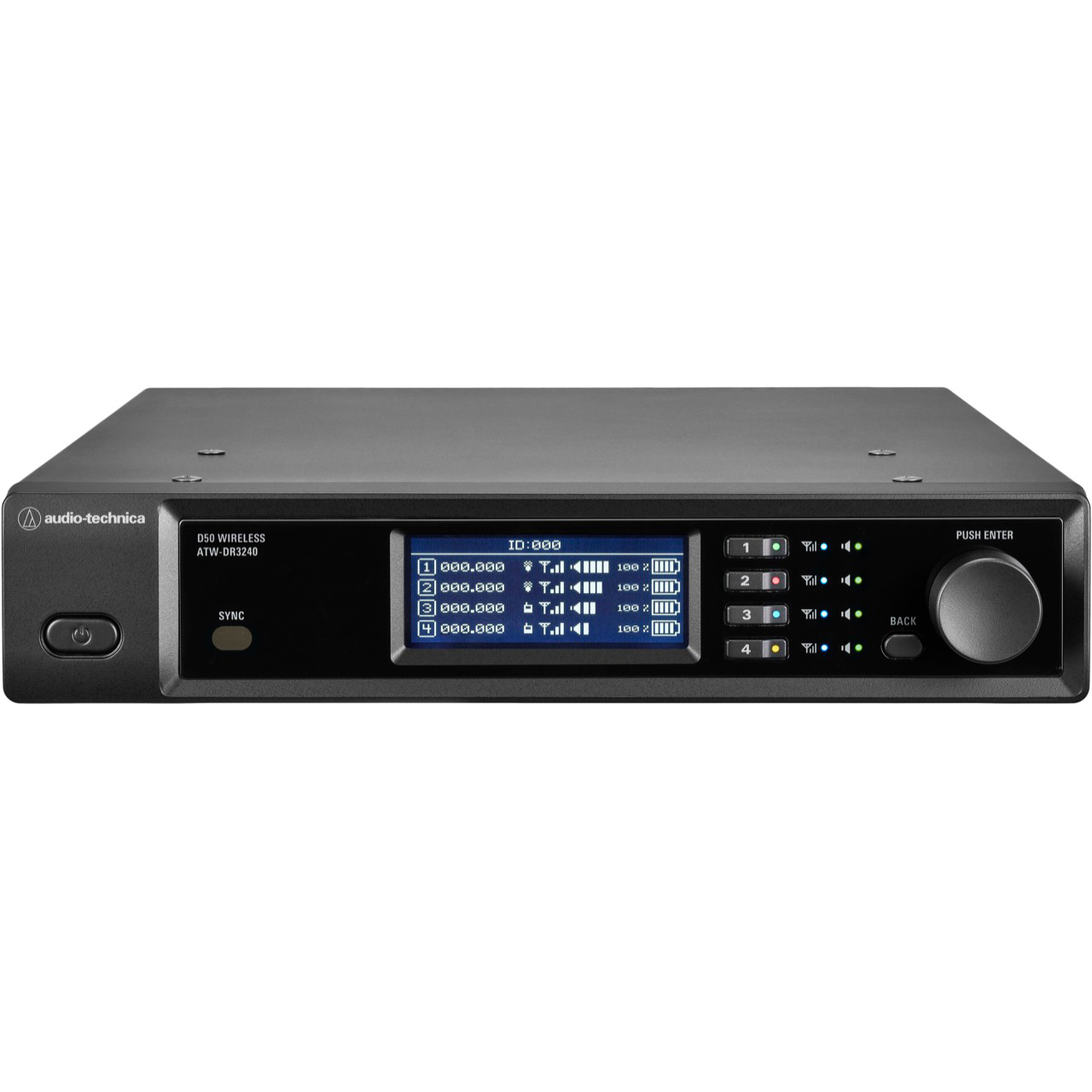

The Audio-Technica ATW-DR3240DANDF2 is a Dante-enabled 4-channel receiver for the D50 digital UHF wireless system. This half-rack receiver operates in one of two switchable RF modes: normal mode (Antenna Combining Diversity) or robust mode (MRC True Diversity) for greater RF stability. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. Plus, the system's HD (high-density) mode gives users the option of expanding the number of usable frequencies from the standard 17 within a 6MHz TV channel block to 47 frequencies in HD - a feature that can be especially useful in the congested RF environments of large cities.

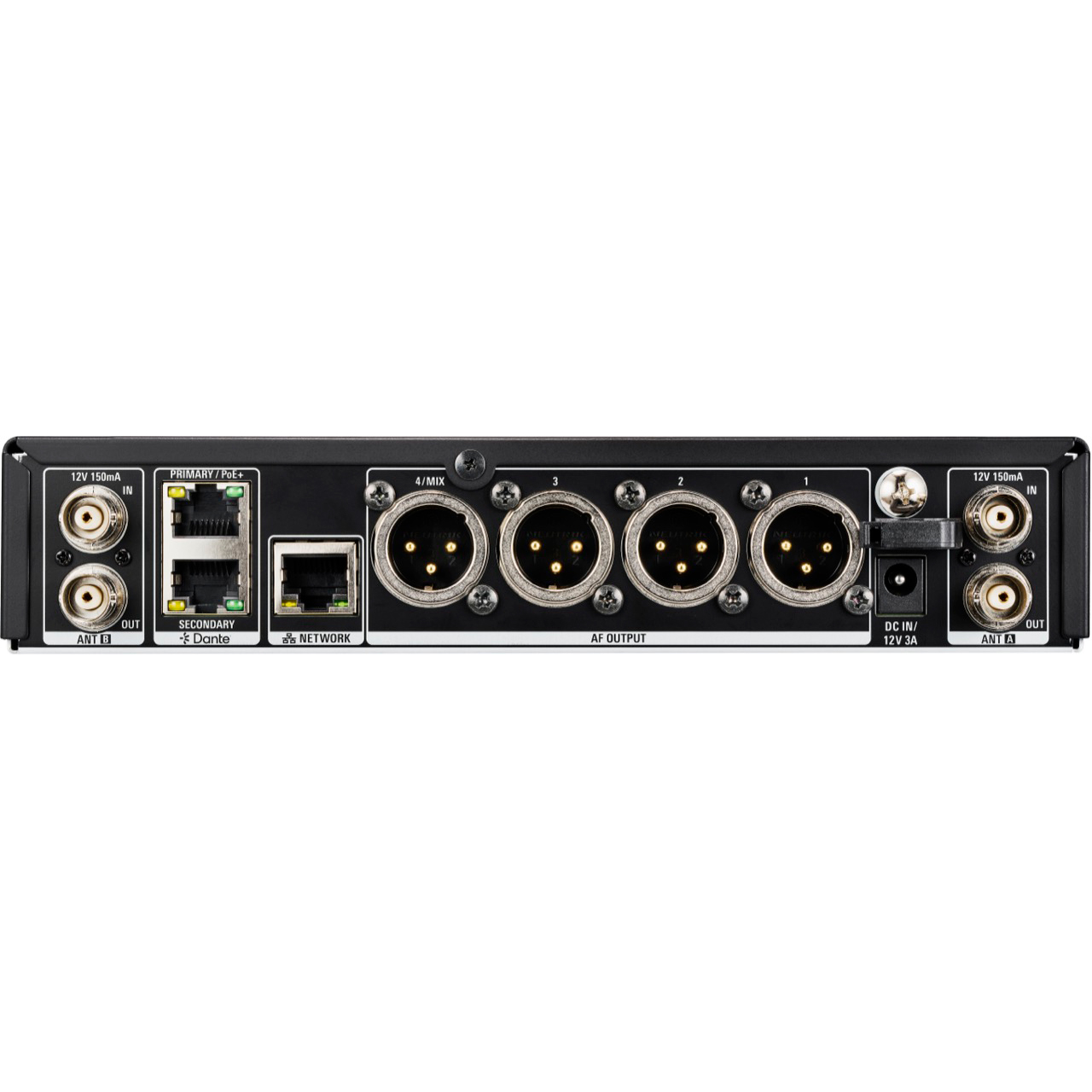

The receiver comes with an AC adapter, but can also be powered by PoE+, either exclusively or as a backup power source for the AC. The receiver also features primary and secondary Dante ports for redundancy, 96kHz high-resolution audio, and monitoring and device configuration.

  • Features:

    • Dante-enabled, 4-channel, half-rack receiver for the D50 digital UHF wireless system
    • Full tuning bandwidth of up to 244MHz, depending on region (up to 138MHz in the U.S.), in the broadcast range enables flexible channel planning in complex RF environments
    • Switchable between normal mode (Antenna Combining Diversity) and robust mode (MRC True Diversity), which offers superior RF stability
    • User can switch from Standard mode (17 frequencies per 6MHz TV channel) to HD mode (47 frequencies per 6MHz TV channel) when operating in congested urban RF environments
    • Onboard DSP offers high-pass filter, 4-band EQ, and compressor settings for each channel
    • Supports AES256 encryption for superior security
    • Equipped with a network port for monitoring and device configuration via Wireless Manager
    • Dante redundancy, daisy-chaining, and 96kHz sampling rate
    • Receiver can be powered by included AC adapter or PoE+; PoE+ also provides redundancy to keep the receiver powered if AC drops out
    • Receiver can be set to mixed output in situations where input channels are limited
    • Spectrum analysis (accessible via receiver's front-panel display and/or Wireless Manager software) and IR sync functionality make setup easy
    • Wireless Manager's system management tools include those to configure detailed EQ and COMP settings, and an advanced walk test for visual confirmation of multiple RF conditions
    • Multipoint receiver function allows a transmitter to be detected by multiple D50 networked receivers, with Wireless Manager software automatically switching to the receiver that has the best signal
    • Included short and long rack ears can be used to mount one receiver in a half-rack space and two long ears can be combined as a joining plate to mount two receivers in a full space
    • TAA-compliant (U.S.); Radio Equipment Directive (RED) cybersecurity-compliant (EU)
    • Firmware updates are performed in Wireless Manager

  • Specifications:

    • Receiving System:
      - Robust: MRC true diversity
      - Normal: Antenna combining diversity
    • Image Rejection: 70dB
    • RF Sensitivity: -98dBm (10-5 BER)
    • Maximum Output Level: +18dBV
    • Antenna Input: BNC, 50Ω
    • Antenna Power: 2x 12V DC, 150mA
    • Maximum Power Consumption:
      - AC Adapter: 22W (75 Btu/h)
      - PoE+: 22W (75 Btu/h)
    • Power Supply:
      - 100V - 240V AC 50/60Hz
      - PoE+ (IEEE 802.3at Class 4)
    • Network:
      - IP Control: 100Mbps
      - Dante: 1Gbps
    • Operating Temperature Range: 23°F - 104°F (-5°C - 40°C)
    • Storage Temperature Range: -4°F - 131°F (-20°C - 55°C)
    • Cooling Method: Fan-assisted air cooling
    • Airflow Direction: Front intake/Rear exhaust
    • Dimensions (WxDxH): 16.73" x 12.59" x 3.93" (424.9mm x 319.8mm x 99.8mm)
    • Weight: 8.61lbs (3.9kg)

  • Item Includes:

    • 1x ATW-DR3240DAN Receiver
    • 1x Short and Long Rack Ear Kit
    • 1x Power Supply
    • 2x Antennas
    • 1x Front-Mount Antenna Kit

  • Warranty:

    • 1 Year Limited Warranty
