Audio-Technica BPHS2A-XF4 Broadcast Stereo Headset with Dynamic Element Terminated in 4-Pin XLR Female

ITEM #: AT-BPHS2A-XF4 MFG #: BPHS2A-XF4

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$516.00

Our Price:

$369.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BPHS2A-XF4 - Overview

Created especially for news and sports broadcasting, this rugged Audio-Technica BPHS2A-XF4 stereo headset offers highly intelligible and commanding vocal reproduction, along with a comfortable fit and excellent sound isolation. Its lowprofile, closed-back, on-ear design is based on the ATH-M60xa professional monitor headphones and includes the same 45mm large-aperture drivers, and premium, memory foam earpads and headband, giving users a high-fidelity headset that's built to last. The headset's hypercardioid dynamic microphone keeps the pickup focused on the broadcaster's voice, even in loud environments, and is tailored to reproduce that voice with a rich, broadcast-ready sound.

The microphone sits at the end of a rigid boom with a strong, flexible gooseneck section that allows the microphone to be easily adjusted and then stay in place. The boom is also designed to swivel forward and back so that the headset can be worn with the mic positioned on either the right or left side.

In the effort to expand connectivity, the addition of the included BPCB5 cable to existing BPHS2a headset models provides additional flexibility by offering a TA6F to 4-pin XLR female (XLRF) termination. The BPCB5 is a new interconnect cable available for individual purchase and as a new termination option for the existing line of Audio-Technica BPHS2a broadcast headsets. This package is designed to provide a simple, out-of-the-box solution for broadcast announcers and communication (comms) systems.

  • Features:

    • Low-profile, closed-back, on-ear design provides excellent isolation and fit
    • Proprietary 45mm large-aperture drivers (the same used in the ATH-M60xa pro headphones) with rare earth magnets and copper-clad aluminum wire voice coils
    • Hypercardioid dynamic microphone with frequency response tailored for commanding, broadcast ready vocal reproduction
    • Carefully crafted using key metal components for lasting durability
    • Low-impedance design delivers high output level from any headphone output
    • Boom-mounted microphone can be positioned on the left or right side
    • Rigid boom with strong, flexible gooseneck section allows microphone to be adjusted and stay in place
    • Premium, memory foam earpads and headband allow headset to be worn comfortably for hours on end
    • Earpads and headband detach for easy replacement
    • Includes BPCB5 3.9ft (1.2m) cable with TA6F to 4-pin XLR female (XLRF) termination for use by broadcast announcers and with professional intercom and communication (comms) systems

  • Specifications:

      Microphone
    • Element: Dynamic
    • Polar Pattern: Hypercardioid
    • Frequency Response: 50Hz - 14kHz (@ 2cm)
    • Open Circuit Sensitivity: -57dB (5.6mV)(0dB = 1V/Pa, 1kHz)
    • Dimensions Height:
      - 0.71" (18.0mm)
      - Main Unit Maximum Diameter: 0.92" (23.4mm)
    • Output Connector: TB6M

      Headphones
    • Type:
      - Closed-back Dynamic (Headphone)
      - Hypercardioid Dynamic (Microphone)
    • Driver Diameter 45mm (Headphone)
    • Frequency Response 15Hz - 28kHz (Headphone) 50Hz - 14kHz (Microphone)
    • Maximum Input Power: 1,600mW at 1kHz (Headphone)
    • Maximum Output: 1,600mW
    • Sensitivity: 102dB (Headphone) -57dB (1.4mV) re 1V at 1 Pa (Microphone)
    • Impedance:
      - Headphone: 38Ω
      - Microphone: 550Ω
    • Weight: 8.8oz (250g)
    • Cable: Detachable 3.9ft (1.2m) long cable with TA6F connector at headset and 4-pin XLRF-type connector for both headphone and microphone output
    • Connector: TB6M jack
    • Magnet: Neodymium (Headphone)
    • Voice Coil: Copper-clad aluminum wire

  • Item Includes:

    • 1x Pouch

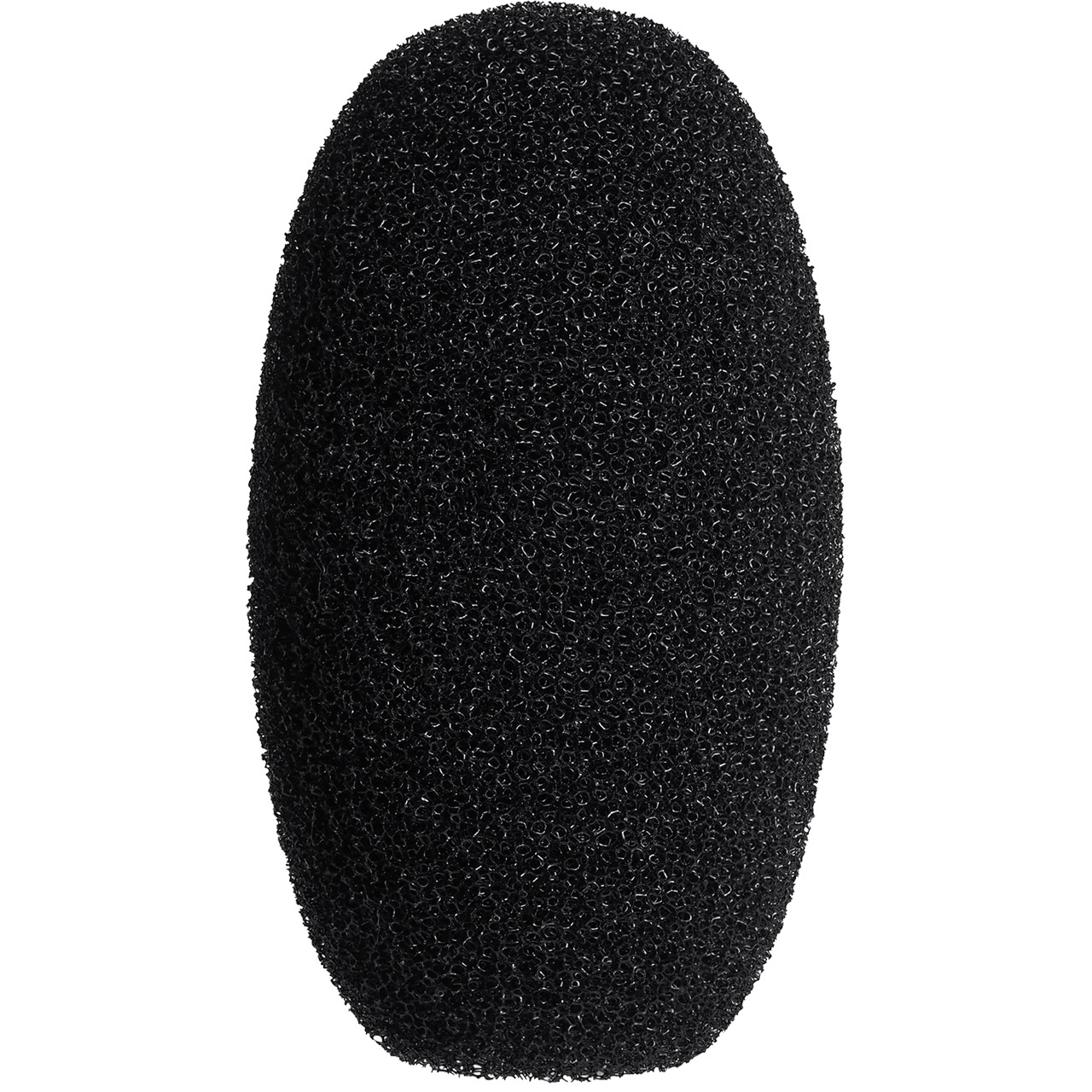

    • 3x Windscreens

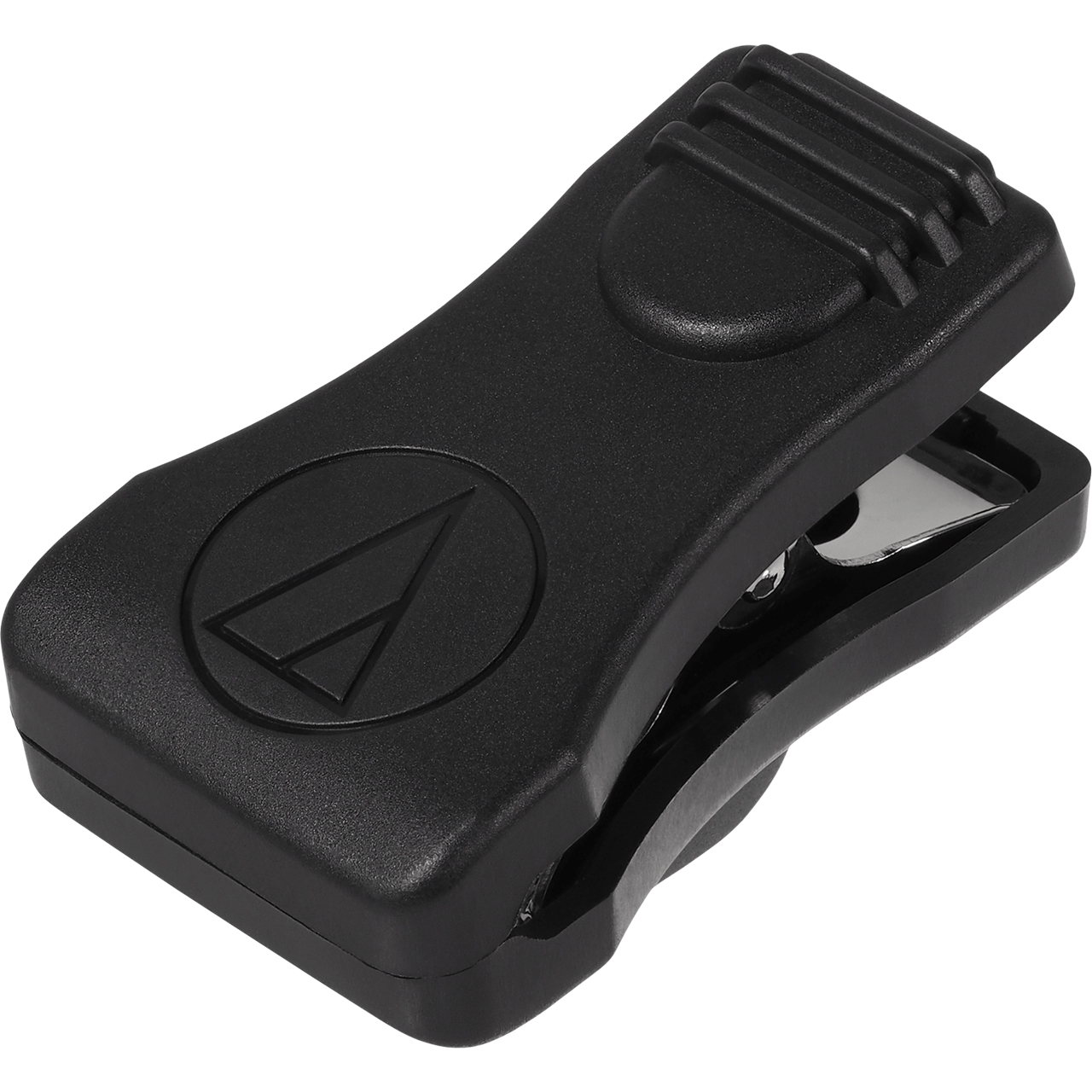

    • 1x Cable clip
    • 1x BPCB5 3.9ft (1.2 m) cable with TA6F to 4-pin XLR female (XLRF) termination

  • GTIN:

    0496131016213
