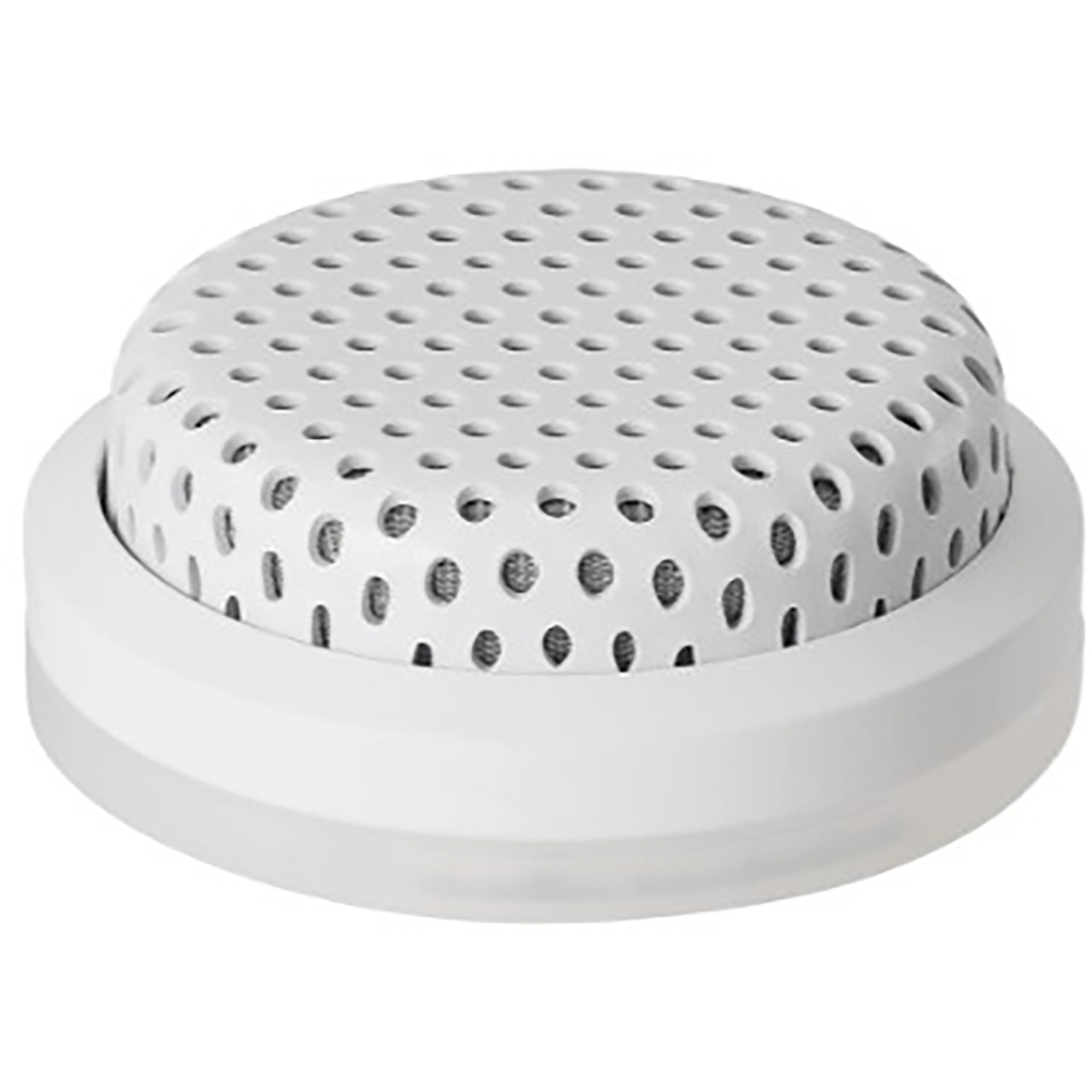

Audio-Technica ES945WO/XLR Omnidirectional Condenser Boundary Microphone for Table or Ceiling Mounting - White

ITEM #: AT-ES945WO-XLR MFG #: ES945WO/XLR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$329.00

Our Price:

$219.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ES945WO/XLR - Overview

IPX4 Water Resistant Boundary Microphone with UniGuard RFI-shielding Technology!

With its low-profile design that mounts unobtrusively in tabletops, ceilings or panels for minimum visibility, the Audio-Technica ES945O/XLR omnidirectional condenser boundary microphone provides clear, highly intelligible audio that is perfect for conferencing, recording, monitoring and other demanding sound pickup applications.

The ES945O/XLR is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. The microphone comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

Did You Know...?
While boundary mics are widely utilized in conference rooms and training applications many Audio Engineers use them as drum recording mics. It's true! Musicians and Audio Engineers can benefit from a pair of boundary mics by placing them on the floor on both sides of a kick drum, on the walls or even inside the kick drum. Have fun experimenting to find your killer drum sound.

  • Features:

    • Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
    • Low-profile element provides uniform omnidirectional polar pattern with 360° acceptance angle

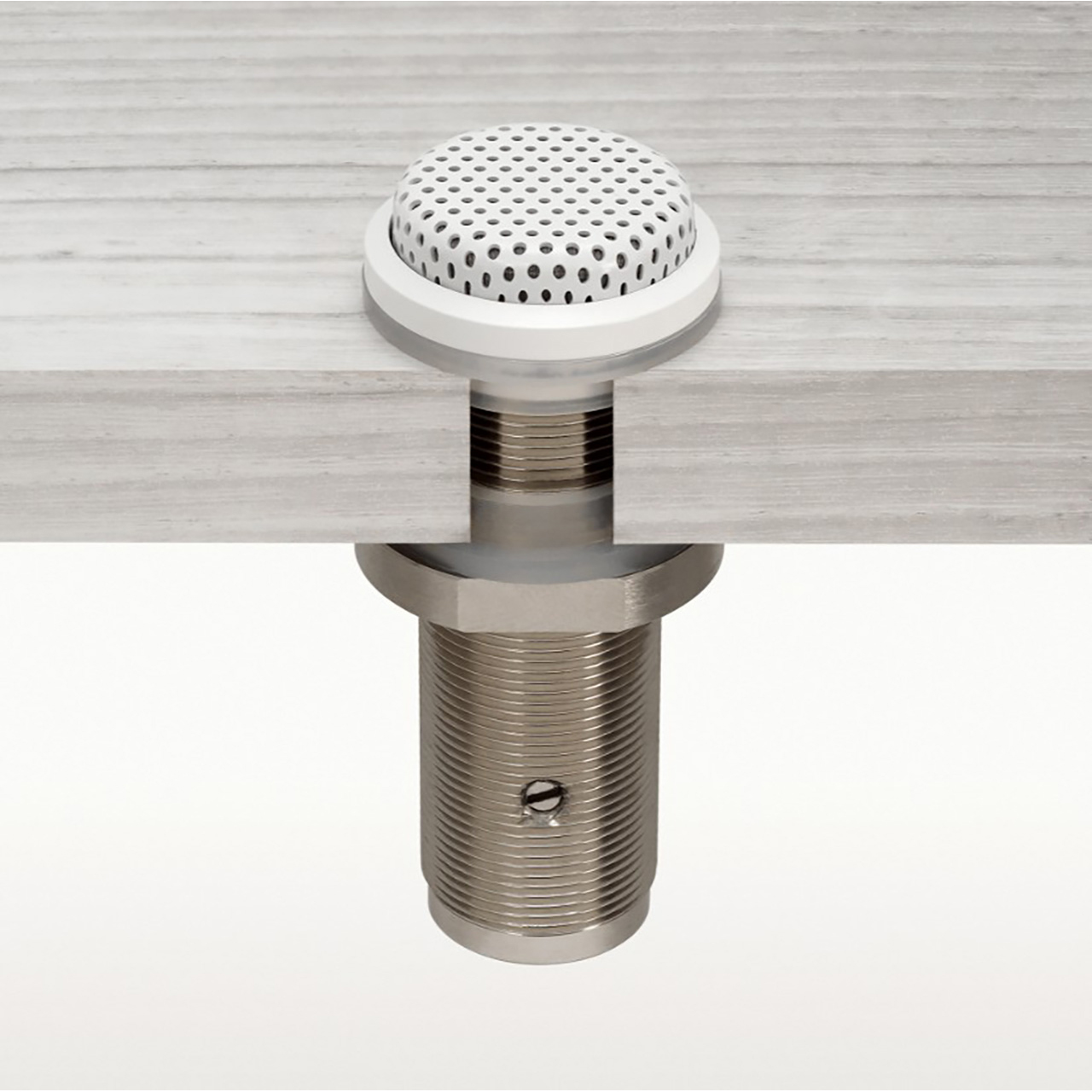

    • Mounts unobtrusively in tabletops, ceilings and panels
    • IPX4 water resistance protects the microphone from splashes of water

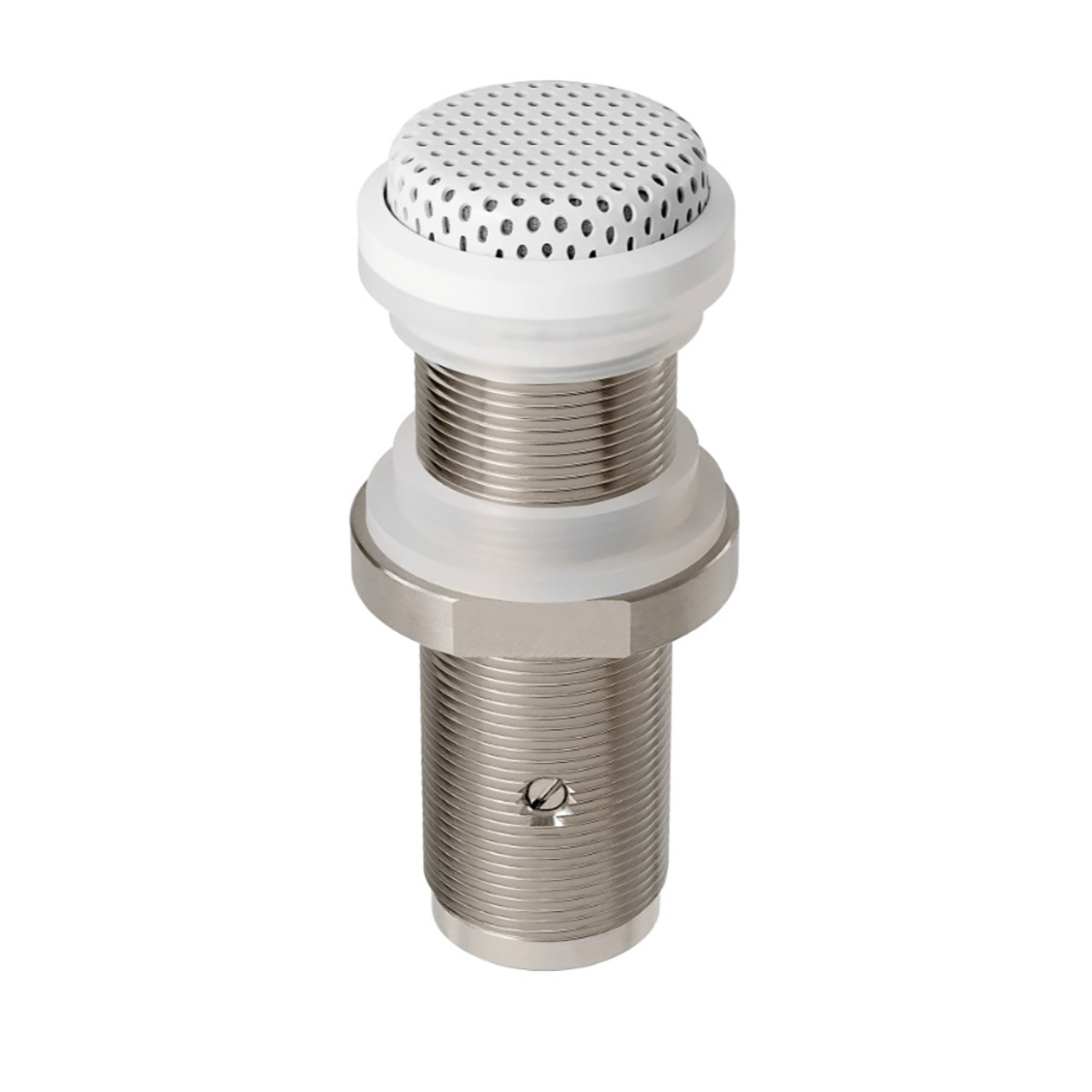

    • Self-contained power module with XLRM-type output connector
    • Rugged all-metal case with a two-layer perforated grille
    • Rubber Isolators provide mechanical dampening of mounting-surface vibration
    • Requires 11V to 52V DC phantom power
    • UniGuardr RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
    • Available in two colors: black (ES945O/XLR) and white (ES945WO/XLR)
    • RoHS compliant-free from all substances specified in the EU directive on hazardous substances

  • Specifications:

    • Element: Fixed-charge back plate, permanently polarized condenser
    • Polar Pattern: Omnidirectional
    • Frequency Response: 60Hz - 15kHz
    • Open Circuit Sensitivity: -33dB (0dB = 1V/Pa, 1kHz)
    • Output Impedance: 100Ω
    • Maximum Input Sound Level: 130dB SPL (1kHz at 1% THD)
    • Dynamic Range (Typical): 109dB (1kHz at max SPL)
    • Signal-to-Noise Ratio: 73dB (1kHz at 1 Pa, A-weighted)
    • Power Requirements: 11V - 52V DC, 2mA
    • Weight: 2.2oz (62g)
    • Dimensions: 2.72" (69mm) long, 1.10" (28mm) head diameter
    • Output Connector: 3-pin XLRM-type

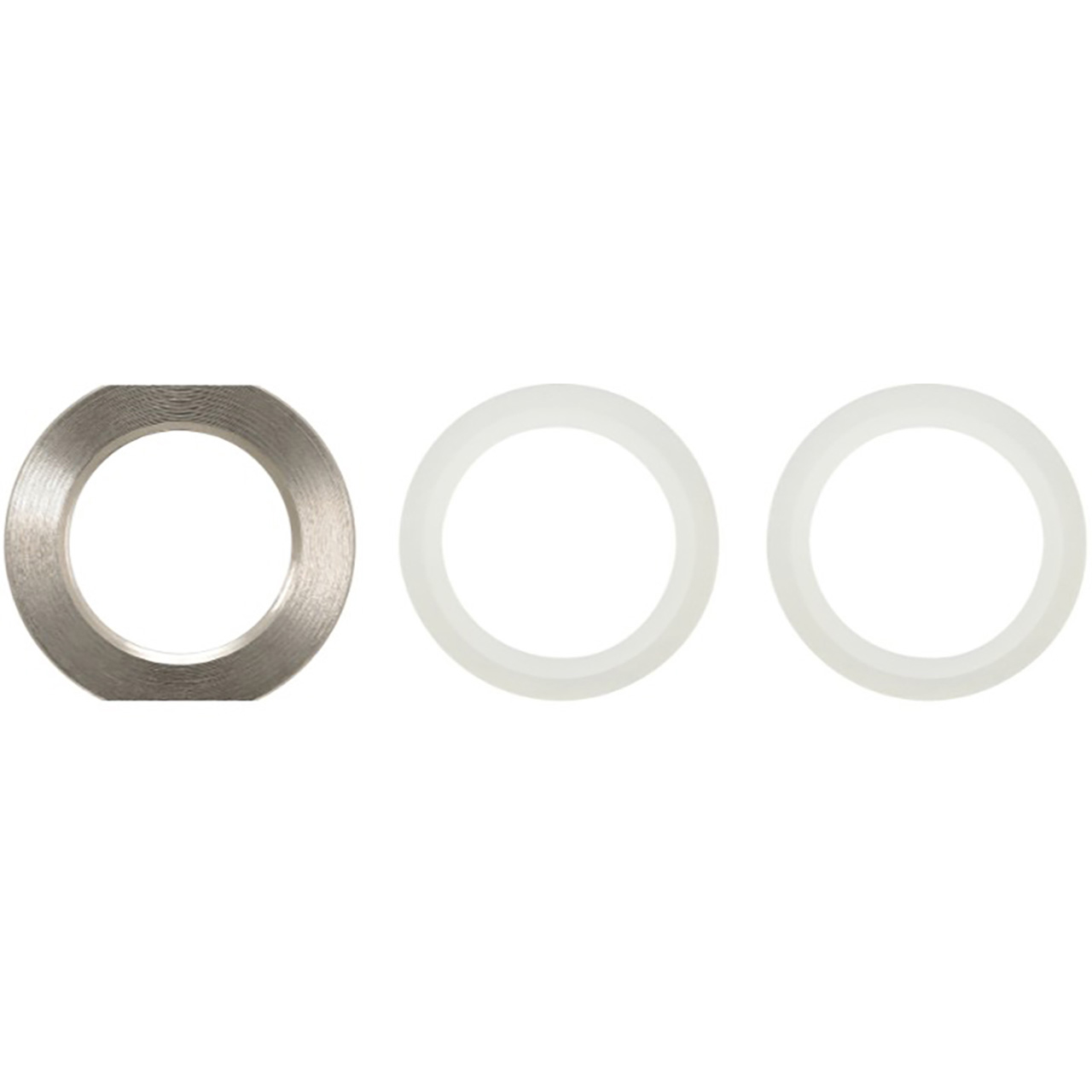

    • Accessories Included: 2x Rubber isolator, nut

  • Item Includes:

    • 1x ES945O/XLR IPX4 Boundary Microphone with XLR Output
    • 2x Rubber isolator
    • 1x Nut
