Audio-Technica AT8022 X/Y Stereo Microphone

ITEM #: AT8022 MFG #: AT8022

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$399.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    AT8022 - Overview

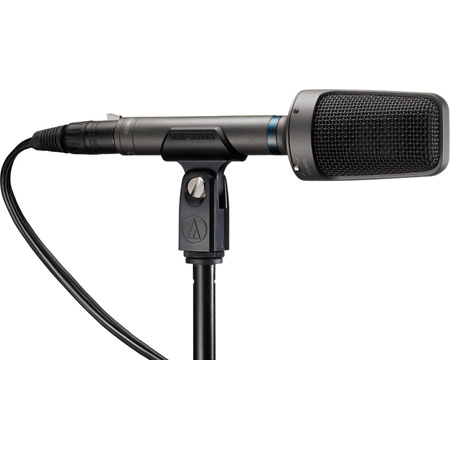

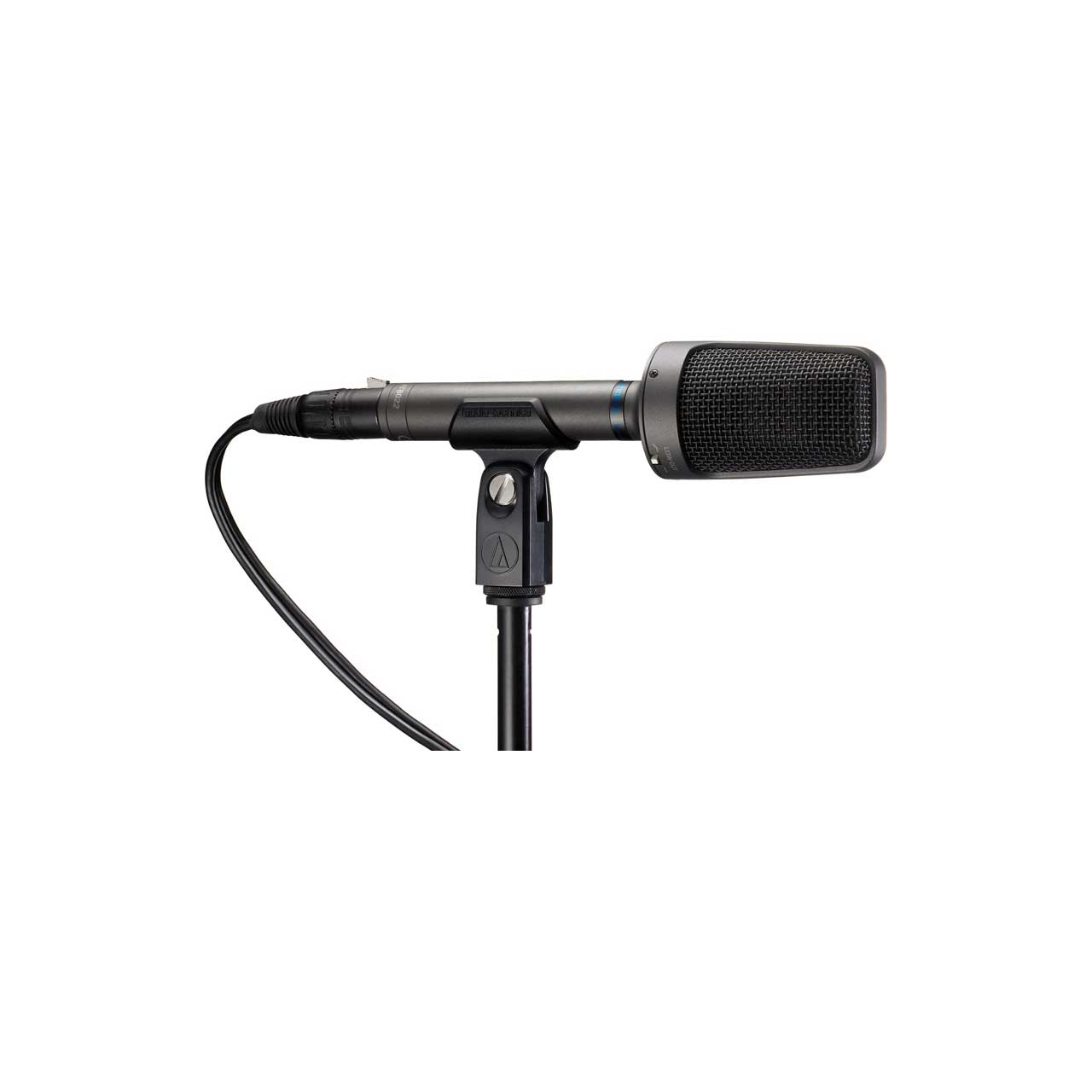

    Ideal for video camera-mount use, stereo field recording, interviews and home recording, Audio-Technica's versatile AT8022 stereo condenser offers a compact housing and the pristine sound quality of a live sound field. Its coincident capsule configuration produces an X/Y stereo image in a small housing.

    The microphone is supplied with two cables for use with either pro or consumer gear. It offers switchable low-frequency roll-off and the convenience of battery or phantom power. The microphone is fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

    • Features:

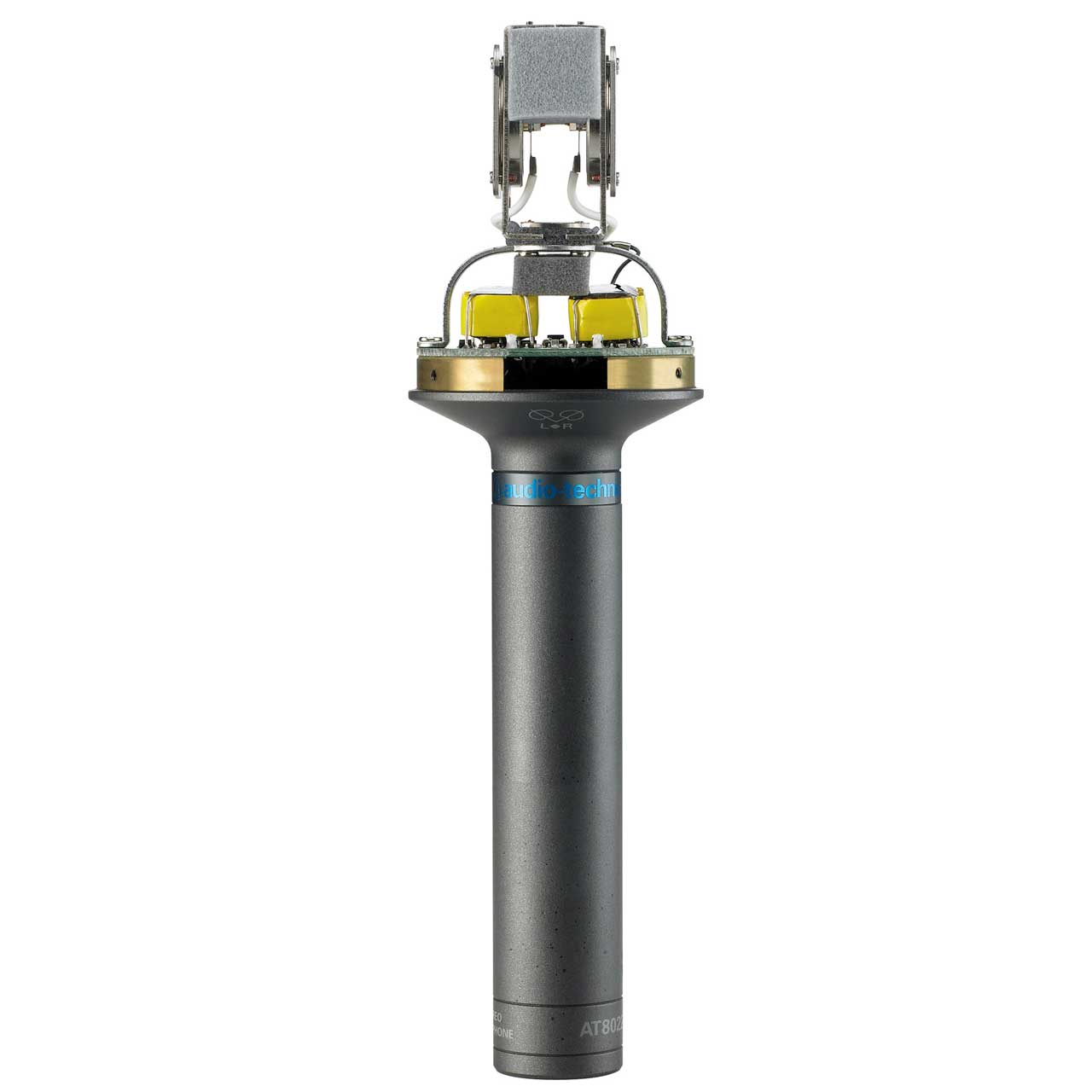

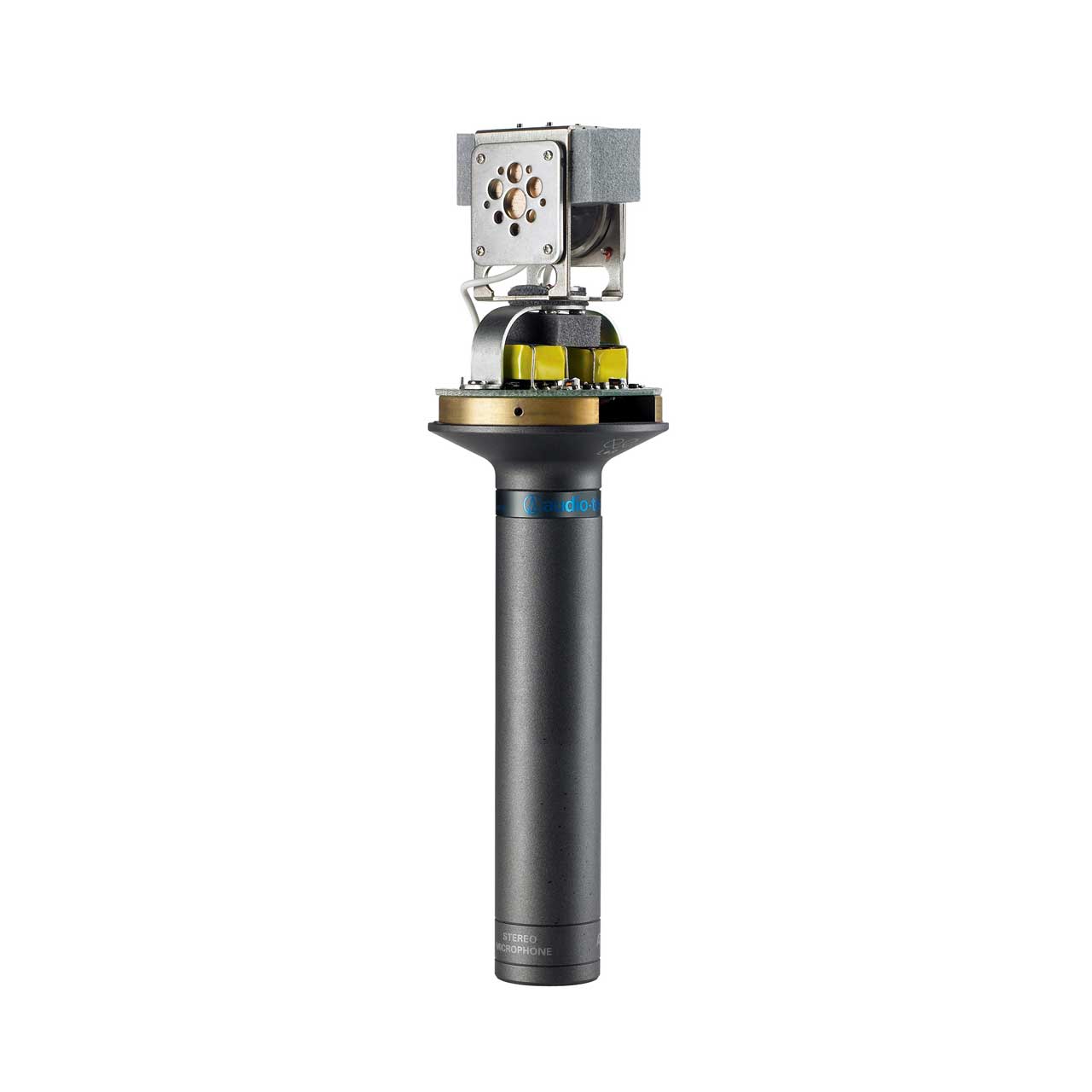

      • Innovative capsule configuration produces accurate stereo image in smaller housing
      • Compact, lightweight design is perfect for video camera-mount use as well as for stereo field recording, interviews and home recording
      • Ideal for use with handheld digital recording devices
      • Operates on battery or phantom power-for use with pro or consumer equipment
      • Switchable low-frequency roll-off
      • Includes two cables: one balanced (two 3-pin XLRM-type connectors at output); one unbalanced (3.5mm TRS at output)
      • RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

    • Specifications:

      • Element: Fixed-charge back plate permanently polarized condenser
      • Polar Pattern: X/Y Stereo
      • Frequency Response: 20 - 15,000Hz
      • Low Frequency Roll-Off: 80Hz, 18dB/octave
      • Open Circuit Sensitivity: Phantom: -38dB (12.5mV) re 1V @ 1Pa; Battery: -38dB (12.5mV) re 1V @ 1Pa
      • Channel Balance: <2.5dB
      • Impedance: Phantom: 250Ω; Battery: 300Ω
      • Maximum Input Sound Level: Phantom: 128dB SPL, 1kHz @ 1% T.H.D.; Battery: 120dB SPL, 1kHz @ 1% T.H.D.
      • Dynamic Range (typical): Phantom: 109dB, 1kHz @ Max SPL; Battery: 101dB, 1kHz @ Max SPL
      • Signal-To-Noise Ratio: 75 dB, 1 kHz at 1 Pa
      • Phantom Power Requirements: 11 - 52V DC, 2mA typical (each channel)
      • Battery Type: 1.5V AA/UM3
      • Battery Current/Life: 0.7mA/700 hours typical (alkaline)
      • Switch: Battery On/Off; Flat, roll-off
      • Weight: 8.7oz
      • Dimensions: 7.32" long, 1.87" head diameter, 0.83" maximum body diameter
      • Output Connector: Integral 5-pin XLRM-type
      • Cables: Balanced: 6.5ft long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end; Unbalanced: 2.0ft long stereo cable with 5-pin XLRF-type connector at microphone end and 3.5mm TRS connector at output end
      • Audio-Technica Case Style: S12

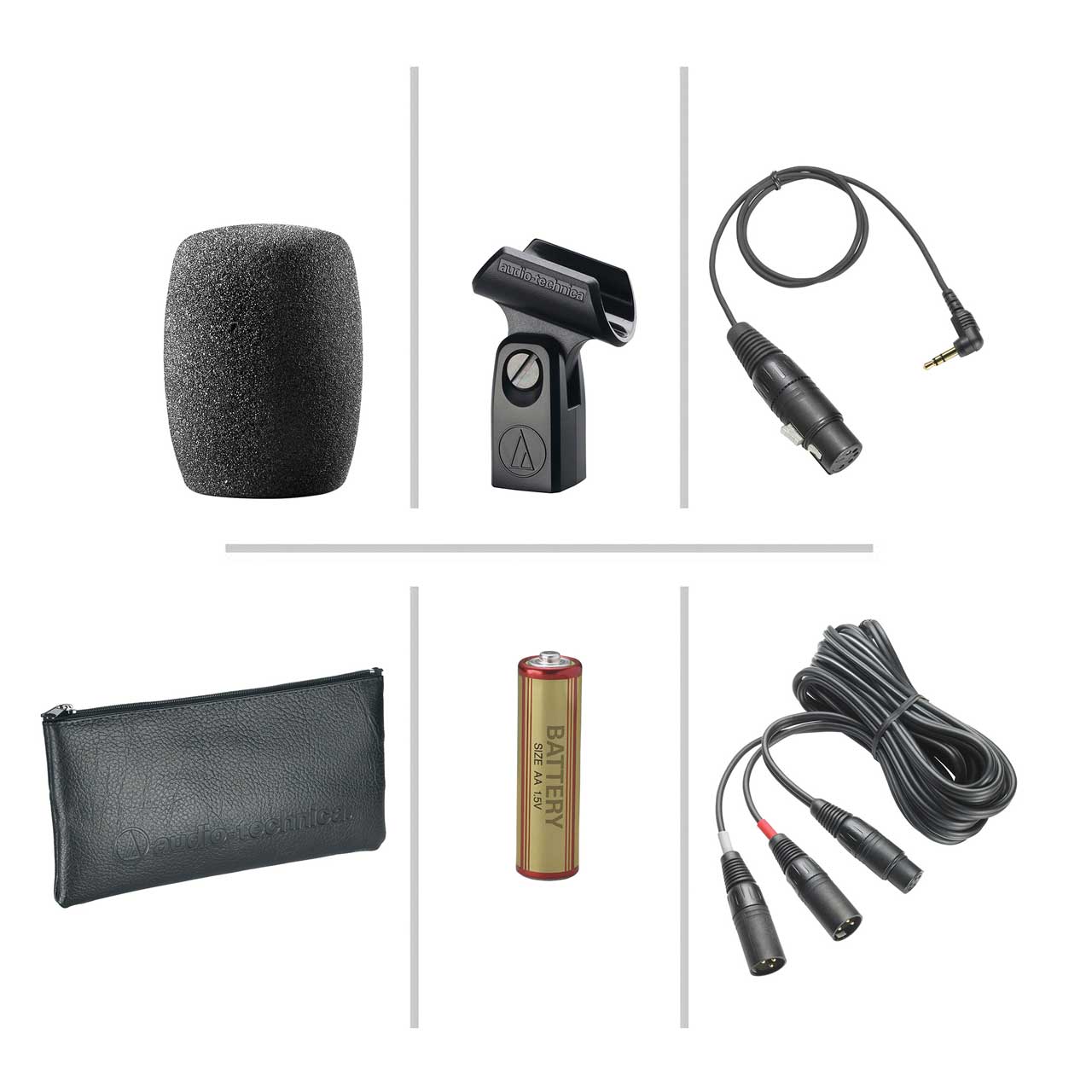

    • Item Includes:

      • AT8405a stand clamp for 5/8"-27 threaded stands
      • Windscreen
      • Battery
      • Soft protective pouch

    • Warranty:

      • 5 Year Limited End-User

    • GTIN:

      4961310102883
