ZOOM F6 Multi-Track Field Recorder with 32-Bit Float Recording

ITEM #: ZOOM-F6 MFG #: F6

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$749.99

After Savings:

$649.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
Spring Savings on ZOOM Recorders and Livetrak!Order Today for instant savings on select ZOOM products! Hurry, offer is available for a Limited Time Only!


    F6 - Overview

    The ZOOM F6 - A New Era In Field Recording

    The ZOOM F6 is the first professional field recorder to feature both 32-bit float recording and dual AD converters, providing an unprecedented amount of dynamic range. It has 6 inputs with professional-grade preamps, ZOOM's solid precision time code, multiple power options, wireless control, rugged enough to withstand the most demanding scenarios and small enough to fit into the tightest spaces, the F6 will become your go-to secret weapon.

    32-Bit Float Recording
    Capture the calm and the storm! In the field, fluctuating dynamics can prove challenging. Loud sounds can cause clipping and quiet sounds can get lost in the noise. The F6 uses 32-bit float recording with dual A/D converters to capture both explosive and subtle sounds at full audio quality - without ever adjusting gain! In 32-bit float it can record up to 96 kHz, 24-bit up to 192 kHz or both simultaneously, providing 14 total tracks of BWF-compatible WAV files.

    Ambisonics Audio
    The F6's Ambisonics mode offers precision A-to-B decoding and balanced gain linking, enabling you to capture spatial audio for VR, AR and more. Download the FREE ZOOM Ambisonics Player software to decode and edit your 360-audio with ease.

    Advanced Look-Ahead Hybrid Limiters
    When recording in 24-bit, the F6 uses advanced look-ahead hybrid limiters to provide overload protection. By adding a 1-millisecond delay, the limiters "look ahead" anticipating clipping before it's recorded.

    ZOOM AutoMix™
    ZOOM AutoMix™ lets you keep your eyes on the action by automatically adjusting the levels of your mix to reduce ambient sound.

    iOS Wireless Control
    The F6's F Control APP lets you monitor signals, adjust levels, trigger transport controls, enter metadata and more from your iPhone or iPad via Bluetooth.*
    *Optional BTA-1 required

    • Features:

      • 6-channel/14-track field audio recorder/mixer

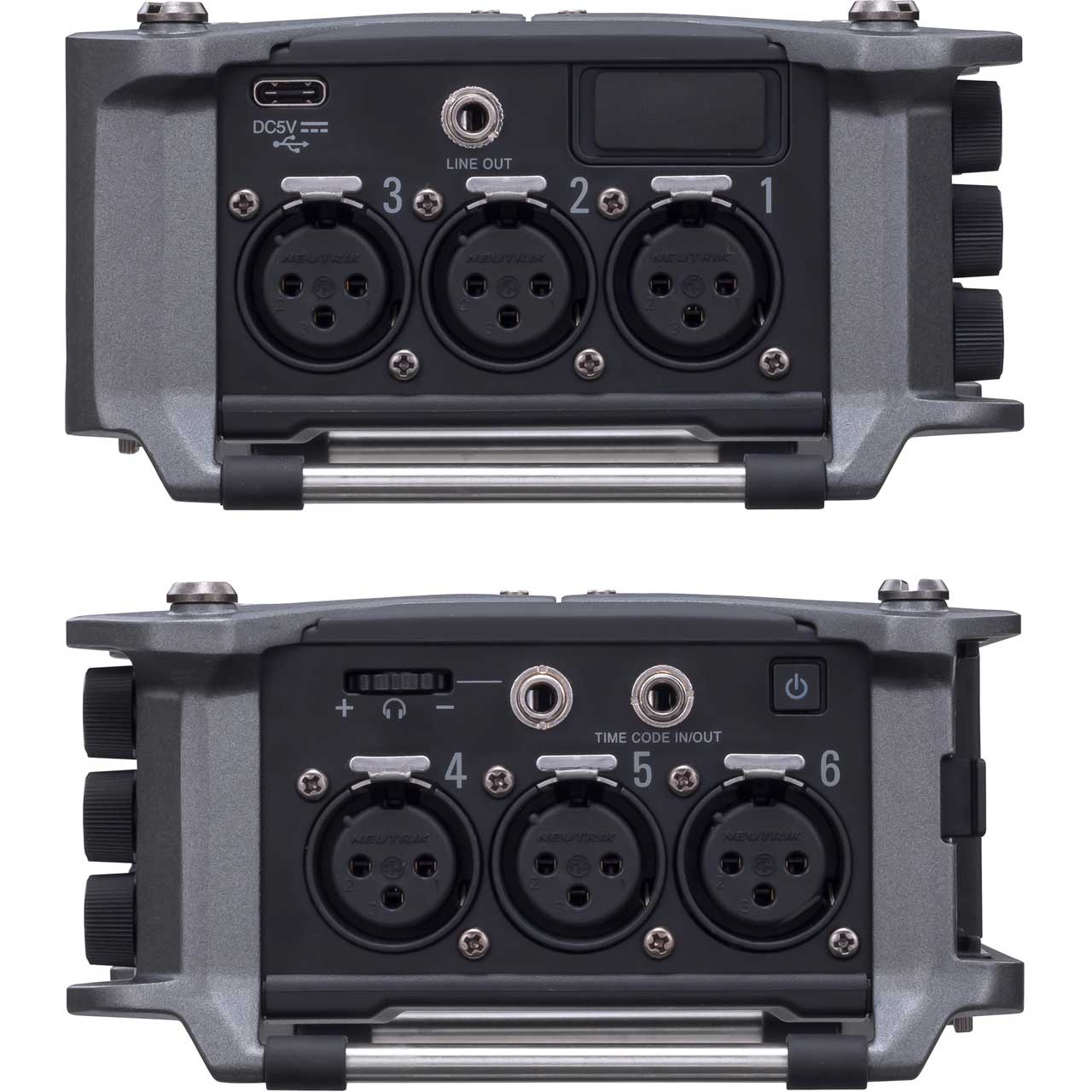

      • 6 discrete inputs with locking Neutrik XLR connectors
      • High quality mic preamps with up to 75dB gain and less than -127dBu EIN
      • Switchable +4dB inputs with mic/line options
      • Advanced Look-Ahead Hybrid Limiters
      • Zoom AutoMix™ software
      • Accurate Time Code (0.2 ppm when on and when powered off) I/O on 3.5mm stereo mini; dropframe/non-drop formats with Jam Sync

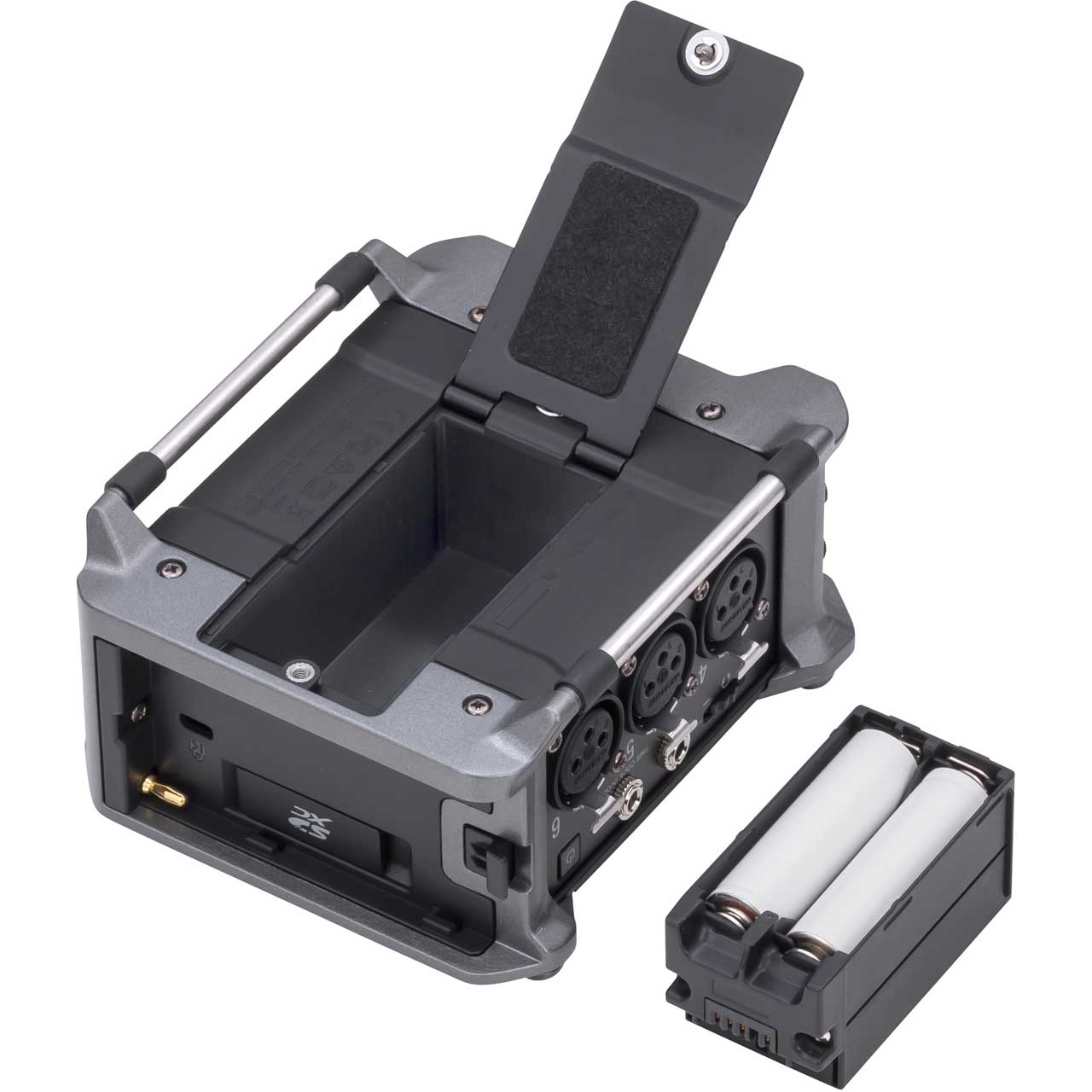

      • Three different power supply options: 4x AA batteries, Sony L-Series batteries, or Zoom AD-17 12V AC Adapter (L-Series batteries not included)
      • 3.5mm stereo mini unbalanced output jack
      • Dedicated headphone output (100 mW) with volume control SD/SDHC/SDXC card slot, up to 512 GB
      • Use as an 6-in/4-out USB audio interface (up to 96kHz)
      • Use as an audio interface and record to SD card simultaneously (up to 48kHz)
      • Free Zoom F Control App for iOS allows wireless remote control, file renaming, and metadata entry

    • Specifications:

      • Recording Media: SD/SDHC/SDXC cards (that conform to standards)
      • Inputs 1 - 6: Connectors XLR jack (pin 2 hot)
      • Input (MIC):
      • Input Gain: 12dB - 75dB
      • Input Impedance: 3kΩ or more
      • Maximum Input Level: 4dBu
        Input (LINE):
      • Input Gain: -8dB - 55dB
        Input Impedance: 5kΩ or more
        Maximum Input Level: 24dBu
      • Phantom Power: +24/+48V 10mA maximum for each channel
      • Equivalent Input Noise: -127dBu or less (A-weighted, 75dB input gain, 150Ω input)
      • Line Output:
      • Connectors: 3.5mm stereo mini unbalanced output
        Output Impedance: 100Ω or less
        Reference Output Level: -10dBV, 1kHz, 10kΩ load
        Maximum Output Level: 10dBV, 1kHz, 10kΩ load
        D/A Dynamic Range: 95dB typ (-60dBFS input, A-weighted)
      • Headphone Output:
      • Connector: 3.5mm stereo mini unbalanced output
        Output Impedance: 15Ω or less
        Maximum Output Level: 100mW + 100mW (32Ω load)
        D/A Dynamic Range: 108dB typ (-60dBFS input, A-weighted)
      • Supported WAV Formats: 44.1/47.952/48/48.048/88.2/96/192kHz, 16/24-bit/32-bit float, mono/stereo/2-8ch poly, BWF/iXML
      • Supported MP3 Formats: 128/192/320kbps, 44.1/48kHz, ID3v1 tags
      • Timecode:
      • Connectors: 3.5mm stereo mini
        Modes: Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec (audio clock can be synchronized to timecode)
        Frame Rates: 23.976 ND, 24 ND, 25 ND, 29.97 ND, 29.97 D, 30 ND, 30 D
        Precision: ±0.2ppm
        Allowed Input Level: 0.2 - 5.0Vpp
        Allowed Input Impedance: 4.6kΩ
        Output Level: 3.3Vpp
        Output Impedance: 50Ω or less

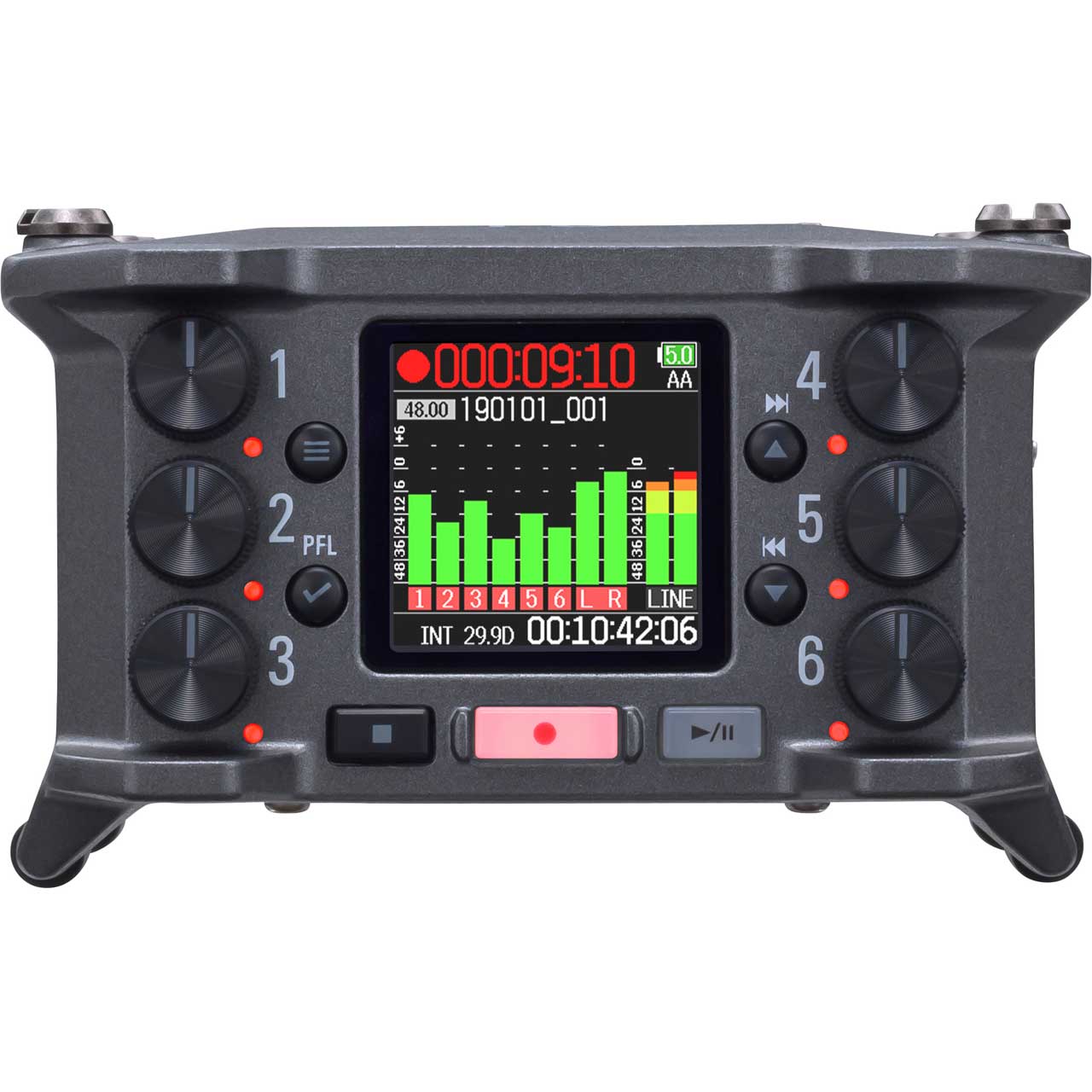

      • Display: 1.54" full-color LCD (240 x 240)
      • USB: USB 2.0 High Speed
      • Power Options:
      • AC adapter: DC 5V (supports USB bus power)
        Sony® L-Series battery
        4x AA batteries (alkaline, lithium or rechargeable NiMH batteries)
      • Power Consumption: 10W
      • Dimensions (HxWxD): 2.48" x 3.94" x 4.72" (62.9mm x 100mm x 119.8mm)
      • Weight: 1.15lbs (520g)

    • Item Includes:

      • 1x F6 Field Recorder
      • 1x Camera Mount Adapter
      • 1x Quick Start Guide

    • GTIN:

      0884354020804
