Attero Tech Synapse DM1 Rackmount Dante/AES67 Audio Monitor 1RU
  • Attero Tech Synapse DM1 Rackmount Dante/AES67 Audio Monitor 1RU
  • Attero Tech Synapse DM1 Rackmount Dante/AES67 Audio Monitor 1RU
  • Attero Tech Synapse DM1 Rackmount Dante/AES67 Audio Monitor 1RU
  • Attero Tech Synapse DM1 Rackmount Dante/AES67 Audio Monitor 1RU

Questions? Ask a Markertek Expert:
800-522-2025 Email

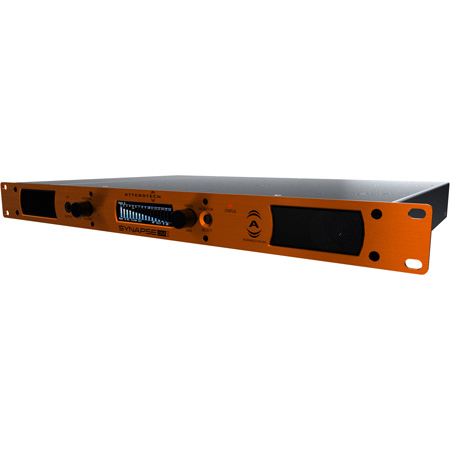

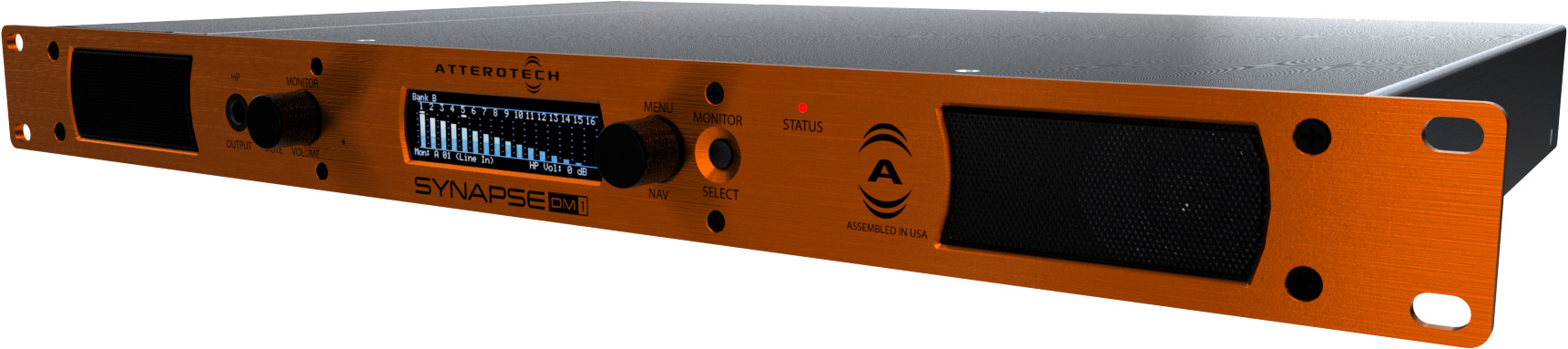

Attero Tech Synapse DM1 Rackmount Dante/AES67 Audio Monitor 1RU

Manufacturer: Attero Tech, LLC

Item #: ATEC-SYNAPSE-DM1   •   MFG #: SYNAPSE DM1




Our Price:$3,675.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

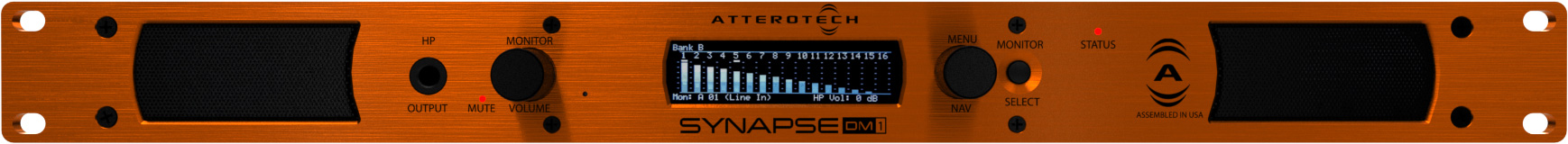

    The Attero Tech DM1 is a rack-mount networked audio monitor for confidence monitoring of networked audio and local sources at the rack via headphones or through the integrated speakers. The DM1 has 2 modes of network audio monitoring: Standard and Extended.

    Standard mode features monitoring of any of the 32 channels assigned to the Dante™ / AES67 receiver inputs. Extended mode allows subscription based monitoring of up to 128 channels loaded to the DM1 using the unIFY Control Panel Software. In both modes, audio may be selected for monitoring by the user via the front panel controls. The DM1 also features AES3 digital outputs for connectivity to full range powered speakers or amplifiers and 2 channels of analog I/O for local source monitoring and network connectivity.


    • Features

      • Monitor up to 128 Dante/AES67 though internal speakers or headphone jack

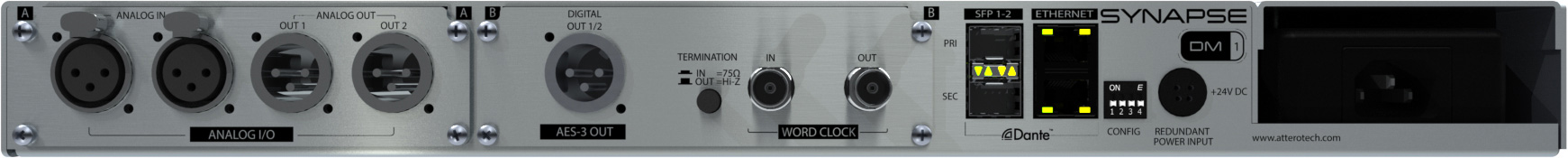

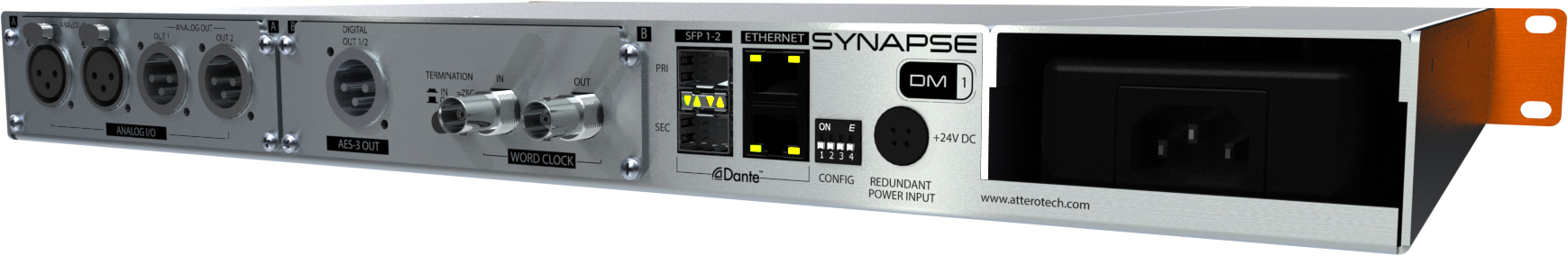

      • Redundant (primary/secondary or daisy chain) RJ-45 connectors and SFP (fiber) connectors
      • Two balanced XLR audio inputs that can be introduced onto the audio network
      • Two balanced XLR audio outputs to allow audio monitoring on external speakers
      • One two-channel AES3 digital output to allow audio monitoring on external speakers
      • BNC Word Clock input and output to allow the DM1 to sync to or source a house clock
      • Level metering on the front panel OLED display
      • Supports Dante and AES67

    • Specifications

        Analog Audio Inputs
      • Input Type: 2 - 3-pin Balanced XLR-F
      • Input Impedance: 10 Ω
      • Maximum Input Levels: +24 dBu (+/- 0.5 dB)
      • THD+N: ≤ 0.005% at -3 dBFS
      • Dynamic Range: > 105 dB
      • Frequency Response: 20-20kHz, +/- 0.5dB

        Analog Audio Outputs
      • Output Type: 2 - 3-pin Balanced XLR-M
      • IOutput Impedance: 200 Ω
      • Maximum Output Levels: +24 dBu (+/- 0.5 dB)
      • THD+N: ≤ 0.005% at -3 dBFS
      • Dynamic Range: > 105 dB
      • Frequency Response: 20-20kHz, +/- 0.5dB

        Headphone Output
      • Output Type: Stereo headphone on 1/4" TRS
      • Maximum output level: 25mW into 32 Ω
      • THD+N: < 0.01 % @ 25mW

        Speaker Outputs
      • Output Power: 3 withchannel
      • Output Impedance: 8 Ω
      • Frequency Response: 250 Hz - 20 kHz +/-3 dB

        Digital I/O
      • AES-3: AES-3 digital output on 3-pin XLR-M
      • Word Clock: Sync I/O on BNC with switchable 75 Ω termination on input

        Dante Network
      • Physical Layer: Ethernet
      • Connector (s): Dual RJ-45 / Dual SFP Slots
      • Cable Quality: CAT-5e or better (Copper) / Fiber
      • Transmission Speed: All interfaces 1 Gbps
      • Supported Sample Rates: 44.1kHz /48kHz / 88.2 kHz / 96 kHz
      • Minimum Dante Network Latency: 250 us
      • Supported Modes: Redundant / Switched
      • AES67 Support: Dante™ - AES67 Mode

        Power Specifications
      • AC Power: 120V AC
      • Power Consumption: < 20W Max
      • Cable Quality: CAT-5e or better

        Physical Dimensions
      • Width: 19"
      • Height: 1.75" (1 RU Form Factor)
      • Depth: 12.5"
      • Weight: 6 lbs

        Regulatory Compliance
      • Certifications: FCC CFR 47 Parts 15B Class A, EN55011, ICES-003, CE (EN55022 / EN55024), RoHS, REACH

        Environmental Operating Specifcatons
      • Operating Temperature: - 0 to 40° C

    • Warranty

      • 5 Year
