ATEN CS724KM 4-Port USB Boundless KVM Switch - 4 Computers - 1 Local User - 1 x Network RJ-45 - 8 x USB - Rack-Mountable

ITEM #: ATEN-CS724KM MFG #: CS724KM

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$541.00

Our Price:

$396.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CS724KM - Overview

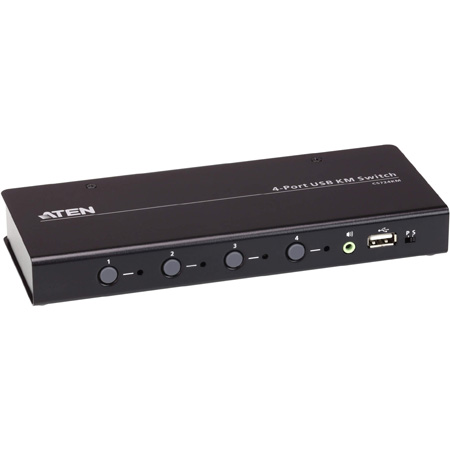

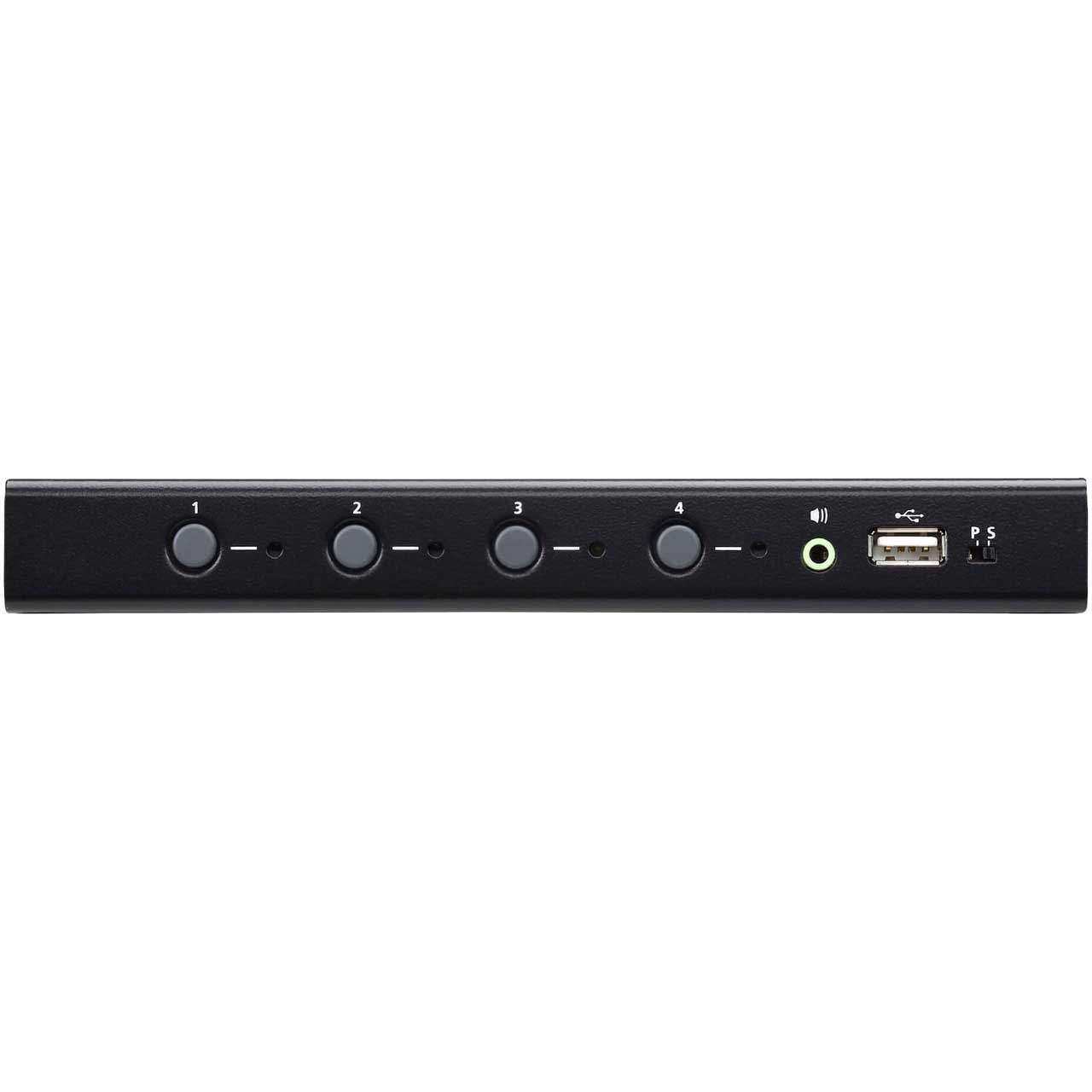

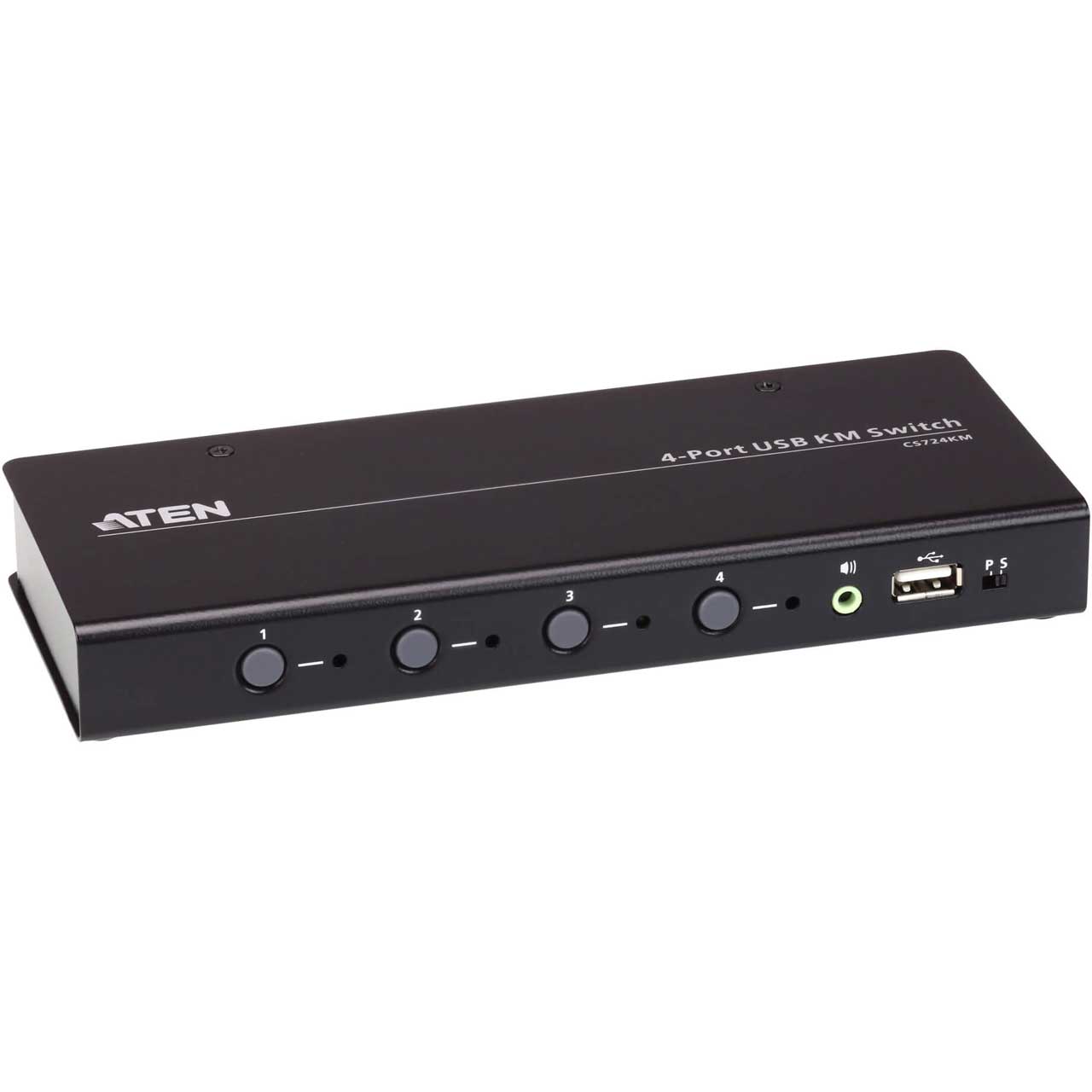

    The ATEN CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.

    The CS724KM features various innovative port selection methods. Users can switch between the connected computers via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel, and RS-232 commands. The mouse cursor method adopts ATEN's exclusive Boundless Switching technology, which provides an intuitive way to switch control to another computer by simply moving your mouse cursor across a screen border and onto the target computer display. Move the mouse cursor in any direction to switch the control focus without limitations.

    The CS724KM's Boundless Switching function supports extended desktops with up to sixteen monitors total, expediting the process of switching between computers for a smooth and hassle-free user experience. In addition to making multitasking across multiple displays more efficient, this function is especially useful in emergencies that necessitate the immediate monitoring and management of computers.

    The CS724KM also provides an intuitive GUI-based configuration utility that allows users to customize their mouse cursor movement paths according to the specific monitor layout at the desktop or workstation. The configuration tool is easy to set up and compatible with Windows operating systems.

    Further advanced features of the CS724KM include bus-power mode which means no external power adapter is required, as well as independent switching of the keyboard/mouse, USB peripheral, and audio focus via hotkeys. With a rich feature set, the CS724KM is designed to simplify administrative tasks, save space, and increase work productivity in multi-monitor extended desktop environments, and is especially suitable for complex multitasking applications in control rooms in any industry.

    • Features:

      • Single USB keyboard and mouse control up to 4 computers

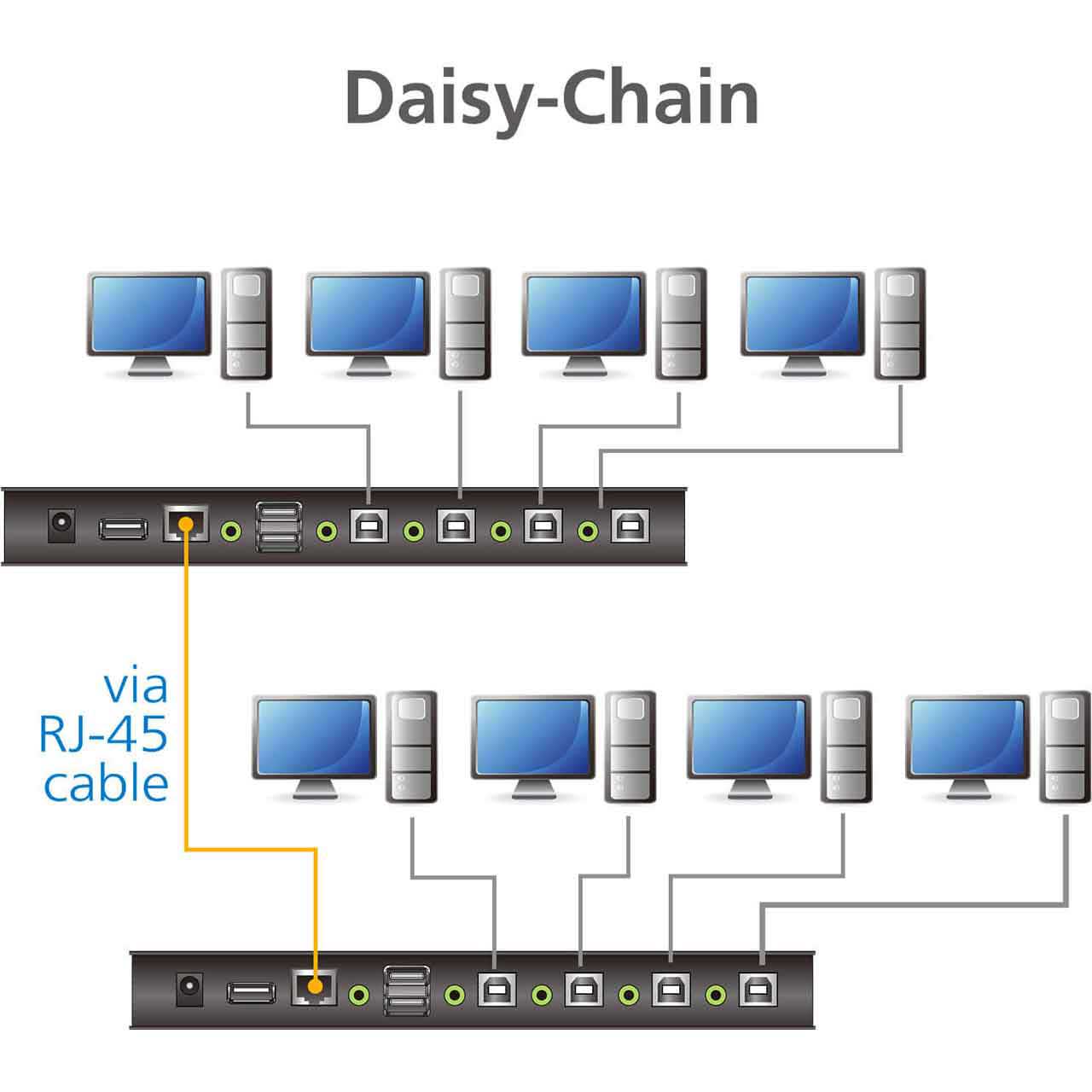

      • Daisy-chain two CS724KM units to control up to 8 computers with a single keyboard and mouse
      • Boundless Switching - simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next.
      • Boundless Switching Configuration Utility - an intuitive GUI tool that enables users to customize monitor layouts
      • Extended Desktops Boundless Switching up to 16 monitors
      • Port selection via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel, and RS-232 commands
      • Independently switch keyboard/ mouse, USB peripheral, and audio focus via hotkeys
      • Supports RS-232 serial commands
      • Supports Windows operating systems
      • No software required
      • Bus-powered - no external power adapter required

    • Specifications:

      • Connectors
      • Computer Connections: 4
      • Port Selection: Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, RS-232 Commands

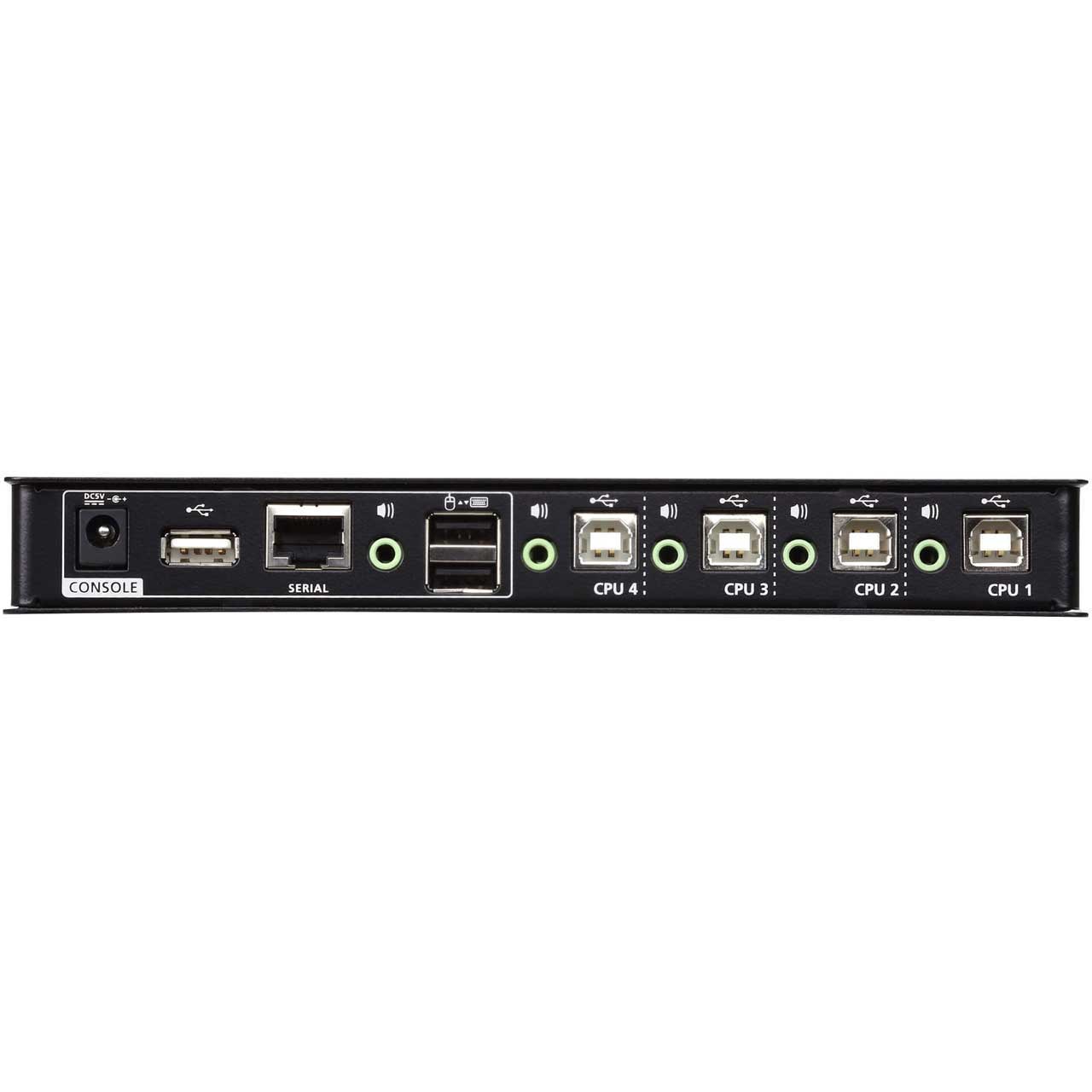

      • Console Ports:
        2x USB Type A Female
        2x 3.5mm Audio Jack Female (Green; 1x front, 1x rear)
        1x RJ-45
      • KVM (Computer) Ports:
        4x USB Type B Female
        4x 3.5mm Audio Jack Female (Green)
        Power: 1x DC Jack
      • USB Hub: 2x USB 2.0 Type A Female (1x front panel; 1x rear panel)

        Switches
      • Port Selection: 4x Pushbutton
      • Station Selection: 1x Slide Switch

        LEDs
      • Selected: 4 (Green)

        Emulation
      • Keyboard/Mouse: USB
      • Power Consumption: DC5V:1.69W:33BTU

        Environmental
      • Operating Temperature: 32° to 122°F (° to 50°C)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)
      • Humidity: 0 to 80% RH, Non-condensing

        Physical Properties
      • Housing: Metal, Plastic
      • Weight: 1.1Lbs (0.50kg)
      • Dimensions (LxWxH): 7.87 x 3.17 x 0.98" (20 x 8.06 x 2.50cm)

    • Item Includes:

      • 1x 4-port USB Boundless KM Switch
      • 4x USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
      • 4x Audio Cables (1.8m/6ft)
      • 1x User Instructions

    • GTIN:

      0672792008184
