ATEN VE170 A/V Over Cat 5 Extender

ITEM #: ATEN-VE170 MFG #: VE170

free ship

List Price:


Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    VE170 - Overview

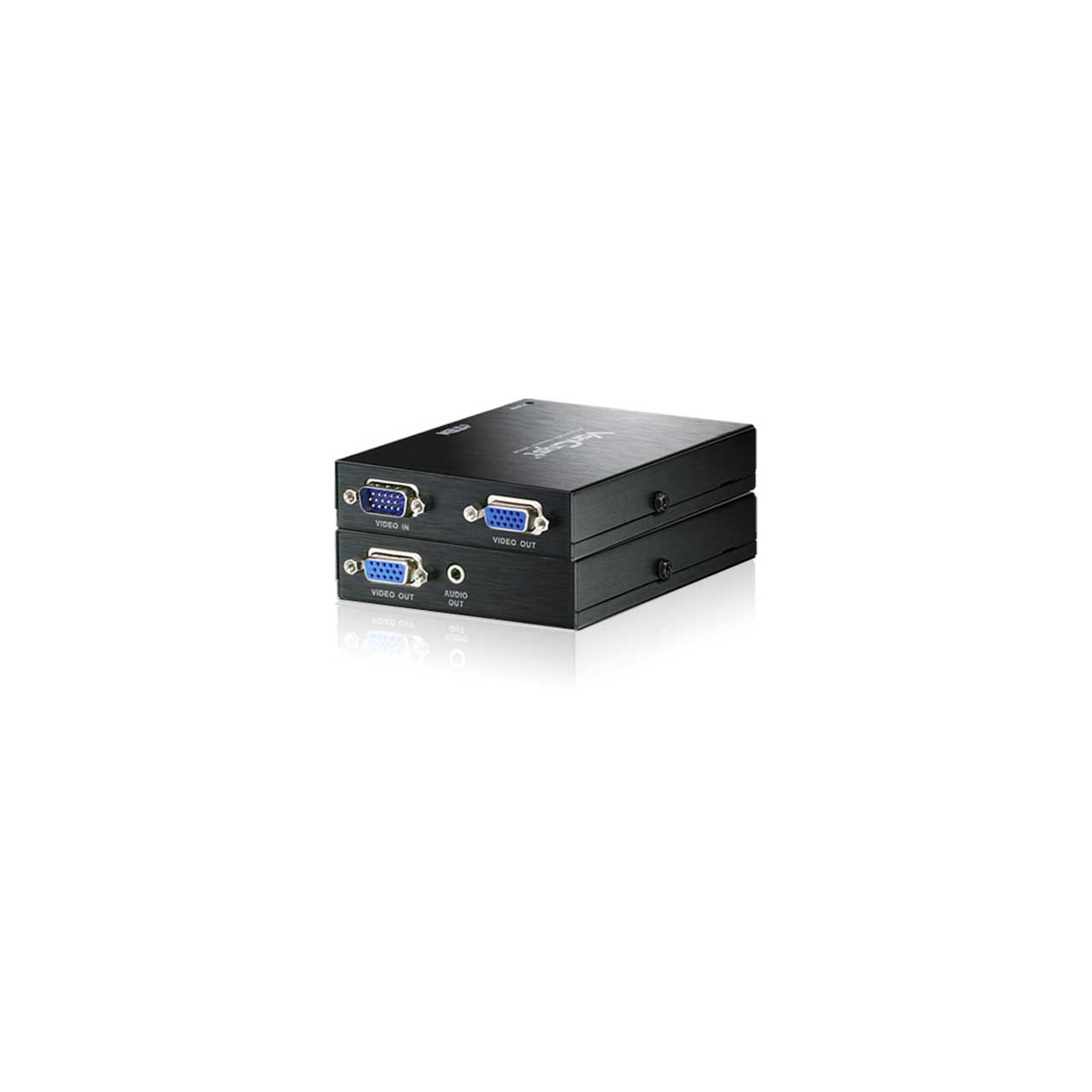

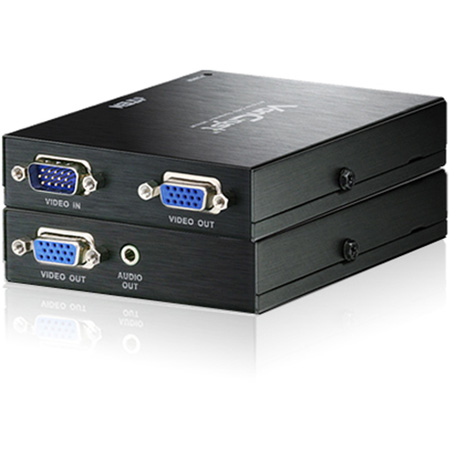

    The VE170 A/V Over Cat 5 Extender, comprising of a VE170T Transmitter unit and a VE170R or VE170RQ Receiver unit, is a cost-effective and effi cient solution for sending and receiving high quality audio and video content. Connect the two units using Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the Transmitter's input source. The VE170R and VE170RQ Receiver units can also be used with the ATEN VS1204T/VS1208T A/V Over Cat 5 Splitter as a transmitter.

    • Features:

      • Uses Cat 5e cable to connect the transmitter and receiver uints
      • Supports one local and one remote display
      • Long distance transmission up to 300 m
      • Deskew Function (VE170RQ) – allows you to synchronize the time delay of RGB signals to compensate for distance
      • Superior video quality - VE170R: 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (150 m);[email protected] 60Hz (300 m) VE170RQ: 1920x1200 @ 60Hz (150 m);1280x1024 @ 60Hz (300 m)
      • Audio enabled (mono)
      • Adjustable gain/compensation control
      • BBuilt-in 8KV/15KV ESD protection
      • Rack-mountable
      • Complies with VESA FDMI mount standard
    • Item Includes:

      • 1x VE170T + VE170R
      • 1x VGA/Audio Cable (1.8 m)
      • 2x Power Adapters
      • 1x Mounting Kit (2 pcs)
      • 1x User Instructions
    • GTIN:


    VE170 - Required Accessories

      VE170 - Recommended Accessories
