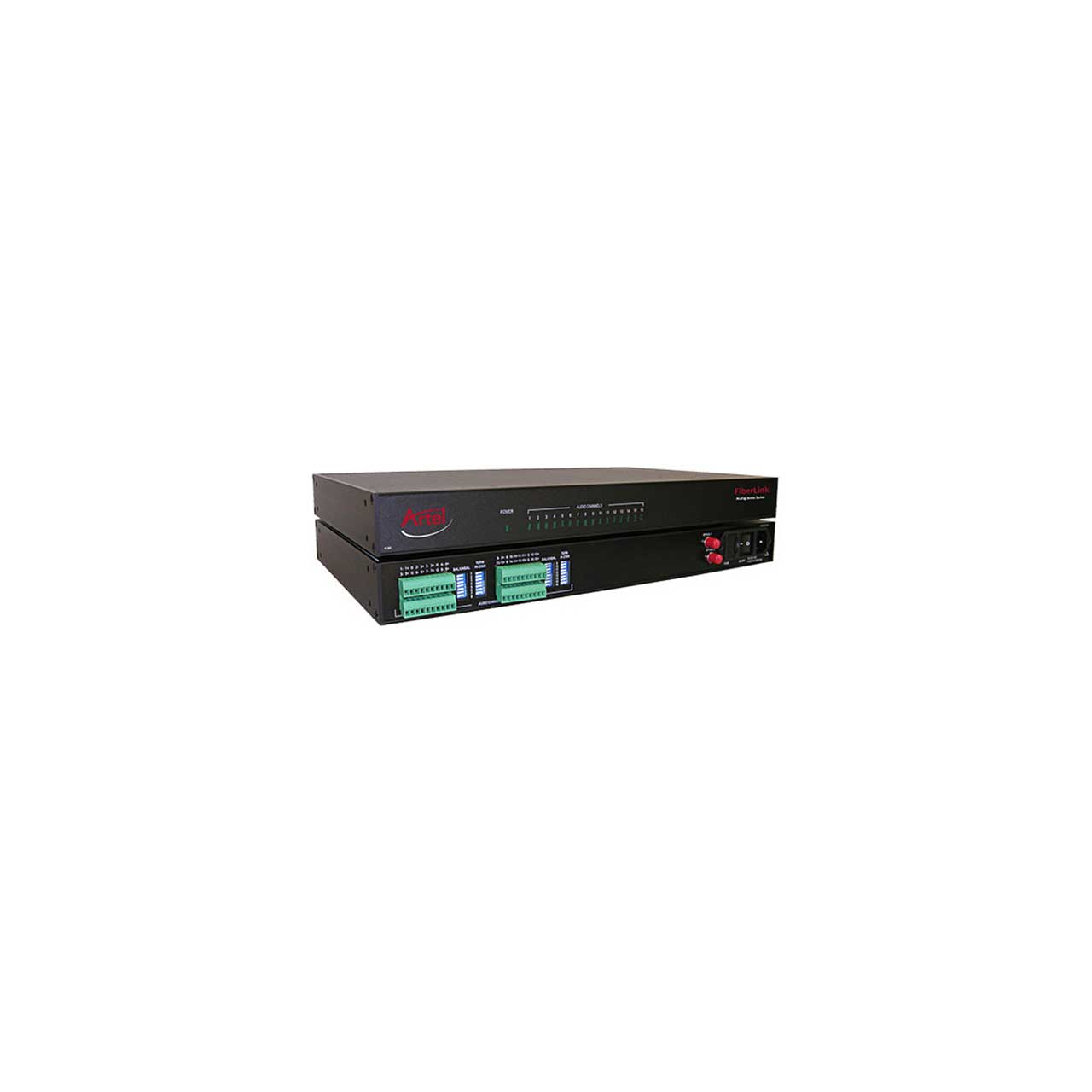

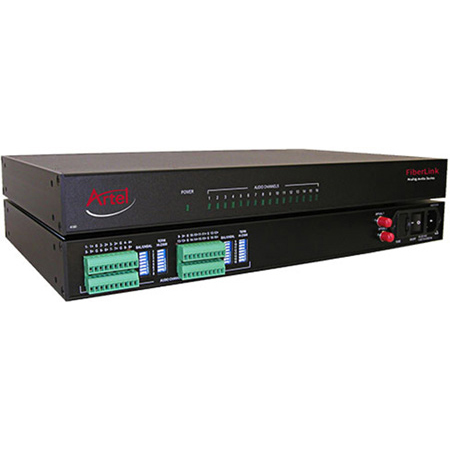

Artel 4161-SS11-NA Fiberlink 16 Channel Audio Receiver 850nm Multimode Dual Input ST Connector

ITEM #: ARTL-4161-SS11NA MFG #: 4161-SS11-NA

free ship

List Price:

$4,350.50

Our Price:

$4,133.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    4161-SS11-NA - Overview

    The FiberLink 4160 Series digitally transmits sixteen independent audio channels over one multimode or singlemode fiber at 850, 1310 or 1550 nm, with optional redundancy. It is ideal for Rental, Staging, Theater, Stadiums, Theme Parks and Broadcast applications.

    • Features:

      • Transmits over one multimode or single mode fiber at 850, 1310 or 1550 nm
      • Optional redundant optical input/output
      • System consists of transmitter and receiver unit
      • No adjustments; pure digital processing and transmission
      • 24 bit/96 kHz sampling; maximum audio level +24 dBu
      • 20 Hz to 20 kHz frequency response
      • Line level, balanced or unbalanced audio operation
      • Indicator LEDs monitor audio signals and power
      • Wide range internal power supply
      • Unit stands 1 RU high
      • Rackmount ears are included

    • Specifications:

      • General Specifications
      • LED Indicators: Power; Audio Present (per channel)
      • Power Requirements: 95-250 volts AC, 47-63 Hz
      • Operating Temperature: Range -35° to +55° C
      • Relative Humidity: 10%-90% (non-condensing)
      • Optical Connectors: ST
      • Operating Wavelength: 850, 1310 or 1550 nm
      • Physical Size: 1.75 H x 16.75 W x 10 D (inches); 44 H x 425 W x 254 D (mm)
      • Unit stands 1 RU high
      • Weight: Approximately 5 lbs.; 2.25 kg

        Audio Specifications
      • Number of Audio Channels: 16, balanced or unbalanced
      • Frequency Response: 20 Hz - 20 kHz, +0/-0.5 dB
      • Bits-per-Sample/Sampling Rate: 24 bits; 96 kHz
      • Maximum Audio Level: +24 dBu
      • SNR (A-Weighted): 95 dB
      • THD+N: 0.002%; 20 Hz - 20 kHz
      • Channel Phase Differential: 0.1°
      • System Latency: 200 uS + fiber cable propagation delay (typically 5 us/km of fiber)
      • Input Impedance: 600 Ohms terminated; 24k Ohms unterminated
      • Output Impedance: 50 Ohms
      • Audio Connectors: Removable screw terminal
      • Switches: Dip switches to select input termination, balanced or unbalanced input/output.
      • Selectable on a per-channel basis
