ATI MIDA100-3 Metered 1X6 Distribution Amplifier Module for SYS10K - Transformer Output with Phoenix I/O

ITEM #: ATI-MIDA100-3 MFG #: MIDA100-3

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,655.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    MIDA100-3 - Overview

    The ATI MIDA100-3 System 10K is the ideal device for multiple distribution when it comes to stereo or mono line amplification, microphone amplification, or headphone distribution. The SYS10K is perfect for any ballpark, museum, or large venue such as the United Nations, where many of our SYS10K systems can be found. The 3RU rack holds up to ten function modules and two power supplies. Each plug-in module is supplied with its own applicable connector assembly, thereby allowing for ease of insertion and quick hot-swaps. The system features headphone jacks on all modules to allow a quick signal check. The flexible design lets you mix basic and metered modules in the same enclosure to optimize your system design. All input, output, and power lines are fully RF bypassed to reduce noise pickup. A double ground plane PC board shield combines with an additional top formed shield covering on each module to protect low-level circuitry from direct noise pickup. The distribution power regulation on each amplifier module minimizes localized heat buildup in the power supplies. System 10K's versatility makes it perfect for your large venue.

    • Features:

      • Mix and Match Plug-In Function Modules
      • Power Splitting Distribution Amplifier Modules
      • Individual Output Distribution Amplifier Modules
      • Independent Level Adjustments Master Gain Input Control
      • Headphone Outputs

    • Specifications:

      • Gain: 24dB nominal
      • Nominal Output Level: +4dBm, Balanced 600 Ohms @ 0VU Meter Indication
      • Frequency Response: 30Hz to 20,000Hz, ±0.25dB
      • Input Hum Rejection: 60 dB Minimum (common mode 60-120Hz)
      • Output Clipping Level: +22dBm Max, 600 ohms
      • Input Level: +24dBm Max, Bridging 600 ohms
      • Distortion @ 30Hz to 20kHz 0.25% Max THD @ +20dBm output
      • Noise:-84dBm EIN
      • Input Impedance: 10K ohm Minimum, Balanced
      • Crosstalk to Adjacent Modules:70dB below nominal output @ 10kHz
      • Headphone Output: 10Vrms to 600 ohm headphones
      • Metering: Ten segment LED Bargraph; Range -21 to +6 VU at 3dB/step, 0 VU adjustable 0 to +18dBm
      • Connection: External audio wiring is connected via Phoenix connectors
        Power Requirements
      • PS100 Power Module: A bi-polar unregulated 18VDC supply drives the system power buss through fused isolation diodes. Operates singly or as a redundant pair in the right hand positions of each rack frame.
        Size
      • Rack Frame (HxWxD): 5-1/4" x 19" x 14-1/2"; 3.30 lbs.
      • Amp Modules: Eurocard format, 100mm X 220mm. 1.2" (3.0cm) panel width
      • Power Supply Module: Eurocard format, extruded frame, 2.0" (5.1cm) panel width

    • Item Includes:

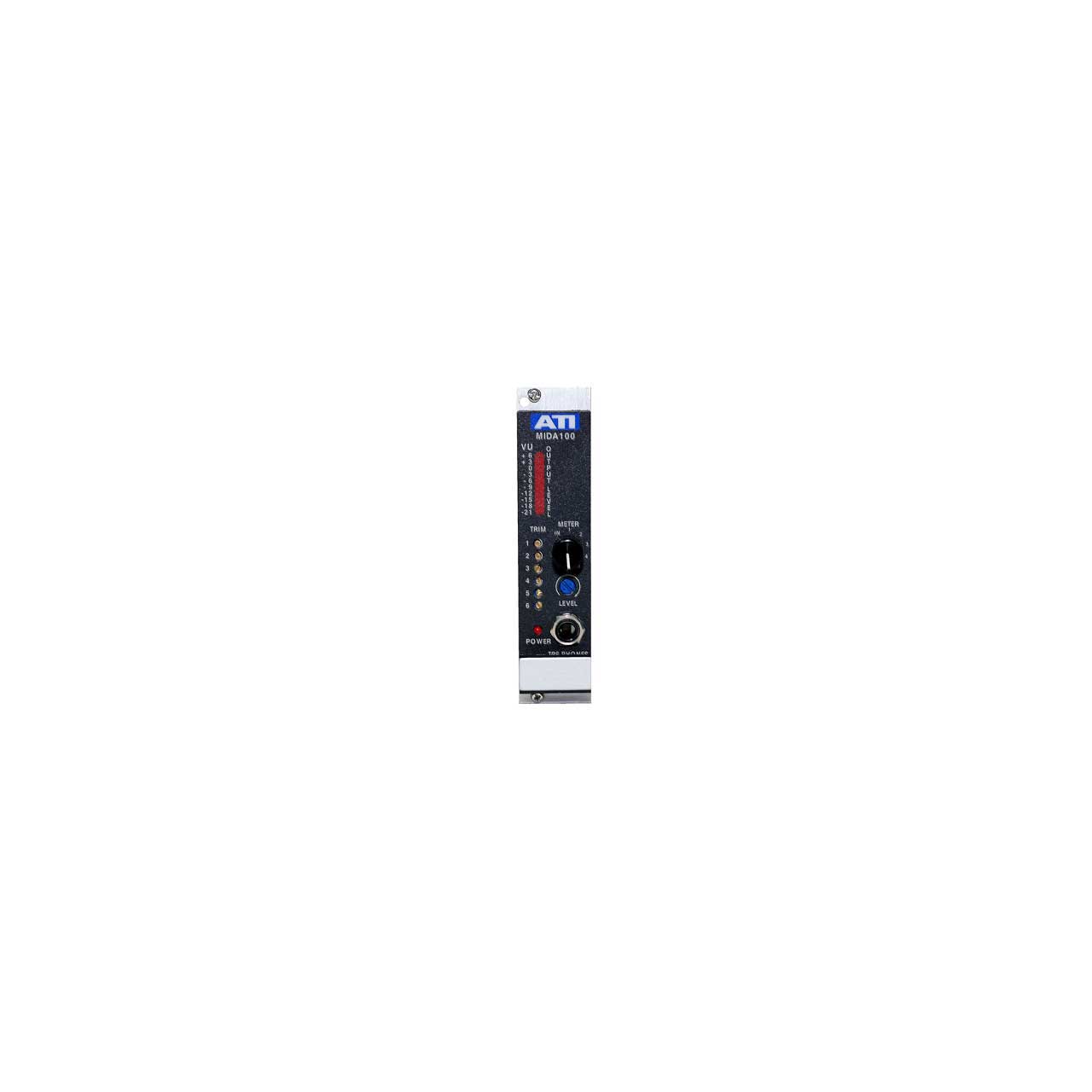

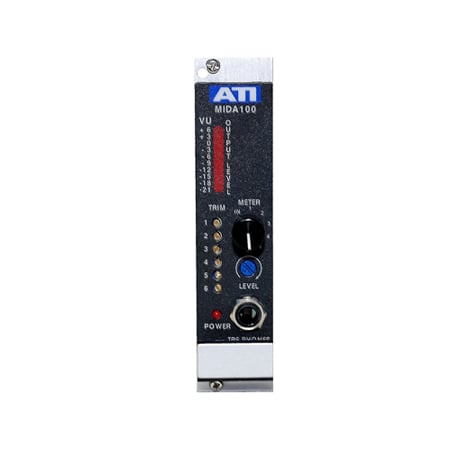

      • 1x Metered 1X6 Distribution Amplifier Module for SYS10K
