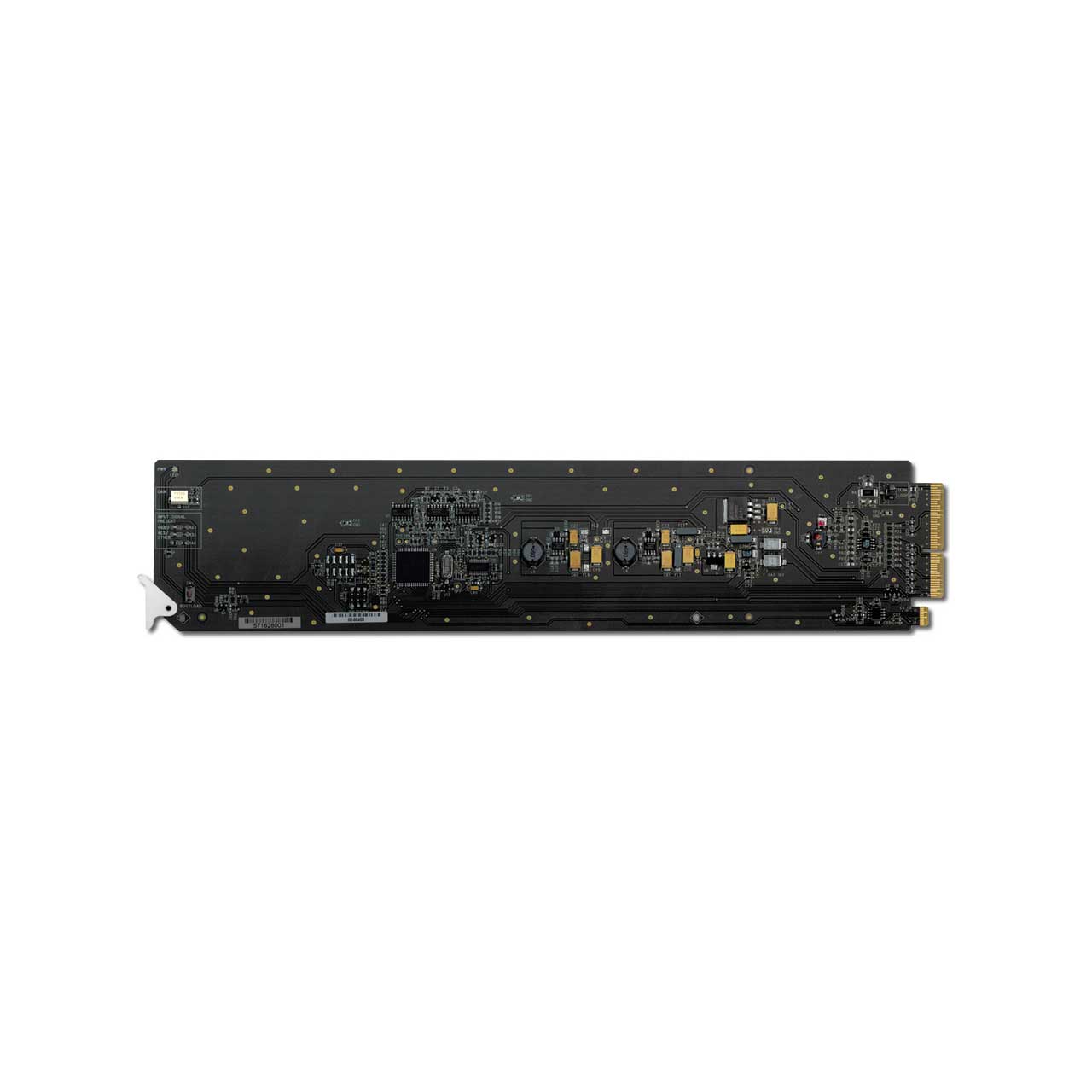

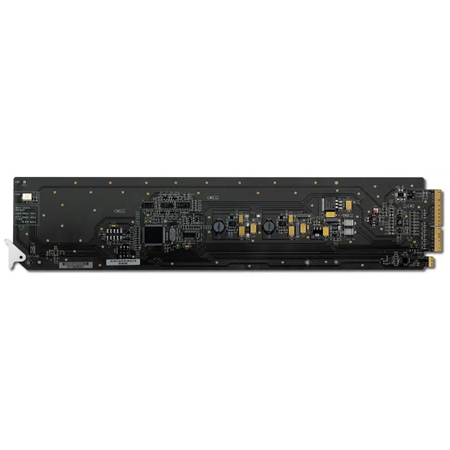

Ross UDA-8705A-R2L openGear Analog Video Utility Distribution Amplifier Card w/ R2L Rear Module

ITEM #: ROSS-UDA8705AR2L MFG #: UDA-8705A-R2L

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$510.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    UDA-8705A-R2L - Overview

    The UDA-8705A is an analog general purpose distribution amplifier in the openGear platform. Use of this amplifier will avoid the need to purchase a separate analog frame and power supply in digital installations.

    This amplifier may be used in any application where equalization and a differential input is not required - an excellent device for composite and tri-level sync distribution.

    The use of new generation integrated circuits and innovative engineering has resulted in excellent performance combined with economy.

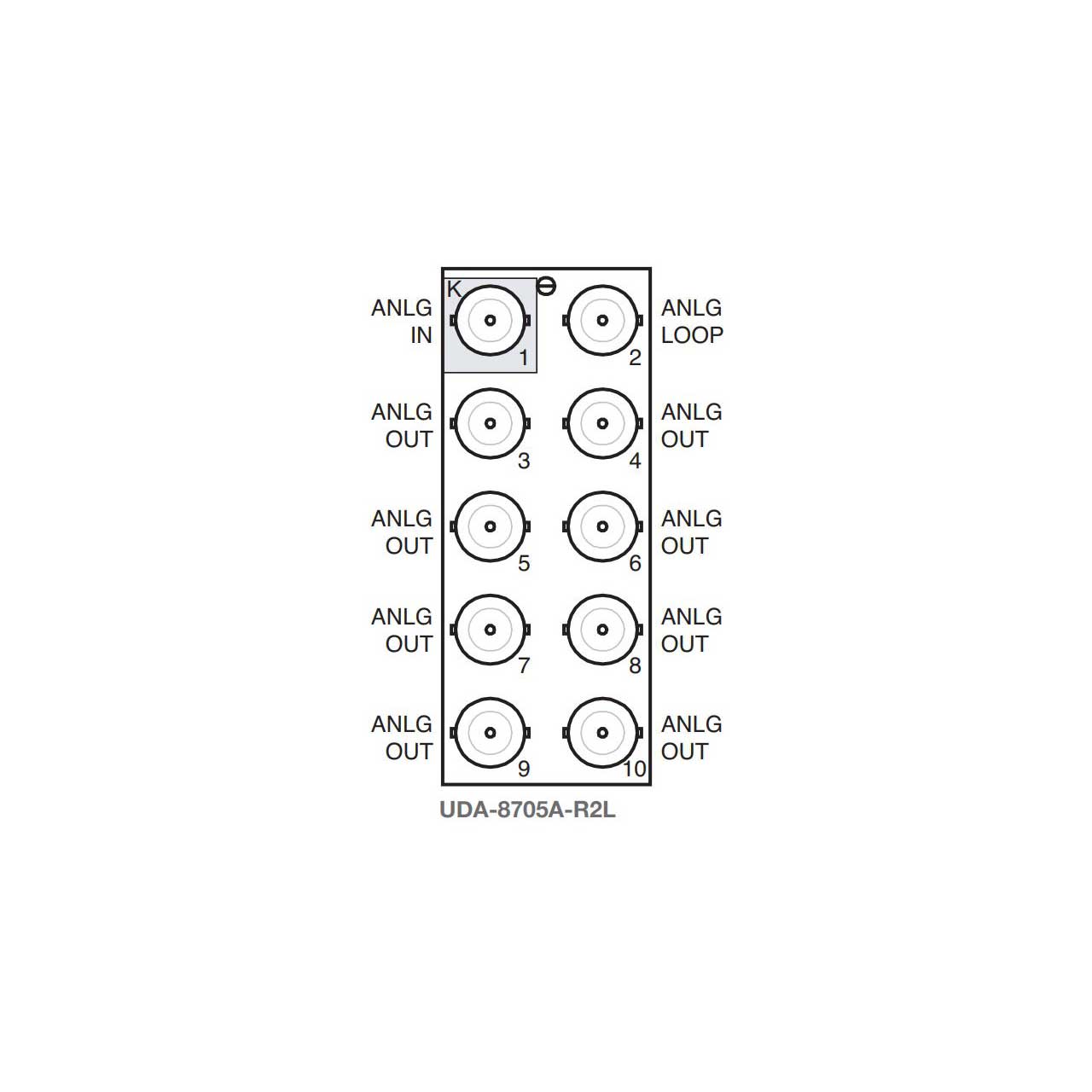

    Please note! Includes the R2L Looping Rear Module for the UDA-8705A.

    • Features:

      • 1x4 or analog distribution amplifier
      • DC coupled
      • Wide adjustable gain range of ±3dB
      • Low distortion
      • Excellent isolation between outputs
      • Power to each card is individually fused
      • 20 DAs in OG3-FR
      • Power: 1.5 watts

    • Warranty:

      • 5-year transferable warranty
