Atlas 224-25 24RU Rack Cabinet 25.5in Deep

ITEM #: ATL-224-25 MFG #: 224-25

no free ship

List Price:


Our Price:


Availability: Direct Ship from manufacturer, contact us for availability
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

224-25 - Overview

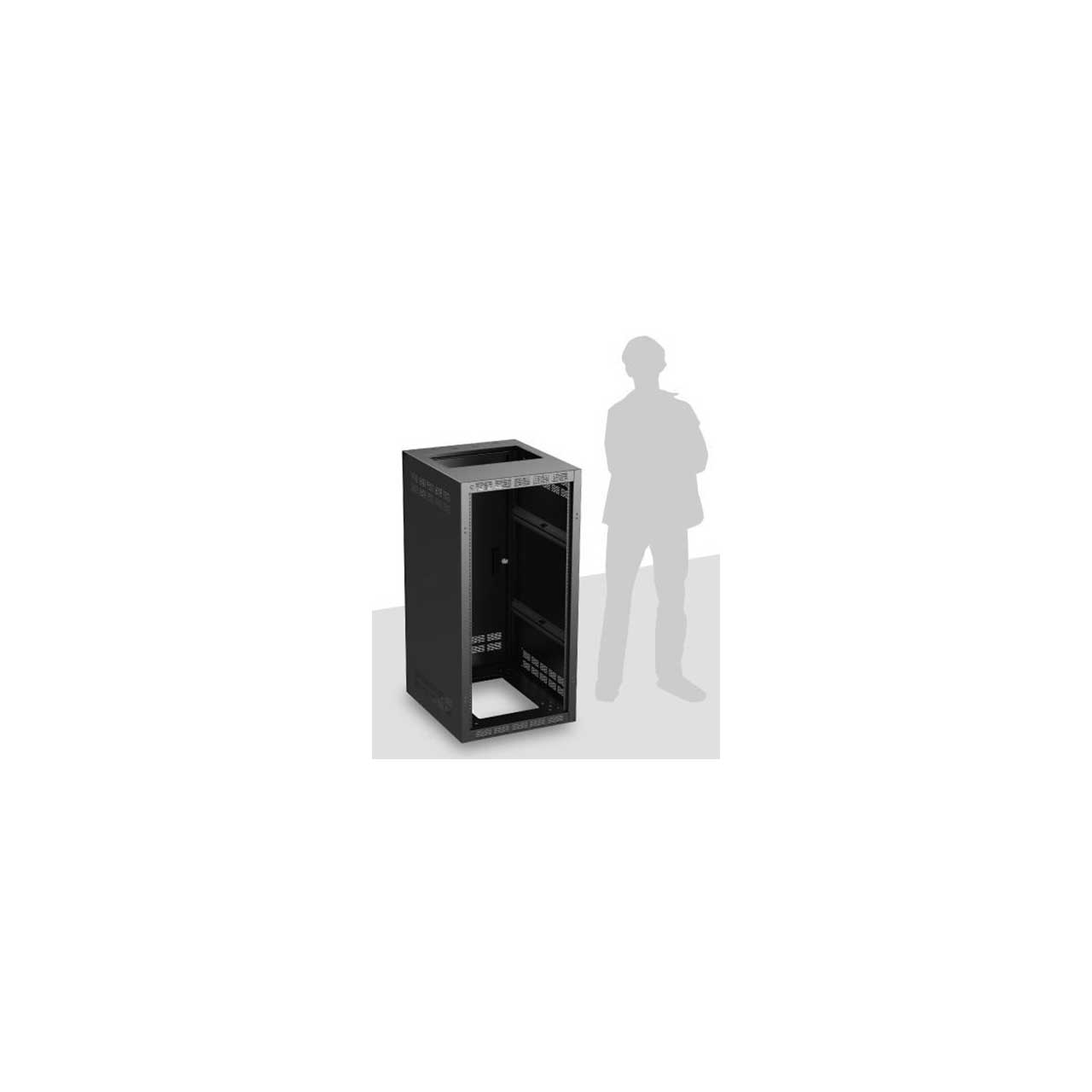

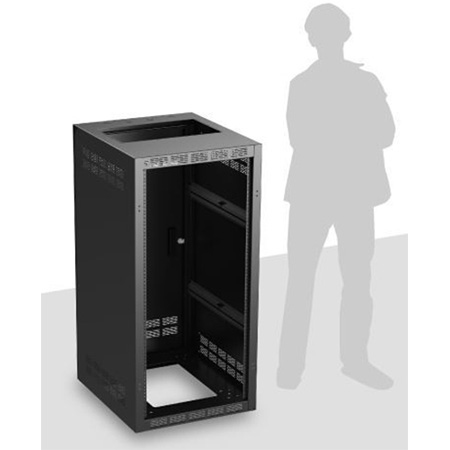

The AtlasIED economical 224-25 cabinet is constructed of 16-gauge CRS and include base, top panel, side panels, mounting rails, a removable rear door with cylinder lock and flush door pull handle.
The series offers several installer-friendly advantages, including an expanded 6RU opening in the cabinet top and bottom which can be left open for wire access and/or ventilation, or closed using a standard vent or solid panels. Front Doors are optional but rear doors (included with all models) are hung with quick-release spring hinges which allow them to be rotated 180° for right or left-hand opening. If a front door is ordered, it will be keyed differently than the rear door for security.

Precision 10-32 tapped and recessed 11/16 inches (17.5mm) rack rails are plated and include convenient RU indicator hash marks to aid in equipment alignment. Rails are standard E.I.A. 5/8"-5/8"-1/2" spacing.

The AtlasIED 224-25 is 22 5/16 inches wide, 25 ½ inches deep and contains 24RU vertical panel spaces. One pair of 11 gage adjustable CRS mounting rails are included. Stamped, perforated vents are located on all sides as well as on the rear door to allow for maximum air convection. Cabinet surfaces are phosphate pre-treated for proper paint adhesion of the textured black epoxy finish.

224-25 - Required Accessories

    224-25 - Recommended Accessories
