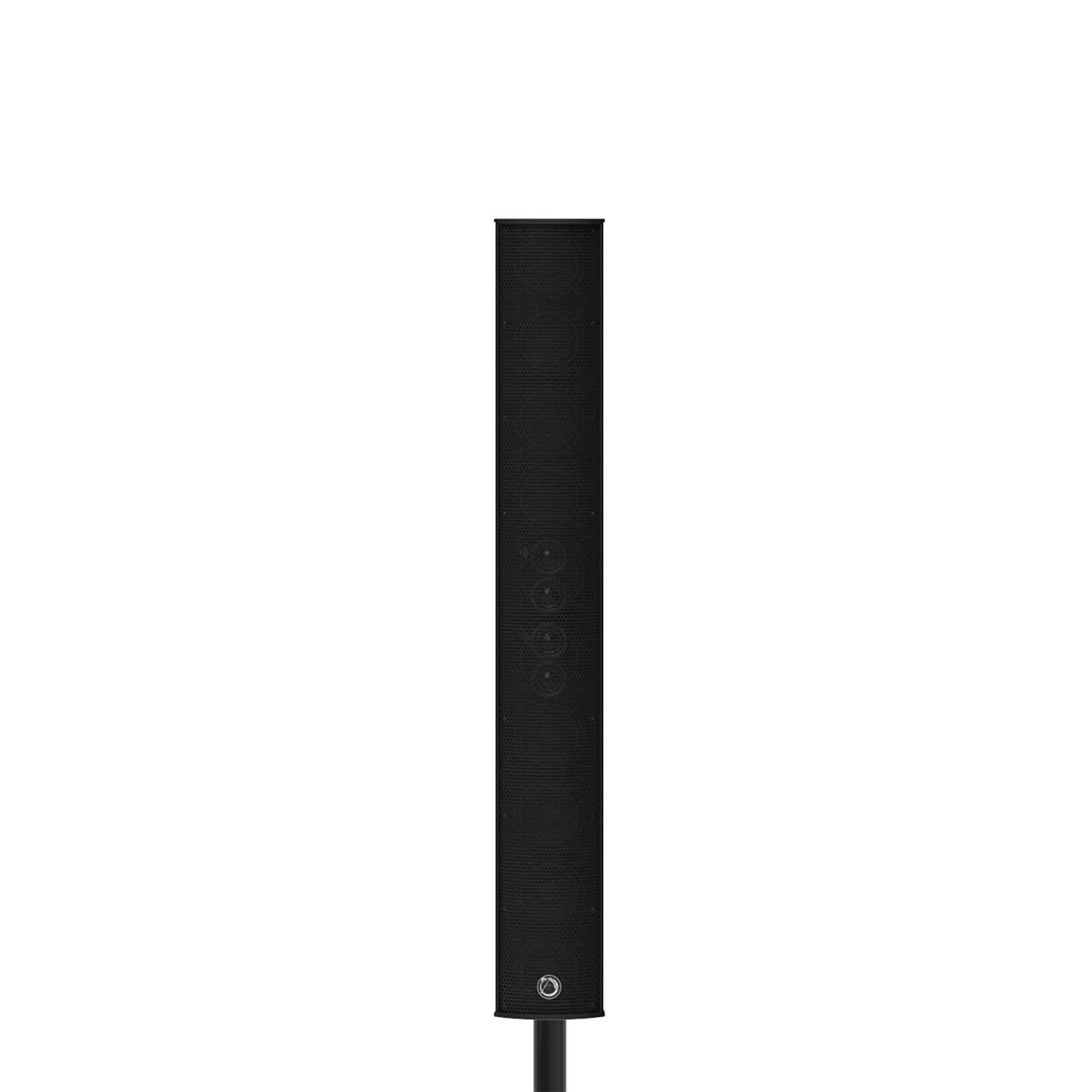

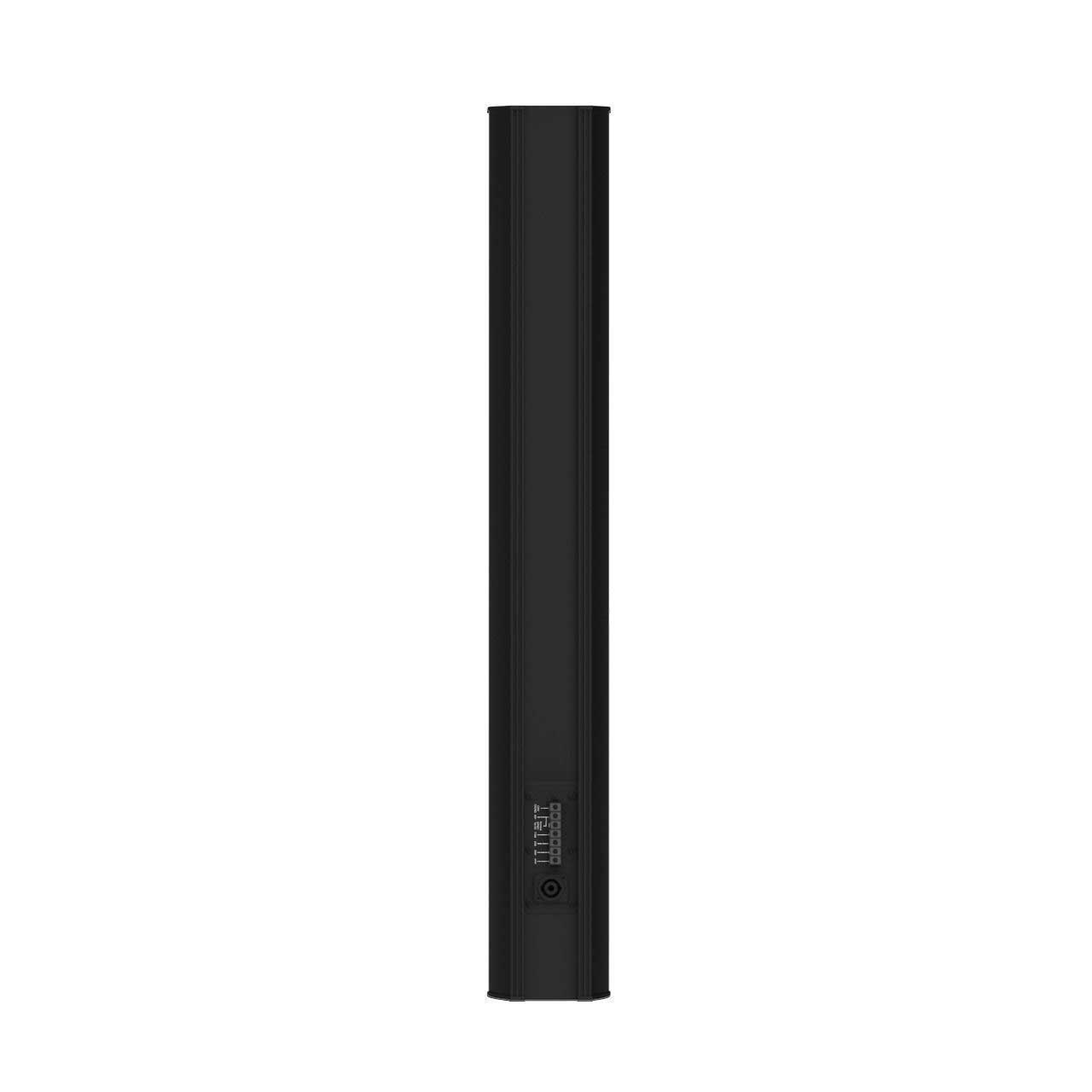

AtlasIED ALA10TAW-B EN54-24 Certified 10 Speaker Full Range Line Array Speaker System - Black

ITEM #: ATL-ALA10TAW-B MFG #: ALA10TAW-B

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$822.99

Our Price:

$659.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ALA10TAW-B - Overview

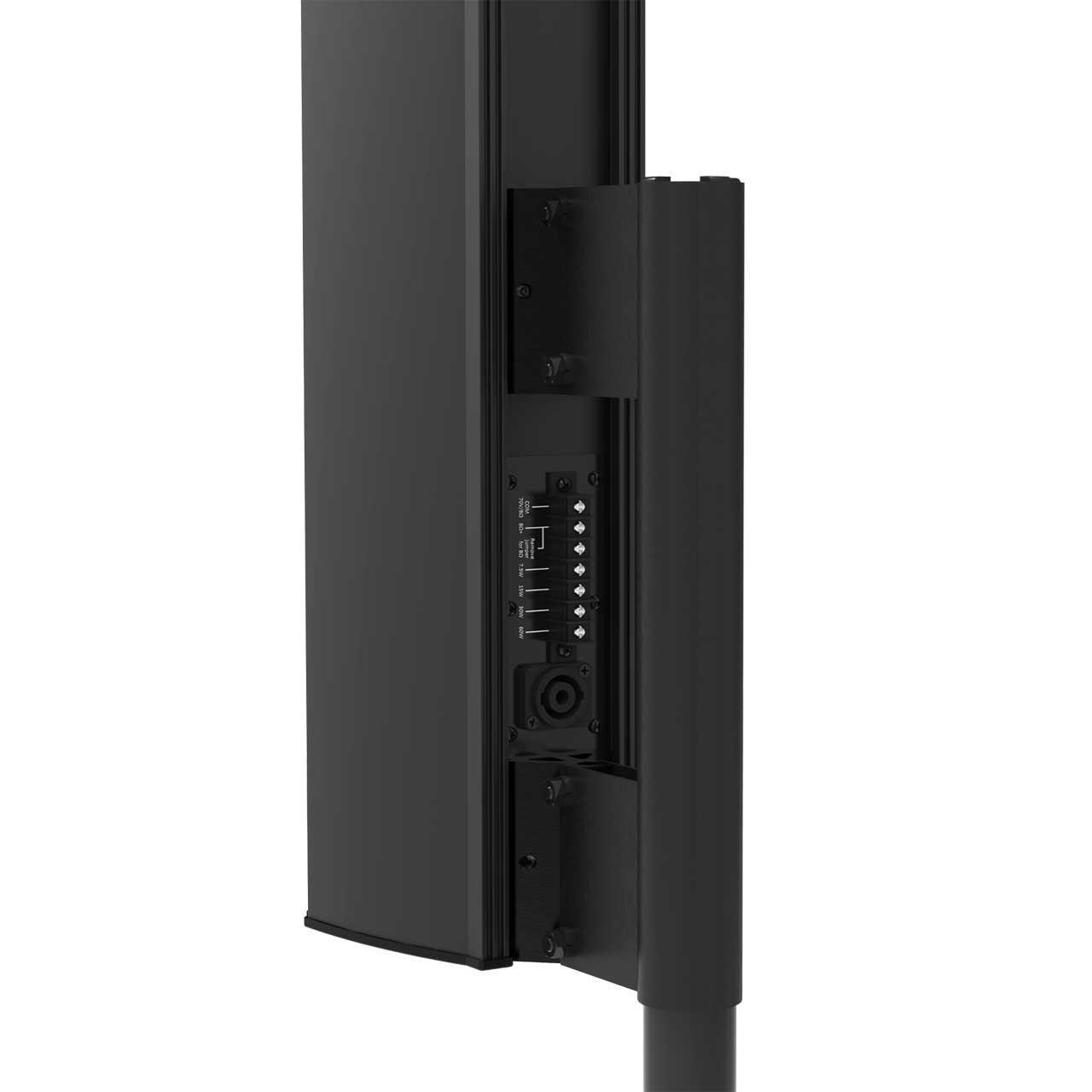

    The AtlasIED EN54-24 certified compact ALA10TAW-B column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA10TAW's transducer configuration combines ten tight packed 3" (76mm) full range drivers and four 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system.

    Note: Pole and pole mount bracket sold separately.

    • Features:

      • 45° Vertical Coverage
      • 135° Horizontal Coverage
      • Ten (10) Proprietary 3" (76mm) Full Range Drivers
      • Four (4) High Frequency Tweeters
      • Barrier Strip and NL-4 Terminals
      • Lightweight Aluminum Housing
      • Wall Mount Bracket Included

    • Specifications:

      • 6 Ohm RMS Power: 600 Watts
      • 70.7V Power Taps: 60W (81Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6Ω)
      • 100V Power Taps: 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6Ω)
      • Dispersion: 135° H x 40° V
      • Sensitivity: 96dB (1W/1m)
      • Sensitivity (EN54-24): 82dB (1W/4m)
      • Frequency Response: 160Hz - 20kHz (+/-5dB)
      • Height: 32.9" (835.7mm)
      • Depth: 5.43" (137.9mm)
      • Width: 4.61" (117mm)

    • Item Includes:

      • 1x Atlas IED ALA10TAW-B EN54-24 Certified 10 Speaker Full Range Line Array Speaker - Black

    • Warranty:

      • 5-Year Limited Warranty
