Atlas M1000 8 Inch Dual Cone Sound Masking Speaker with 4-Watt 70V Transformer and Enclosure - Black

ITEM #: M1000 MFG #: ATLAS M1000

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$86.99

Our Price:

$71.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    ATLAS M1000 - Overview

    Sound Masking Loudspeaker

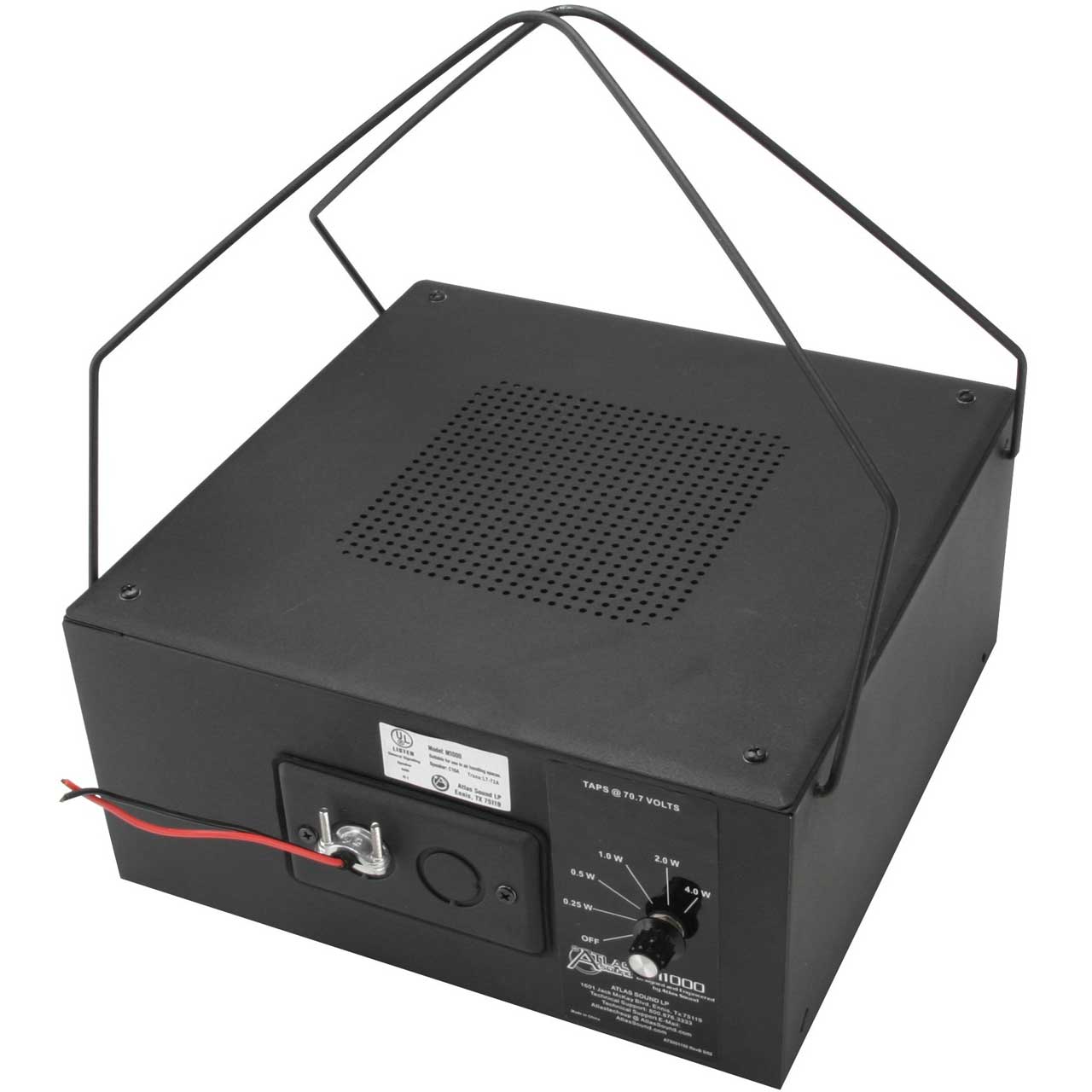

    The Atlas M1000 is an 8 Inch, Dual Cone, Sound Masking Speaker with a 4-Watt 70V Transformer in a Black Enclosure.

    With a majority of America's workplaces having adopted an open office plan, favoring a labyrinth of cubicles over traditional closed offices, conversational privacy has become an increasingly sensitive issue. A properly designed sound masking system can significantly increase speech privacy and improve the overall work environment. The new Atlas Sound M1000 masking speaker assembly is designed to accurately reproduce the needed spectrum of masking sound into the plenum space. The innovative 734 Cubic Inch square enclosure ensures ample low frequency response. A specially designed 8" dual cone loudspeaker is included in the package. For more precise adjustments, an off switch and a wide selection of wattage taps ranging from .25 watts to 4 watts are provided. Along with the various wattage tap selections, the M1000-W comes with an 8Ω bypass setting.To meet most local code requirement, the M1000 includes an innovative cover containing both knockouts and a strain relief. This system will allow the use of rigid or flexible conduit (if required) and easily accommodates "through" connections on the removable plate.

    The M1000 masking speaker assembly is designed to accurately reproduce the required spectrum of masking signal into the plenum space. The innovative 734 cubic inch square enclosure ensures ample low frequency response. A specially designed 8" dual cone loudspeaker is included in the package. A high efficiency 70.7V internal transformer is coupled to an external tap selector switch for easy system tuning.

    The exclusive Atlas Sound EZ hang brackets simplify installation. This innovative suspension system utilizes (2) collapsible plated hangers configured to allow quick upward, downward, or side firing installation. The hangers are factory-installed on the unit and fold flat for shipping. To meet most any local code requirement, the M1000 includes an innovative cover containing both knockouts and a strain relief. This system will allow the use of rigid or flexible conduit (if required) and easily accommodates "through" connections on the removable plate. UL 2043 listed for use in air handling spaces.

    Please Note: This product requires a masking generator and 70.7V amplifier to operate (sold separately).

    • Features:

      • Pre-Assembled Unit Includes 8 inch diameter Loudspeaker, Transformer, Enclosure, Baffle and Mounting Hardware
      • Labor-Saving Hardware Package - Complete with New Snap Hanger Assembly, Allows Quick and Easy Installation
      • Innovative Input Panel Includes Combination Knock-Out and Strain Relief Connector to Accommodate Flexible or Rigid Conduit
      • Design Enables Upward, Downward, or Horizontal Orientation
      • 734 cubic inch Enclosure for Extended Low Frequency Response
      • Available in Black or White Epoxy Finishes to Blend with a Variety of Open Ceiling Plans
      • Suitable for Use Above Suspended Ceiling Systems or Open Ceiling Spaces Approved for Use in Air Handling (Plenum Ceilings)
      • Safety Listed to UL 1480 & UL 2043

    • Specifications:

      • Loudspeaker:
      • 8 Inch Dual Cone

      • Sensitivity:
      • 97dB Peak, 94dB Average

      • Frequency Response:
      • 100Hz - 10kHz

      • Safety Listed:
      • UL1480, UL2043

      • 70.7V Power Taps:
      • .25, .5, 1, 2 and 4

      • Width:
      • 11 9/16" (29.37002 cm)

    • GTIN:

      0612079179930
